Pressure Switches
3-Screen Display High-Precision Digital Pressure Switch
ZSE20□(F)/ISE20□
-
?Integrated R1/8 fitting with bottom wiring entry [New]
?An M12 connector type has been added. [New]
?A low pressure range type has been added. [New]
?Visualization of settings
?Simple 3-step setting
?Easy screen switching
It is possible to change the settings while checking the measured value.
?Delay time:1.5 ms or less
?Current consumption: 25 mA or less
?IO-Link compatible
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD 3-Screen Display High-Precision Digital Pressure Switch
ZSE20□(F)/ISE20□Manual
Series Type View search result ZSE20（F）
ISE20Compound pressure
Vacuum pressure
Positive pressureView search result ZSE20A（F）
ISE20ACompound pressure
Vacuum pressure
Positive pressureView search result ZSE20AF-X576 to 580
(Made to Order)Compound pressure View search result ZSE20B（F）-(L)
ISE20B-(L)Compound pressure
Vacuum pressure
Positive pressureView search result ZSE20C（F）-(L)
ISE20C（H）-(L)Compound pressure
Vacuum pressure
Positive pressureView search result 3-Screen Display High-Precision Digital Pressure Switch
ZSE20□(F)/ISE20□DoC
Series Type View search result ZSE20（F）
ISE20Compound pressure
Vacuum pressure
Positive pressureView search result ZSE20A（F）
ISE20ACompound pressure
Vacuum pressure
Positive pressureView search result ZSE20AF-X576 to 580
(Made to Order)Compound pressure View search result ZSE20B（F）-(L)
ISE20B-(L)Compound pressure
Vacuum pressure
Positive pressureView search result ZSE20C（F）-(L)
ISE20C（H）-(L)Compound pressure
Vacuum pressure
Positive pressureView search result
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Output type | Type | Rated pressure range | Enclosure | Applicable fluid |
|---|---|---|---|---|---|
| ZSE20（F） ISE20 | 1 output | Compound pressure Vacuum pressure Positive pressure | ?100.0 to 100.0 kPa 0.0 to ?101.0 kPa ?0.100 to 1.000 MPa | IP40 | Air |
| ZSE20A（F） ISE20A | 2 outputs Analog output (Voltage/Current) | Compound pressure Vacuum pressure Positive pressure | ?100.0 to 100.0 kPa 0.0 to ?101.0 kPa ?0.100 to 1.000 MPa | IP40 | Air |
| ZSE20AF-X576 to 580 (Made to Order) | 2 outputs Analog output (Voltage/Current) | Compound pressure | ?500 to 500Pa ?1.000 to 1.000kPa ?2.00 to 2.00kPa ?5.00 to 5.00kPa ?10.00 to 10.00kPa | IP40 | Air |
| ZSE20B（F）-(L) ISE20B-(L) | 2 outputs Analog output (Voltage/Current) IO-Link/Switch: 1 output | Compound pressure Vacuum pressure Positive pressure | ?100.0 to 100.0 kPa 0.0 to ?101.0 kPa ?0.100 to 1.000 MPa | IP65 | Air |
| ZSE20C（F）-(L) ISE20C（H）-(L) | 2 outputs Analog output (Voltage/Current) IO-Link/Switch: 1 output | Compound pressure Vacuum pressure Positive pressure | ?100.0 to 100.0 kPa 0.0 to ?101.0 kPa ?0.100 to 1.000 MPa ?0.100 to 2.000 MPa | IP65 | General fluids |
Features
Visualization of Settings
The sub screen (label) shows the item to be set.

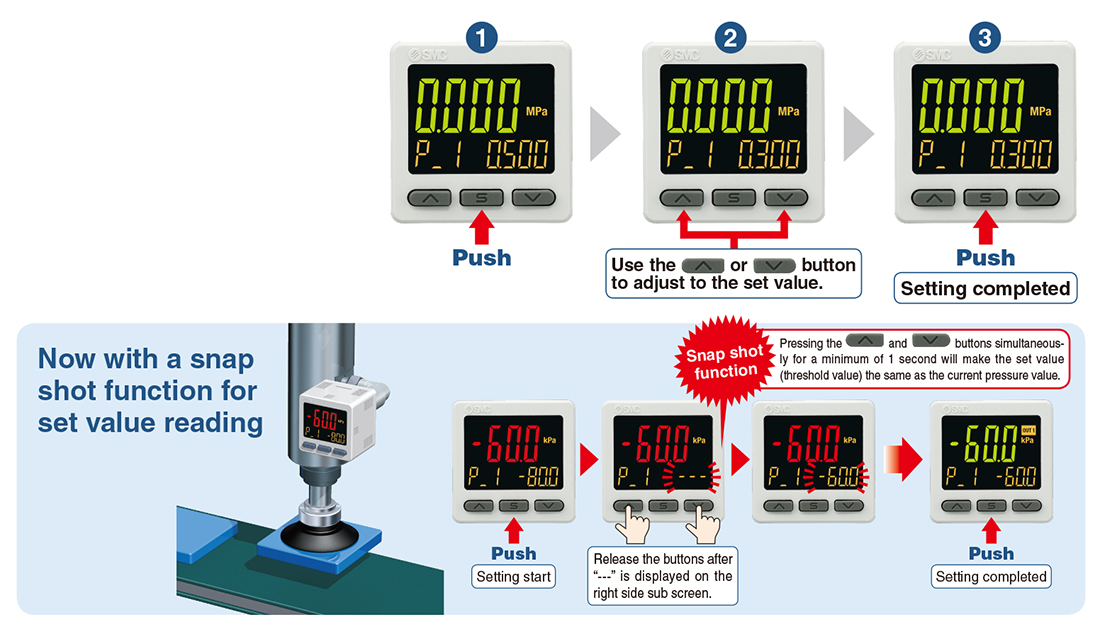

Simple 3-Step Setting
When the S button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the S button is pressed and the hysteresis (H_1) is being displayed, the hysteresis value can be set.

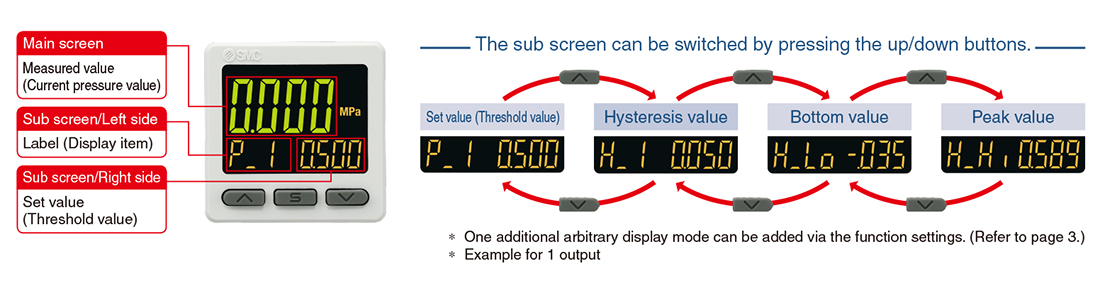

Easy Screen Switching
It is possible to change the settings while checking the measured value.

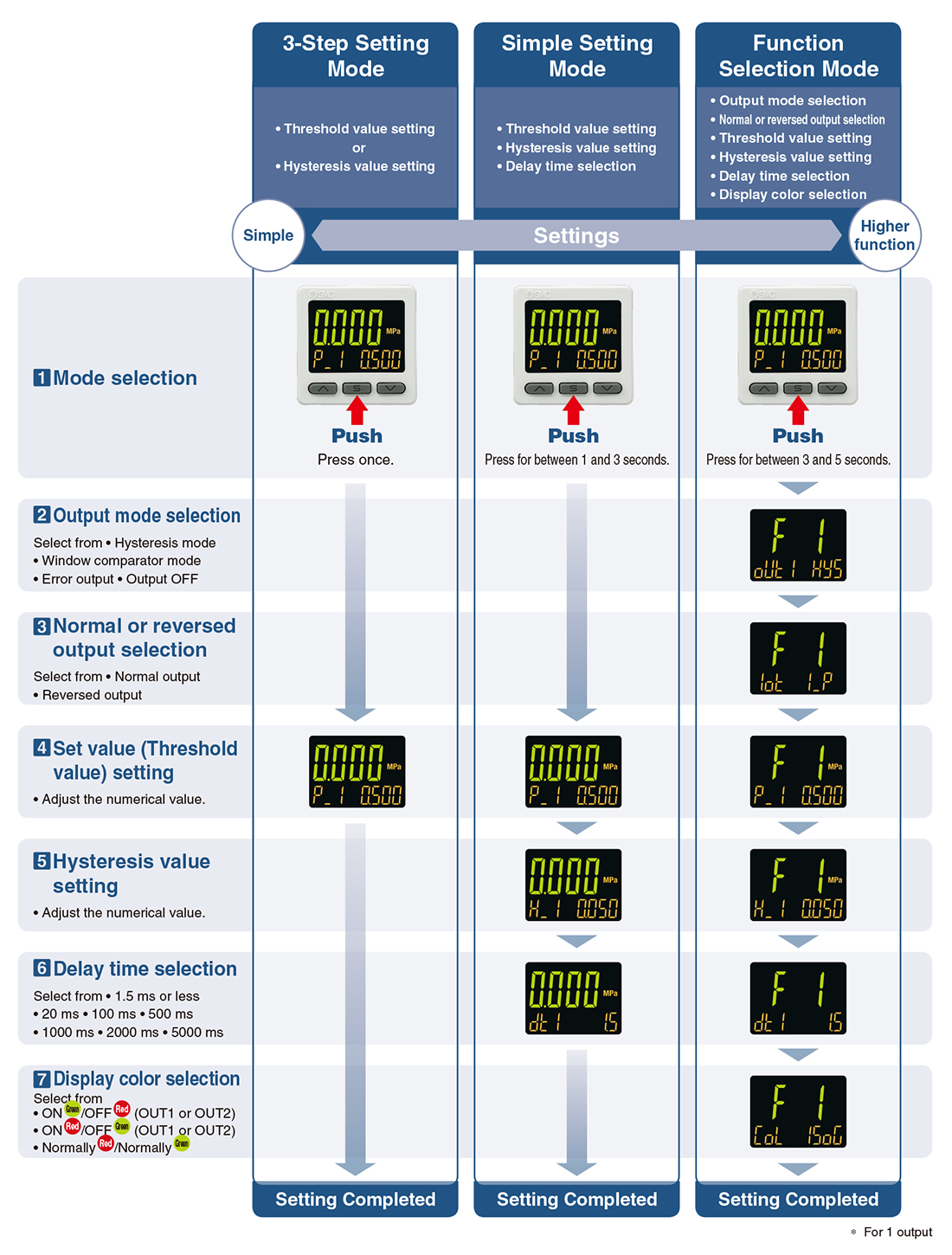

3 Setting Modes
Select the setting mode that best meets your needs.

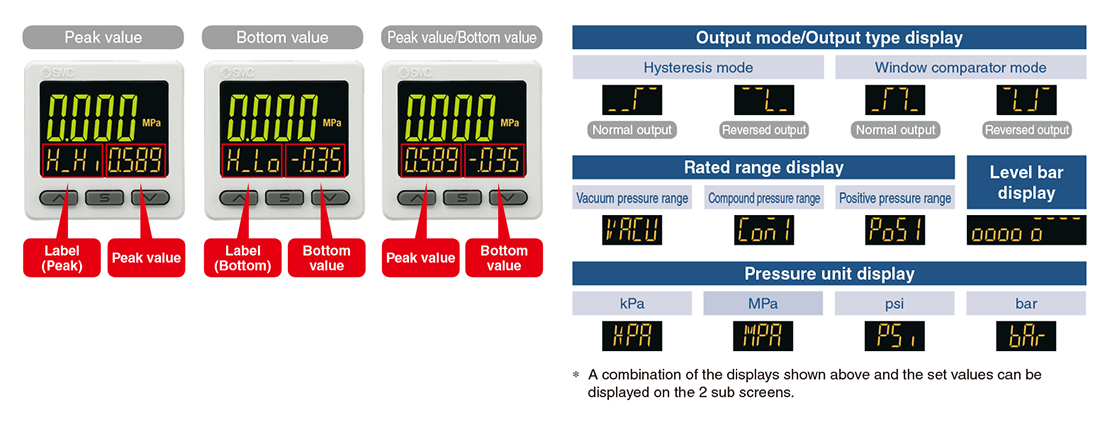

Other Sub Screen Display
The peak value or bottom value, or both values can be displayed on one screen!
* Peak and bottom values are maintained even if the power supply is cut.
Delay Time: 1.5 ms*1 or less
?1 Select from 1.5 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, or 5000 ms.

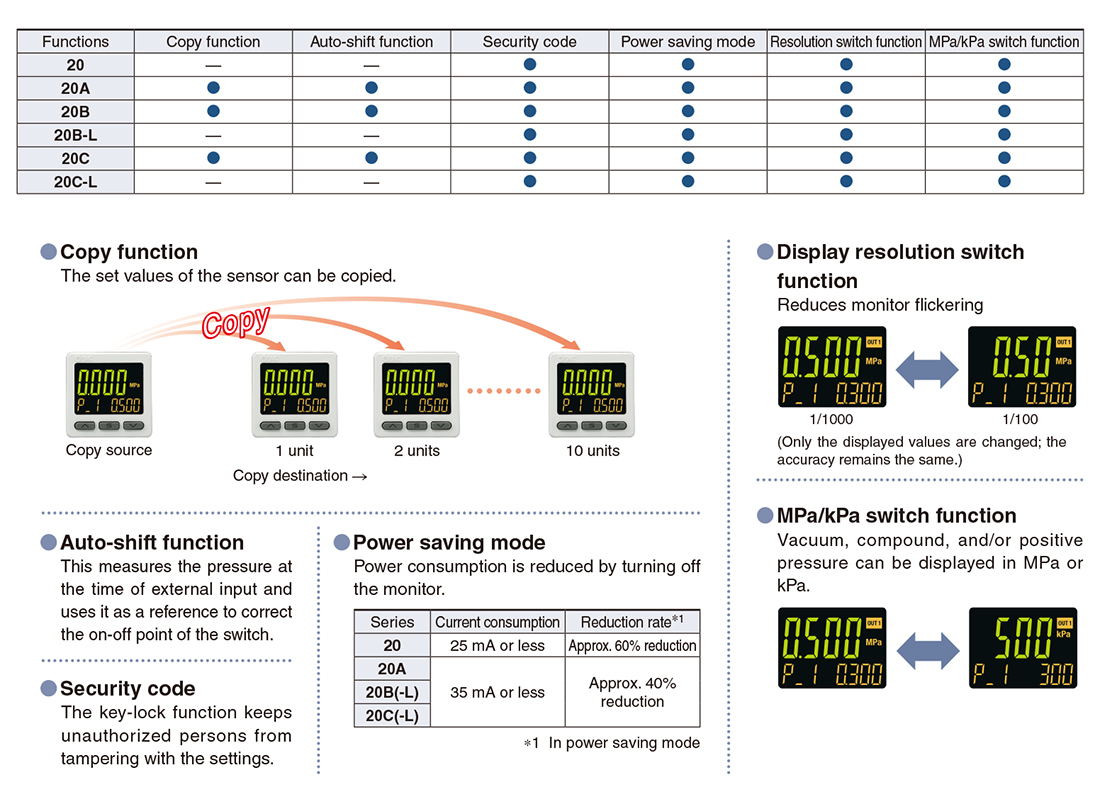

Convenient Functions

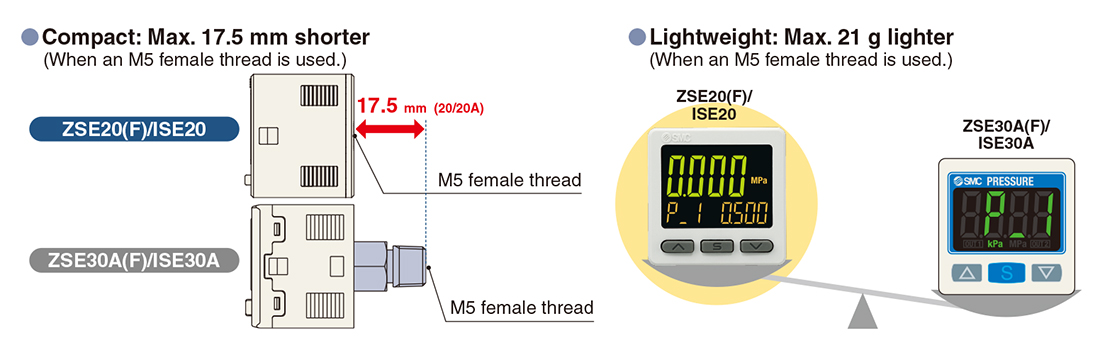

Compact & Lightweight

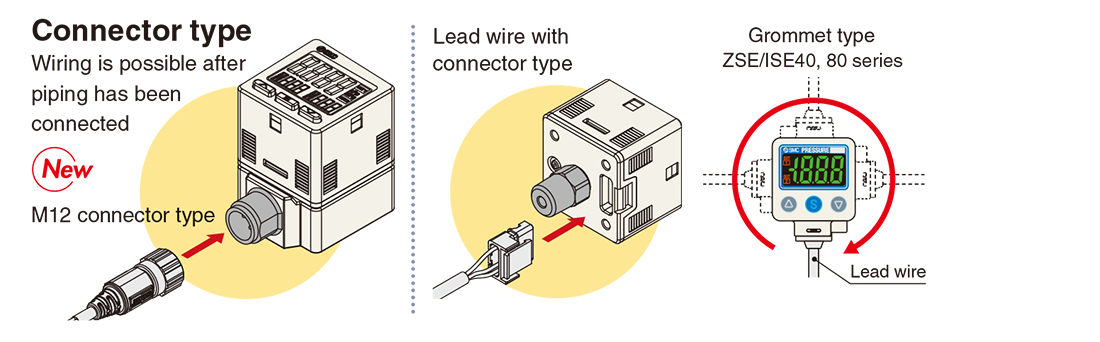

Improved Installability

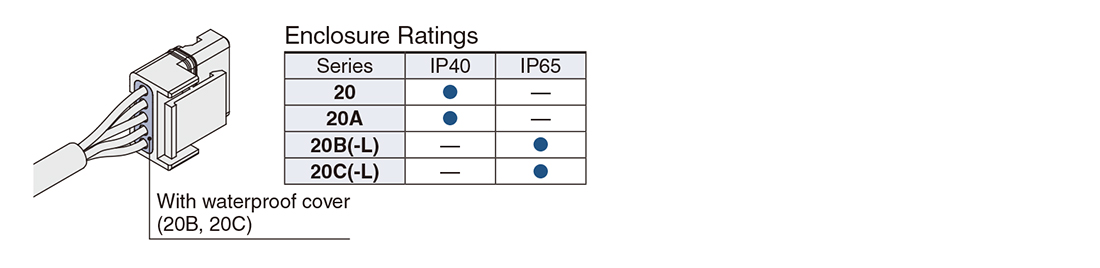

Enclosure

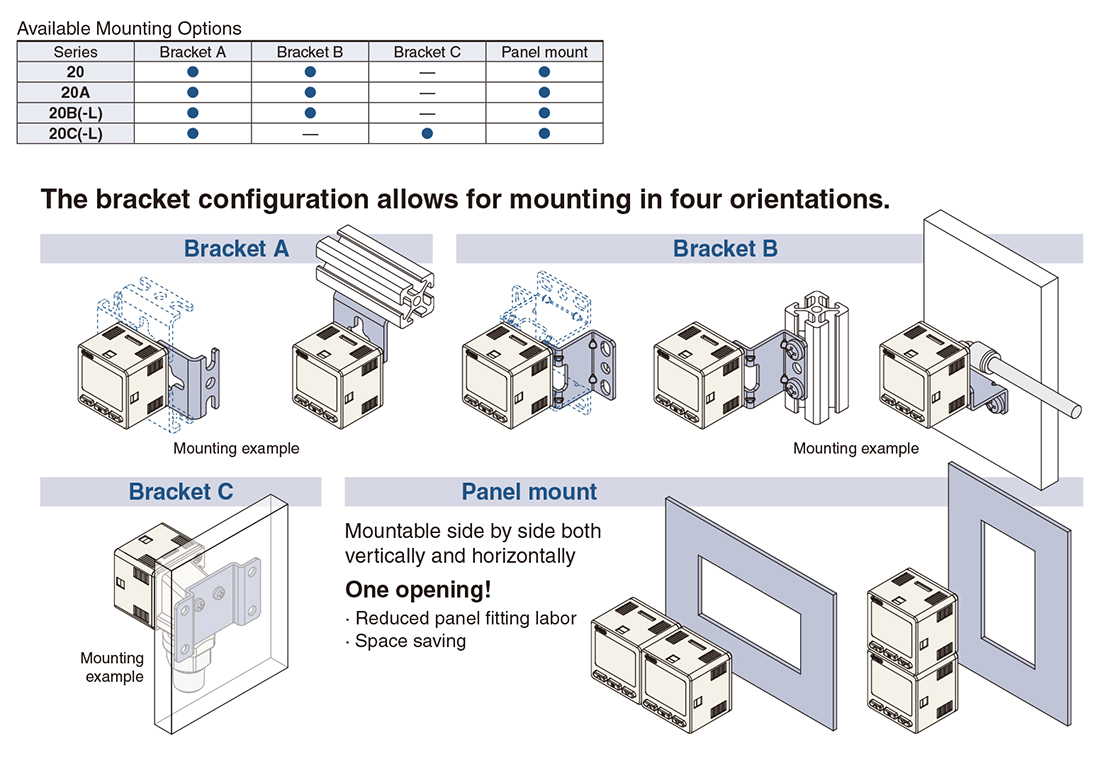

Mounting

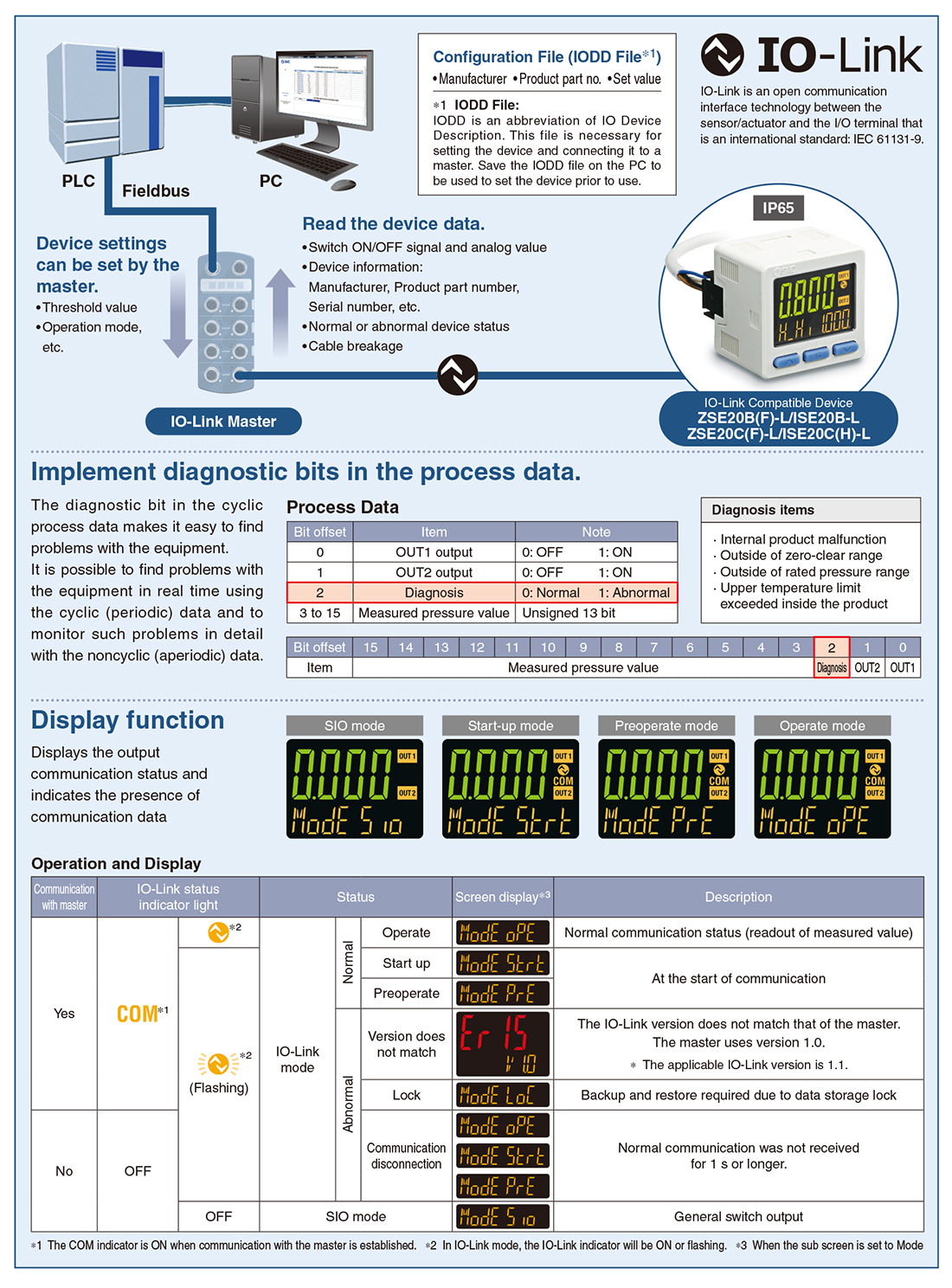

IO-Link Compatible ZSE20B(F)-L/ISE20B-L, ZSE20C(F)-L/ISE20C(H)-L
Visualization of operation/equipment status/Remote monitoring and control by communication

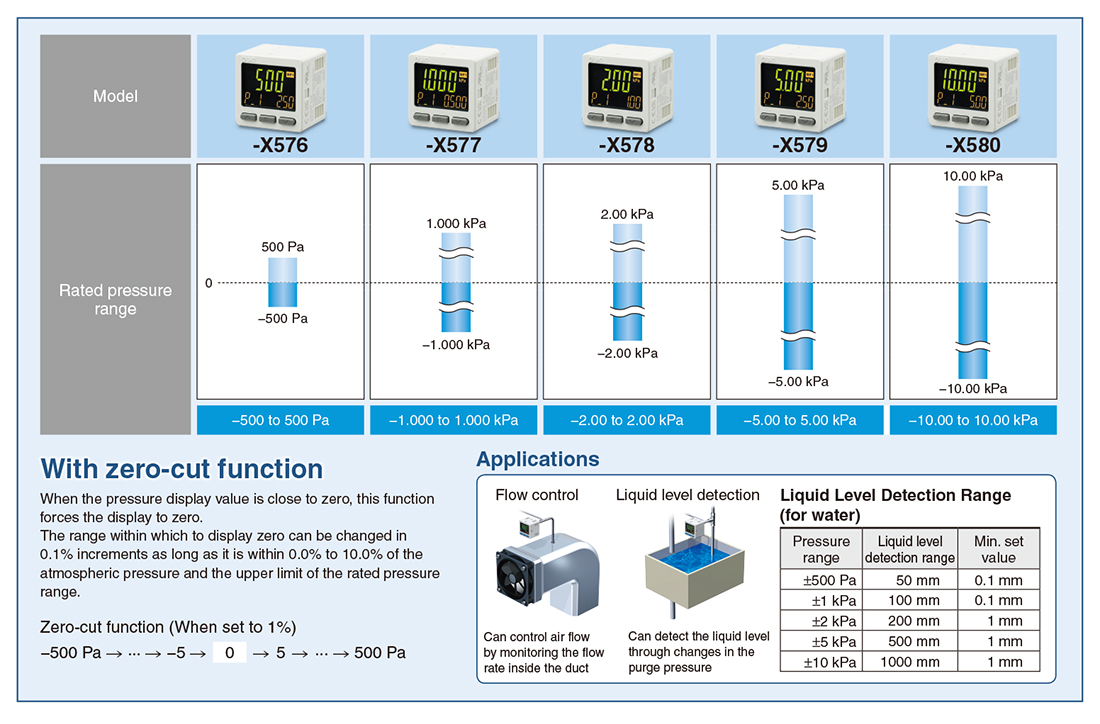

Pressure Switch (for Low Pressure) ZSE20AF-X576 to 580 [Made to Order]
Able to detect and display pressures of 10 kPa or less

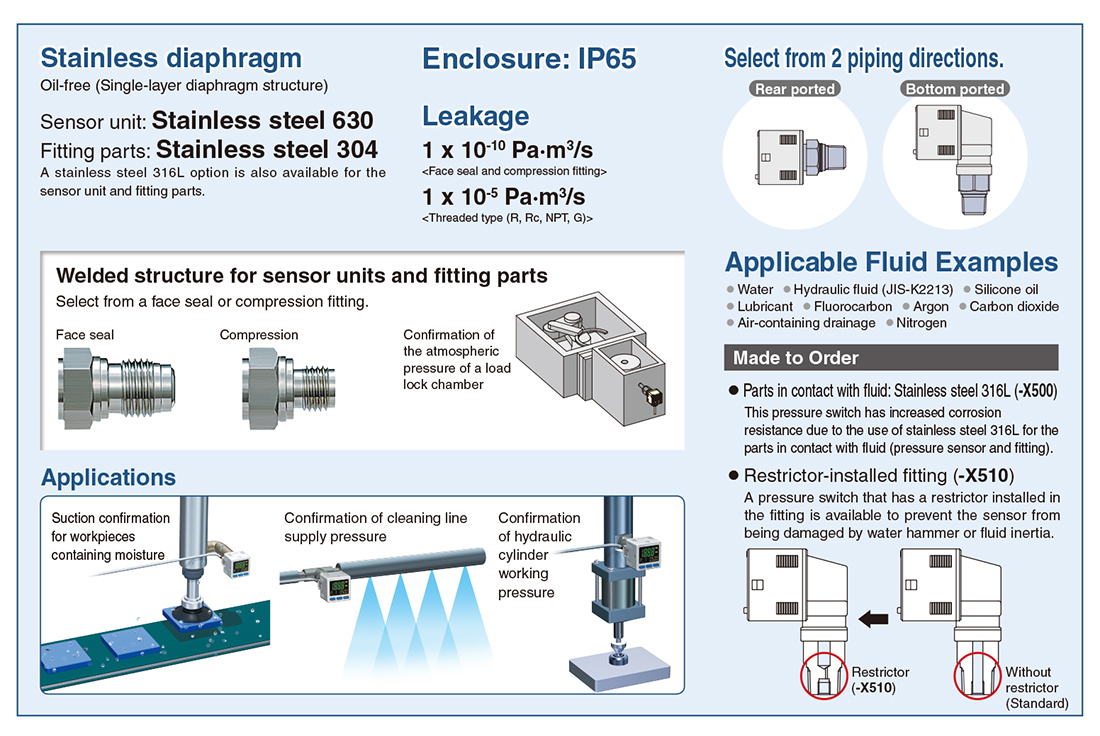

For General Fluids: ZSE20C(F)/ISE20C(H)
