WEB Catalog

Product Information ?  WEB Catalog  ? Electric Actuators/Cylinders  ? Slider Type

Slider Type

Electric Actuator/High Rigidity Slider Type Ball Screw Drive
LEJS63□-□M

    ?Built-in intermediate supports
    ?A maximum speed of 1,800 mm/s has been achieved throughout the
    　entire stroke!
    　The use of intermediate supports results in reduced deflection of the ball
    　screw when a long stroke is used.
    ?Max. stroke: 1,790 mm
    ?Horizontal work load: 85 kg
    ?Positioning repeatability: ±0.01 mm (High-precision type)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SpecificationSeriesStroke
(mm)		Work load (kg)
Horizontal		Speed
(mm/s)		Screw lead
(mm)

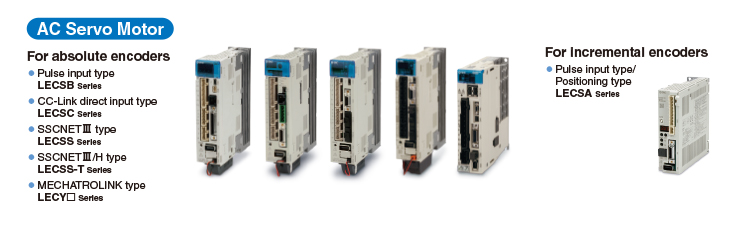

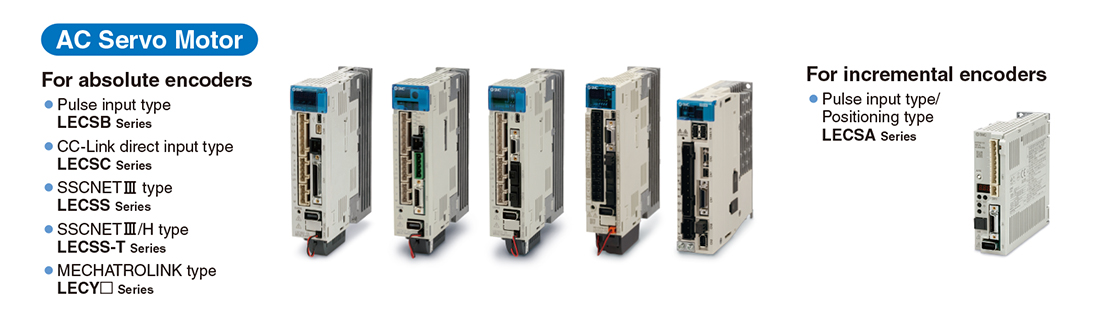

AC servo motorLEJS63□-□M790 to 1790Max. 85Max. 180010，20，30

Features

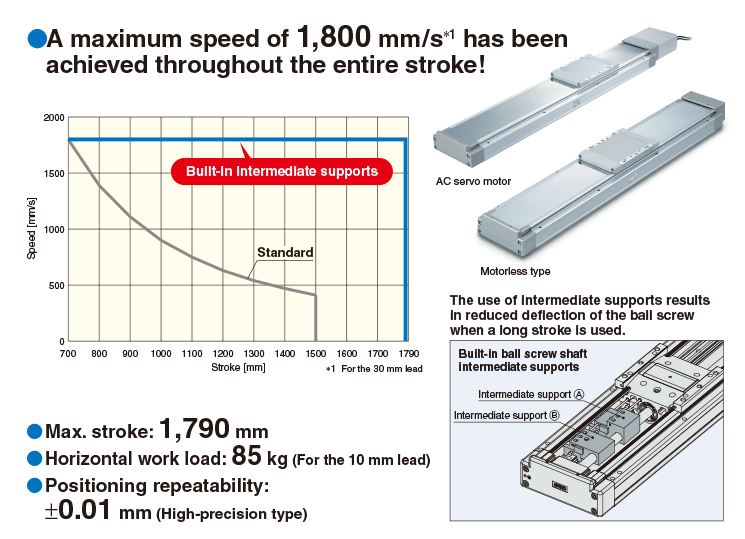

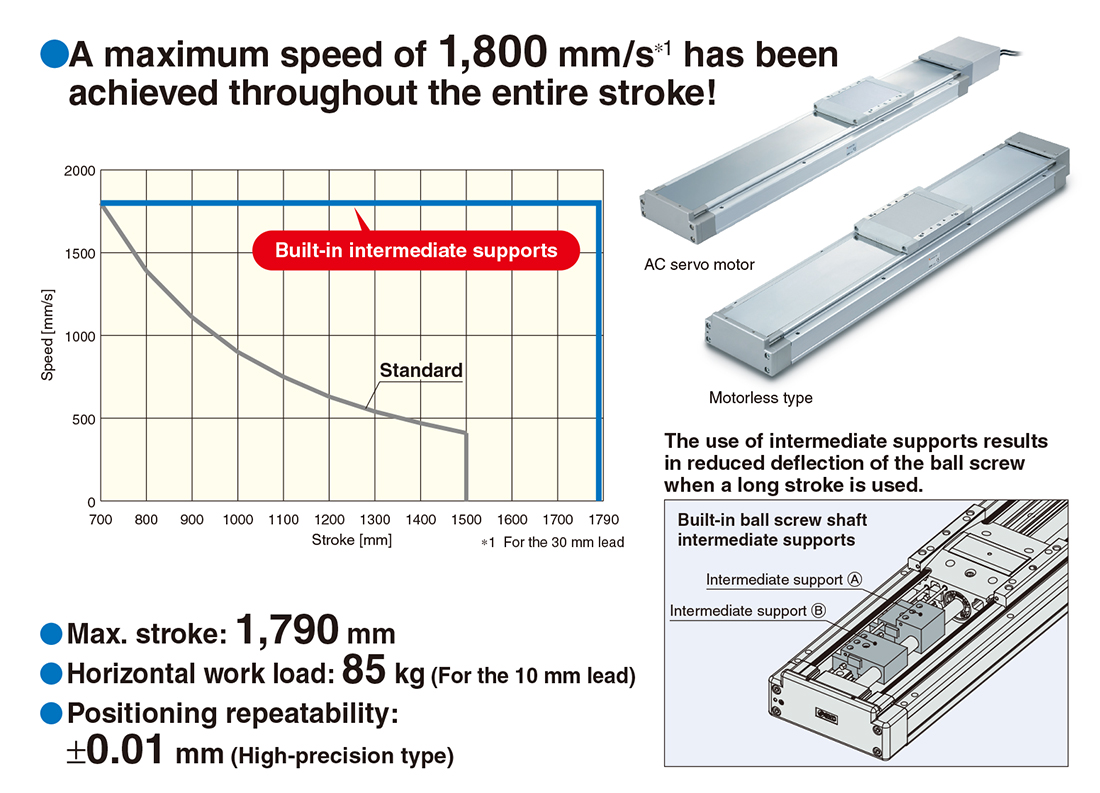

A maximum speed of 1,800 mm/s1 has been achieved throughout the entire stroke!

Compatible driver

Motorless type
