Compact 2/3 Port Solenoid Valves/Air Operated Valves
Pulse Blow Valve AXTS040□-□□-X2
-
?The peak pressure of repeatedly colliding air permits efficient blowing.
?Air consumption: Reduced by 50% or more
?Control for pulse generation is not required.
Pulse blow can be used by simply supplying air.
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD

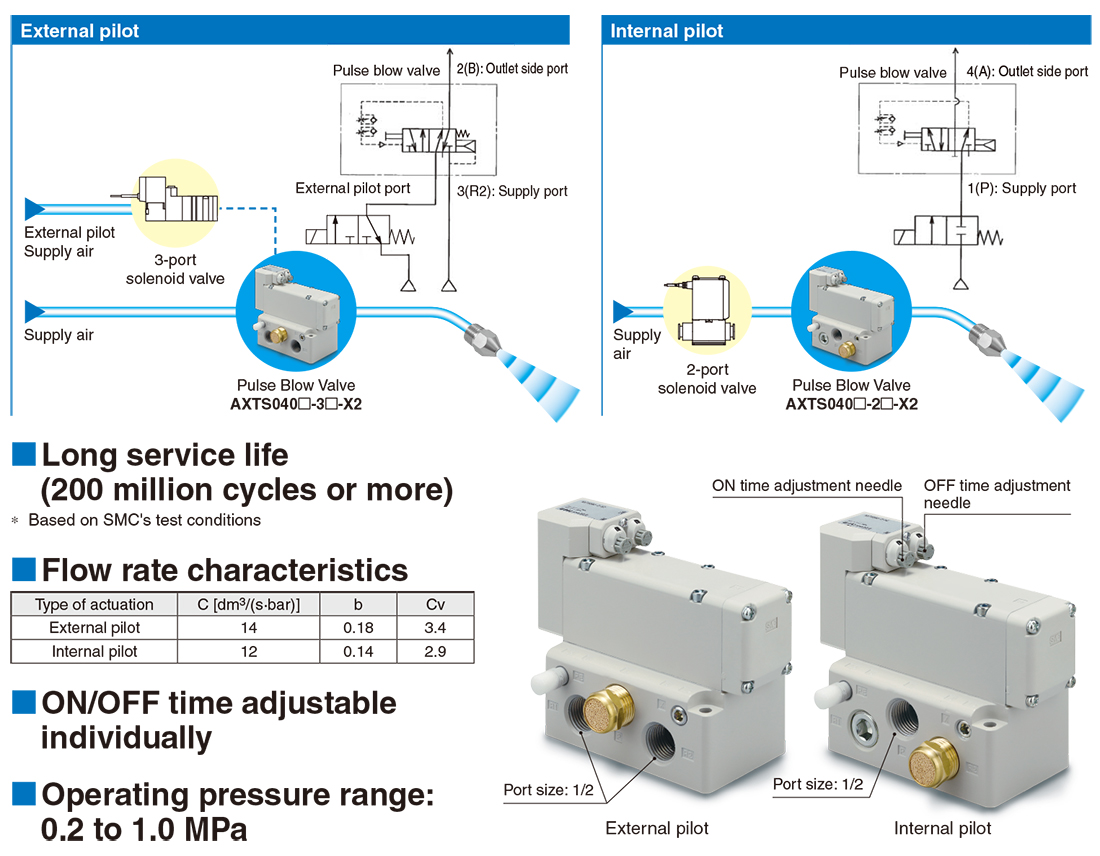

| Series | Valve construction | Type of actuation | Frequency adjustment range |
|---|---|---|---|
| AXTS040□-2□-X2 | Metal seal | Internal pilot | 1 to 5Hz |
| AXTS040□-3□-X2 | Metal seal | External pilot | 1 to 8Hz |
Features

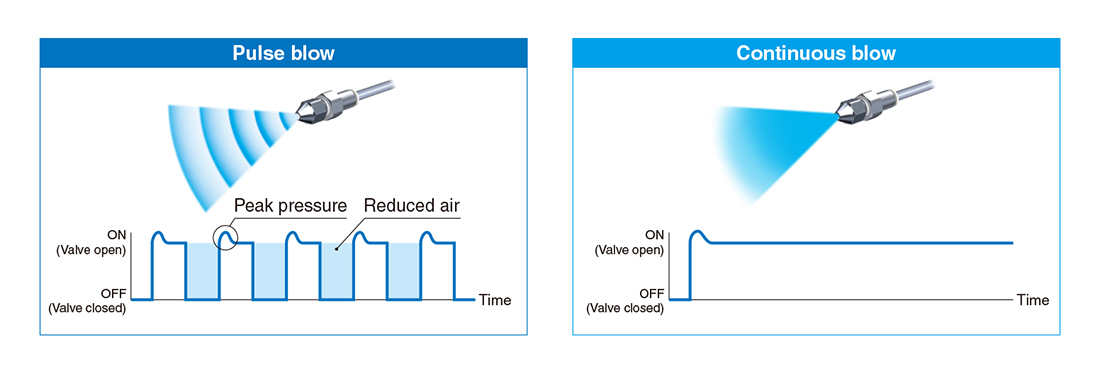

The peak pressure of repeatedly colliding air permits efficient blowing.
Control for pulse generation is not required.
Pulse blow can be used by simply supplying air.
-
Long service life (200 million cycles or more)
ON/OFF time adjustable individually
Operating pressure range: 0.2 to 1.0 MPa
-

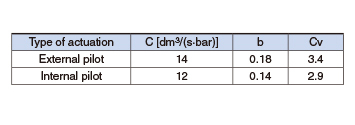

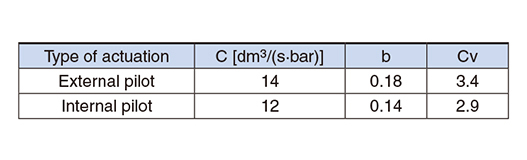

Flow rate characteristics
