WEB Catalog

Product Information ?  WEB Catalog  ? Flow Control Equipment  ? Speed Controllers for General Purposes

Speed Controllers for General Purposes

Push-lock Type Dual Speed Controller with One-touch Fitting ASD-A

    ?Easy to lock push-lock type
    ?No tools required. Larger knob
    ?Allows for simultaneous meter-in and meter-out control

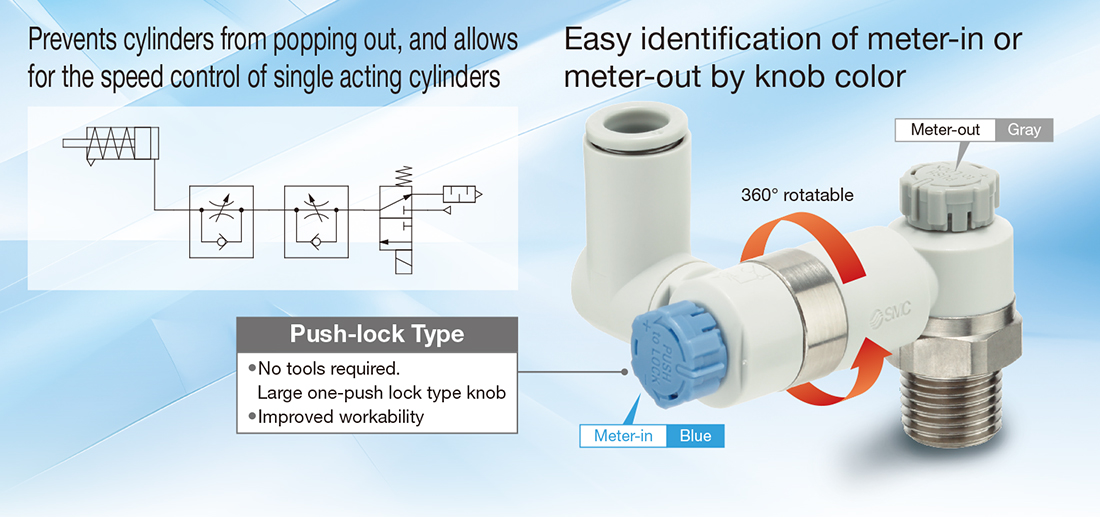

    ?Prevents cylinders from popping out, and allows for the
    　speed control of single acting cylinders
    ?Easy identification of meter-in or meter-out by knob color

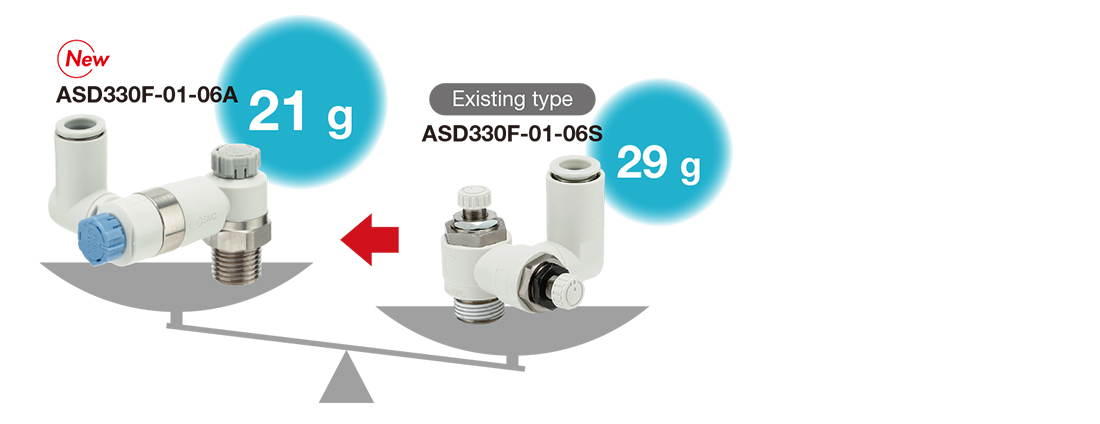

    ?Lightweight: Approx. 28% lighter

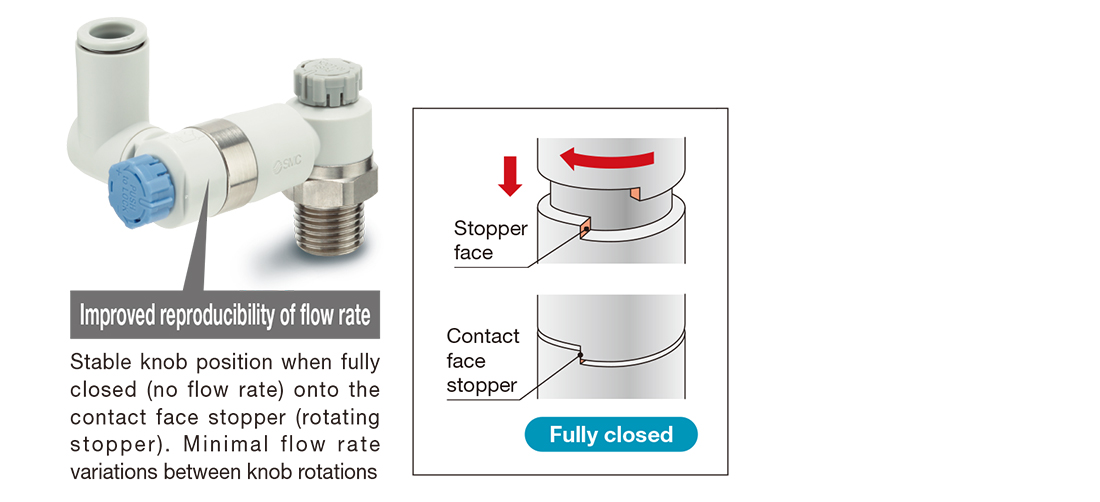

    ?Improved reproducibility of flow rate
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

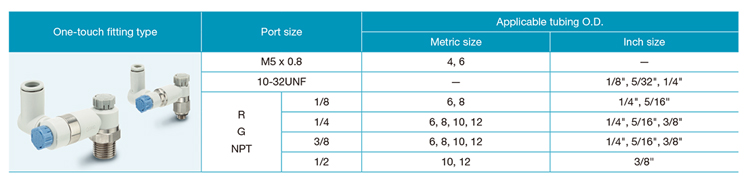

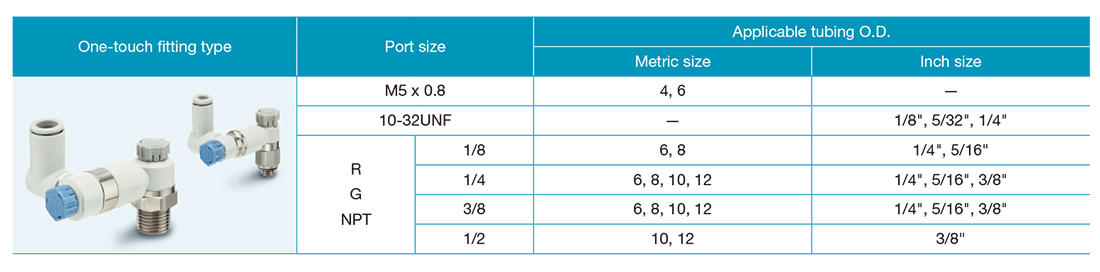

TypeSeriesPort size on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Dual speed
controller		ASD-AM5 to 1/2φ4 to φ12φ1/8'' to φ3/8''

Features

Allows for simultaneous meter-in and meter-out control

Lightweight: Approx. 28% lighter

Flow Rate Reproducibility

Variations
