WEB Catalog

Product Information ?  WEB Catalog  ? Switches/Sensors/Controller  ? Electronic Temperature & Humidity Switches

Electronic Temperature & Humidity Switches

3-Screen Display Condensation Checker (Digital Temperature & Humidity Switch) PSH

    ?A relative humidity under pressure (inside piping) display function has
    　been added. New

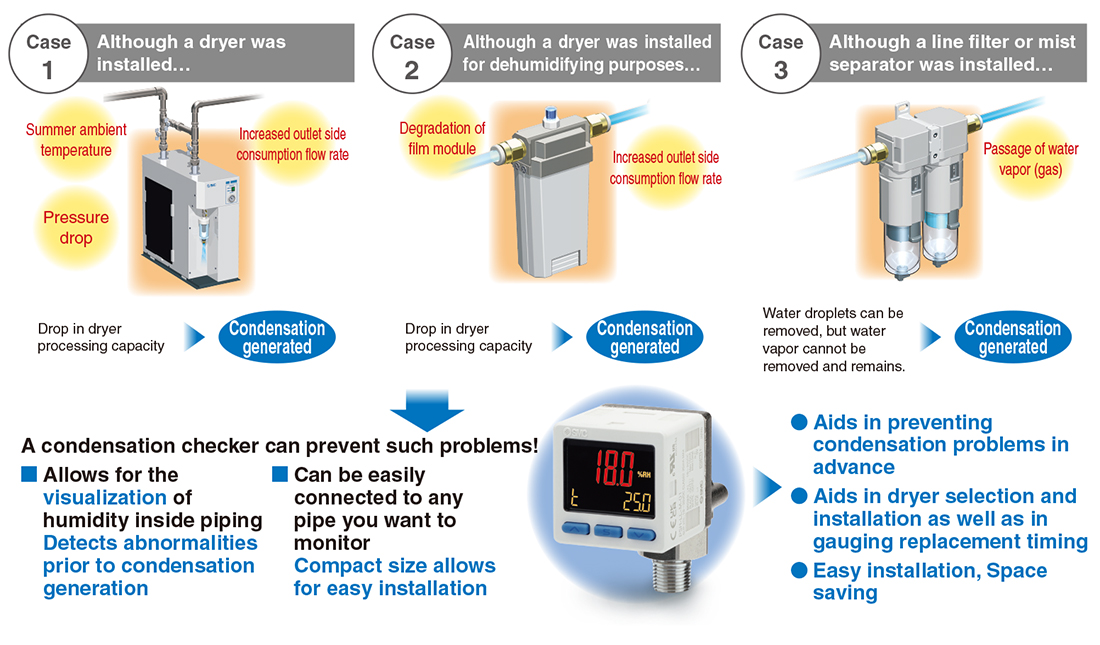

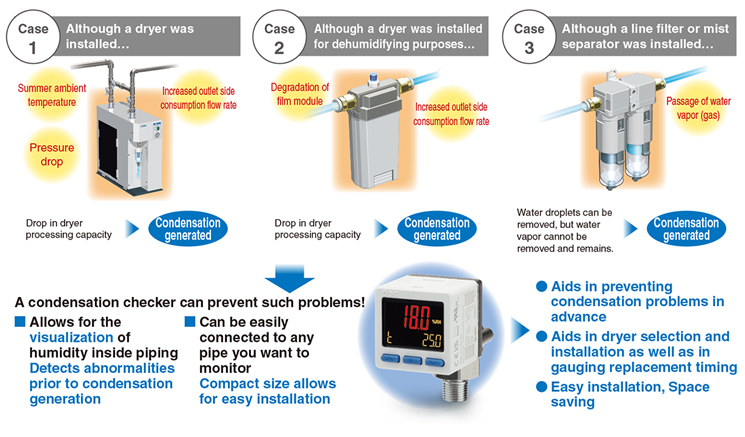

    ?A condensation checker can prevent such problems!
    　Allows for the visualization of humidity inside piping
    　Detects abnormalities prior to condensation generation
    ?Can be easily connected to any pipe you want to monitor
    　Compact size allows for easy installation

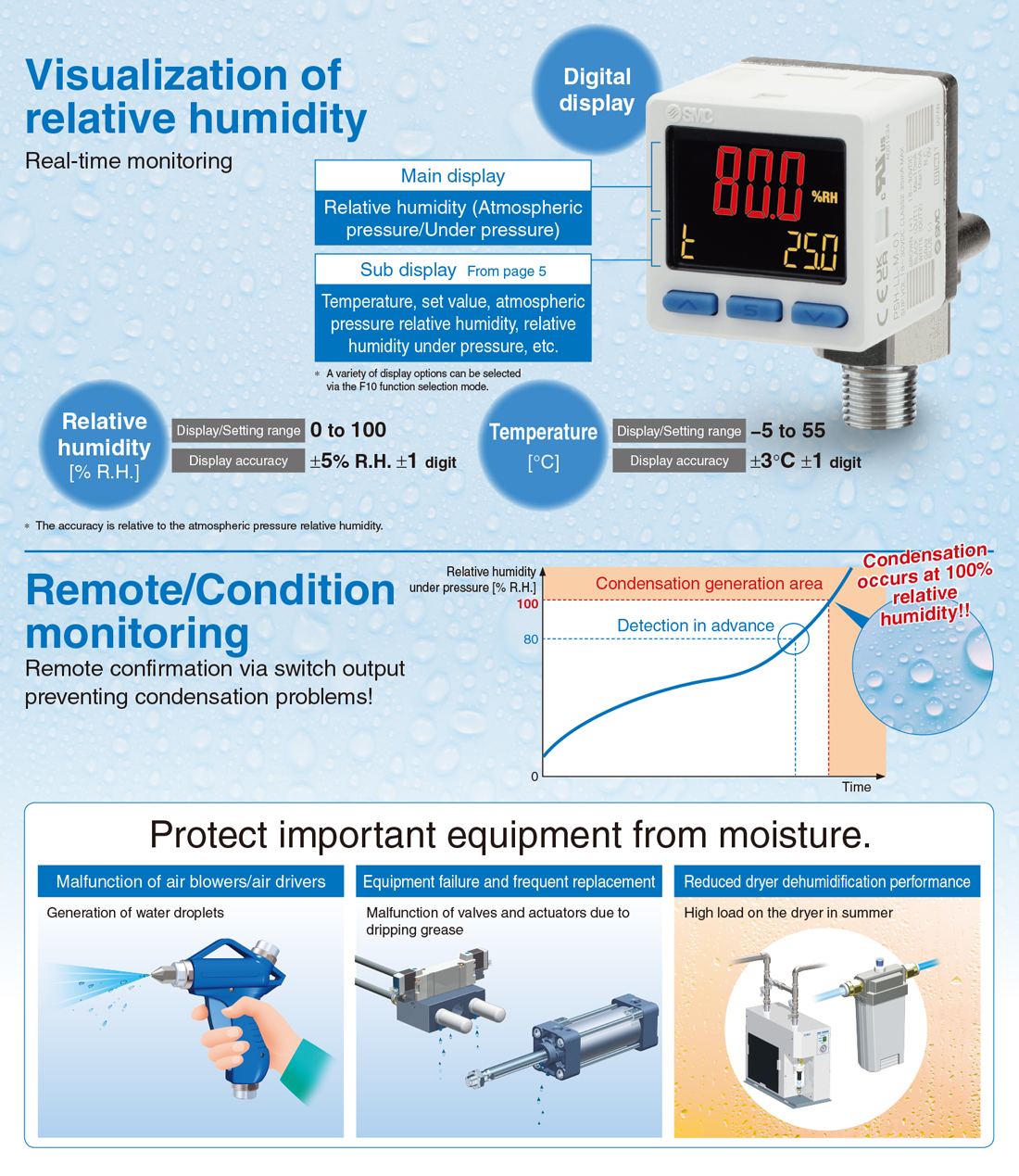

    ?Visualization of relative humidity
    　Real-time monitoring
    ?Remote/Condition monitoring
    　Remote confirmation via switch output preventing condensation
    　problems!
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Screen Display Condensation Checker (Digital Temperature & Humidity Switch) PSH
    Manual
    Series View search result
    PSHView search result
  • 3-Screen Display Condensation Checker (Digital Temperature & Humidity Switch) PSH
    DoC
    Series View search result
    PSHView search result
SeriesSet temperature rangeSet relative humidity rangeDisplay accuracy
PSH-5 to 55°C0 to 100% R.H.
(No condensation)		Temperature: ±3°C ±1 digit
Humidity: ±5% R.H. ±1 digit

Features

Features

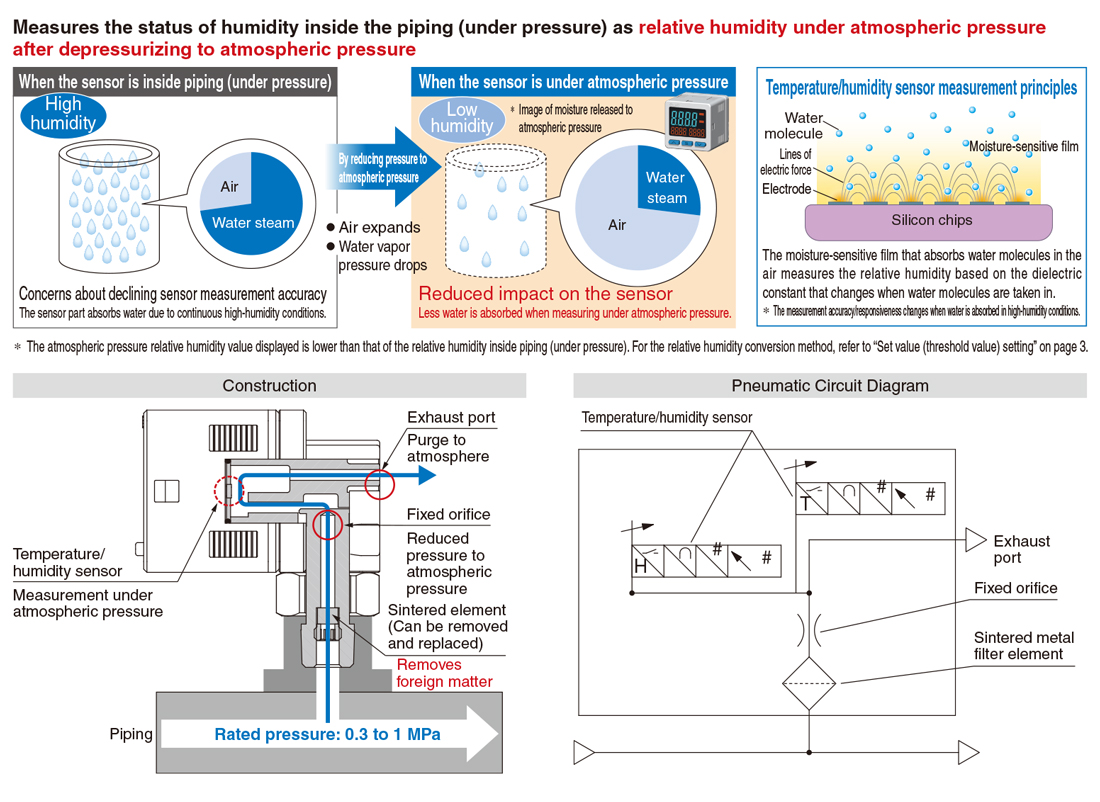

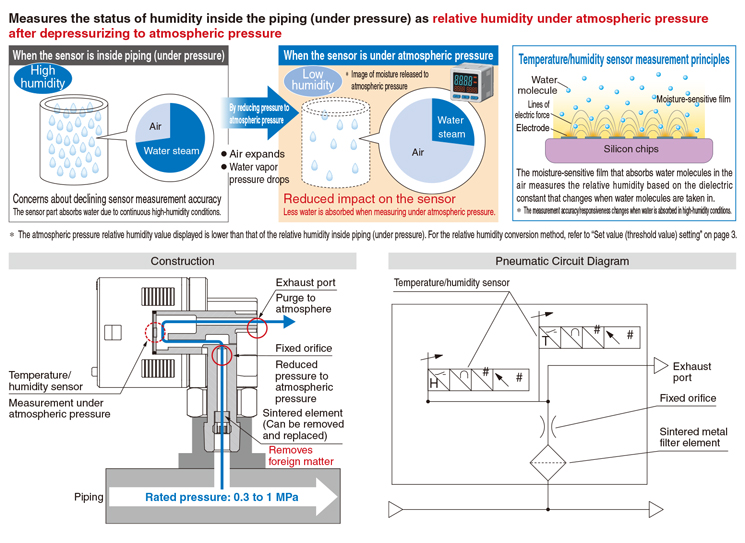

Condensation problem inside piping

Water resistant!

Measurement with stable accuracy is possible even inside humid piping!

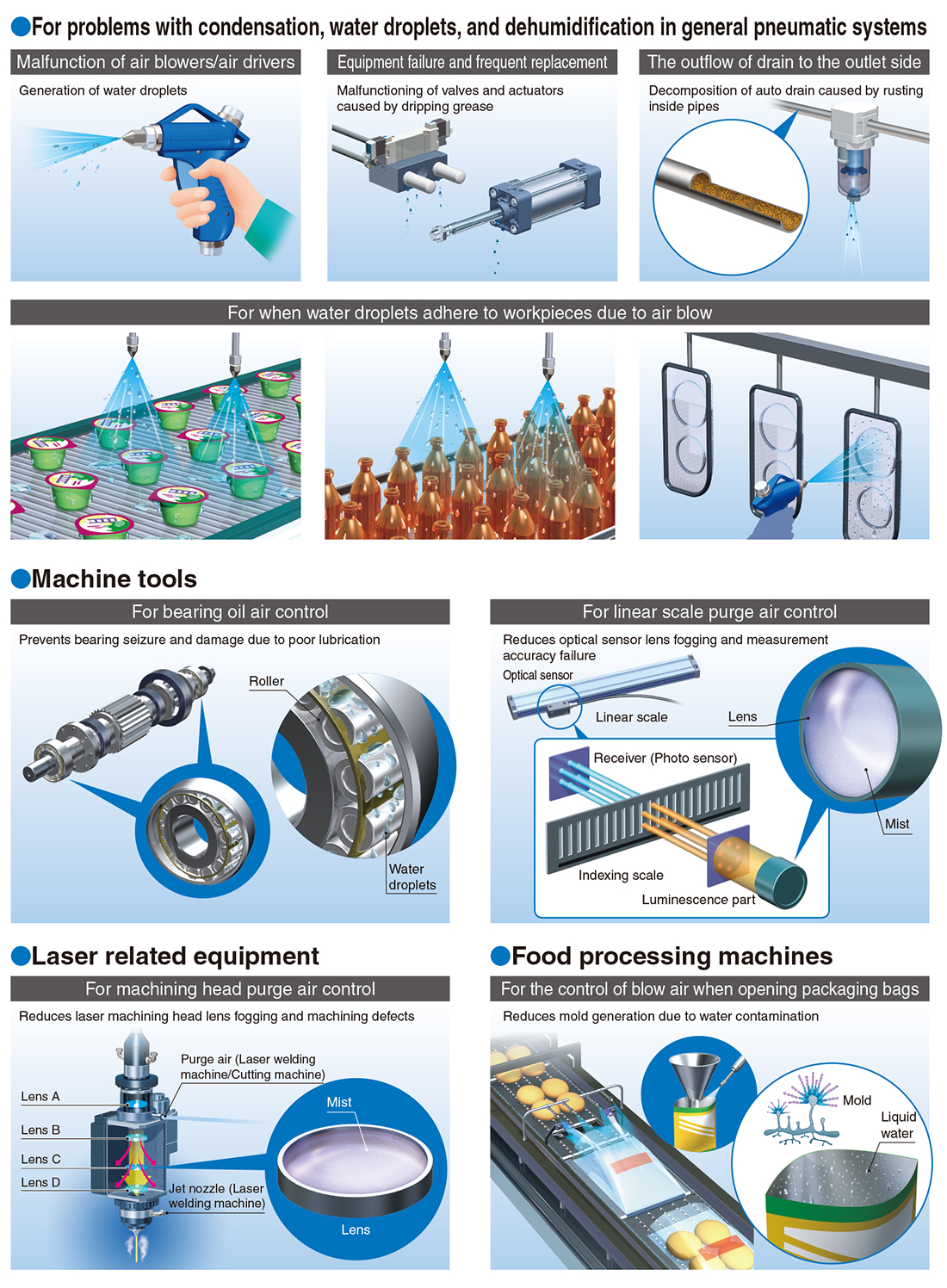

Application Example

Set value (threshold value) setting

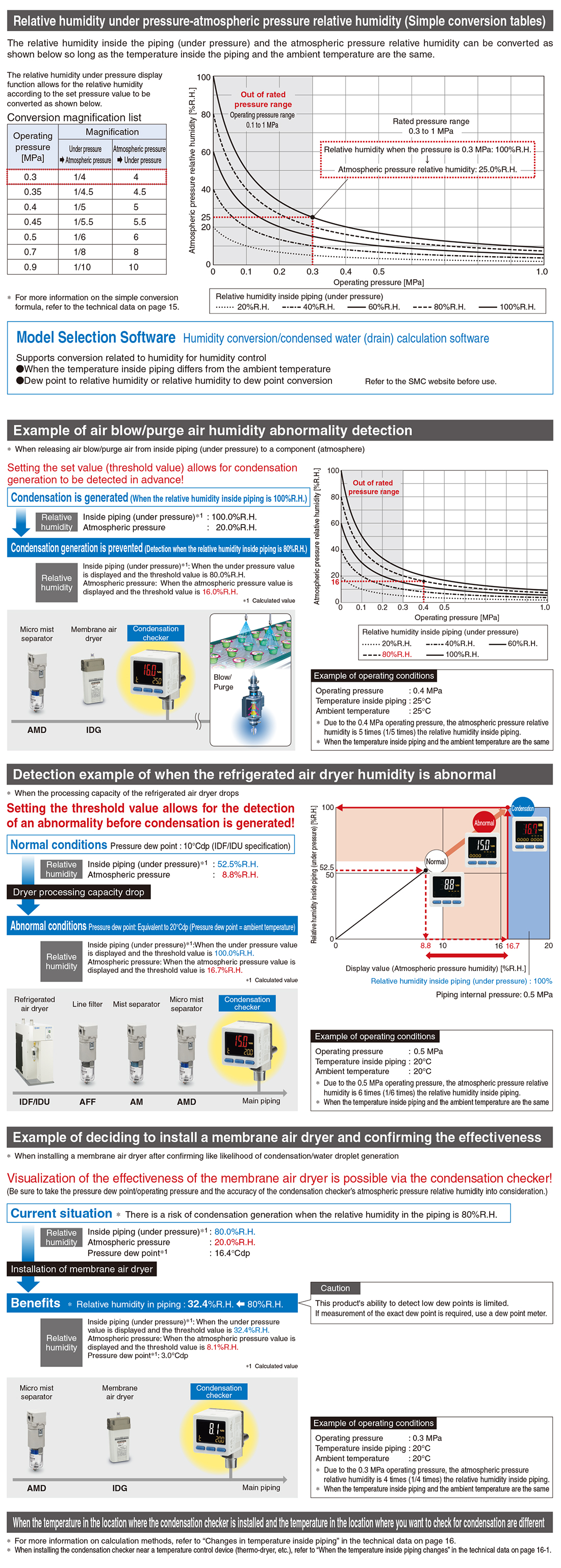

Example of membrane air dryer high humidity status confirmation

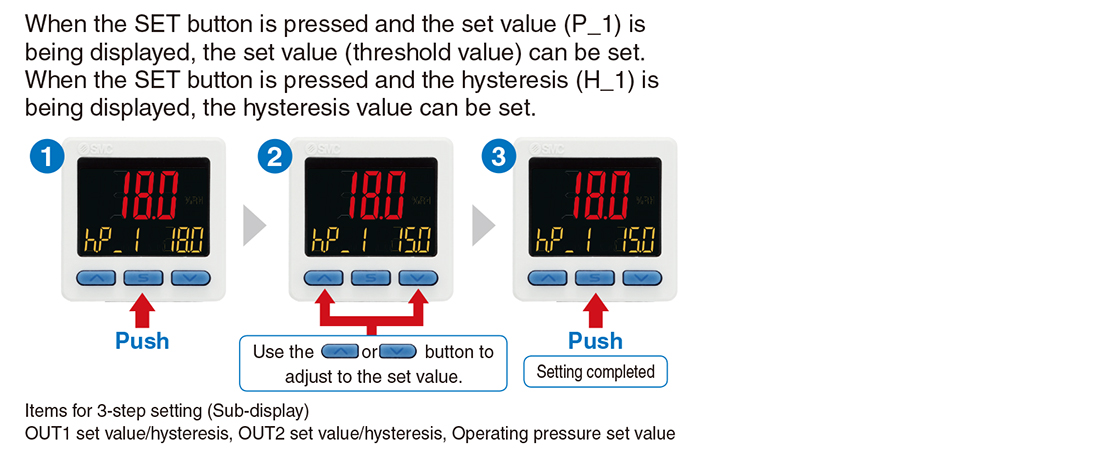

Simple 3-Step Setting

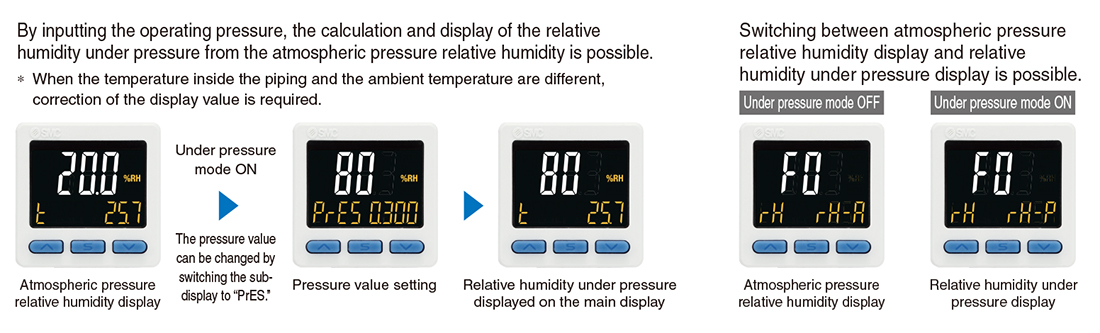

Relative humidity under pressure display function

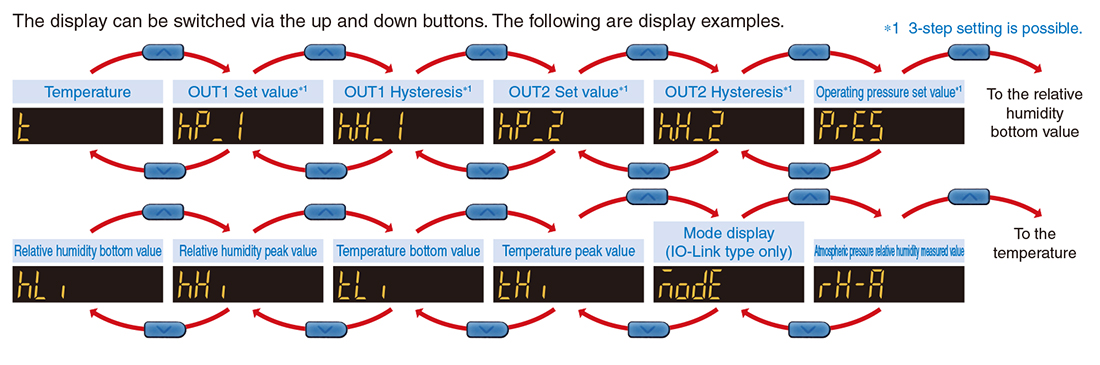

Visualization of set items/status (sub-display)

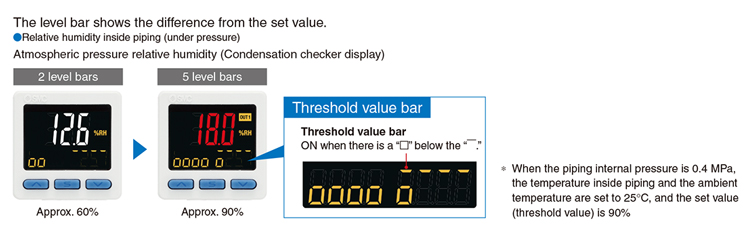

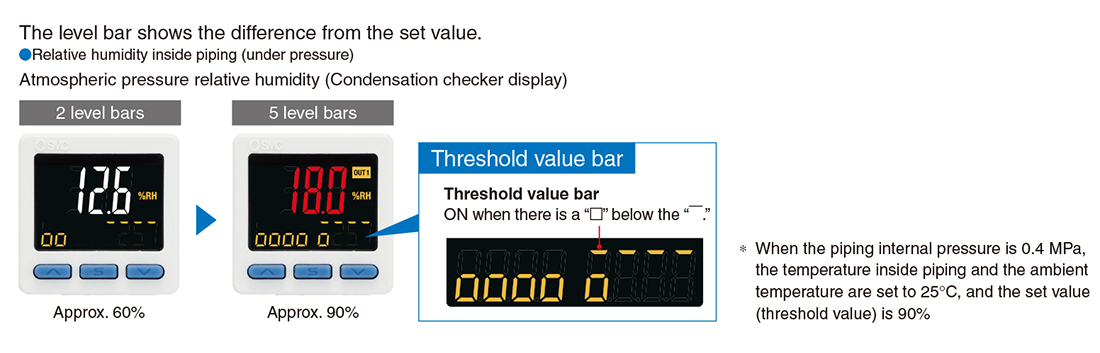

Level bar display

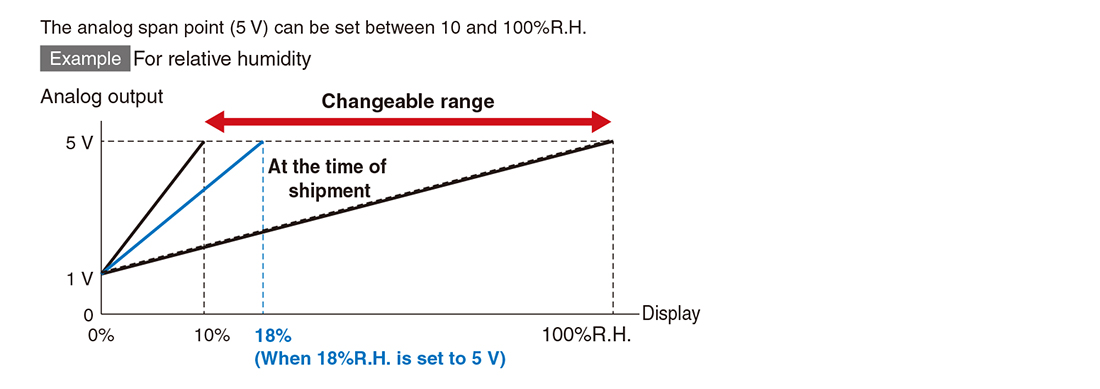

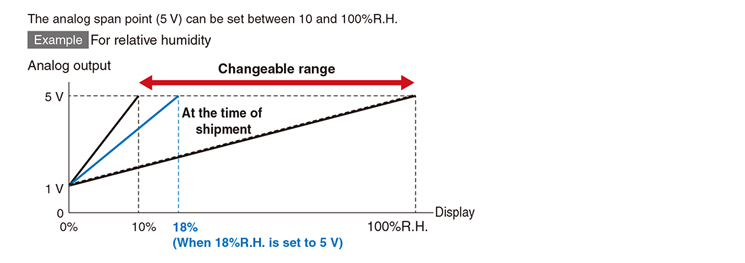

Analog free span

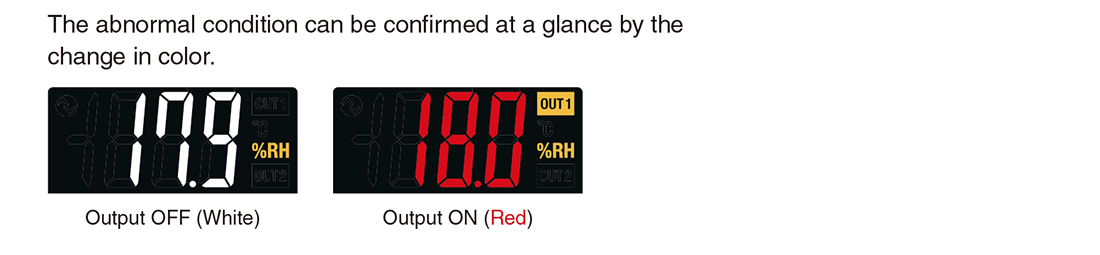

2-color display type

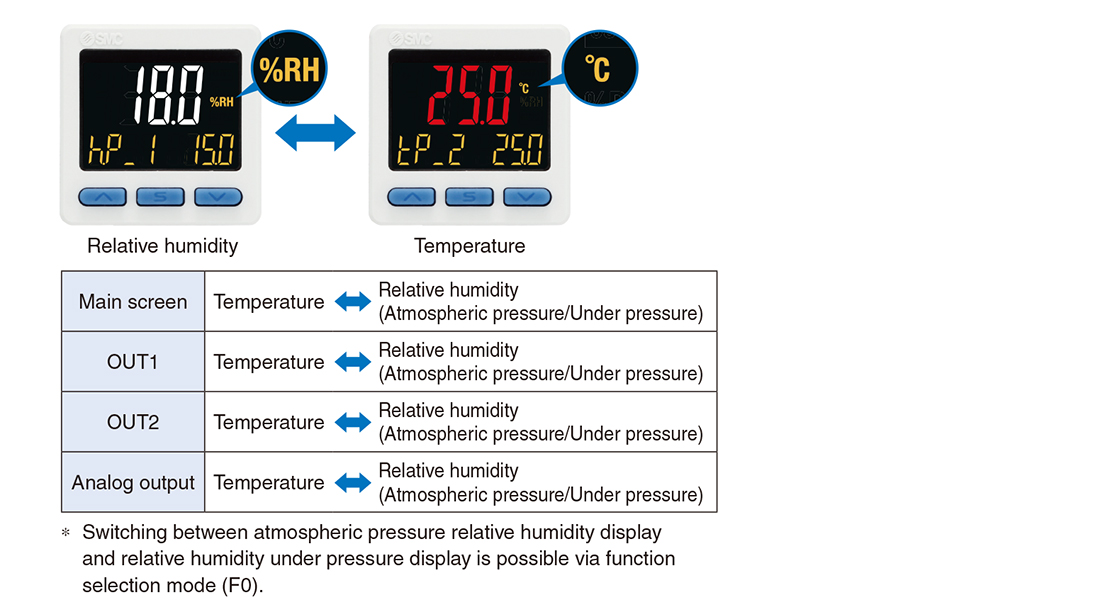

Relative humidity ←→ Temperature (Switchable)

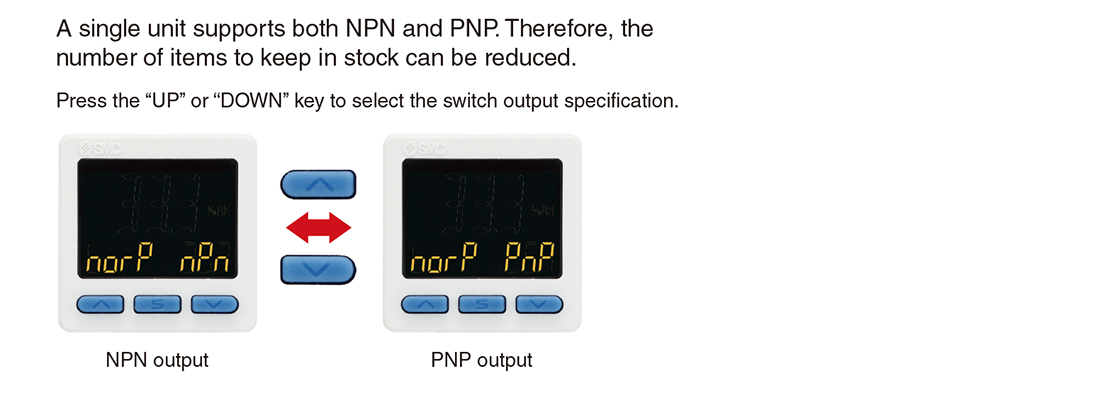

NPN/PNP switching function
