Lock Cylinders/Cylinder with An End Lock

Cylinder with Lock MWB/MDWB

    ?Lock can be manually operated with a hexagon wrench.
    　Can be easily mounted onto equipment
    ?Separate construction for improved ease of maintenance
    ?Holding force improved by 15%
    ?High stopping accuracy within ±1 mm
    ?Overall length reduced by 18 mm max.
    ?With lock status indication (-X3030)
    ?Safety mechanism can be designed by combining a single
    　lock unit with an actuator
    ?It can be added to machinery as a “safety component” of
    　safety-related parts in accordance with ISO 13849-1. (-X3075)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Cylinder with Lock MWB/MDWB
    Manual
    Type Series Action Bore size (mm) View search result
    StandardMWBDouble acting, Single rod32，40，50，63，80，100View search result
    StandardMWBWDouble acting, Double rod32，40，50，63，80，100View search result
    －MWB-UT－－View search result
  • Cylinder with Lock MWB/MDWB
    Symbol Specifications Download
    -XA0 to XA30 Simple Specials Change of rod end shape PDF
  • Cylinder with Lock MWB/MDWB
    Symbol Specifications Download
    -XC35 Made to Order Common Specifications With coil scraper PDF

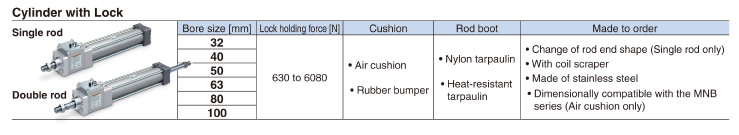

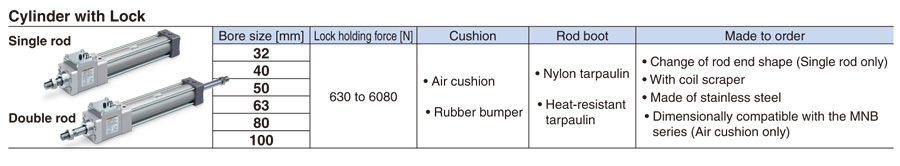

TypeSeriesActionBore size (mm)Lock mechanismApplicable rod size(mm)Lock holding force
(Max. static load)（N）
StandardMWBDouble acting, Single rod32，40，50，63，80，100Exhaust locking－－
StandardMWBWDouble acting, Double rod32，40，50，63，80，100Exhaust locking－－

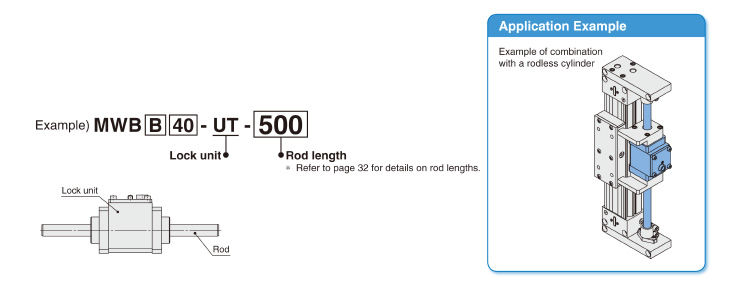

－MWB-UT－－－12，16，20，25，30630?to?6080

Features

A locking cylinder ideal for intermediate stops, emergency stops, and drop prevention

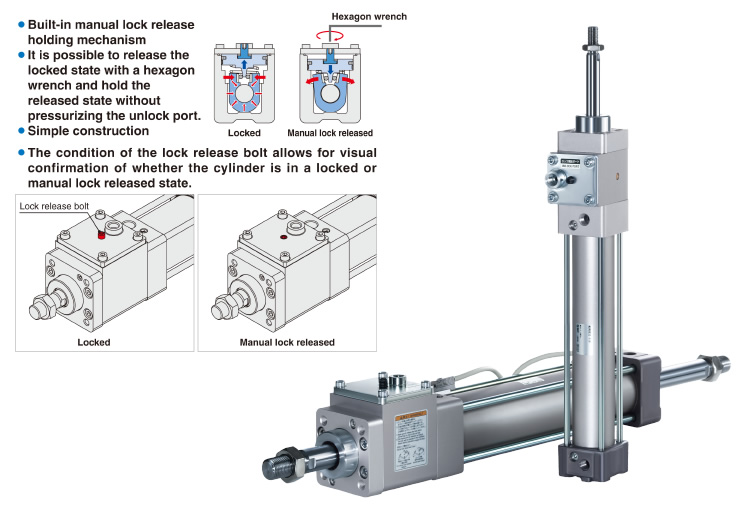

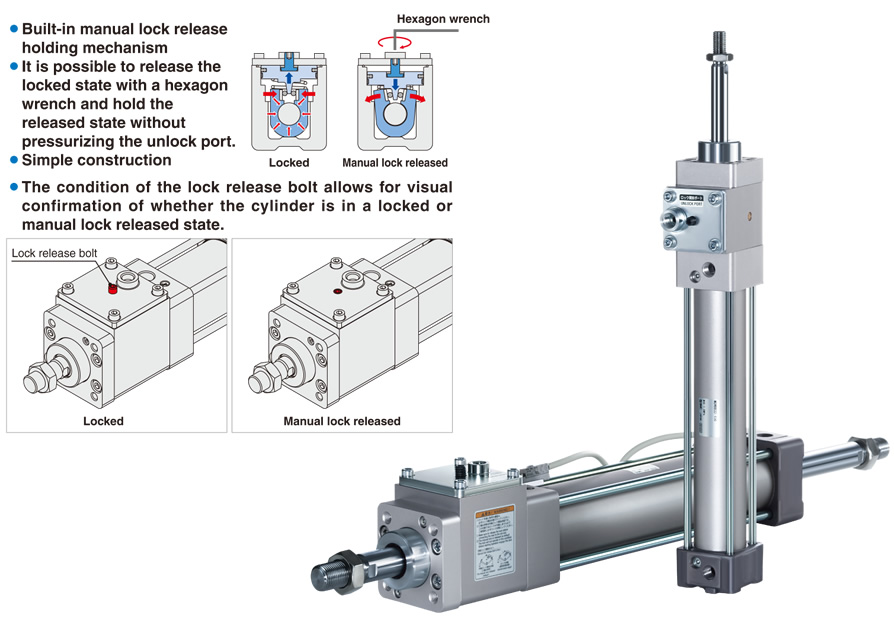

Lock can be manually operated with a hexagon wrench.

Can be easily mounted onto equipment

Separable construction for improved ease of maintenance

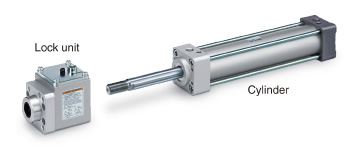

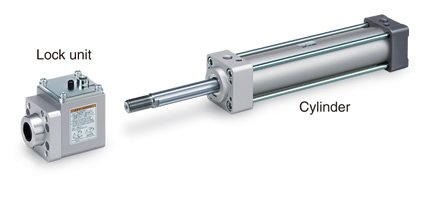

The lock unit and the cylinder can be separated.
This allows for easier maintenance.

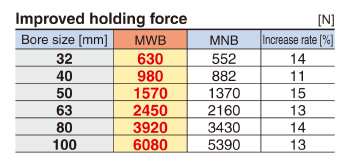

Holding force improved by 15%

MNB, ?50: 1370 N a MWB: 1570 N

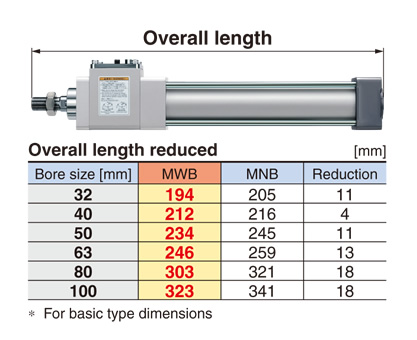

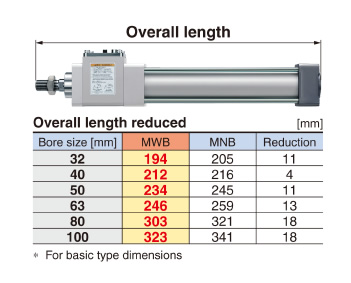

Overall length reduced by 18 mm max.

Up to 18 mm shorter compared with the MNB series

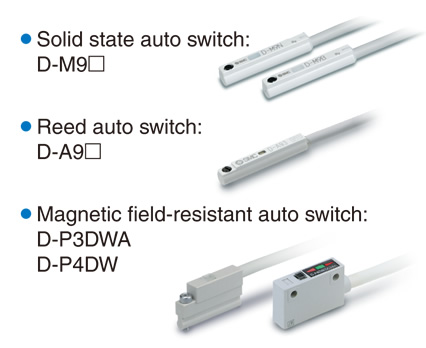

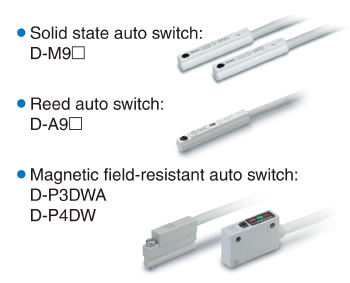

Compact auto switches are mountable.

Part numbers for products with a rod end bracket and/or a pivot bracket are available.

It is not necessary to order a bracket for the applicable cylinder separately.

* Rod end brackets and pivot brackets are shipped together with the product, but not assembled.

Series Variations

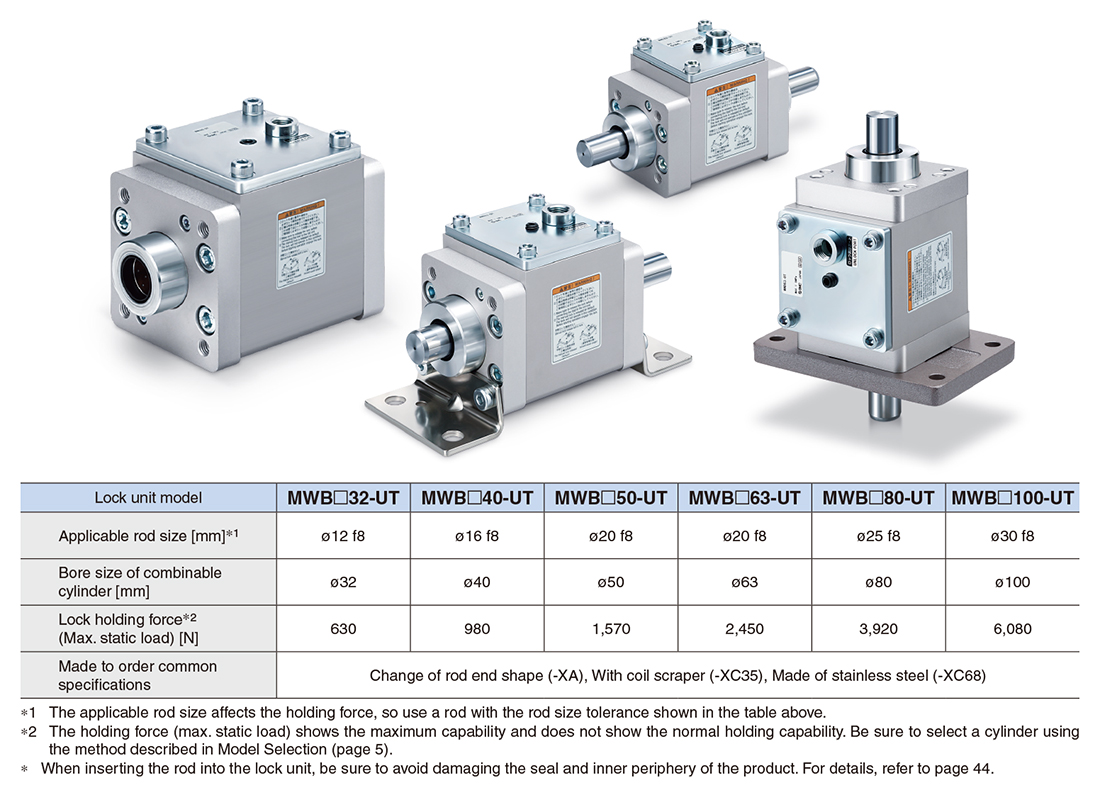

Lock Unit

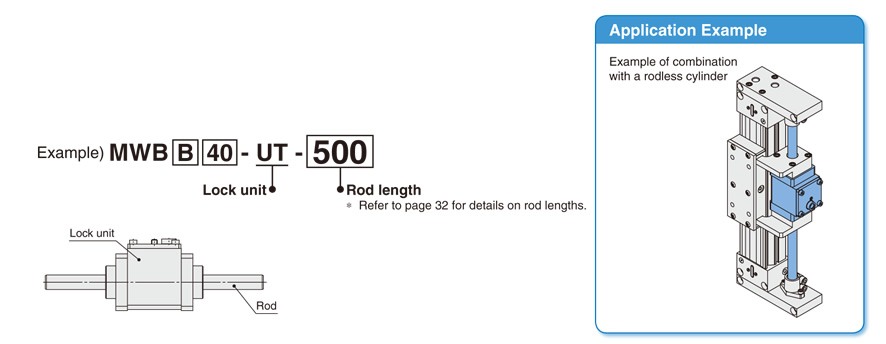

A safety mechanism can be designed if required.
It can also be combined with a wide variety of actuators.
?Prevents the workpiece from falling
?Retains the workpiece position even when the air supply is shut off due to power failure, etc.

Part numbers for lock units with an applicable rod are now available.

It is not necessary to order a rod for the lock unit separately.

* Rod is shipped together with the product.
