WEB Catalog

Product Information ?  WEB Catalog  ? Electric Actuators/Cylinders  ? Manifold Controller/Manifold Controller Compatible Electric Actuator

Manifold Controller/Manifold Controller Compatible Electric Actuator

Battery-less Absolute Encoder Type
[Compatible with Manifold Controller]
Electric Actuator/Slider LE2FS□H

    · Compatible with manifold controller
    　Up to 16 axes can be connected

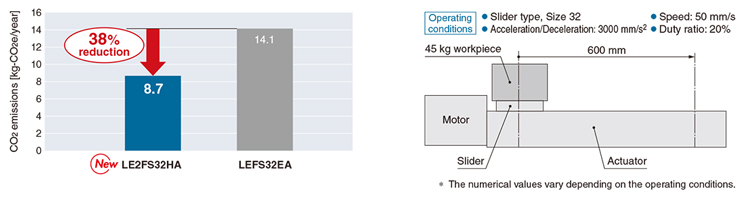

    · Annual CO2 emissions reduced by up to 38% through motor control
    　optimization (SMC comparison)
    　8.7 kg-CO2e/year (14.1)
    　? The numerical values vary depending on the operating conditions.

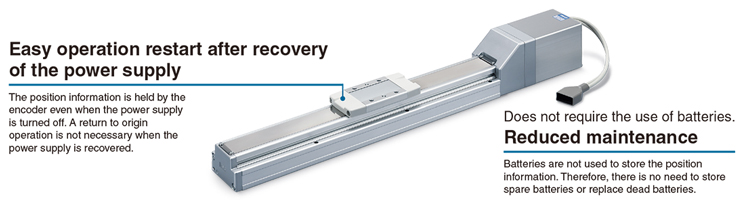

    · Battery-less absolute encoder type
    　Restart from the last stop position is possible.
SpecificationModelStroke
(mm)		Work load (kg)
Horizontal		Speed
(mm/s)		Screw lead
(mm)
Battery-less absolute
(Step motor 24 VDC)		LE2FS16□H50 to 500Max. 18Max. 8002.5，5，10
Battery-less absolute
(Step motor 24 VDC)		LE2FS25□H50 to 800Max. 40Max. 12003，6，12，20
Battery-less absolute
(Step motor 24 VDC)		LE2FS32□H50 to 1000Max. 68Max. 11004，8，16，24
Battery-less absolute
(Step motor 24 VDC)		LE2FS40□H150 to 1200Max. 80Max. 12005，10，20，30

Features

Manifold Controller up to 16 axes can be connected

Annual CO2 emissions reduced by up to 38% through motor control optimization (SMC comparison)

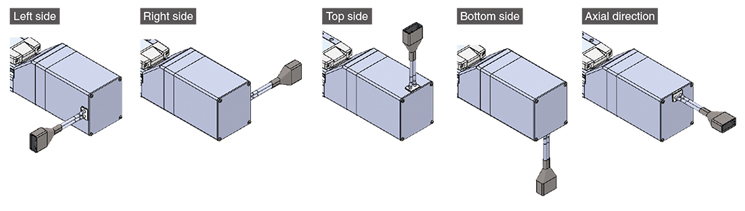

Select from 5 cable entry directions

Restart from the last stop position is possible.

Detection of table stop position by means of an auto switch is possible.
