WEB Catalog

Product Information ?  WEB Catalog  ? Process Valves  ? 2/3 Port Solenoid Valves/Air Operated Valves

2/3 Port Solenoid Valves/Air Operated Valves

Pulse Valve (Valve for Dust Collector) JSXF/JSXFA

    ?A pilot valve enclosure has been added. [New]
    ?Life: 10 million cycles or more/10 times or more
    ?High peak pressure and low air consumption
    　Peak pressure: 15% increase
    　Air consumption: 35% reduction
    ?Fluid temperature: ?40 to 60℃

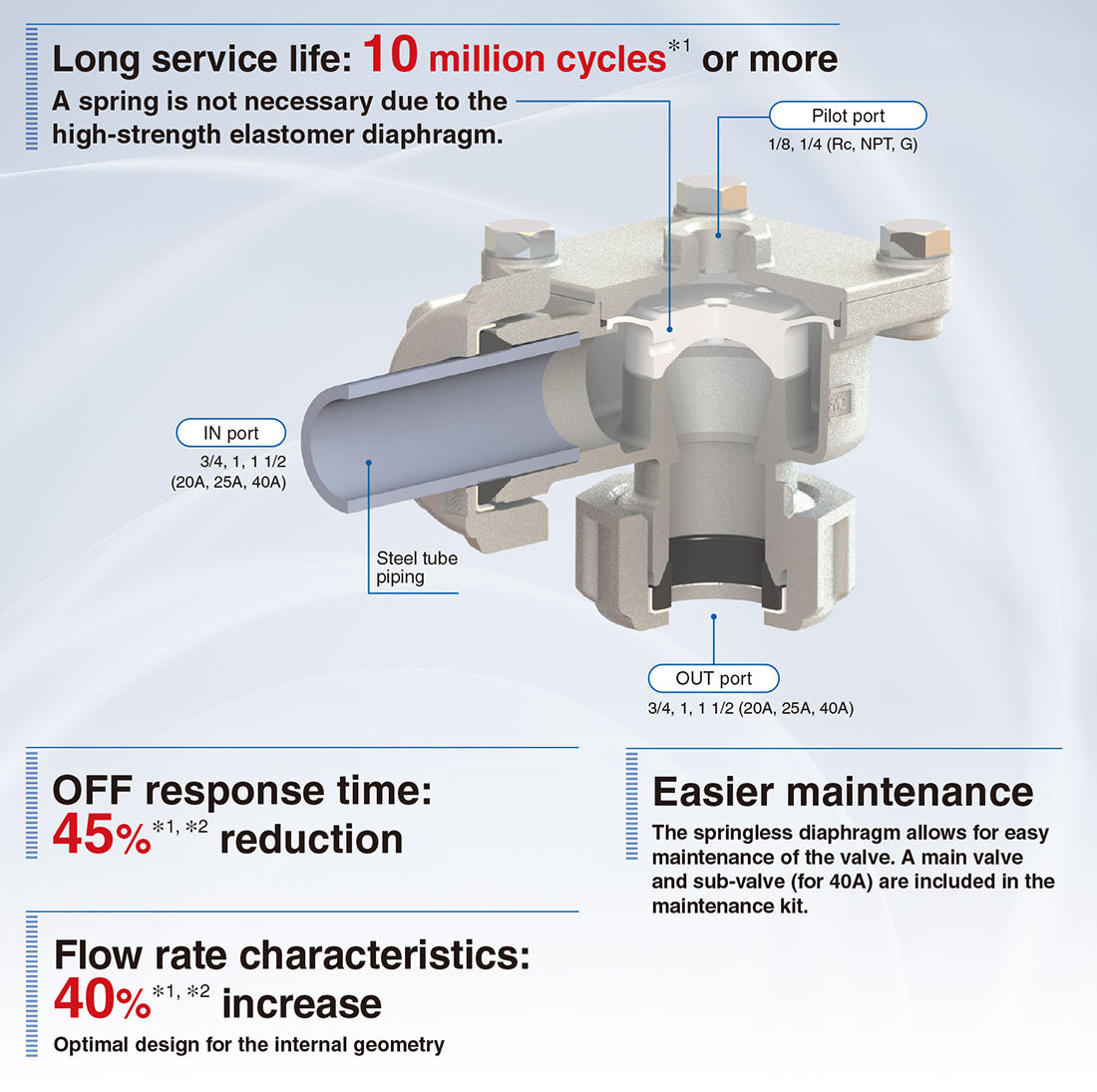

    ?Easier maintenance

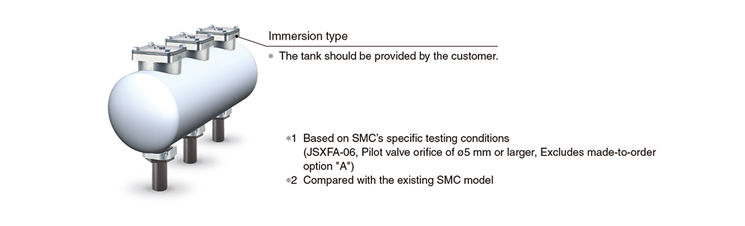

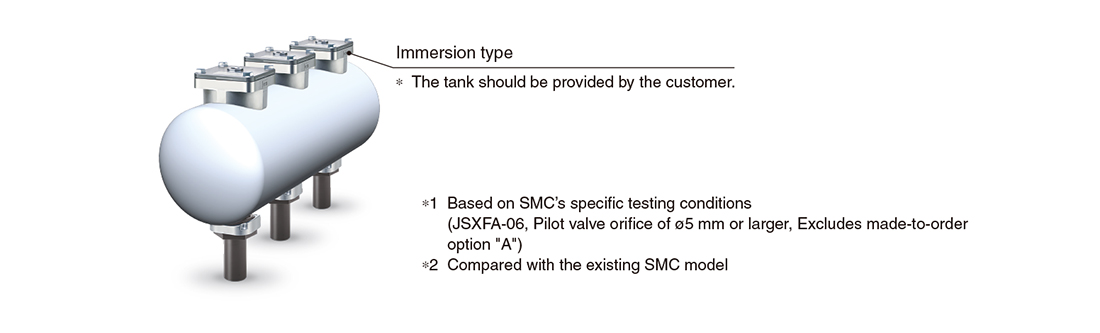

    ?Immersion type
    ?No need to weld the tank piping
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Pulse Valve (Valve for Dust Collector) JSXF/JSXFA
    Manual
    Series View search result
    JSXF
    Solenoid valve
    JSXF-P
    Solenoid valve
    SMARTVENT type    		View search result
    JSXFA
    Air operated

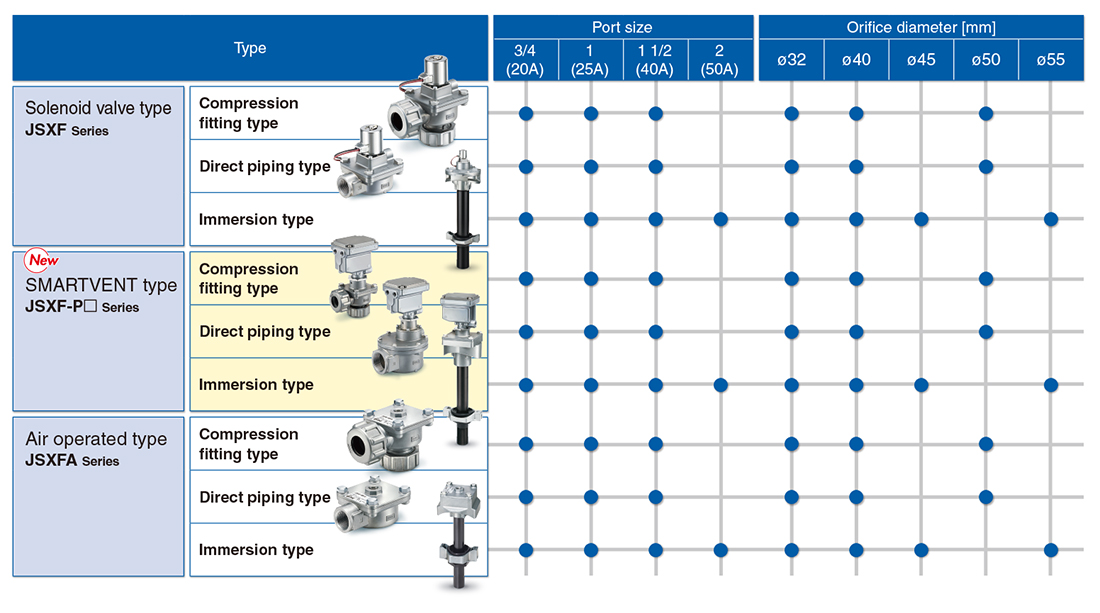

SeriesValve typePort sizePipingOrifice diameter (mm?)
JSXF
Solenoid valve		N.C.3/4（20A）
1（25A）
1 1/2（40A）
2（50A）		Compression fitting type
Direct piping type
(Rc, NPT, G)
Immersion type		32, 40, 45, 50, 55
(?55 is only available for the immersion type.)
JSXF-P
Solenoid valve
SMARTVENT type		N.C.3/4（20A）
1（25A）
1 1/2（40A）
2（50A）		Compression fitting type
Direct piping type
(Rc, NPT, G)
Immersion type		32, 40, 45, 50, 55
(?55 is only available for the immersion type.)
JSXFA
Air operated		N.C.3/4（20A）
1（25A）
1 1/2（40A）
2（50A）		Compression fitting type
Direct piping type
(Rc, NPT, G)
Immersion type		32, 40, 45, 50, 55
(?55 is only available for the immersion type.)

Features

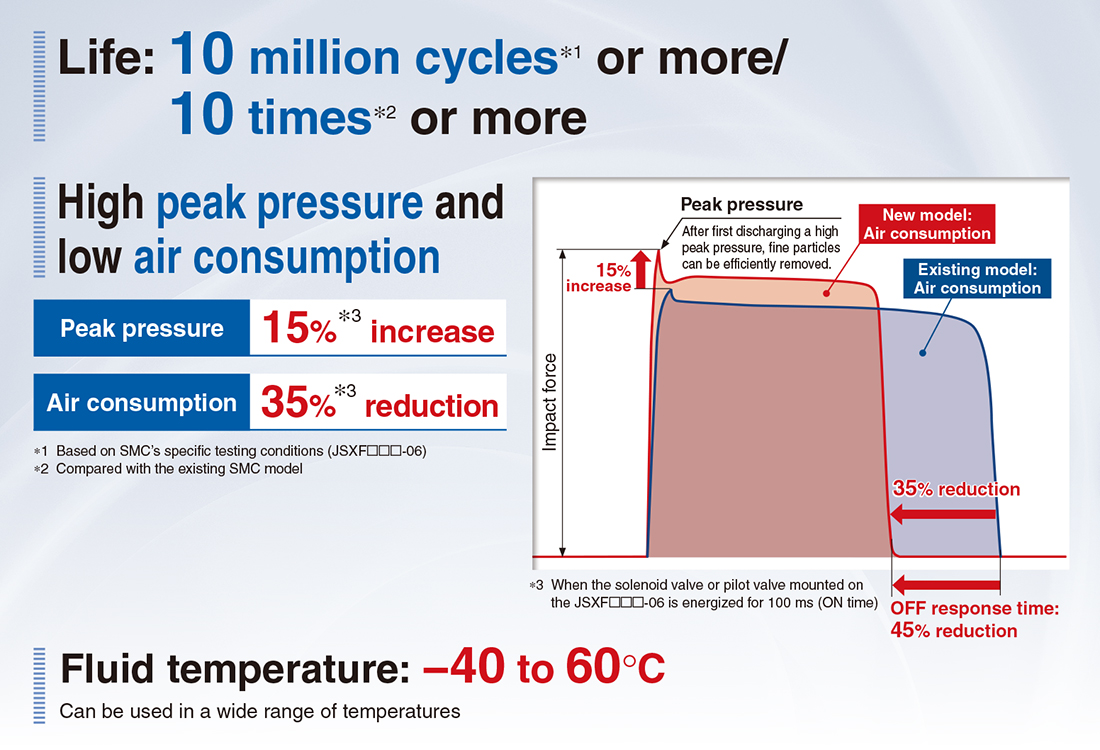

Life: 10 million cycles or more/10 times or more

Variations

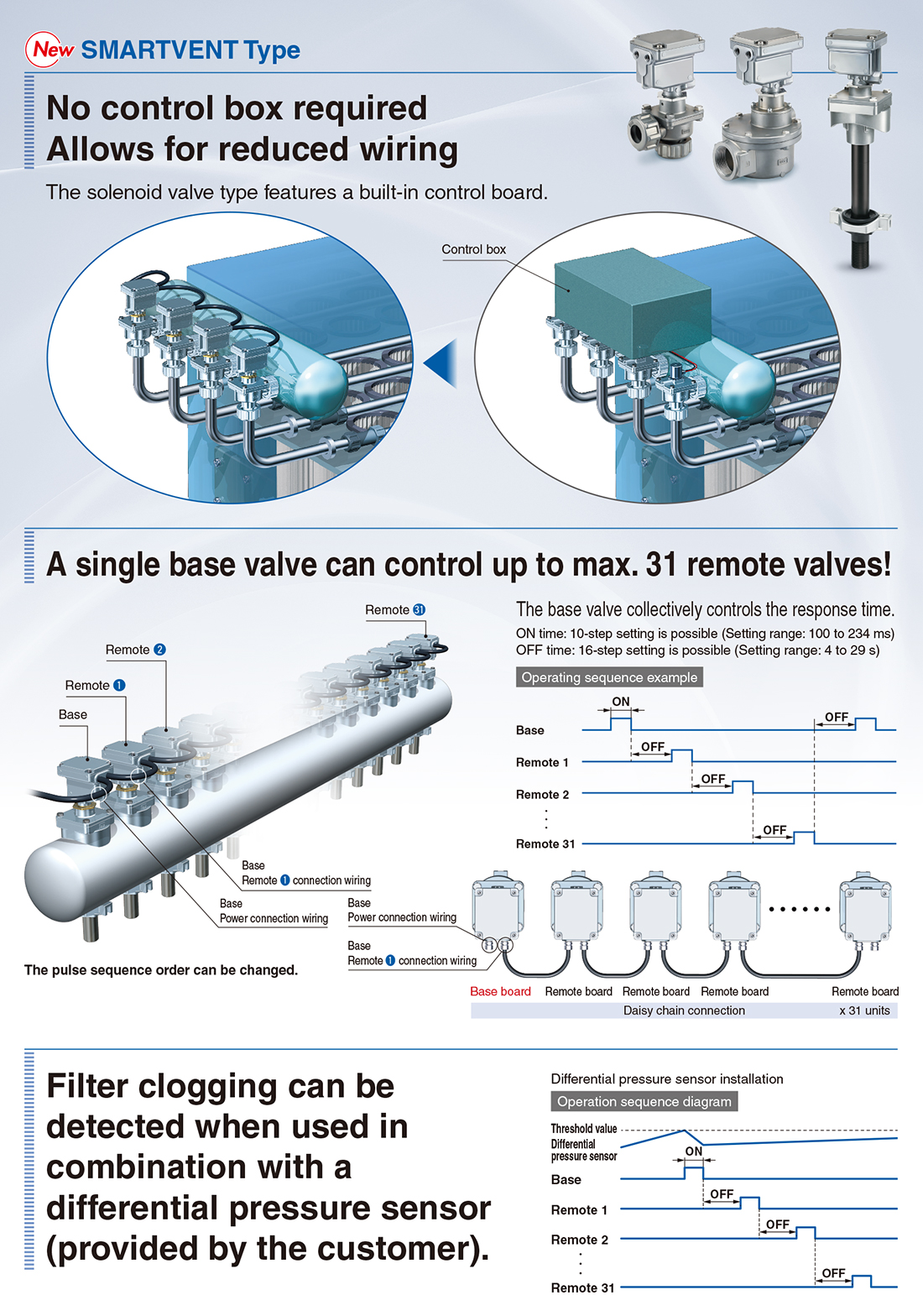

SMARTVENT Type

Features

No need to weld the tank piping

A pilot valve enclosure has been added. New

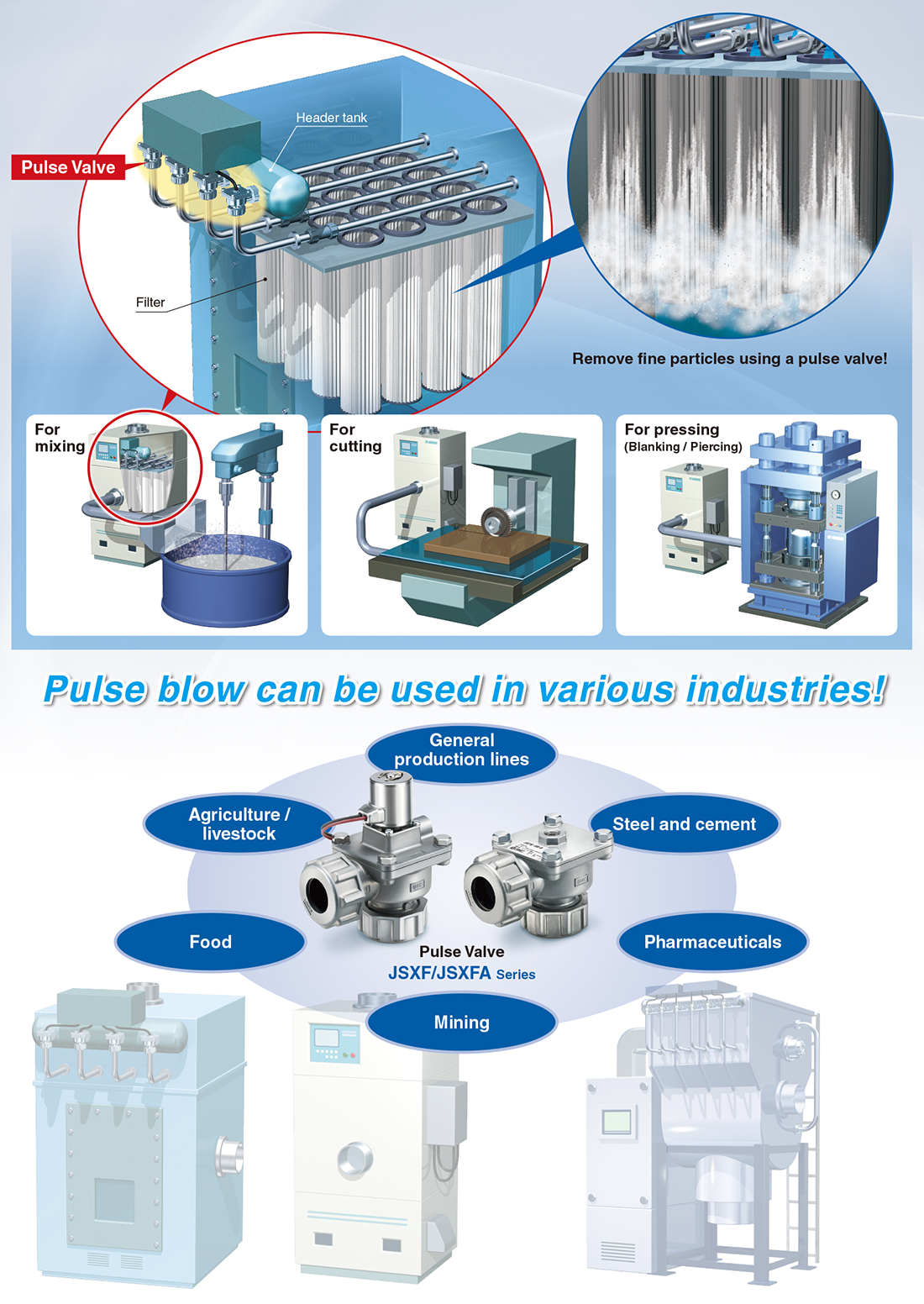

Pulse valve application examples
