WEB Catalog

Product Information ?  WEB Catalog  ? Switches/Sensors/Controller  ? Electronic Flow Switches/Sensors

Electronic Flow Switches/Sensors

3-Color Display Electromagnetic Type Digital Flow Switch LFE□

    ?Applicable fluids: Water, Water-soluble coolant
    ?Compact, Lightweight
    　Height: 56 mm, Width: 40mm,
    　Weight: 340 g (LFE1□3)
    ?Pressure loss: 0.02 MPa or less
    ?A close proximity setting is available.
    ?An insulated type has been added.
    　The ground doesn’t need to be selected when wiring.
    ?Reverse flow can be detected.
    ?Operating fluid temperature: 0 to 85℃
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Color Display Electromagnetic Type Digital Flow Switch LFE□
    Manual
    Series View search result
    LFE□View search result
  • 3-Color Display Electromagnetic Type Digital Flow Switch LFE□
    DoC
    Series View search result
    LFE□View search result

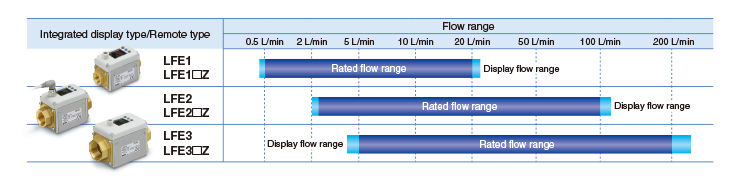

SeriesRated flow range (L/min)
LFE□0.5 to 20
2.5 to 100
5 to 200

Features

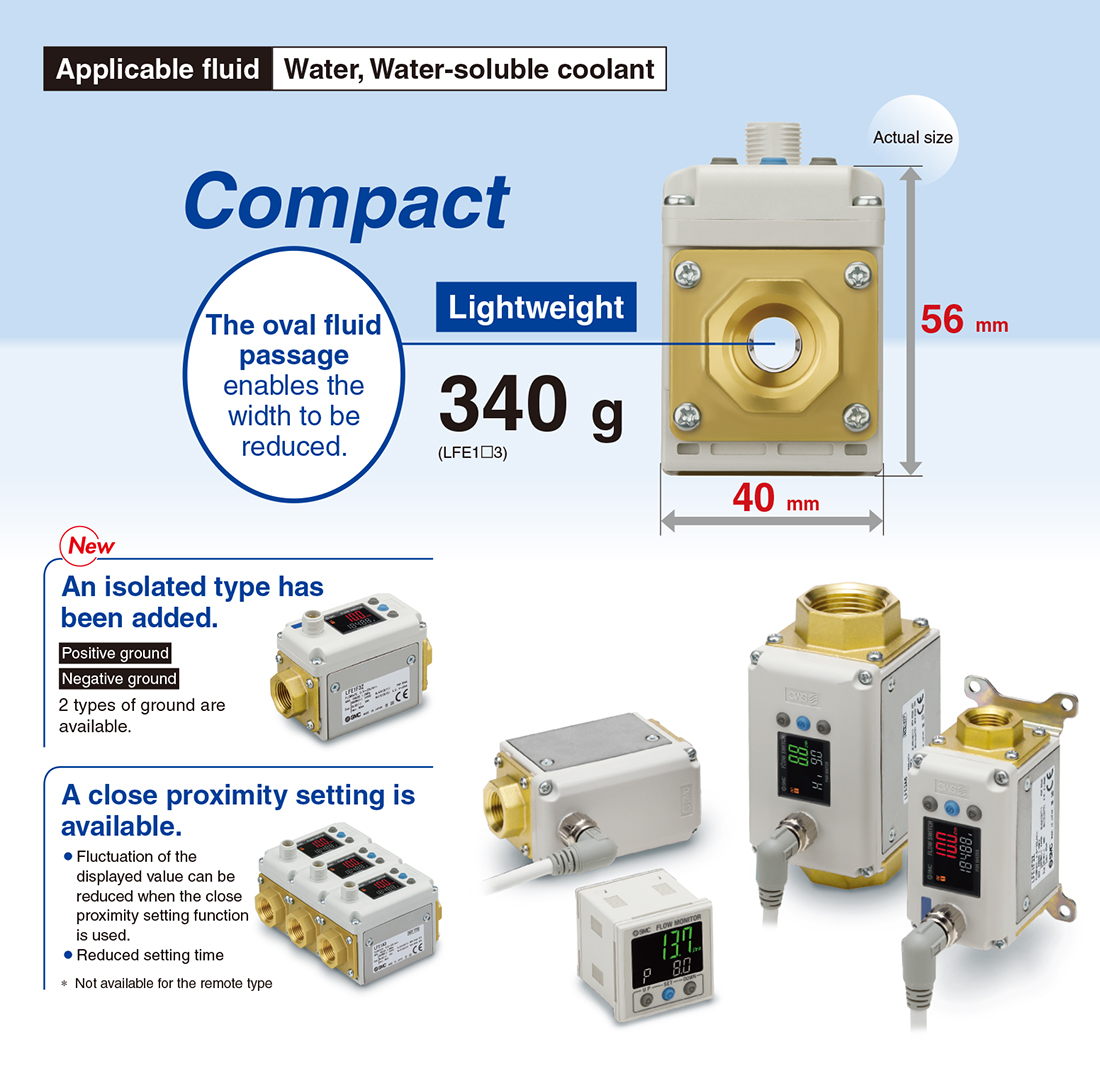

Compact, Lightweight

The oval fluid passage enables the width to be reduced.

Variations

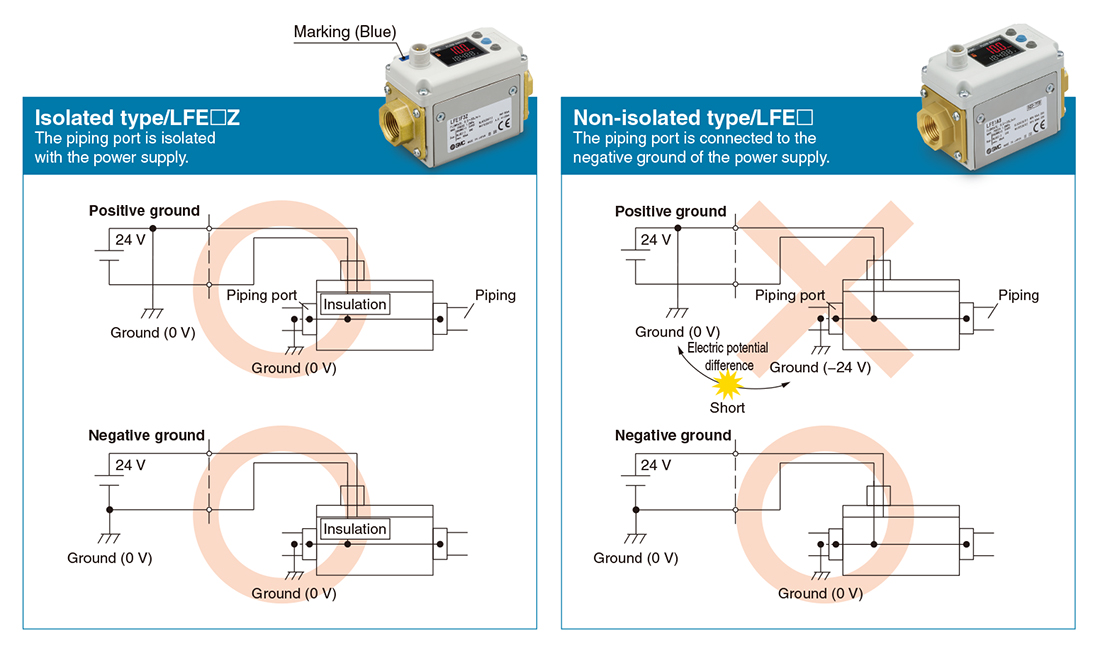

An isolated type has been added. The ground doesn’t need to be selected when wiring.

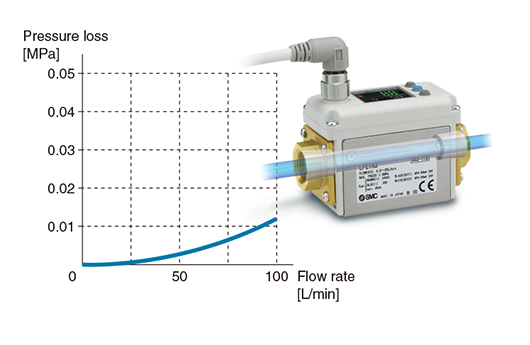

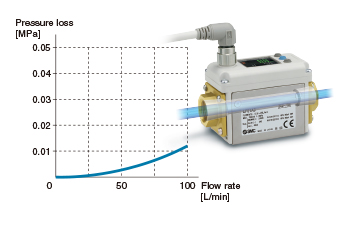

  • Pressure loss: 0.02 MPa or less

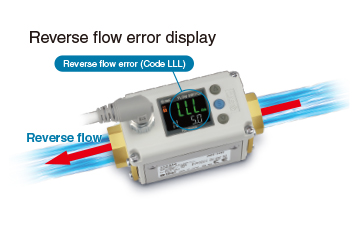

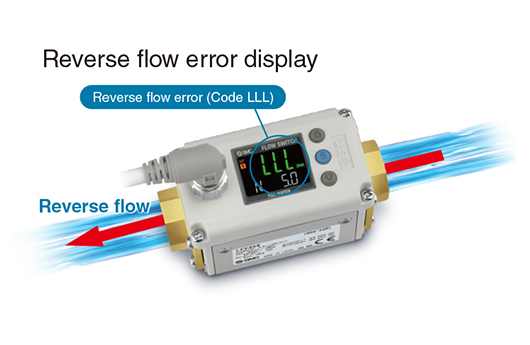

  • Reverse flow can be detected.

  • Repeatability: ±1.5% F.S.

    (Analog output)

    Operating fluid temperature: 0 to 85℃

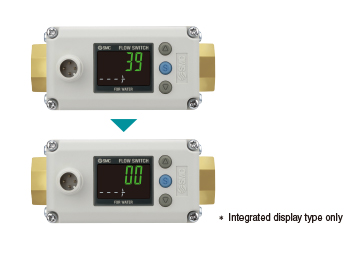

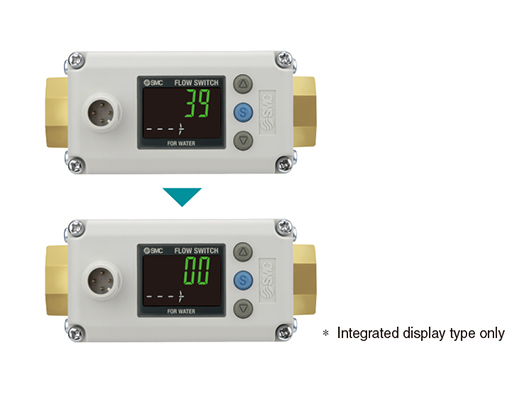

  • A zero-reset setting is available.

    The display can be adjusted to zero.

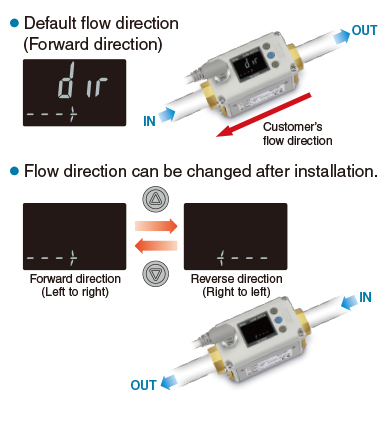

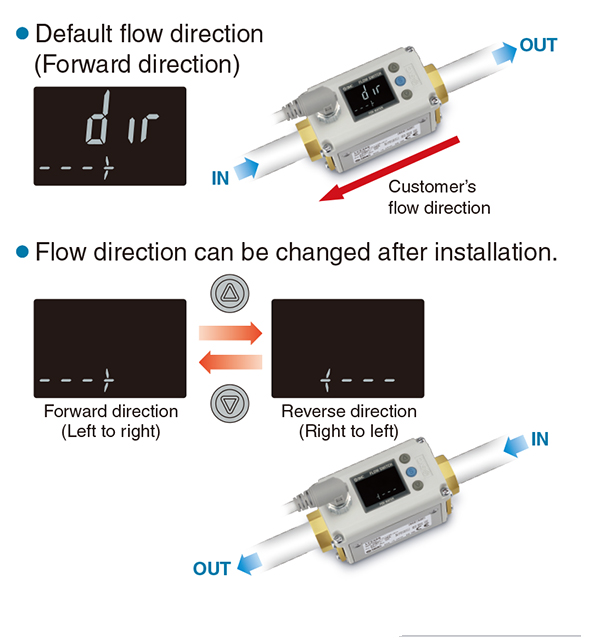

  • Flow direction can be changed after installation.

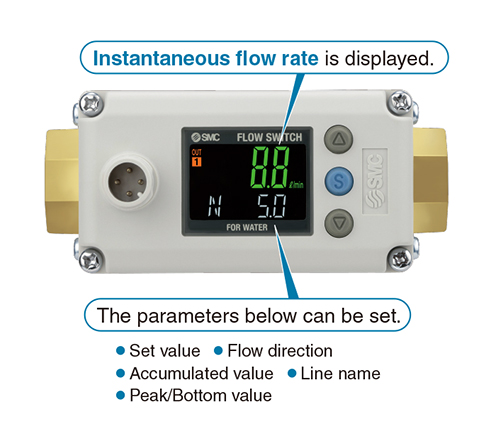

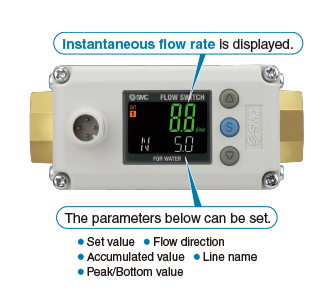

  • 3-color/2-screen display

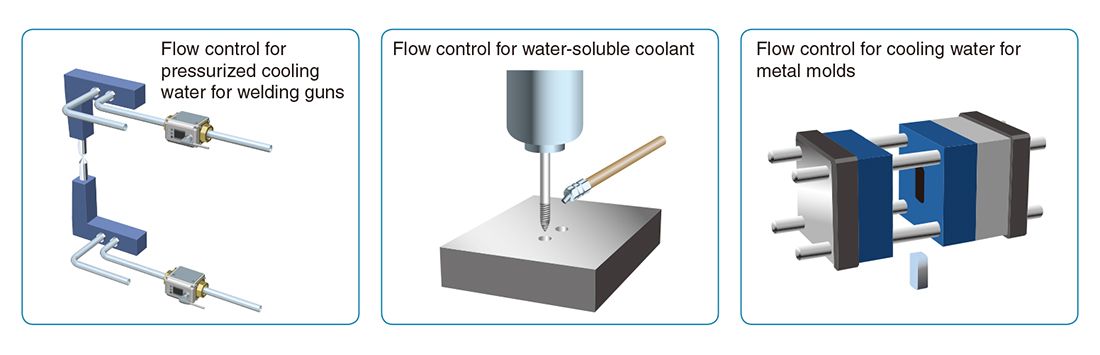

Application Examples

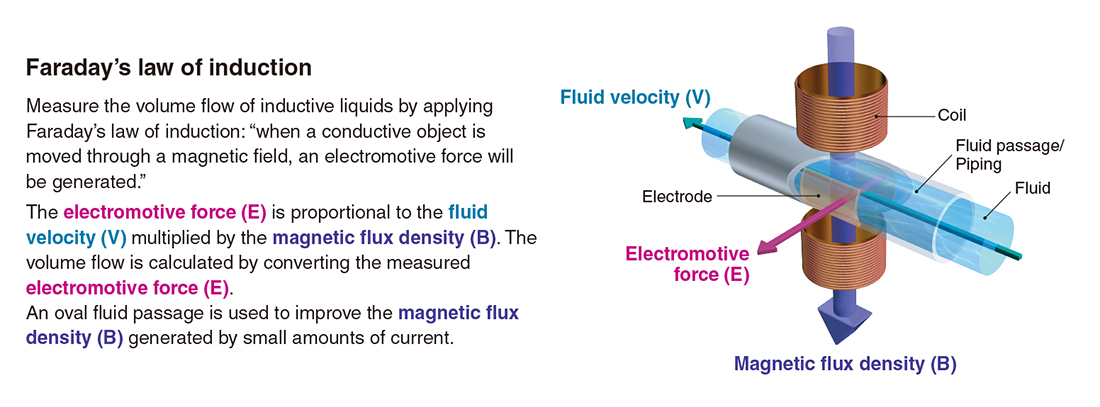

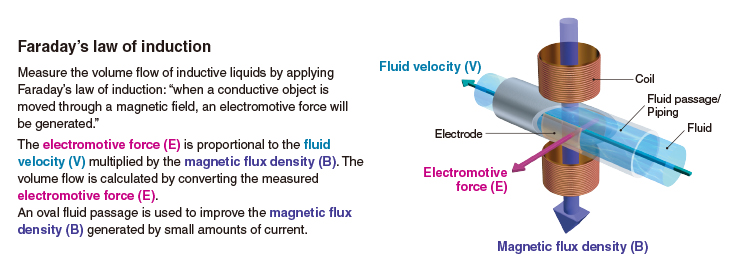

Principle

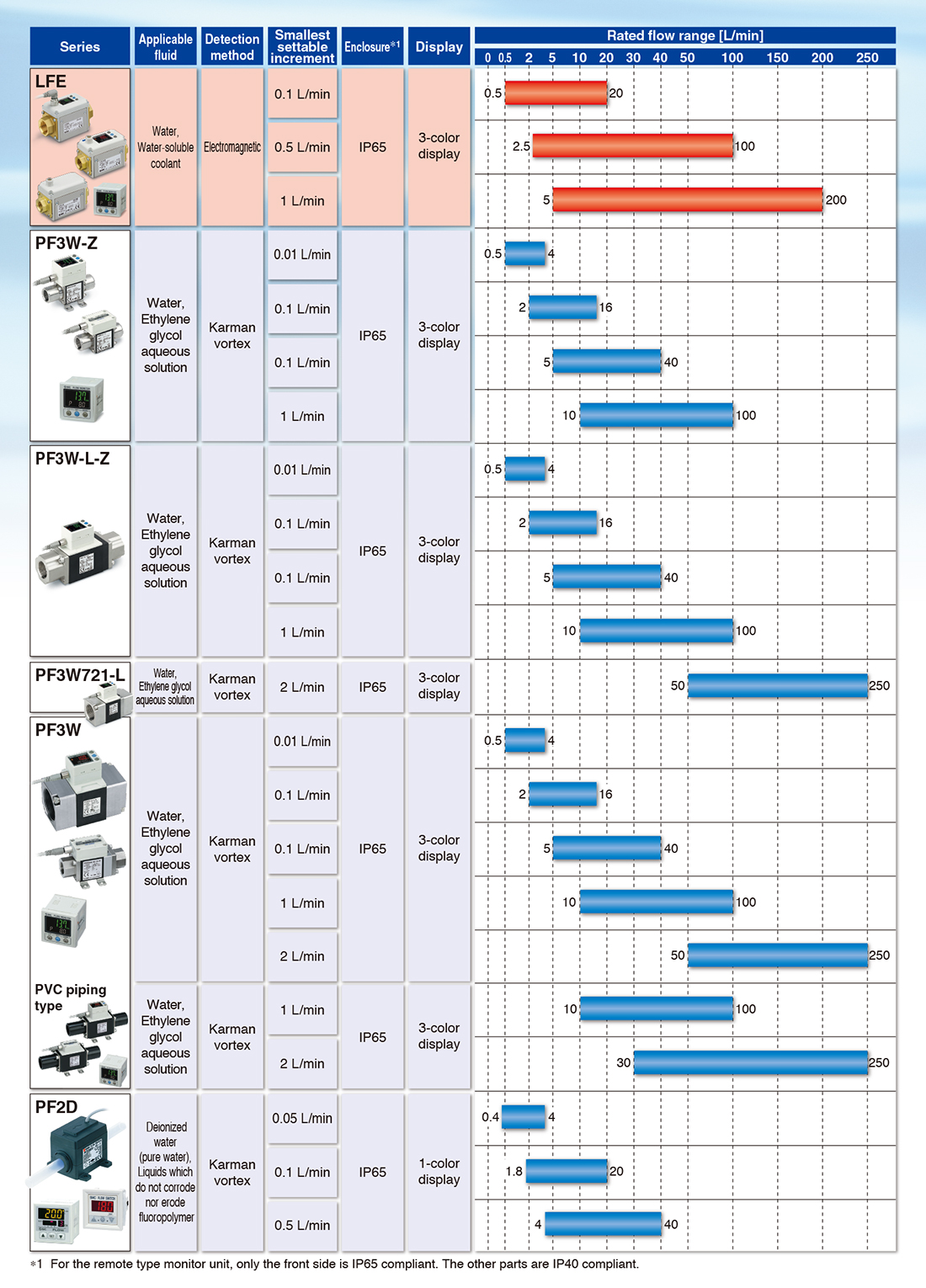

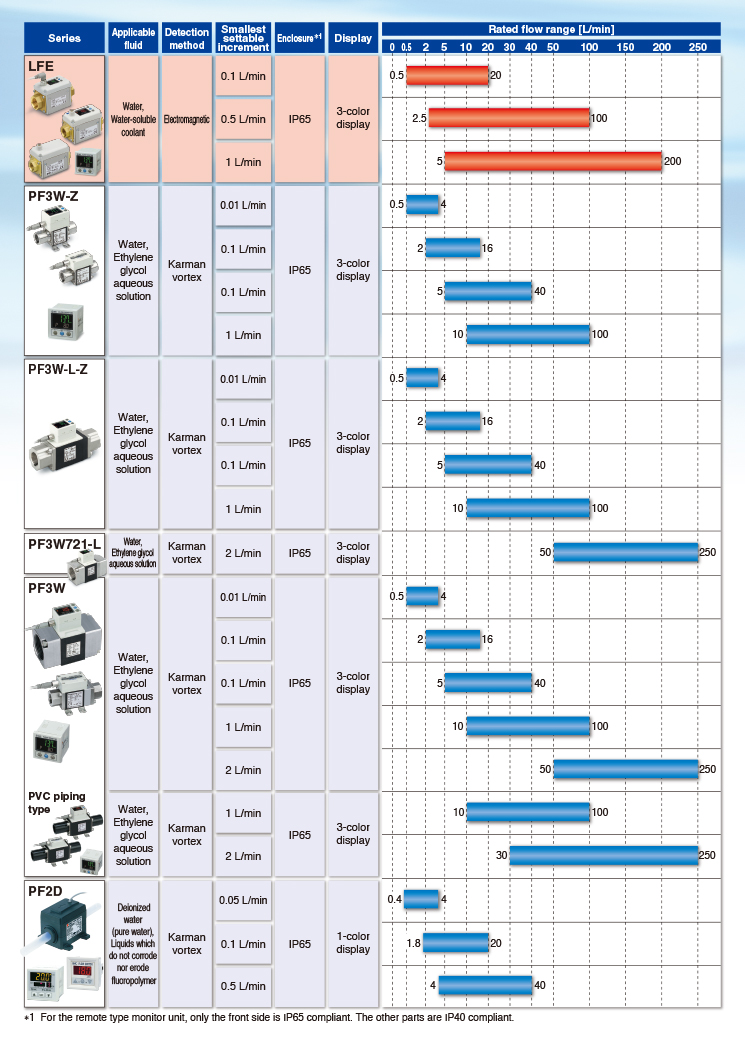

Flow Switch for Fluid Variations
