WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Environment Resistant Cylinders

Environment Resistant Cylinders

Cylinder with Stable Lubrication Function (Lube-retainer)

    ?Applicable to operation in micro-powder (20 to 100 μm) /general environments

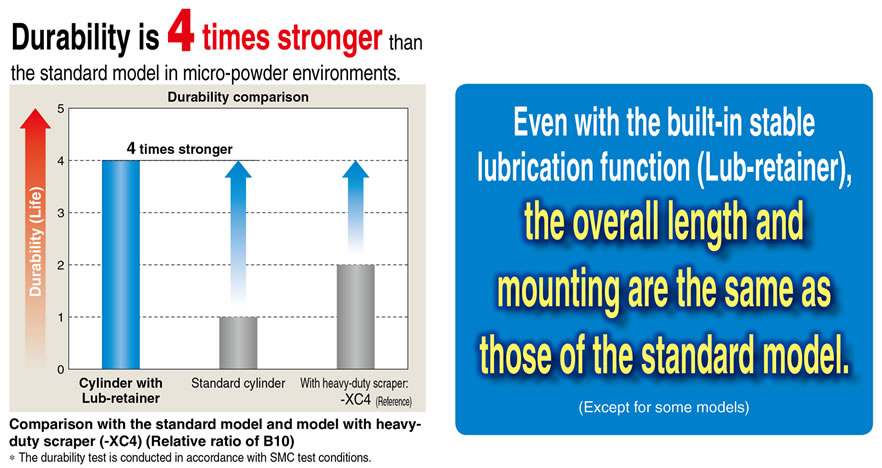

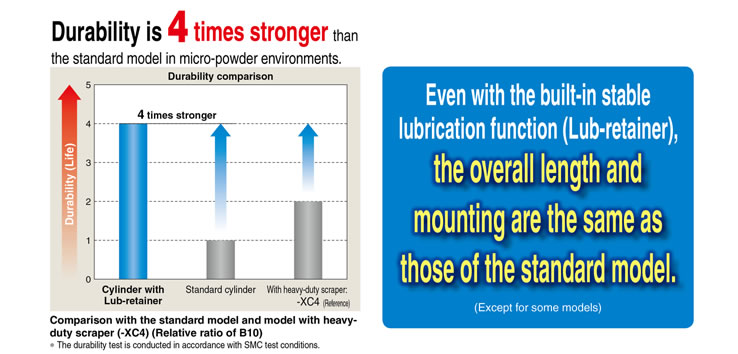

    ?Durability is 4 times stronger than the standard model in micro-powder
    　environments.
    ?The overall length and mounting are the same as those of the standard model.
    　(Except for some models)
    ?Grease film is formed on the piston rod surface to improve durability.
    ?Prevents the entry of dust and foreign matter
    ?The number of operating cycles can be improved even in general environments.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

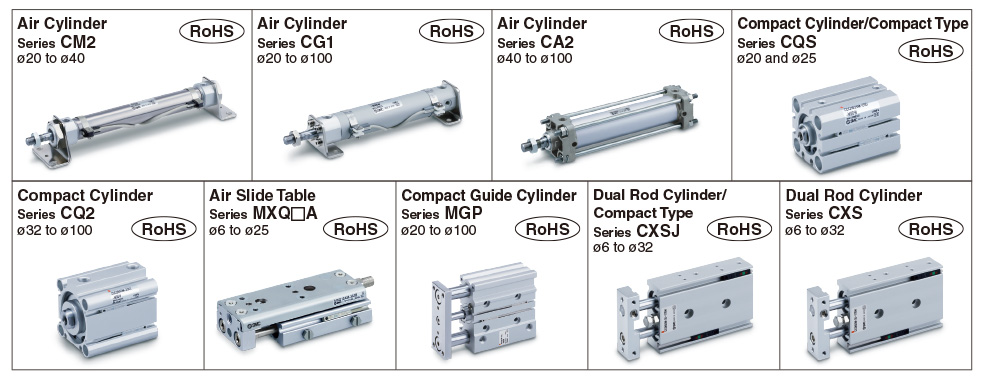

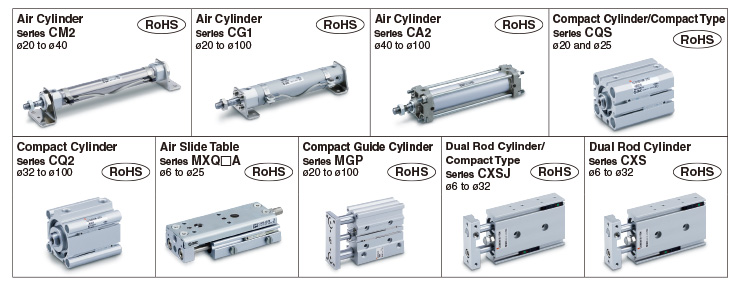

TypeSeriesActionBore size (mm)
Air cylinderCM2-ZDouble acting, Single rod20, 25, 32, 40
Air cylinderCG1-ZDouble acting, Single rod20, 25, 32, 40, 50, 63, 80, 100
Air cylinderCA2-ZDouble acting, Single rod40, 50, 63, 80, 100
Compact cylinderCQSDouble acting, Single rod20, 25
Compact cylinderCQ2-ZDouble acting, Single rod32, 40, 50, 63, 80, 100
Air slide tableMXQ□ADouble acting6, 8, 12, 16, 20, 25
Compact guide cylinderMGP-ZDouble acting20, 25, 32, 40, 50, 63, 80, 100
Dual Rod Cylinder/Compact TypeCXSJDouble acting6, 10, 15, 20, 25, 32
Dual rod cylinderCXSDouble acting6, 8, 12, 16, 20, 25, 32
High power cylinderRHC-XC93Double acting32，40

Features

■Durability is 4 times stronger than the standard model in micro-powder environments.

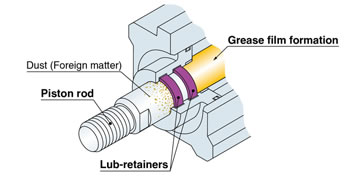

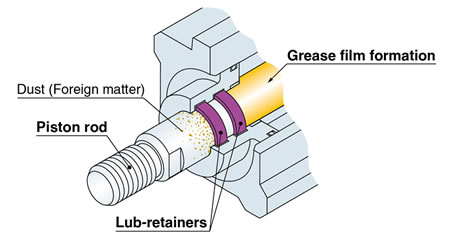

■The Lub-retainer is mounted at two locations
  • Grease film is formed on the piston rod surface to improve the durability.
  • Entry of dust and foreign matter is prevented.
  • The number of operating cycles can be improved even in general environments.
■Applicable Cylinders
