Connectable Modular Components
Residual Pressure Relief 3-Port Solenoid Valve VP546E/746E
-
?Flow rate characteristics C [dm3/(s·bar)]
VP546E: 7.5
VP746E: 12.6
?A model with a soft start-up function is also available.
?Power consumption: 0.35 W (Without light)
?Features a check valve built into the pilot flow path
(Supports pilot pressure drops caused by pressure fluctuations on the
inlet side)
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Residual Pressure Relief 3-Port Solenoid Valve VP546E/746E
DoC
Series View search result VP546E View search result VP746E View search result
Safety Instructions F.R.L. Units/Precautions Product Selection Guide
Green Procurement (RoHS) Connectable Modular Components (Catalog)
Green Procurement (RoHS) Connectable Modular Components (Catalog)
| Series | Applicable combinations |
|---|---|
| VP546E | AC30-D |
| VP746E | AC40-D |
Features

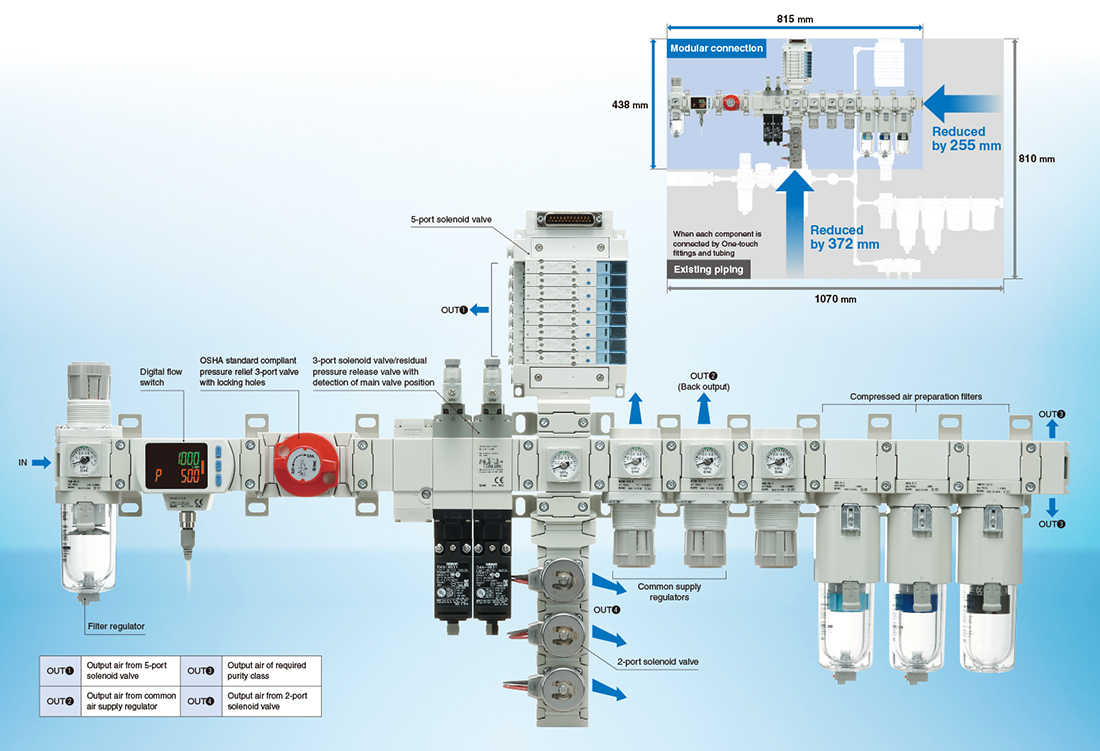

Allows for space saving and reduced piping labor
Installation area: Max. 59% reduction (356,970 mm2 ← 866,700 mm2)
?Width: Reduced by 255 mm (815 mm ← 1070 mm)
?Height: Reduced by 372 mm (438 mm ← 810 mm)

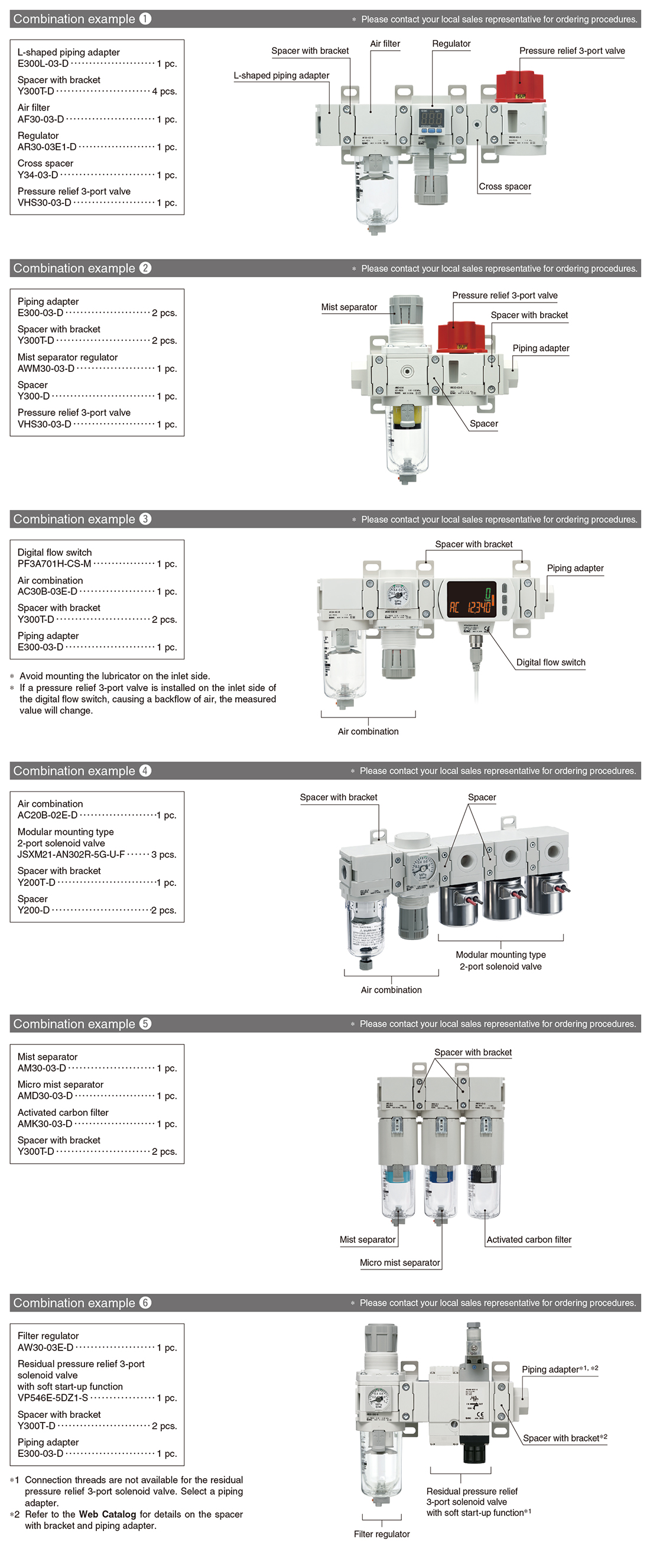

Connectable modular components
Various attachment options
?Component and piping connection directions
?Size conversion is possible
Simple Specials System

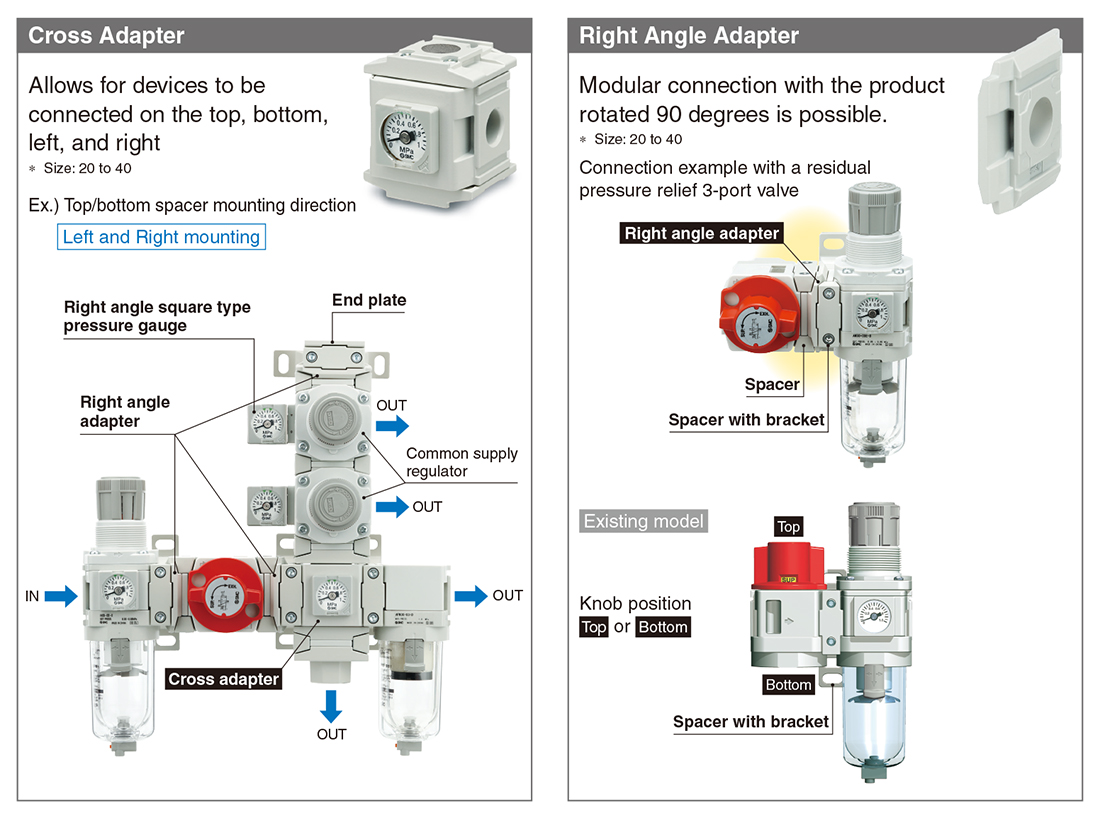

Component connection directions

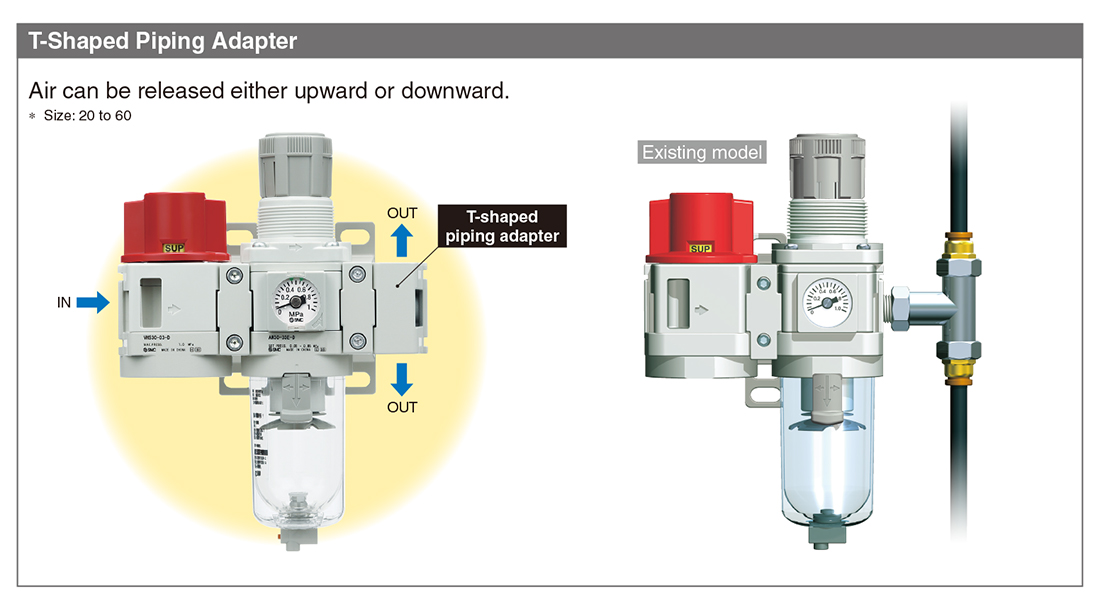

Piping connection directions

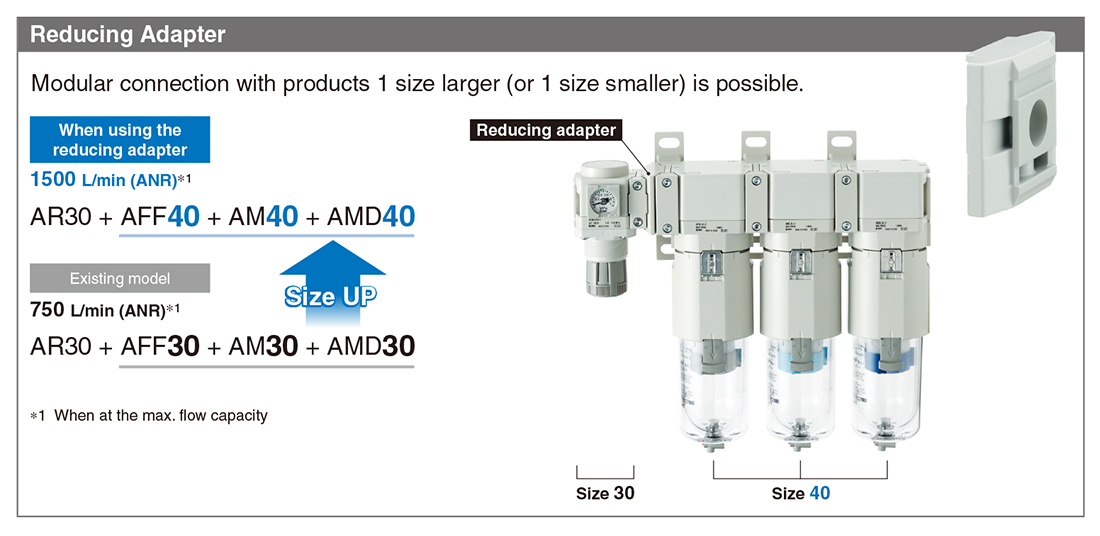

Size conversion is possible
Flow capacity UP, Reduced number of element replacements
Space-saving design and reduced piping labor
Simple Specials System
A system designed to respond quickly and easily to your special ordering needs
Please contact your local sales representativefor more details
