WEB Catalog

Product Information ?  WEB Catalog  ? Grippers for Collaborative Robots  ? Electric Vacuum Grippers (Built-in Vacuum Pump Type)

Electric Vacuum Grippers (Built-in Vacuum Pump Type)

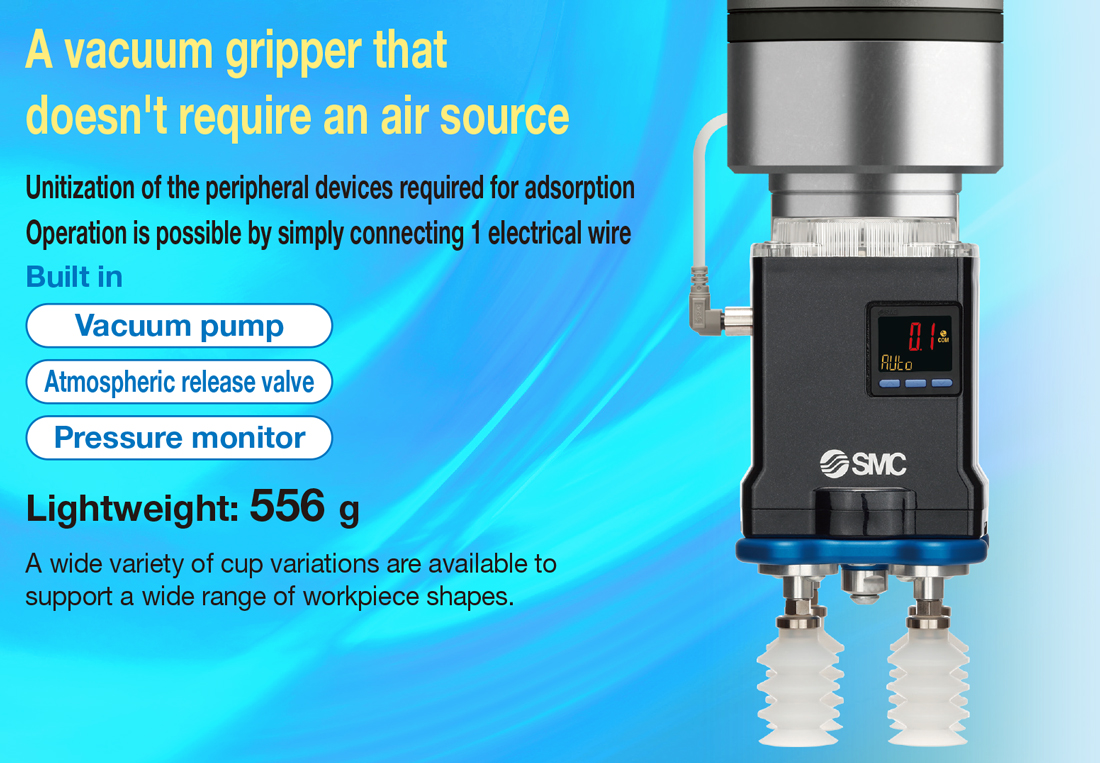

Electric Vacuum Gripper for Collaborative Robots ZXPE5

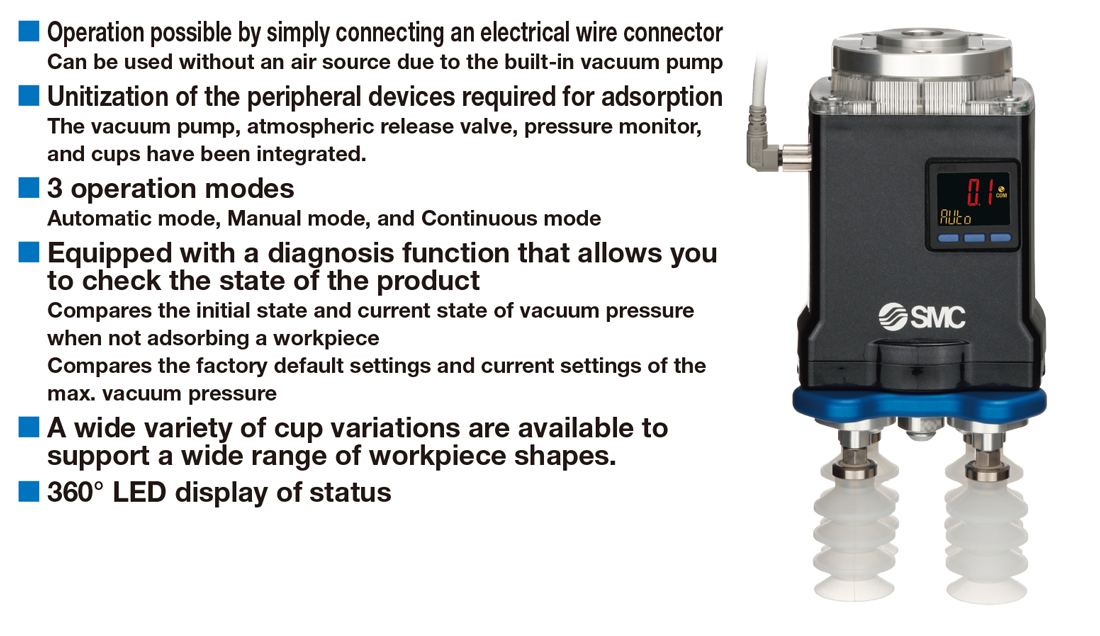

    ?A vacuum gripper that doesn't require an air source
    ?Operation possible by simply connecting an electrical wire connector
    　Can be used without an air source due to the built-in vacuum pump
    ?Unitization of the peripheral devices required for adsorption
    　The vacuum pump, atmospheric release valve, pressure monitor,
    　and cups have been integrated.

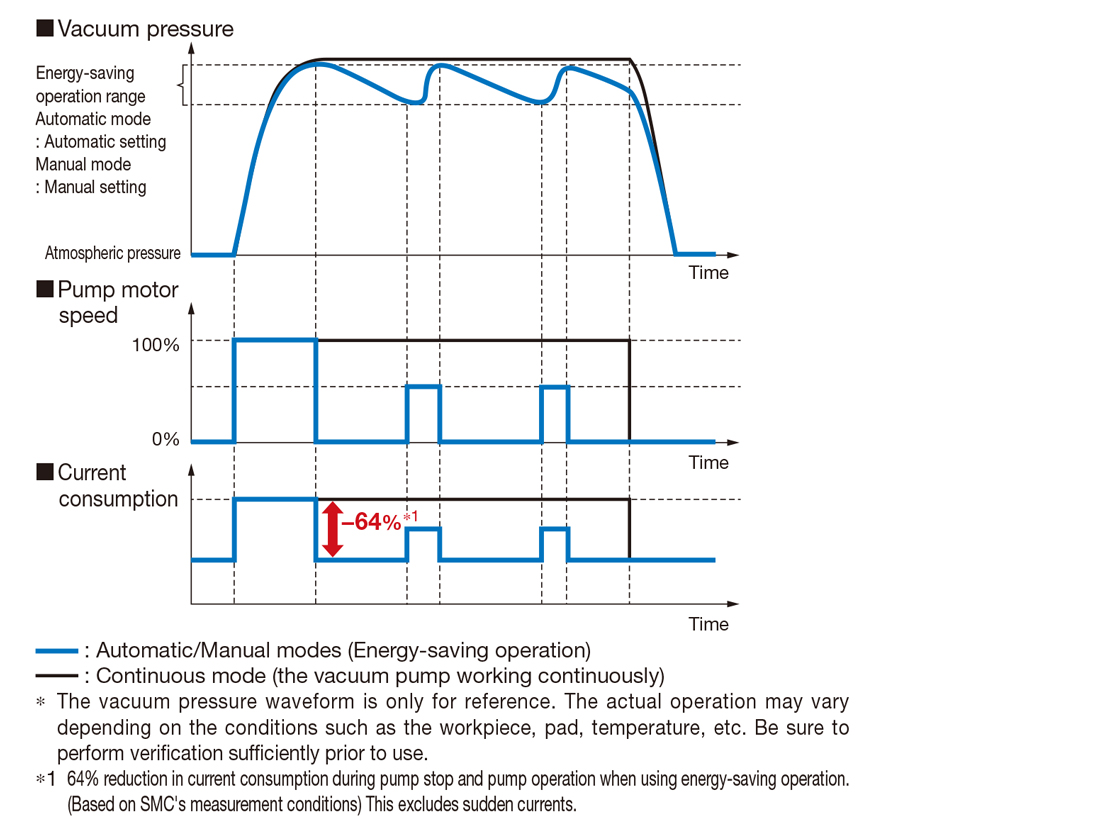

    ?Current consumption: Max. 64% reduction
    　Energy-saving operation possible via automatic/manual modes
    ?Lightweight: 556 g
    ?A wide variety of cup variations are available to support a wide range of
    　workpiece shapes.
    ?Standards: Conforming to ISO9409-1-50-4-M6

    ?1 These are the values under SMC measurement conditions when the gripper is in continuous mode (the vacuum pump working continuously) and may vary depending on the
    atmospheric pressure (weather, altitude, etc.) and the measurement method.
    ?2 May be restricted depending on the cup diameter, mounting orientation, or workpiece. Please use within the max. work load. Suction and transfer exceeding the max. work load may result in product failure and the dropping of workpieces.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Electric Vacuum Gripper for Collaborative Robots ZXPE5
    Manual
    Series View search result
    ZXPE5View search result
  • Electric Vacuum Gripper for Collaborative Robots ZXPE5
    DoC
    Series View search result
    ZXPE5View search result
SeriesCup formCup diameterMax. suction flow rate*1
[L/min(ANR)]		Max. work load*2
[Kg]
ZXPE5Flat
Flat with rib
Bellows
Thin flat
Multistage bellows
2.5-stage bellows
5.5-stage bellows
Flat type for film packaging workpieces		φ8 to φ324.55

Features

A vacuum gripper that doesn't require an air source

Current consumption: Max. 64% reduction

Energy-saving operation possible via automatic/manual modes

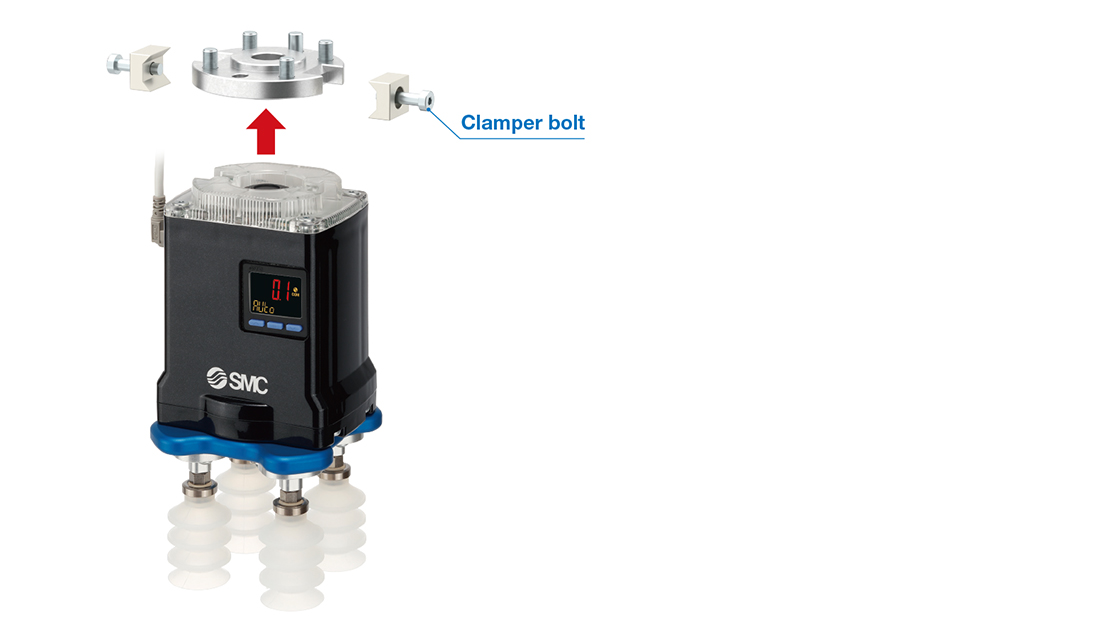

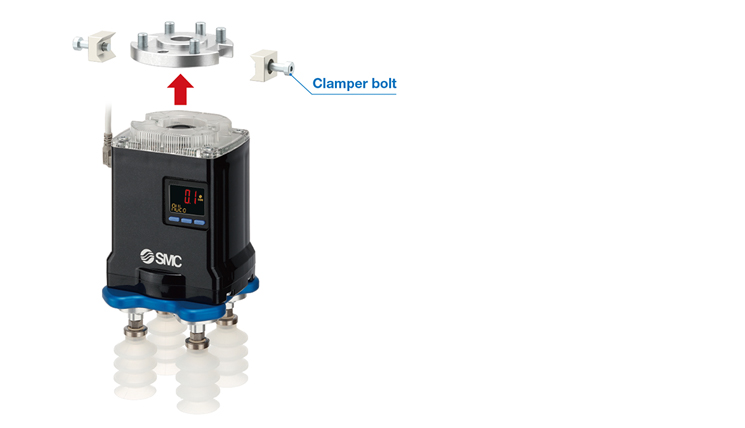

Easy tool changing (Manual changer)

? Tools can be secured by simply tightening the 2 clamper bolts.
? Reduces work-hours

Features
