Product Information ?  WEB Catalog  ? Process Valves  ? Compact 2/3 Port Solenoid Valves/Air Operated Valves

Compact 2/3 Port Solenoid Valves/Air Operated Valves

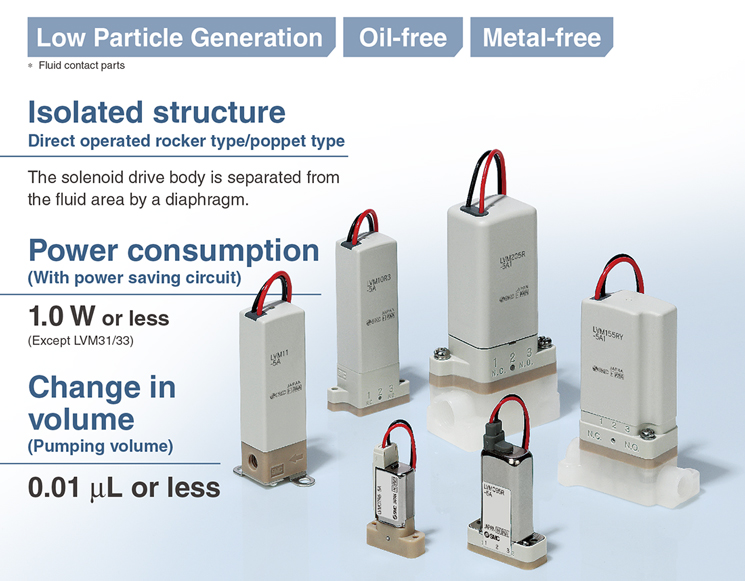

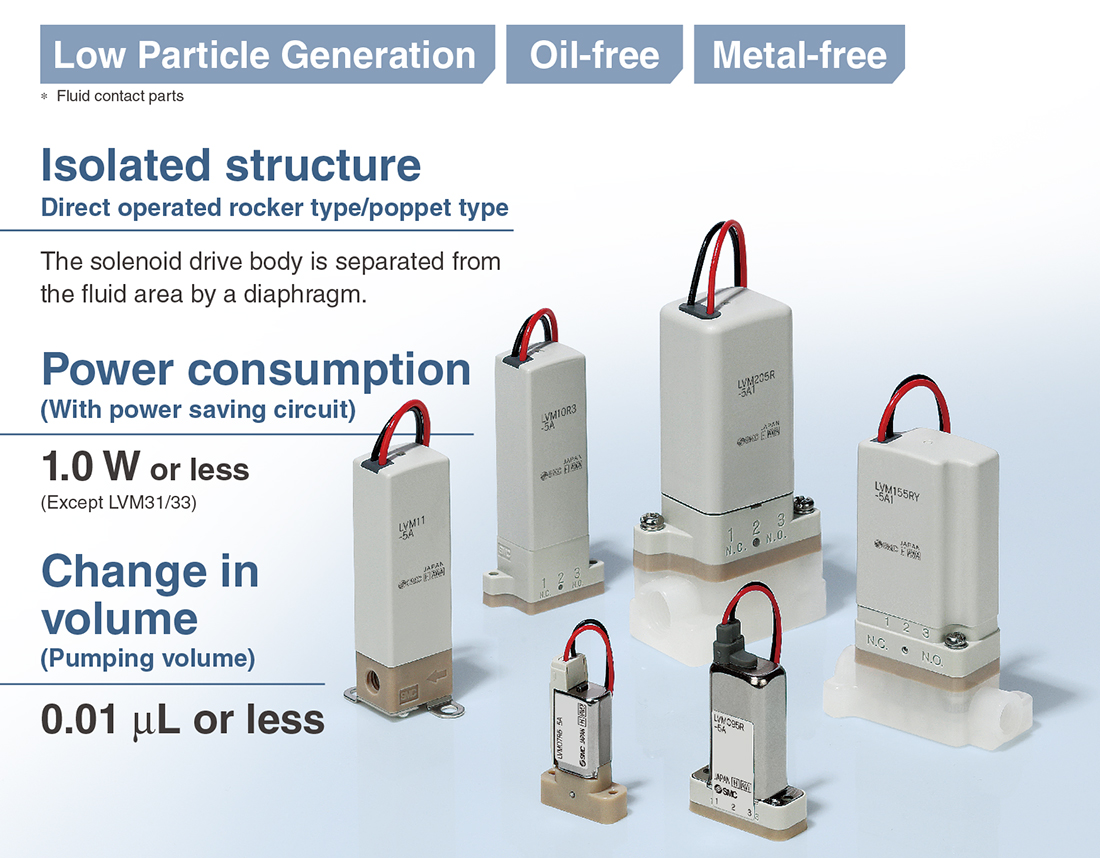

Compact Direct Operated 2/3-Port Solenoid Valve for Chemical Liquids LVM

    ?Low particle generation, Oil-free, Metal-free * Fluid contact parts
    ?Isolated structure

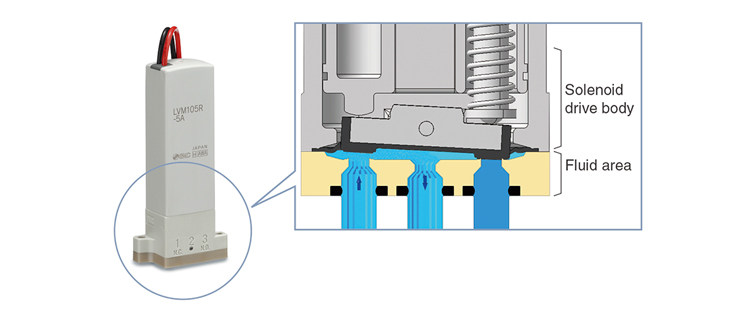

    　The solenoid drive body is separated from the fluid area by a diaphragm.
    ?Power consumption: 1.0 W or less (With power saving circuit)
    ?Change in volume (Pumping volume): 0.01 μL or less
SeriesValve constructionValve typeOperating pressure rangeOrifice diameter (mm?)
LVM07
Base mounted		Direct operated rocker typeN.C.-75 kPa to 0.1 MPa0.8
LVM09
Body ported
Base mounted		Direct operated rocker typeN.C.
N.O.
Universal		-75 kPa to 0.2 MPa1 (Body ported)
1.1 (Base mounted)
LVM10
Body ported
Base mounted		Direct operated rocker typeN.C.
N.O.
Universal		-75 kPa to 0.25 MPa1.4
LVM15
Body ported
Base mounted		Direct operated rocker typeN.C.
N.O.
Universal		-75 kPa to 0.25 MPa
(Max. 0.6 MPa)		1.6
1 (High-pressure type)
LVM20
Body ported
Base mounted		Direct operated rocker typeN.C.
N.O.
Universal		-75 kPa to 0.3 MPa
(Body ported: 0.25 MPa)		2
LVM1□
Body ported
Base mounted		Direct operated poppet typeN.C.0 to 0.25 MPa1.5
LVM3□
Body ported
Base mounted		Direct operated poppet typeN.C.-90 kPa to 0.2 MPa5

Features

Low Particle, Generation, Oil-free Metal-free

* Fluid contact parts

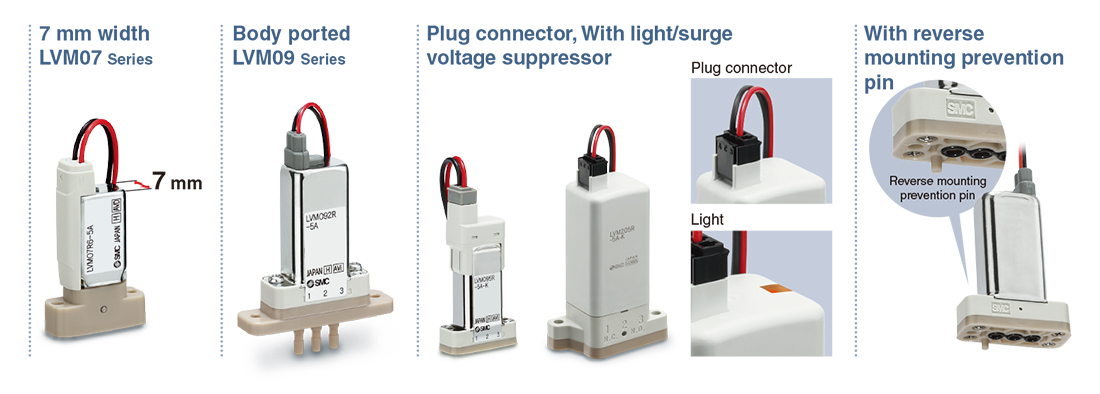

Variations/Options

Direct Operated Rocker Type ／LVM07?09/090?10/100?15/150?20/200

?Isolated structur

The solenoid drive body is separated from the fluid area by a diaphragm.

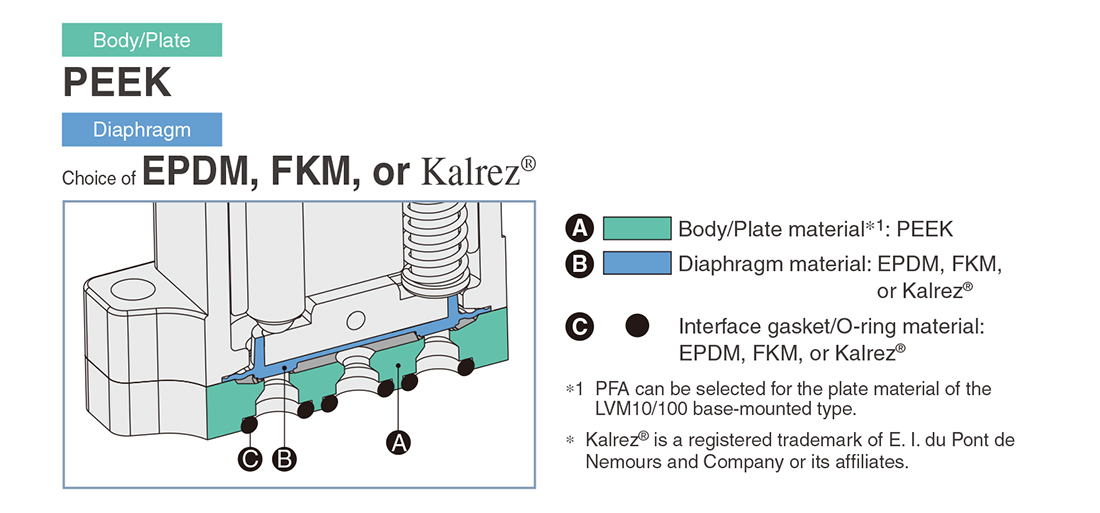

?Fluid contact material (Metal-free)

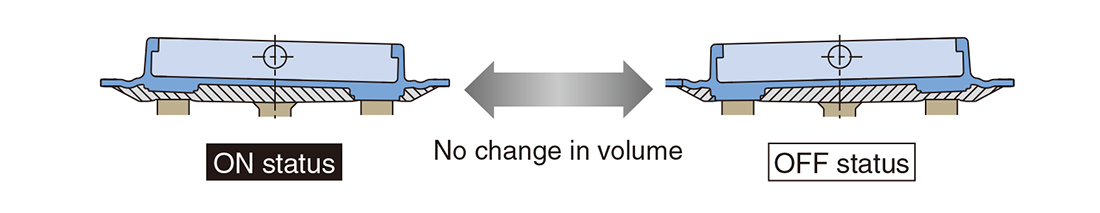

?Change in volume (Pumping volume): 0.01 μL or less

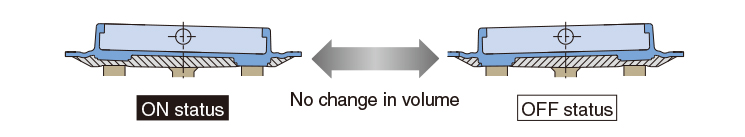

With a normal diaphragm valve, because the valve chamber volume varies depending on the ON or OFF status, the difference in volume is discharged into the outlet side of the valve when the valve is switched from ON to OFF.
However, with a rocker type valve, there is almost no change in volume, and thus no fluid is discharged into the outlet side of the valve.

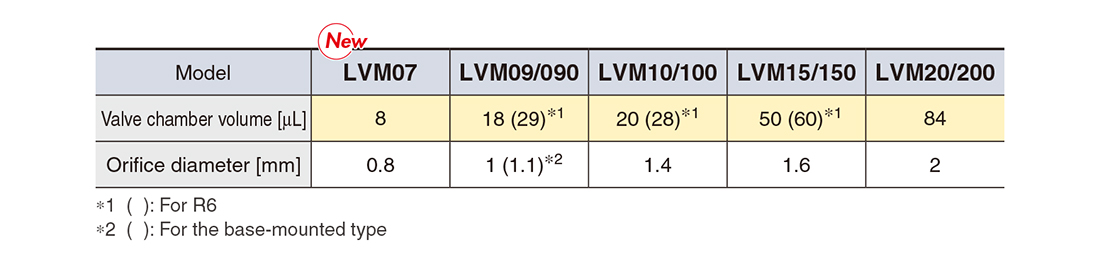

?Valve chamber volume

Residual liquid is reduced by suppressing the valve chamber volume.

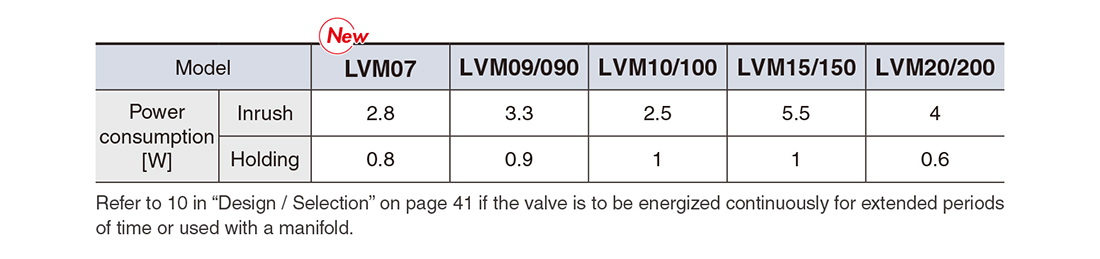

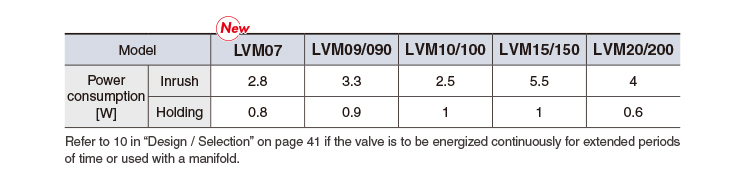

?A type with a power saving circuit can be selected.

Holding power consumption can be reduced substantially.
Continuous energization for extended periods of time is possible.

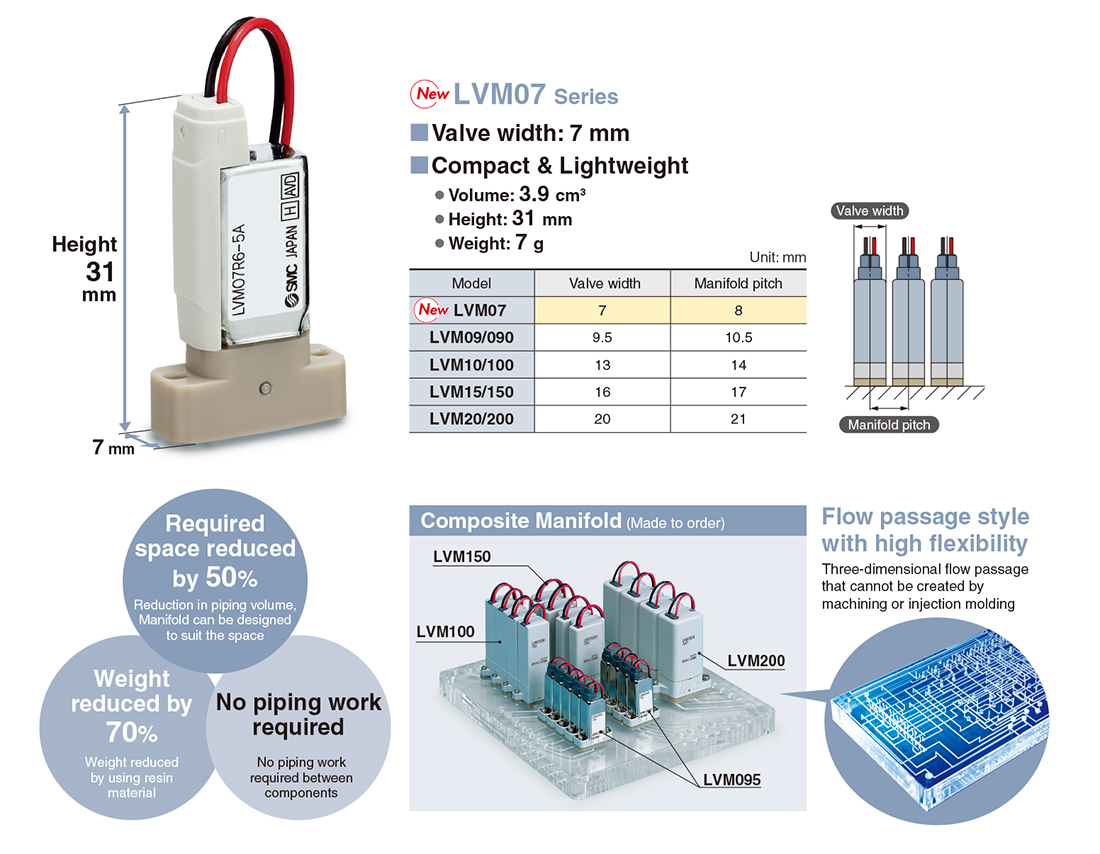

Space saving

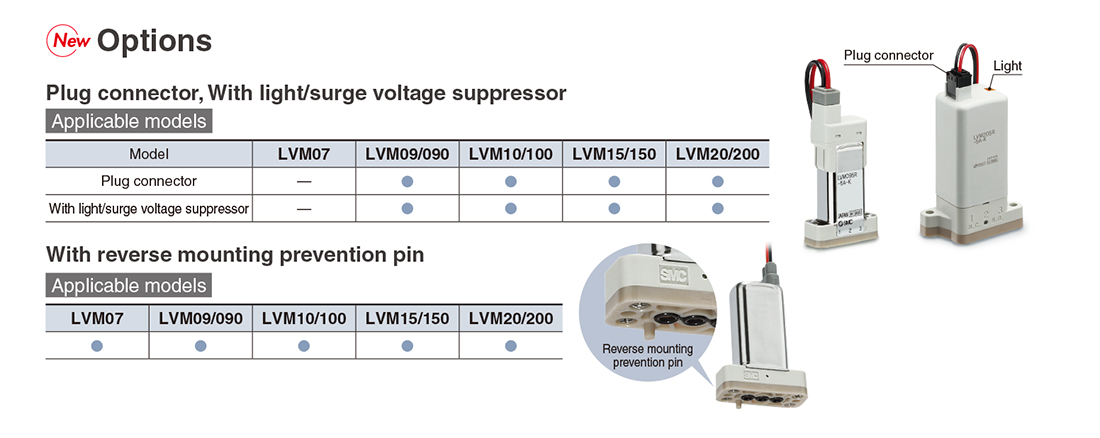

Options New

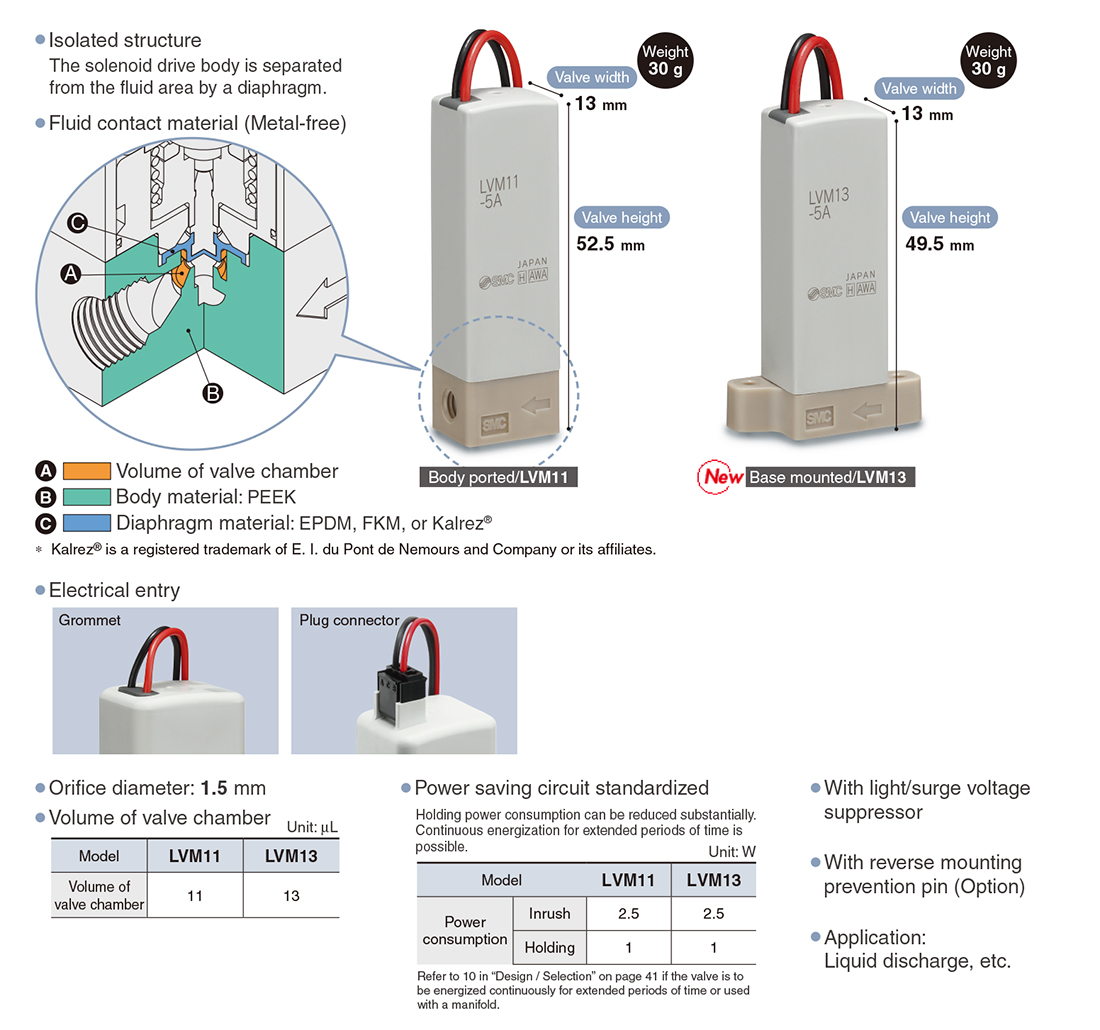

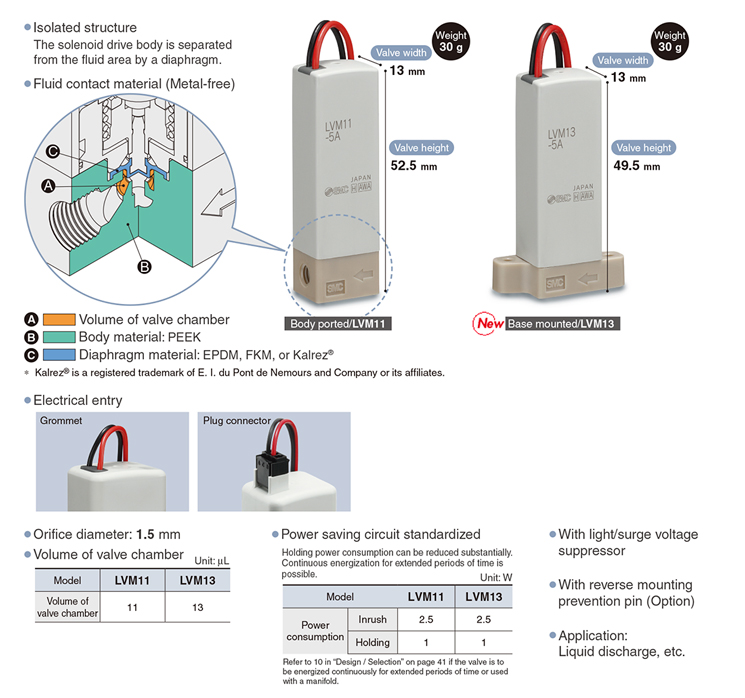

Direct Operated Poppet Type/LVM11/13

?Less clogging due to the poppet construction

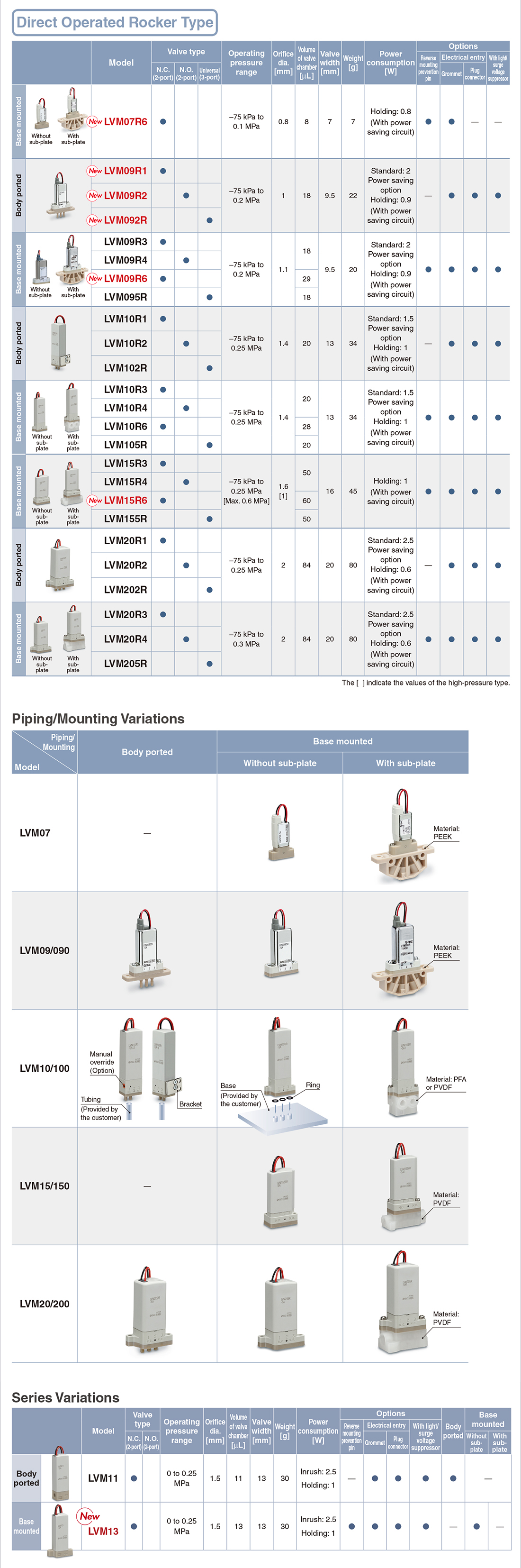

Series Variations
