WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Environment Resistant Cylinders

Environment Resistant Cylinders

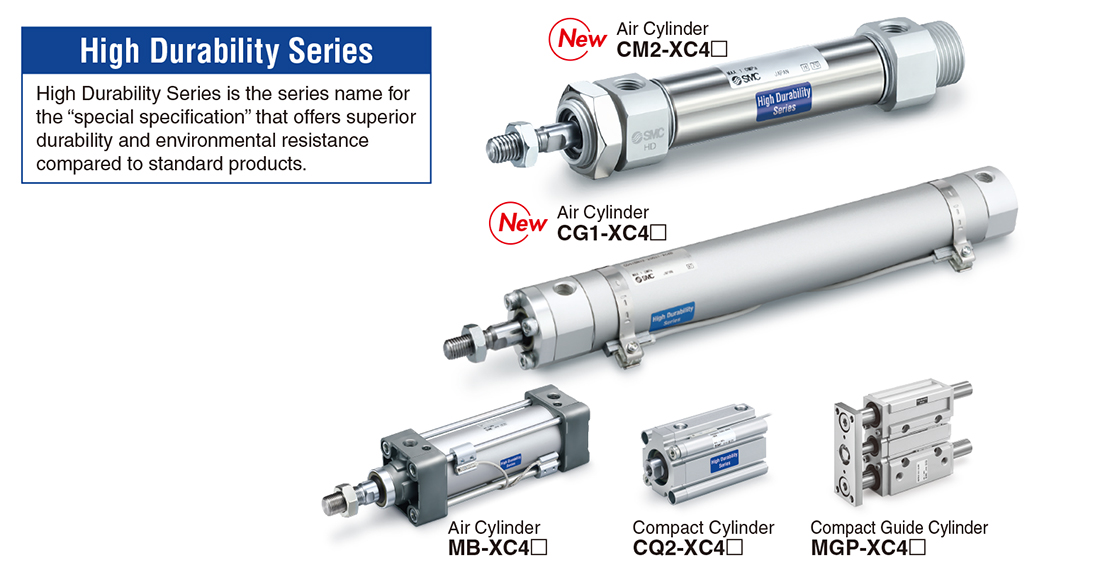

Dust Resistant Cylinder CM2/CG1/MB/CQ2/MGP-XC4□

    ?CM2-XC4□ has been added. New
    ?Up to 6 times more durable in dusty environments
    　Applicable powder particle size: 20 to 100 μm
    　Suitable for environments with ceramic powder, toner powder, paper
    　powder, and metallic powder
    　? Excludes weld spatter
    ?Can be selected according to the application

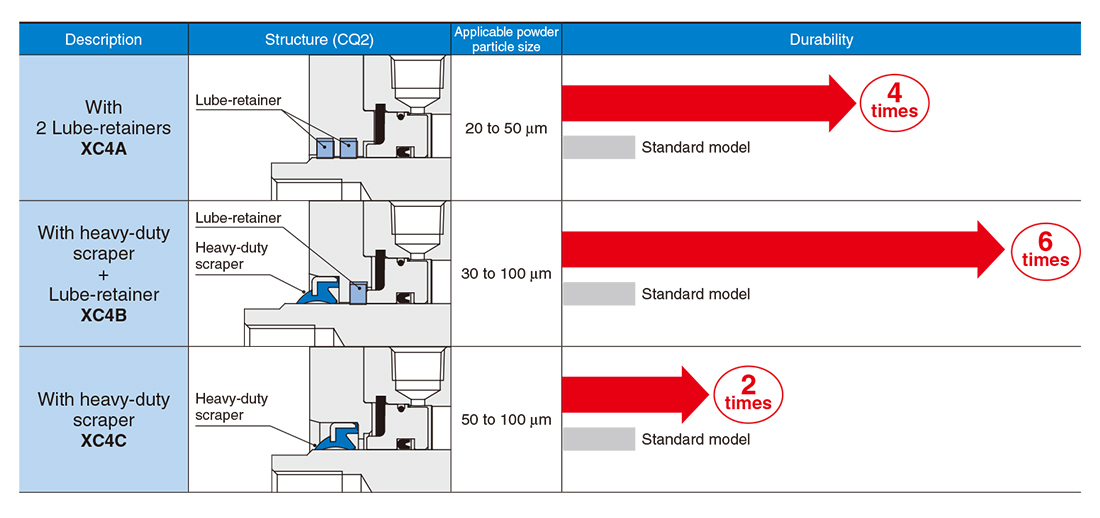

    　A Lube-retainer (stable lubrication function) and a heavy-duty scraper
    　can be mounted on the piston rod.
    　For the MGP series compact guide cylinder, they can also be mounted
    　on the guide rod (one or both sides).

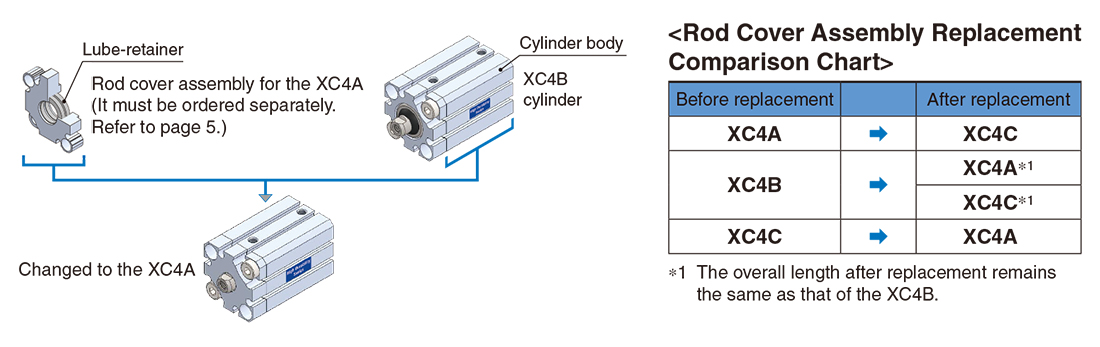

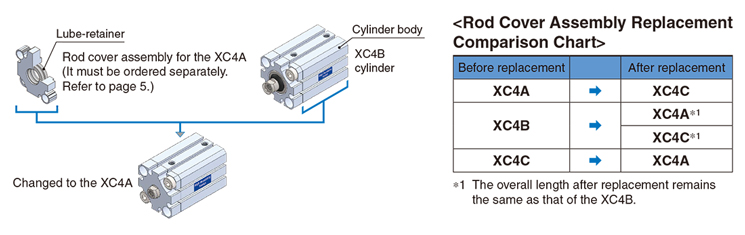

    ?The rod cover assembly can be replaced according to the operating
    　environment.
    　? Only for bore sizes ?20, ?25, and ?32 of the CQ2 series
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

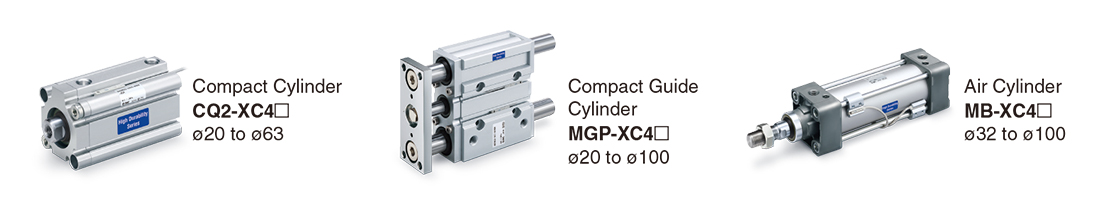

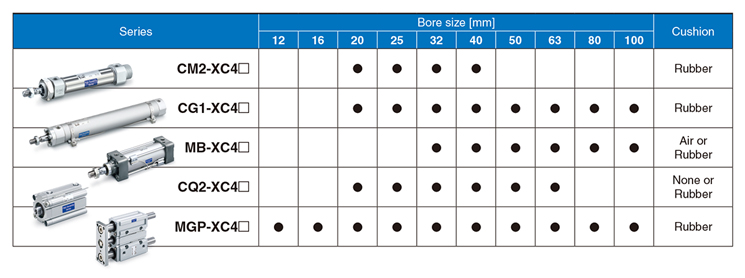

TypeSeriesActionBore size (mm)
Air cylinderCM2-XC4□Double acting20, 25, 32, 40
Air cylinderCG1-XC4□Double acting20, 25, 32, 40, 50, 63, 80, 100
Air cylinderMB-XC4□Double acting32, 40, 50, 63, 80, 100
Compact cylinderCQ2-XC4□Double acting20, 25, 32, 40, 50, 63
Compact guide cylinderMGP-XC4□Double acting20, 25, 32, 40, 50, 63, 80, 100

Features

Up to 6 times more durable in dusty environments

Applicable powder particle size: 20 to 100 μm
Suitable for environments with ceramic powder, toner powder, paper powder, and metallic powder

? Excludes weld spatter

Can be selected according to the application

A Lube-retainer (stable lubrication function) and a heavy-duty scraper can be mounted on the piston rod.
For the MGP series compact guide cylinder, they can also be mounted on the guide rod (one or both sides).

The rod cover assembly can be replaced according to the operating environment.

? Only for bore sizes ?20, ?25, and ?32 of the CQ2 series

Applicable Cylinders
