Air Gripper Unit for Collaborative Robots

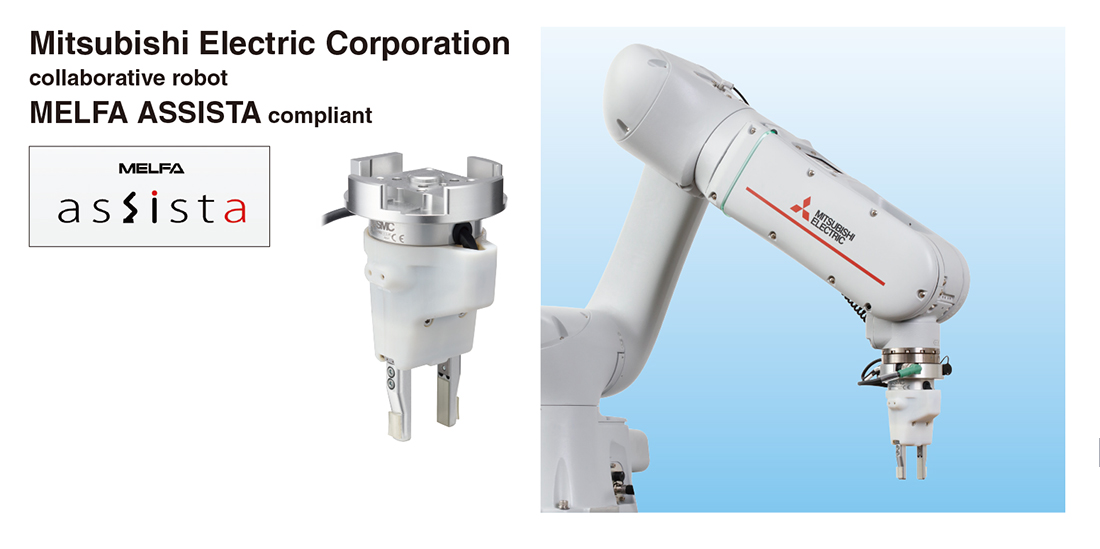

Air Gripper Unit for Collaborative Robots JMHZ2-X7400B-ASSISTA
for the Mitsubishi Electric Corporation MELFA ASSISTA Series
-
?Compact, lightweight product with high gripping force due to air operation
?High rigidity and high precision due to its guide-integrated construction
Repeatability: ±0.01 mm due to the adoption of a high-precision linear guide
Higher rigidity due to the adoption of a linear guide of the higher rigidity and precision
?Operate by simply connecting 1 air supply tube and an electrical wiring M12 connector.
?Integrated solenoid valve, speed adjustment mechanism, and auto switch
?A split protective cover for easy air gripper maintenance
?Standards: ISO 9409-1-31.5-4-M5
Air Gripper Unit for Collaborative Robots JMHZ2-X7400B-ASSISTA
for the Mitsubishi Electric Corporation MELFA ASSISTA SeriesManual
Type Series View search result For Collaborative Robots JMHZ2-16D-X7400B-ASSISTA View search result
| Type | Series | Cylinder bore size (mm) |
|---|---|---|
| For Collaborative Robots | JMHZ2-16D-X7400B-ASSISTA | 16 |
Features
Air Gripper Unit for Collaborative Robots
Compact, lightweight product with high gripping force due to air operation
High rigidity and high precision due to its guide-integrated construction
Repeatability: ±0.01 mm due to the adoption of a high-precision linear guide
Higher rigidity due to the adoption of a linear guide of the higher rigidity and precision (Compared with the same size of the existing MHZ2)
Operate by simply connecting 1 air supply tube and an electrical wiring M12 connector.
Integrated solenoid valve, speed adjustment mechanism, and auto switch
A split protective cover for easy air gripper maintenance
Allows you to maintain the air gripper without removing the user-specific attachment

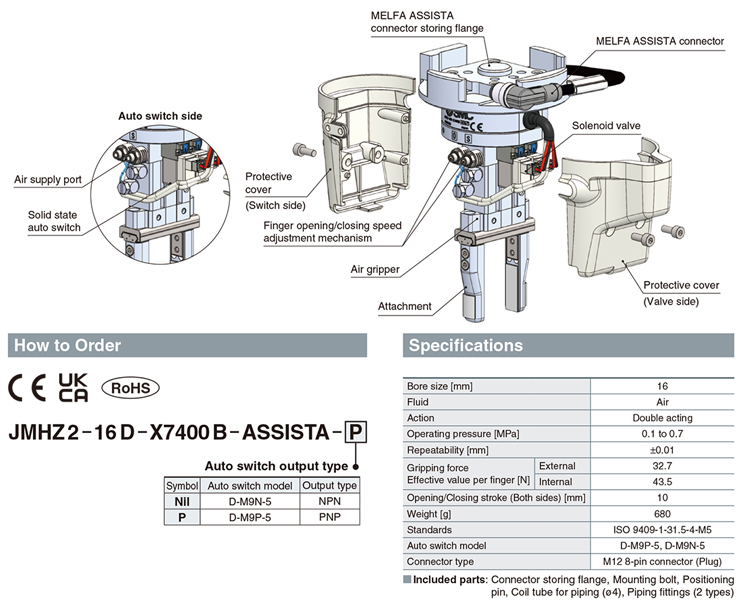

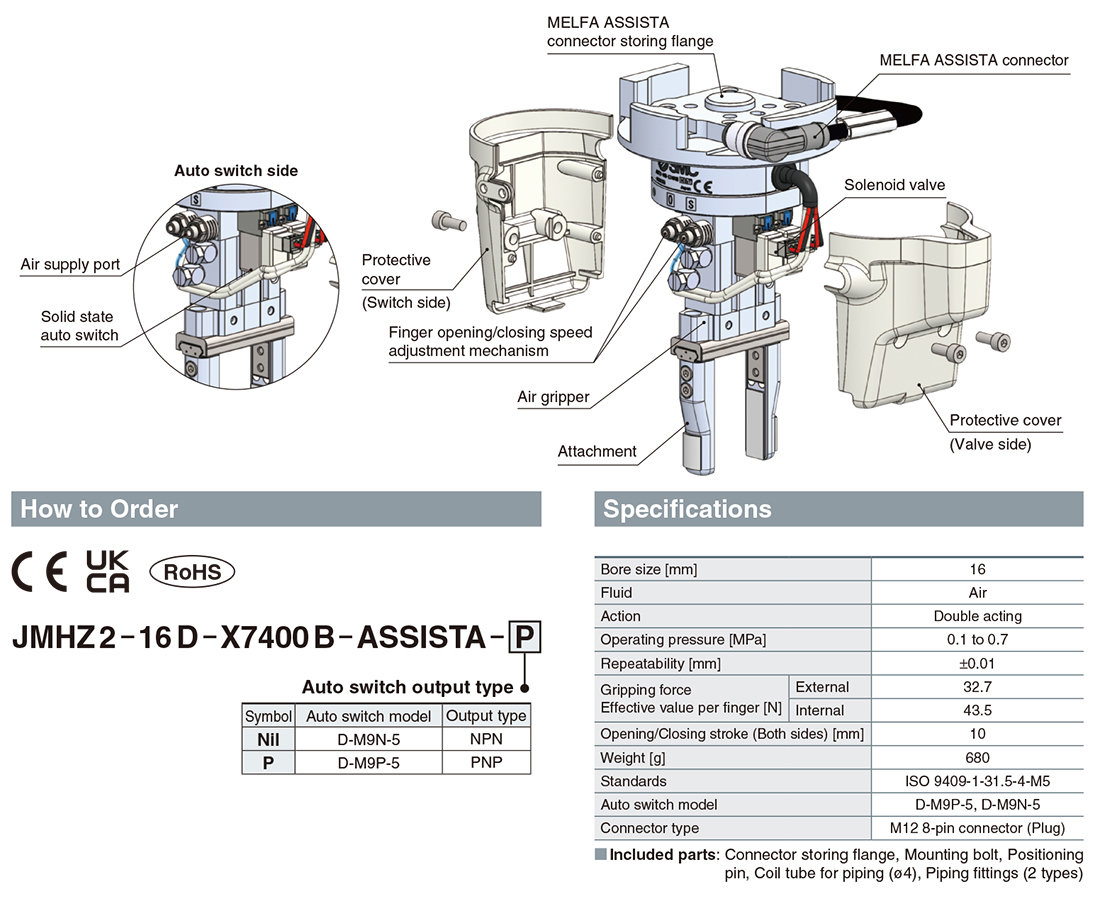

Component Parts

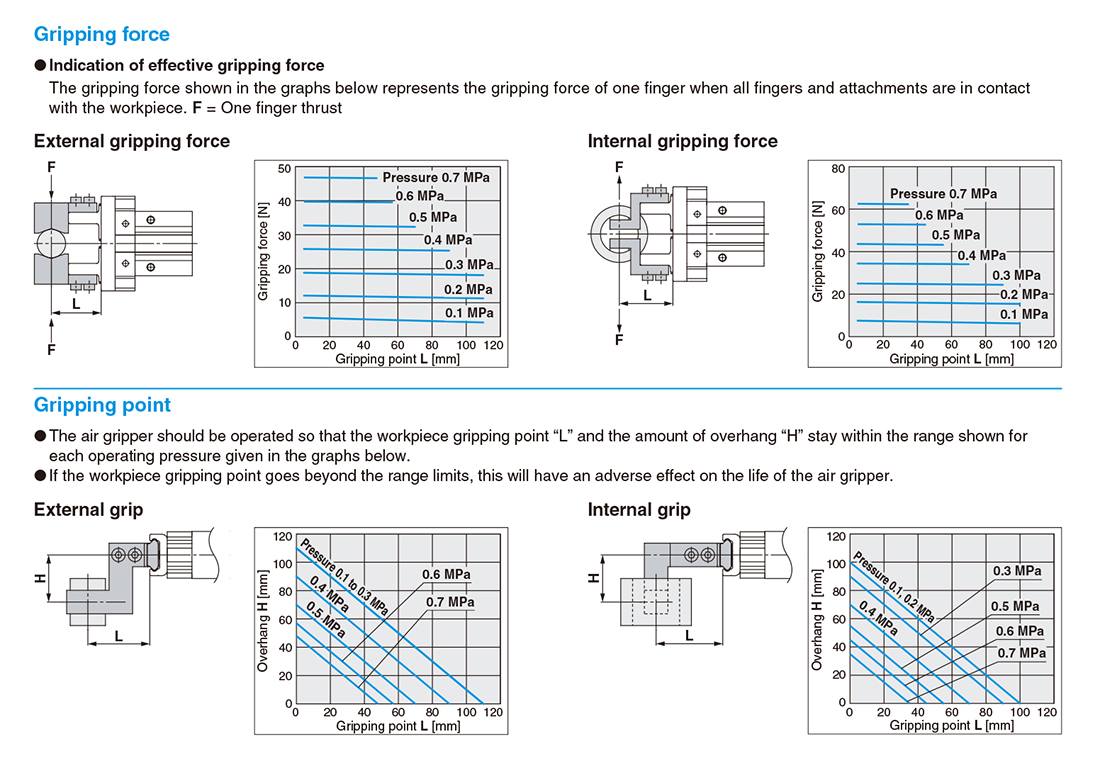

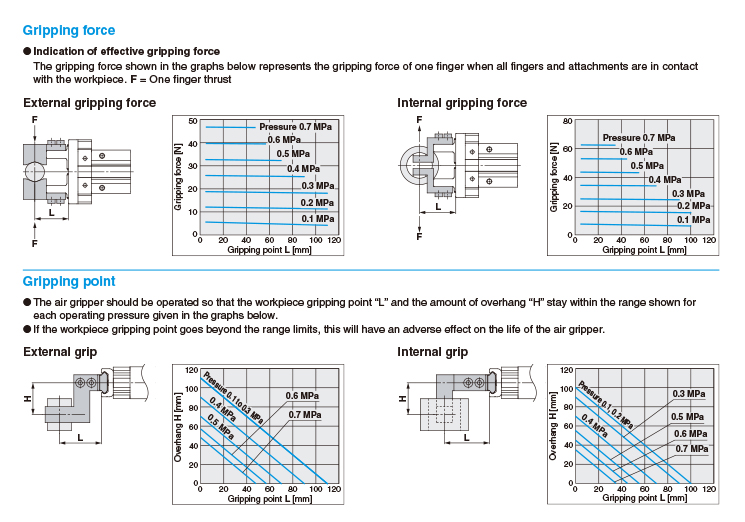

Characteristics

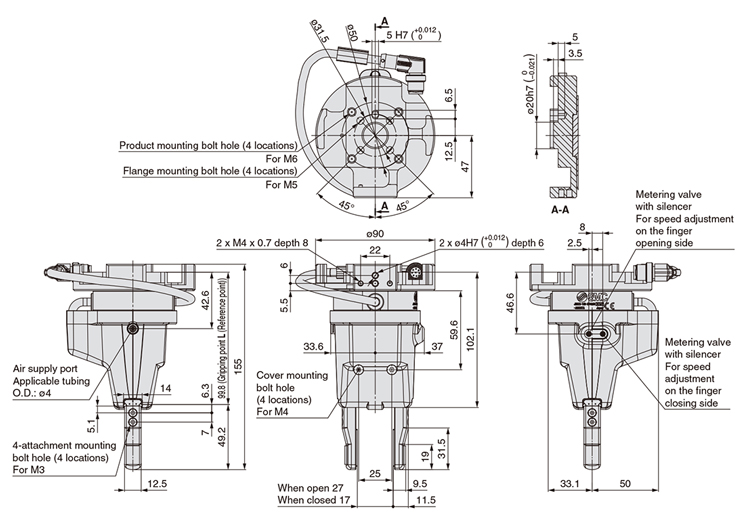

Dimensions
