WEB Catalog

Product Information ?  WEB Catalog  ? Process Valves  ? 2/3 Port Solenoid Valves/Air Operated Valves

2/3 Port Solenoid Valves/Air Operated Valves

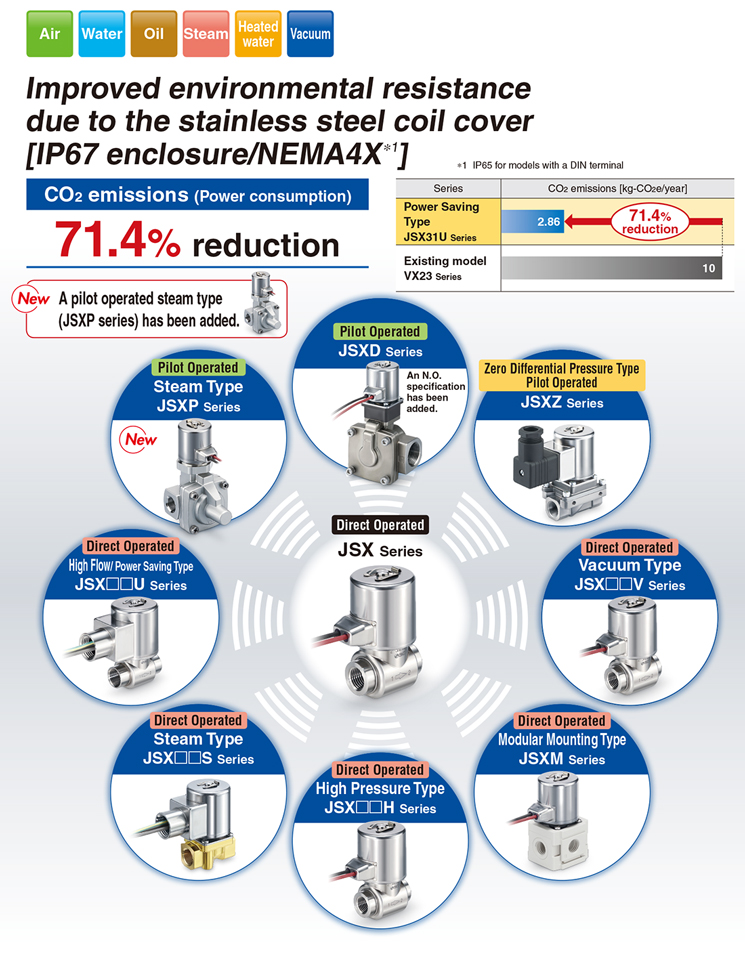

Direct Operated/Pilot Operated 2-Port Solenoid Valve JSX/JSX□

    · A pilot operated steam type (JSXP series) has been added. New
    · Improved environmental resistance due to the stainless steel coil cover
    　[IP67 enclosure/NEMA4X?] ? IP65 for models with a DIN terminal
    ·Space saving
    　Compact: Valve volume reduced by 25%*, Lightweight: Weight reduced
    　by 30%*
    　* Compared with the existing model
    ·Energy saving
    　Coil force: 10% increase*, Power consumption: 14% reduction*
    　* Compared with the existing model
    ·360° lead wire insertion and removal is possible.
    ·Improved weather resistance in outdoor environments
SeriesTypeValve typePort sizeOrifice diameter (mm?)
JSXDirect operatedN.C.1/8, 1/4, 3/81.6 to 7.1
JSX□□UDirect operated high flow/ power saving typeN.C.1/8, 1/4, 3/82.4 to 7.1
JSX□□VDirect operated vacuum typeN.C.1/8, 1/4, 3/81.6 to 7.1
JSX□□HDirect operated high pressure typeN.C.1/4, 3/83.2
JSX□□SDirect operated steam typeN.C.1/4, 3/81.6，7.1
JSXMDirect operated modular mounting typeN.C.1/8，1/4，3/8，1/23.2，4
JSXDPilot operatedN.C.1/4，3/8，1/2，3/4，1，
1 1/4，1 1/2，2，32A，40A，50A		10 to 50
JSXPSteam typeN.C.3/8，1/2，3/4，1， 1 1/4，
1 1/2，2，32A，40A，50A		15 to 50
JSXZZero differential pressure type pilot operatedN.C.1/4，3/8，1/2，3/8，1/2，3/4，110 to 25

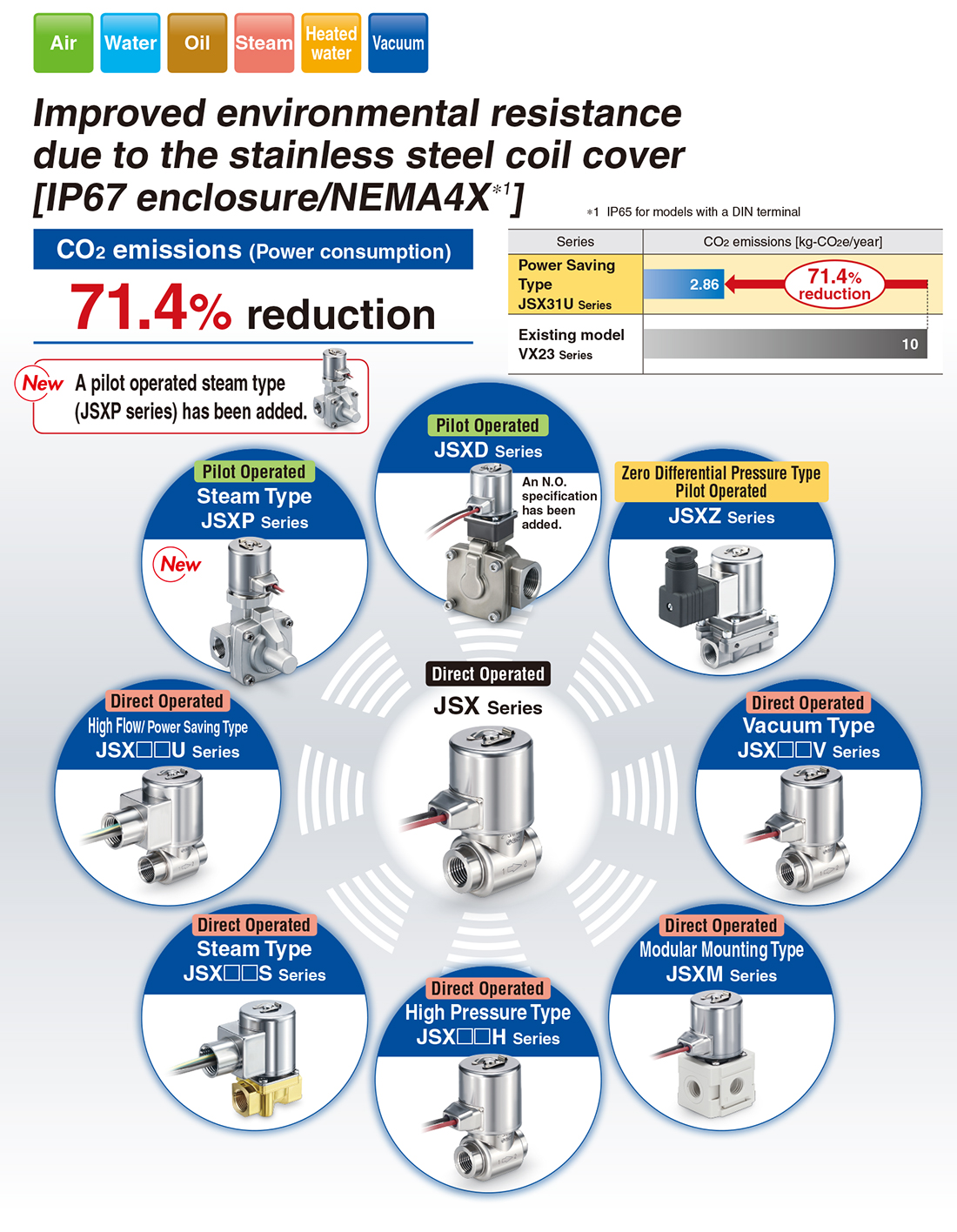

Features

Improved environmental resistance due to the stainless steel coil cover [IP67 enclosure/NEMA4X]

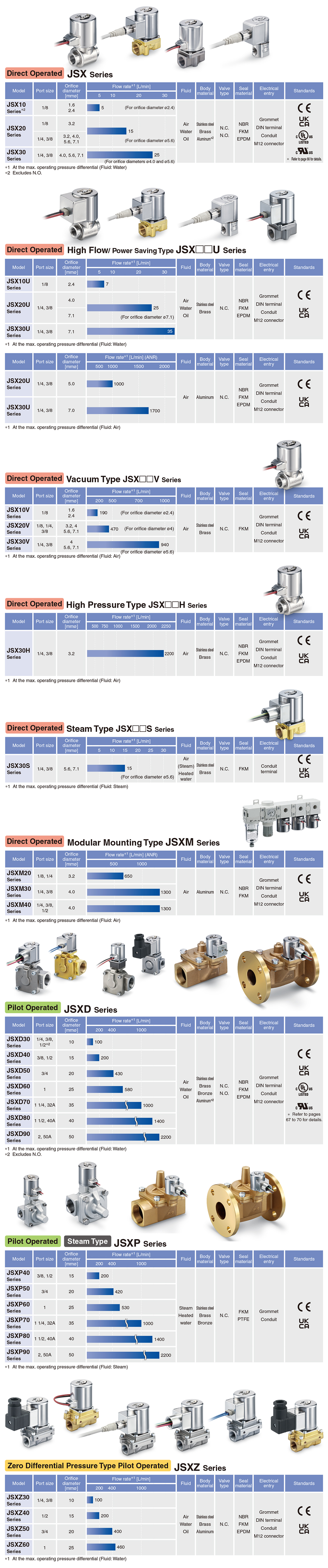

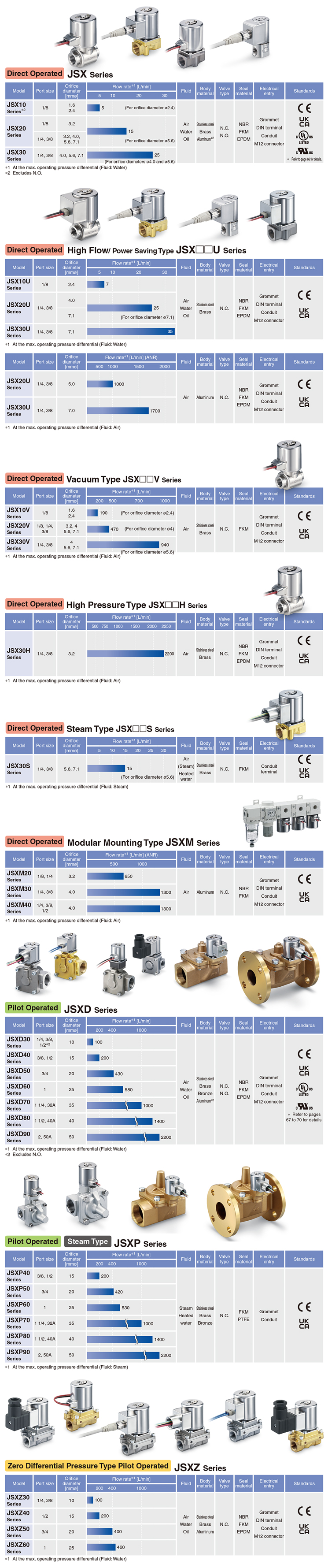

Series Variations

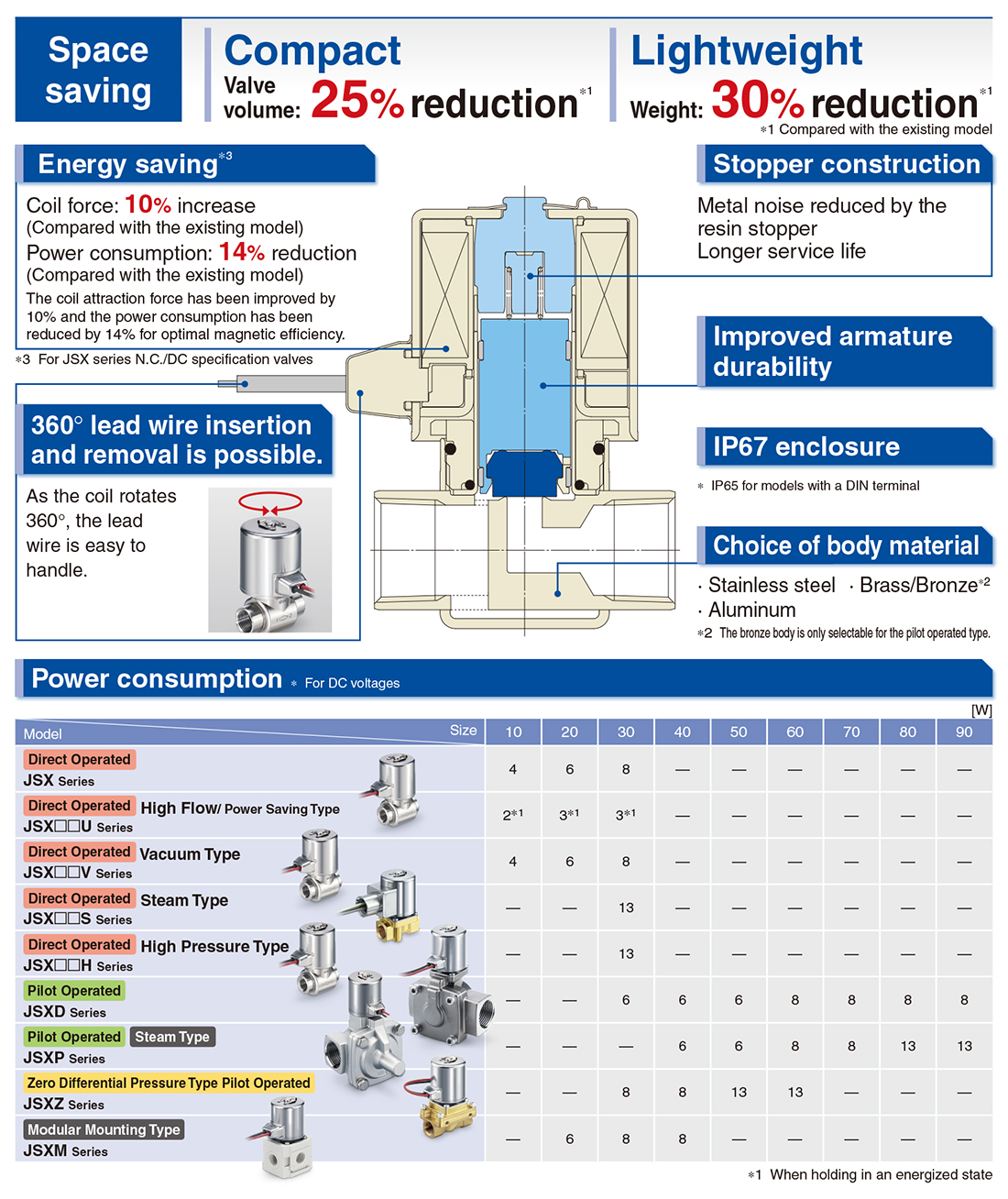

Space saving
Compact: Valve volume reduced by 25% (Compared with the existing model),
Lightweight: Weight reduced by 30% (Compared with the existing model)

Full-wave rectifier type (AC specification: Insulation type Class B)

  • ?Improved durability

    　Extended service life due to the special construction
    (Compared with the existing shading coil)


    ?Reduced buzzing noise

    　Due to being rectified to DC by the full-wave rectifier


    ?Reduced apparent power

    　* Class B, N.C. valve (Compared with the existing model)

    　9.5 VA → 8 VA （JSX20/JSXD60, 70 Series）
    　12 VA → 9.5 VA（JSX30/JSXD80, 90 Series）

  • ?Improved OFF response

    　Specially constructed to improve the OFF response when operated with high viscosity fluids such as oil


    ?Low-noise construction

    　Specially constructed to reduce metal noise during operation

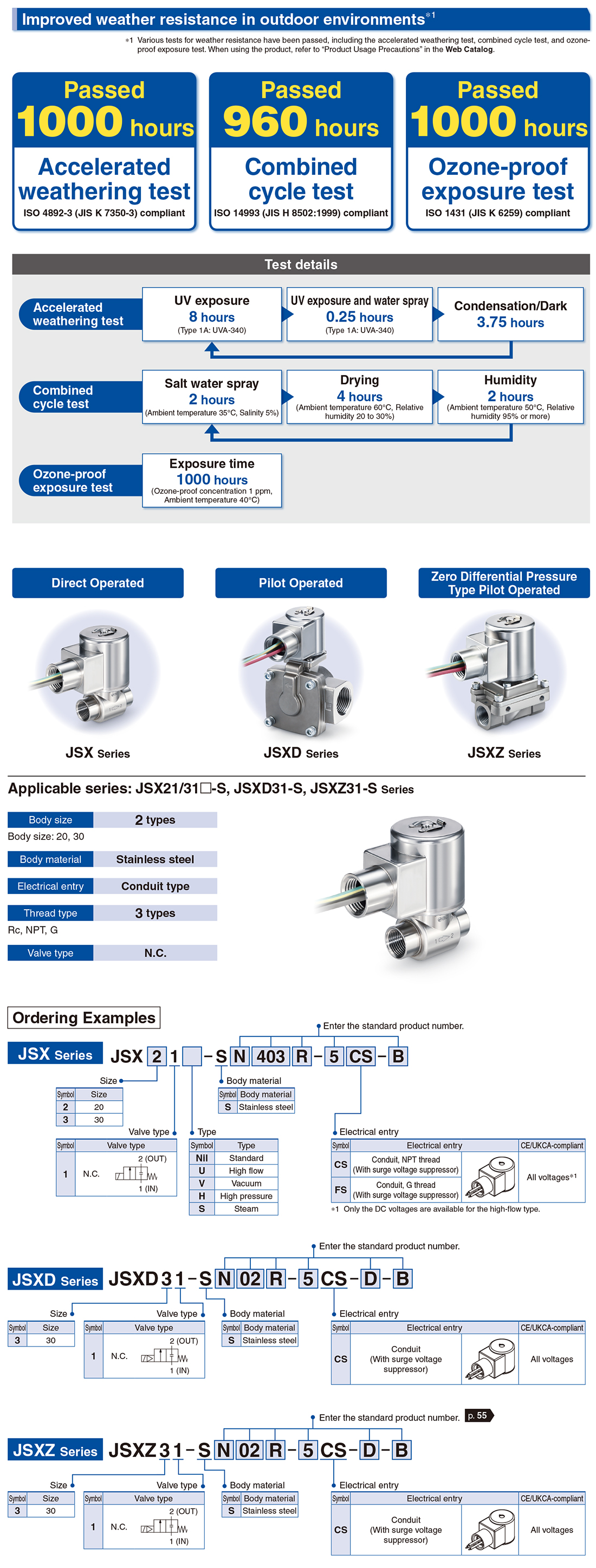

Improved weather resistance in outdoor environments

Full-wave rectifier type (AC specification: Insulation type Class B)

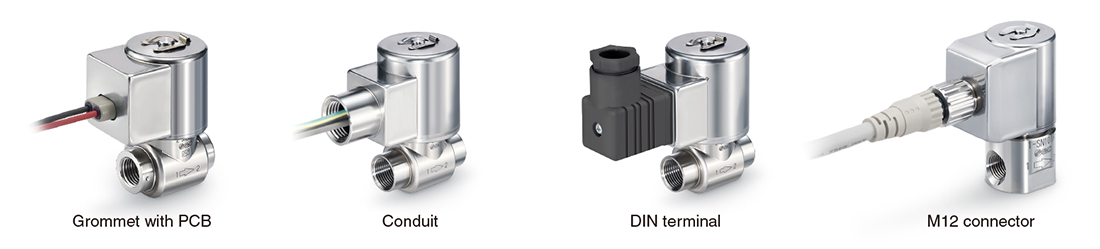

Electrical entry

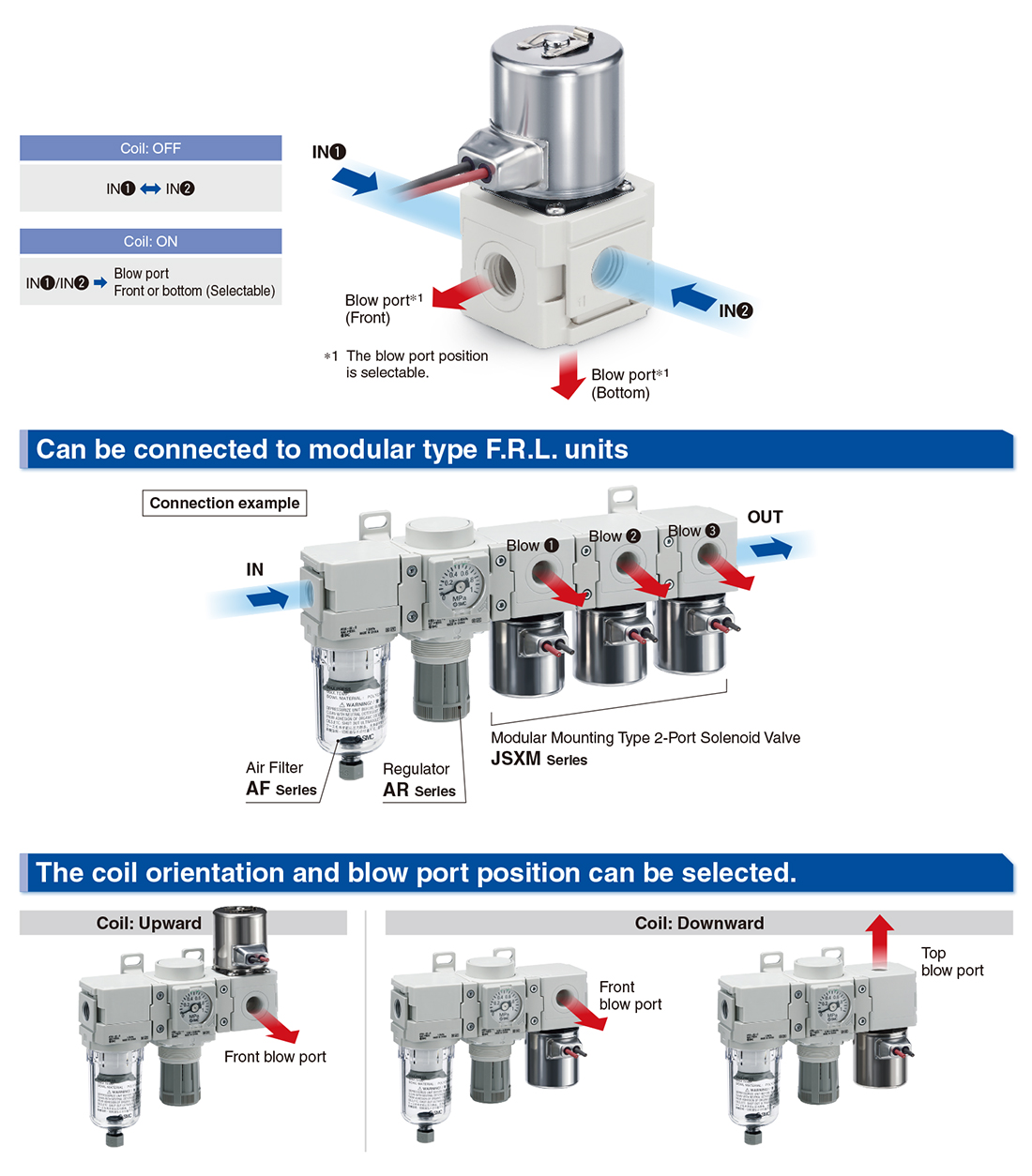

Modular Mounting Type 2-Port Solenoid Valve JSXM Series

　　　　　　Click here for details

Simple Specials System

Go Top
