WEB Catalog

Product Information ?  WEB Catalog  ? Rotary Actuators/Air Grippers  ? Air Gripper Unit for Collaborative Robots

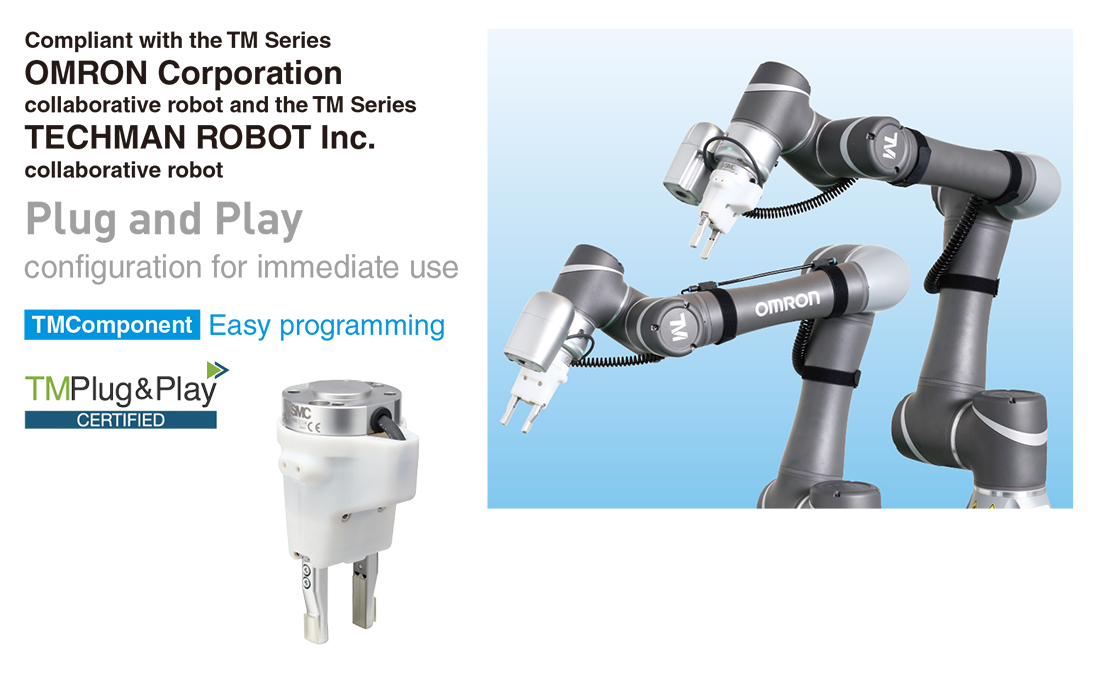

Air Gripper Unit for Collaborative Robots

Air Gripper Unit for Collaborative Robots JMHZ2-X7400B-TM
for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series

    ?Plug and Play configuration for immediate use
    　TMComponent: Easy programming
    ?Compact, lightweight product with high gripping force due to air operation
    ?High rigidity and high precision due to its guide-integrated construction
    　Repeatability: ±0.01 mm due to the adoption of a high-precision linear guide
    　Higher rigidity due to the adoption of a linear guide of the higher rigidity and precision　
    ?Operate by simply connecting 1 air supply tube and an electrical wiring M8 connector.
    ?Integrated solenoid valve, speed adjustment mechanism, and auto switch
    ?A split protective cover for easy air gripper maintenance
    ?Standards: ISO 9409-1-31.5-4-M5
  • Air Gripper Unit for Collaborative Robots JMHZ2-X7400B-TM
    for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
    Manual
    Type Series View search result
    For Collaborative RobotsJMHZ2-16D-X7400B-TMView search result
TypeSeriesCylinder bore size (mm)
For Collaborative RobotsJMHZ2-16D-X7400B-TM16

Features

Air Gripper Unit for Collaborative Robots

Compact, lightweight product with high gripping force due to air operation

High rigidity and high precision due to its guide-integrated construction

Repeatability: ±0.01 mm due to the adoption of a high-precision linear guide
Higher rigidity due to the adoption of a linear guide of the higher rigidity and precision (Compared with the same size of the existing MHZ2)

Operate by simply connecting 1 air supply tube and an electrical wiring M8 connector.

Integrated solenoid valve, speed adjustment mechanism, and auto switch

A split protective cover for easy air gripper maintenance

Allows you to maintain the air gripper without removing the user-specific attachment

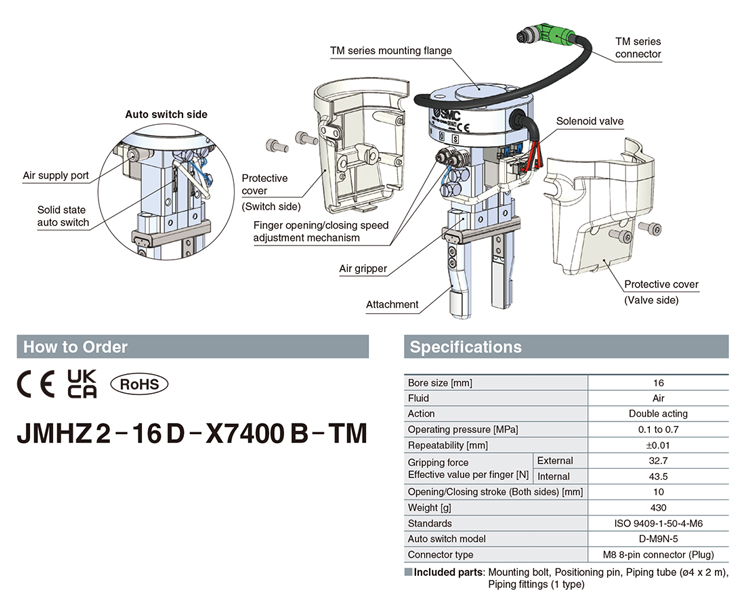

Component Parts

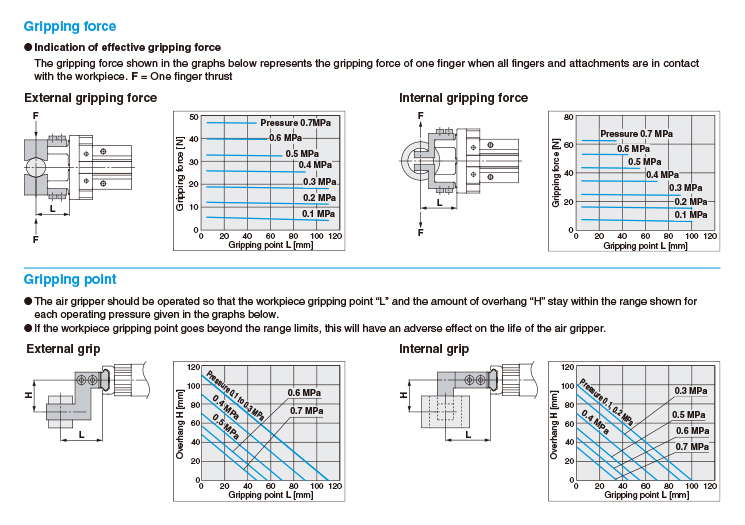

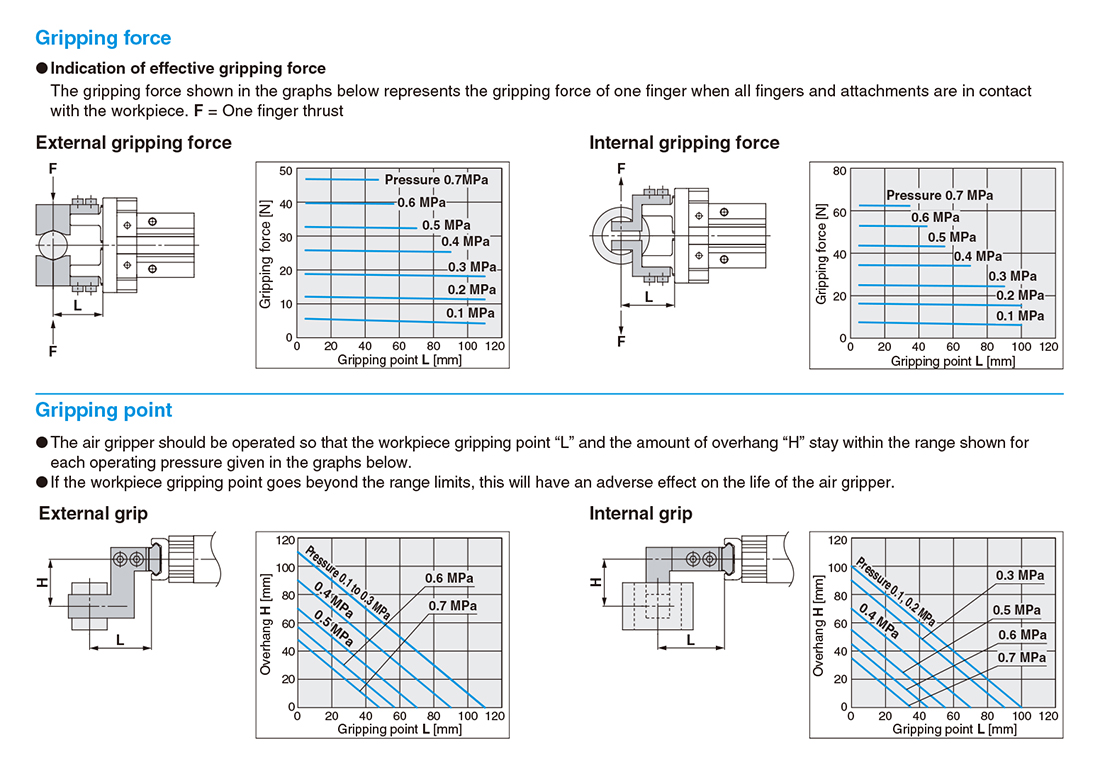

Characteristics

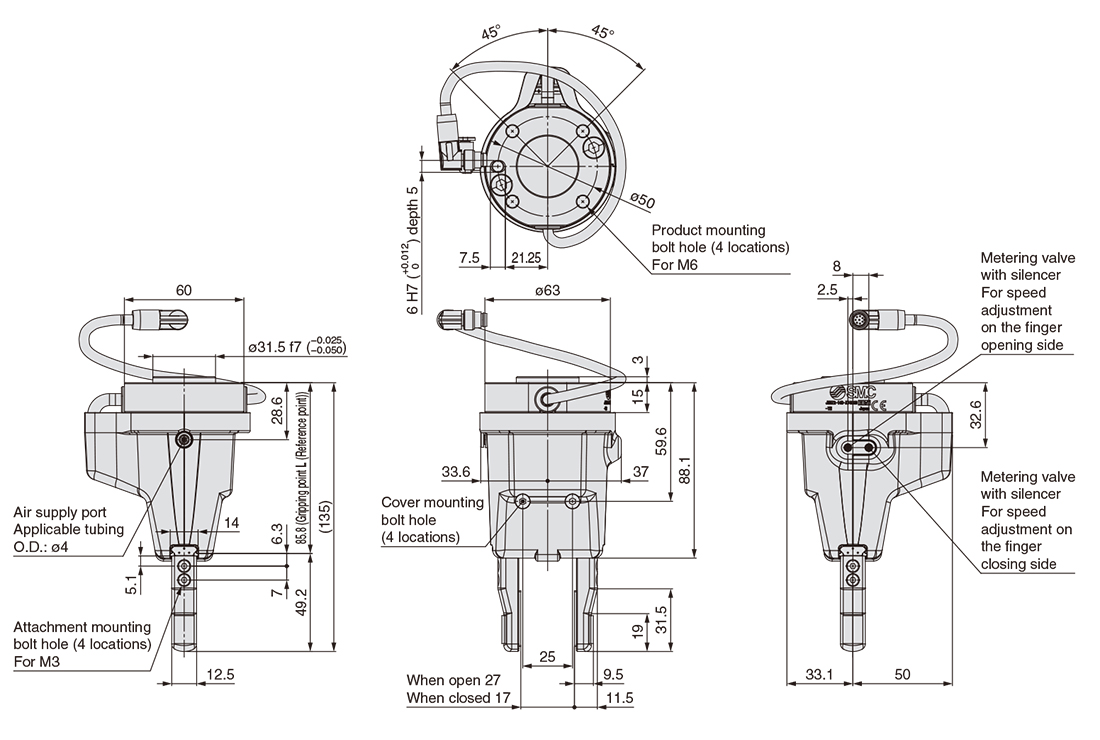

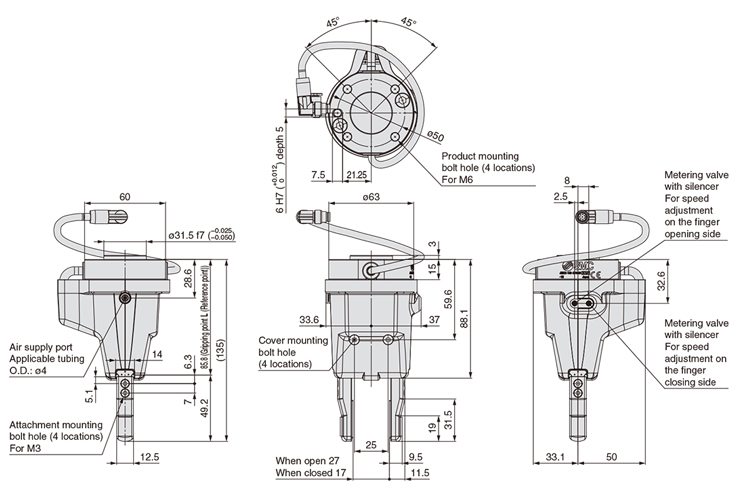

Dimensions

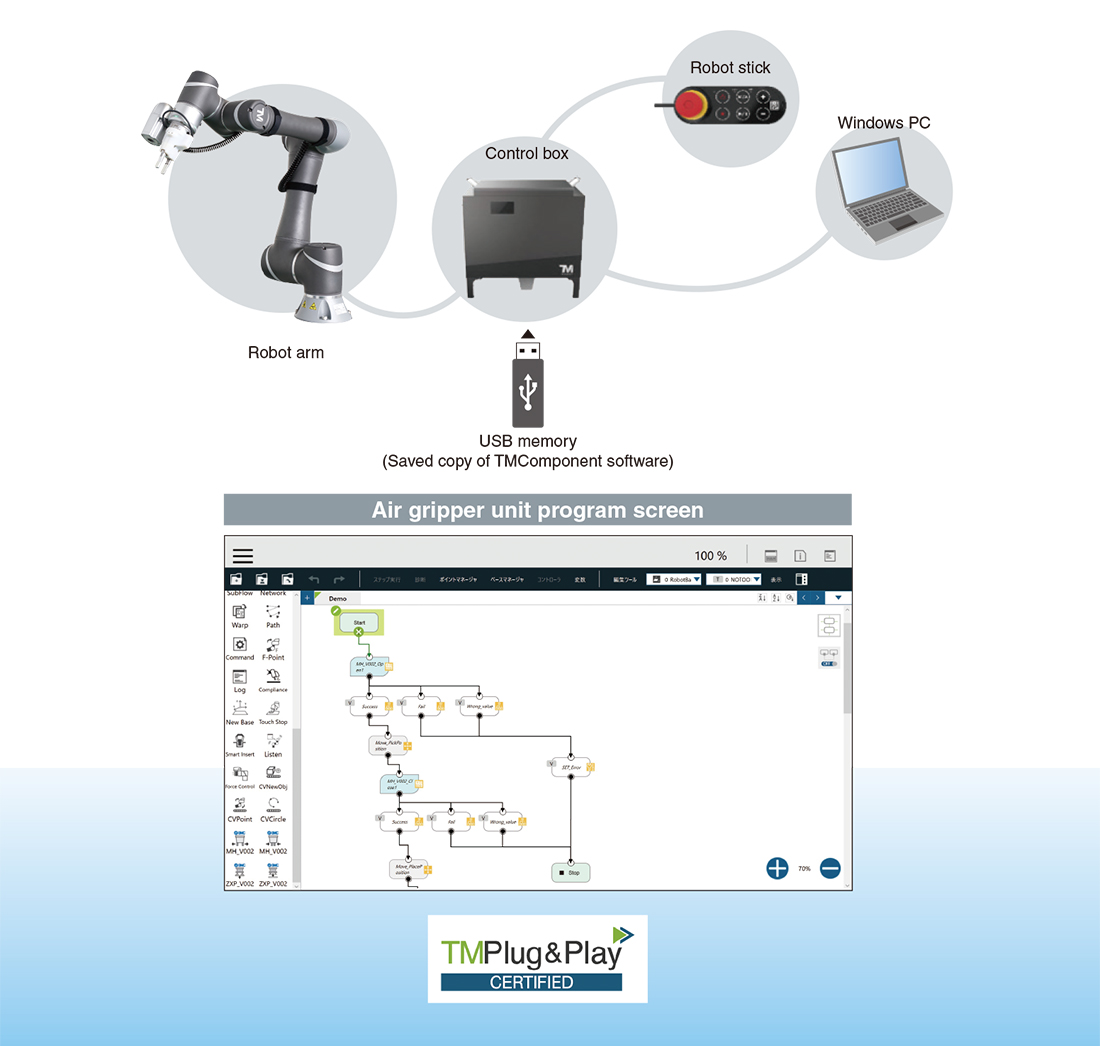

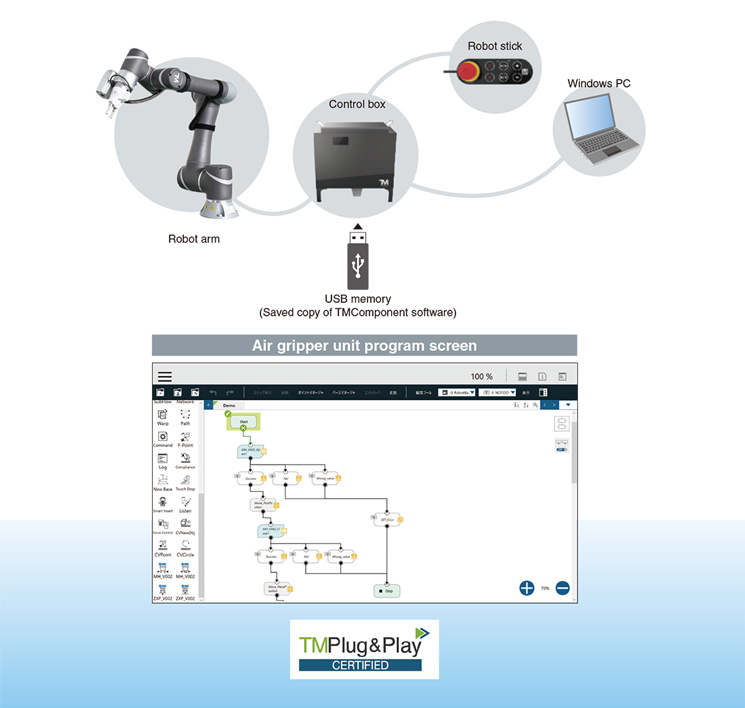

TMComponent

Easy programming

Using the certified software TMComponent of OMRON Corporation and TECHMAN ROBOT Inc., various operations and sensor signals can be easily programmed by using a control box equipped with the dedicated software tool “TMflow” or by using graphical flowcharts on a Windows computer.
You can easily install the software by inserting a USB with the TMComponent software package into a control box or Windows computer.
* Please download the TMComponent software package from the SMC website, and save it to a USB memory.
