WEB Catalog

Product Information ?  WEB Catalog  ? Modular F.R.L. Units  ? Modular Connection Compatible Devices

Modular Connection Compatible Devices

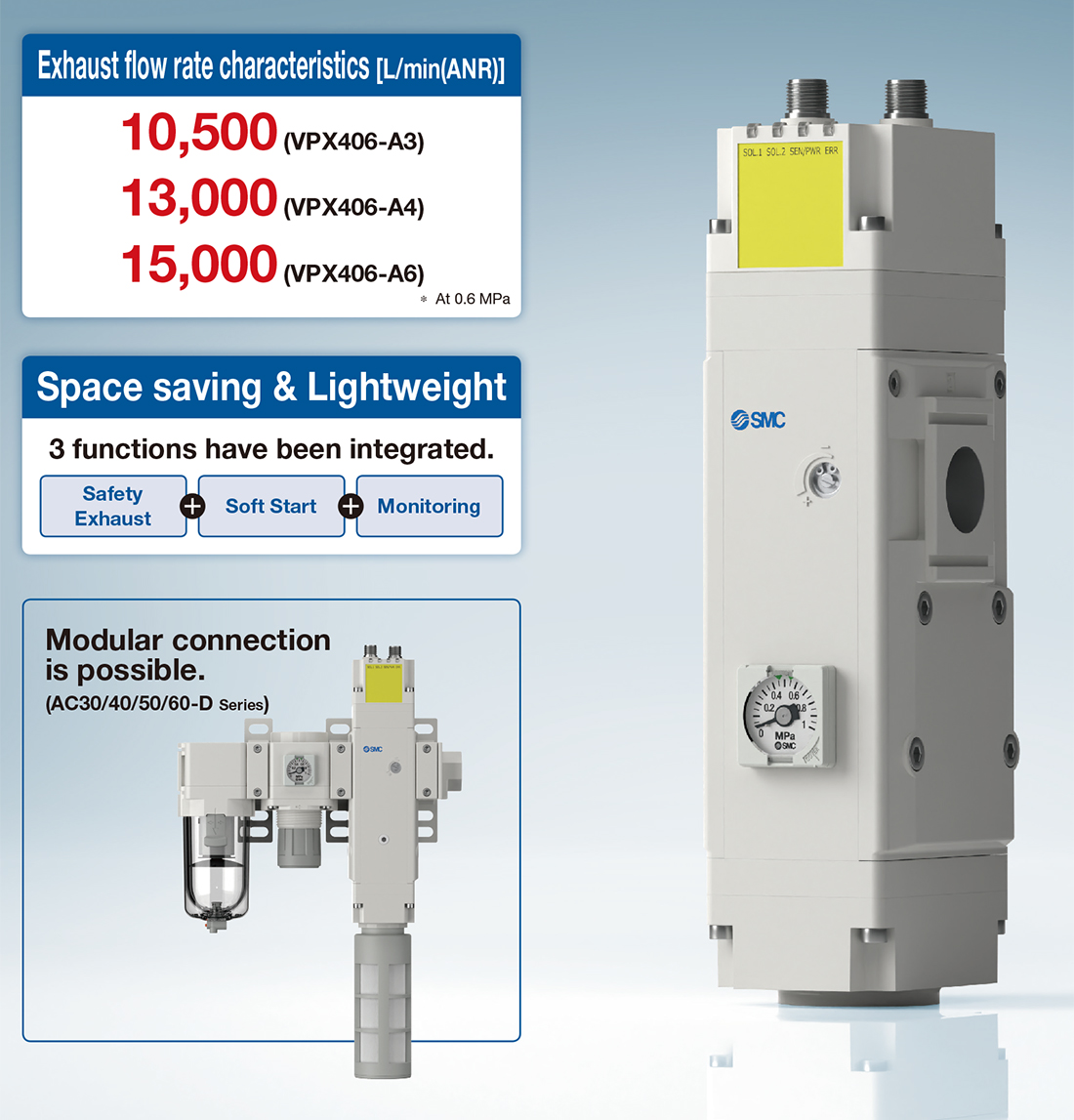

ISO 13849-1 Compliant Safe Exhaust Valve/Modular Connection Type VPX400

    ?Safety standard ISO 13849-1 compliant (Corresponding to categories 3
     and 4)
    ?Exhaust flow rate characteristics [L/min (ANR)] ? At 0.6 MPa
     10,500 (VPX406-A3)
     13,000 (VPX406-A4)
     15,000 (VPX406-A6)
    ?Space saving & lightweight: 3 functions have been integrated.
     Dual residual pressure release valve + Soft start-up valve + Main valve
     inconsistency detection
    ?Modular connection is possible.
     (AC30/40/50/60-D series)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • ISO 13849-1 Compliant Safe Exhaust Valve/Modular Connection Type VPX400
    Manual
    Series View search result
    VPX406-A3View search result
    VPX406-A4View search result
    VPX406-A6View search result
SeriesCategoryConnected
AC size
Flow rate characteristics
2→3 (A→R)
C [dm3/(s?bar)]
Flow rate characteristics
2→3 (A→R)
b
VPX406-A33, 4AC3025.00.20
VPX406-A43, 4AC4031.00.15
VPX406-A63, 4AC50/6035.80.10

Features

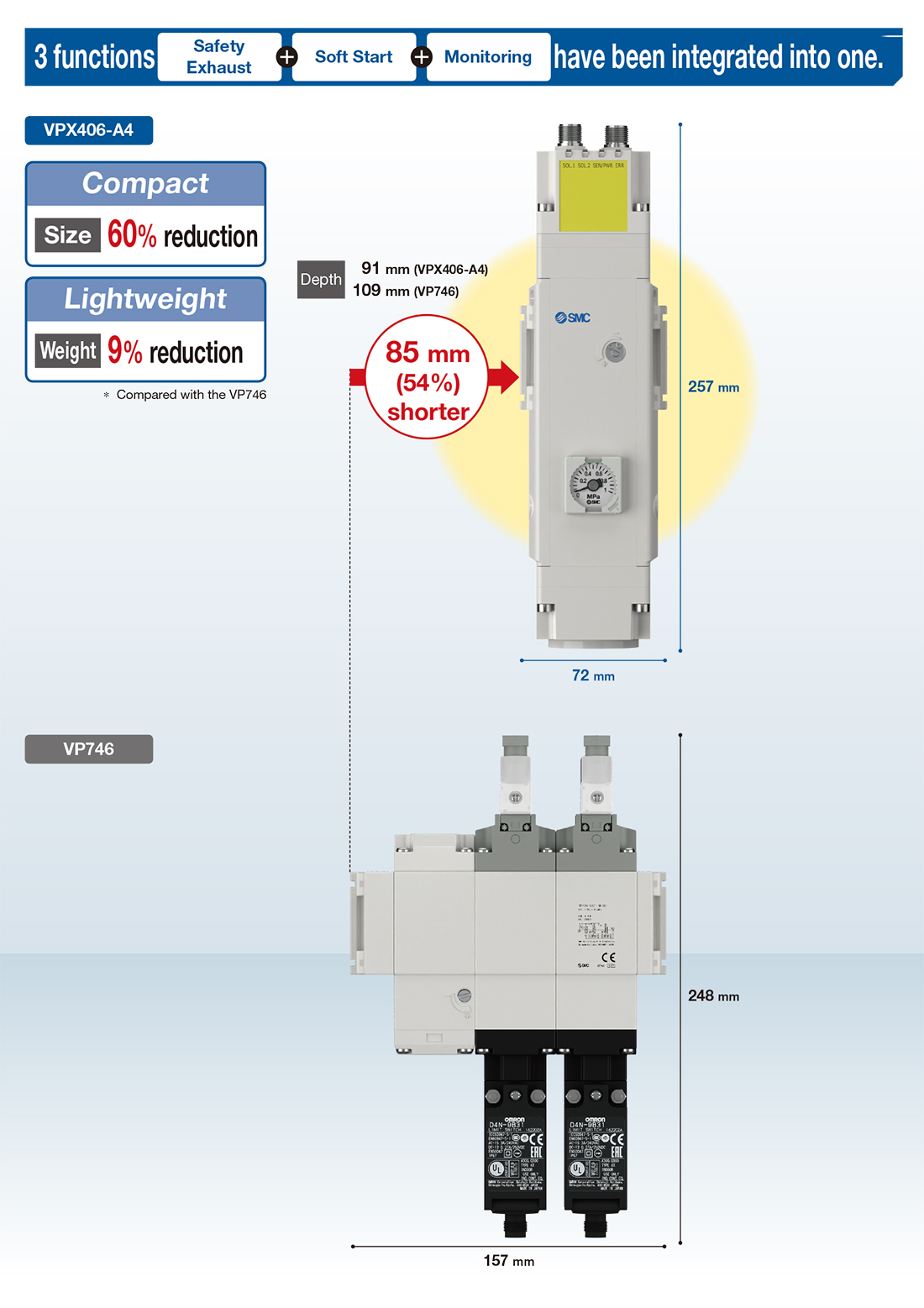

Space saving & Lightweight

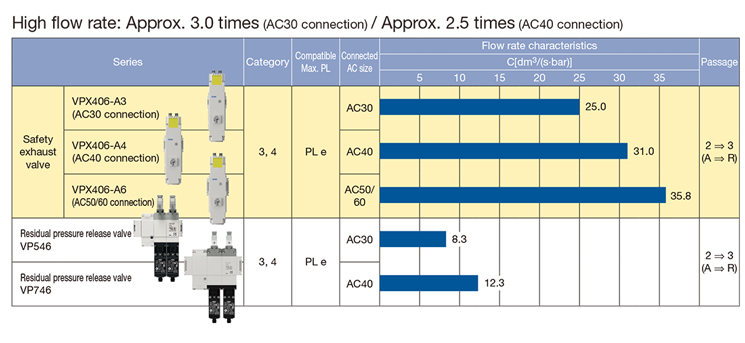

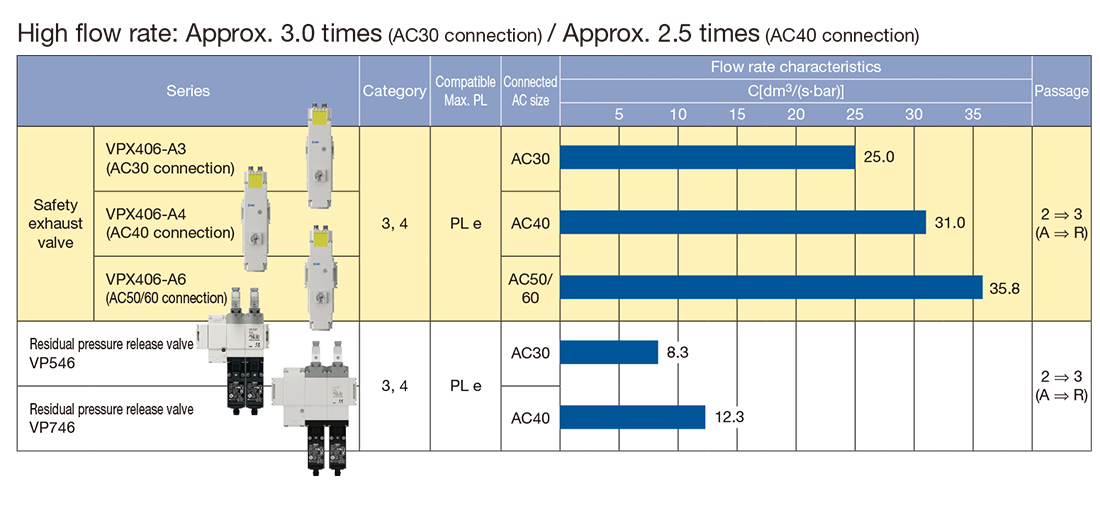

Series variations

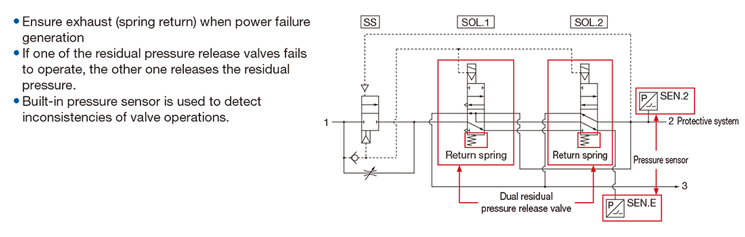

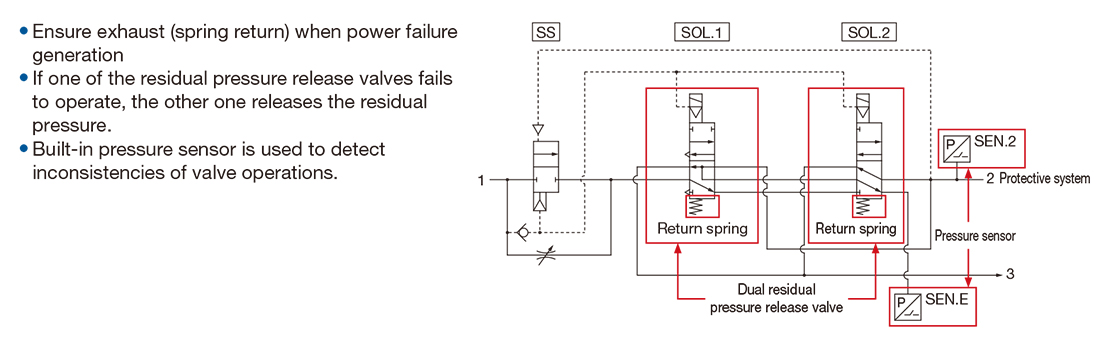

Deliver protective system by “Safety Exhaust”

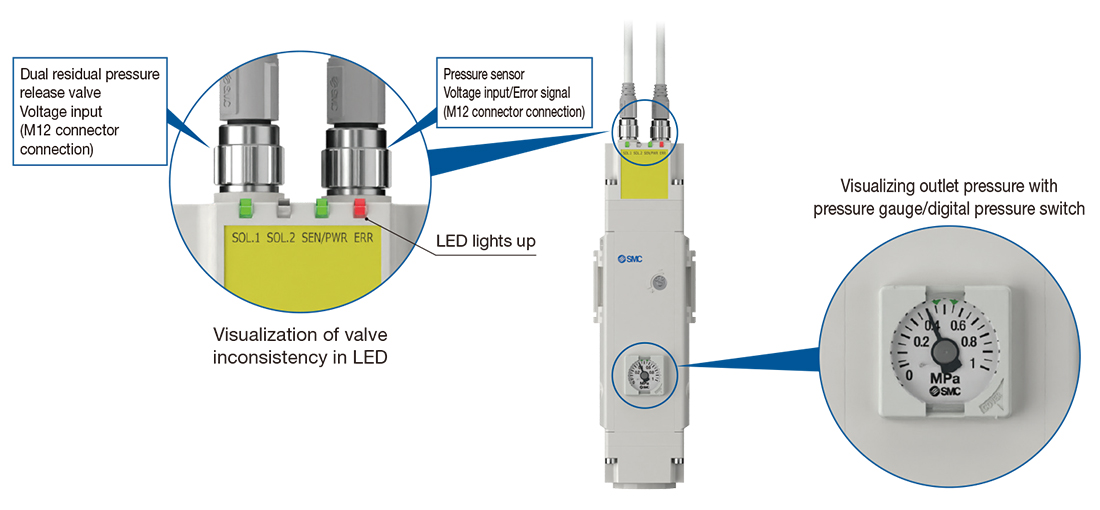

Visualization in emergencies: Fault can be checked visually as well as by signal.

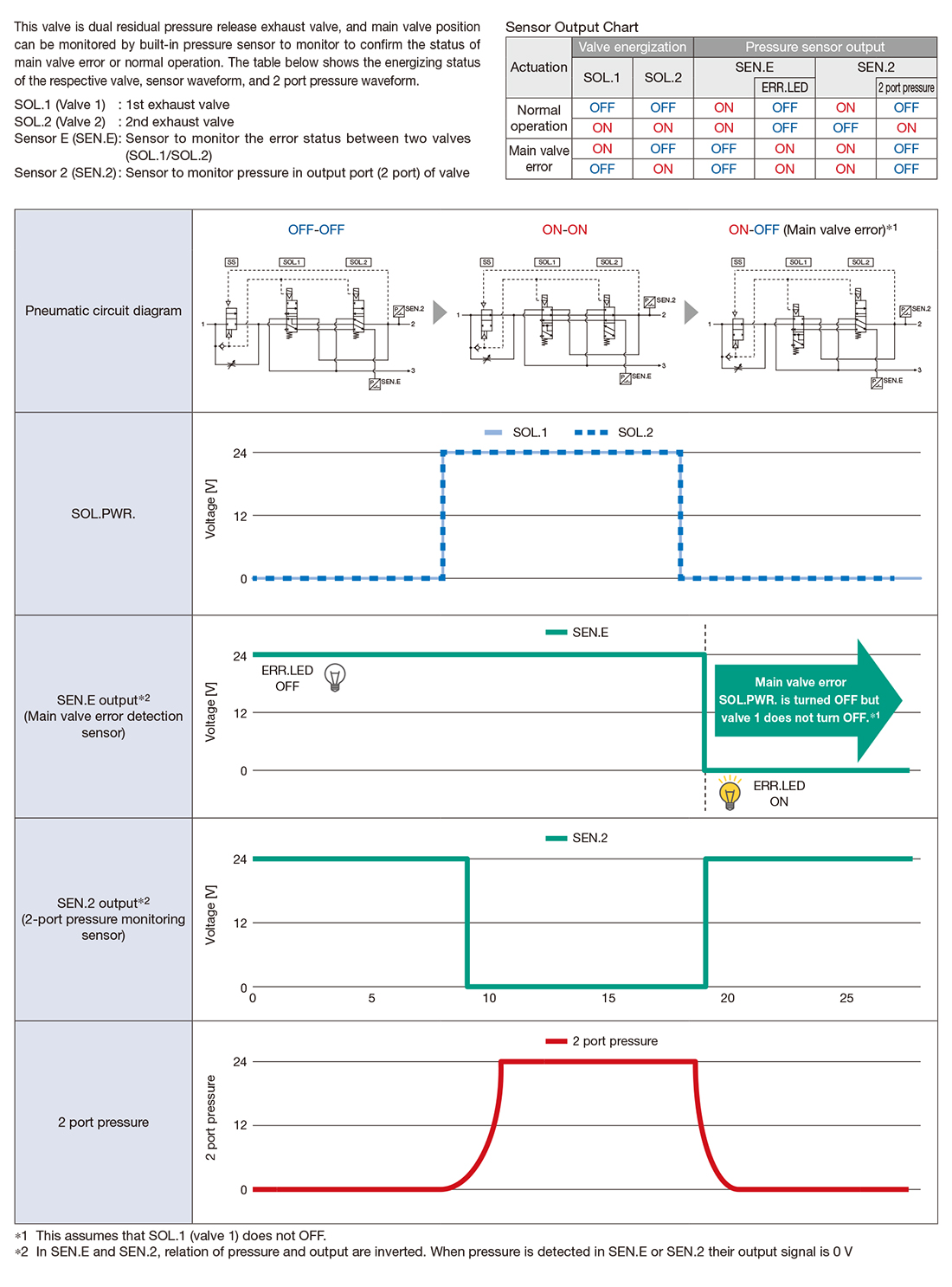

SOL.1/SOL.2/SEN.E/SEN.2 input/output signal diagram

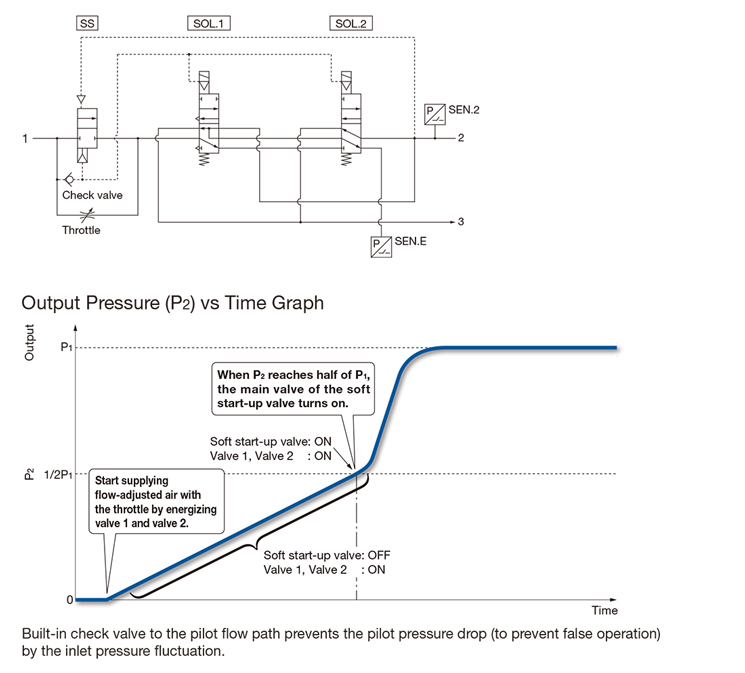

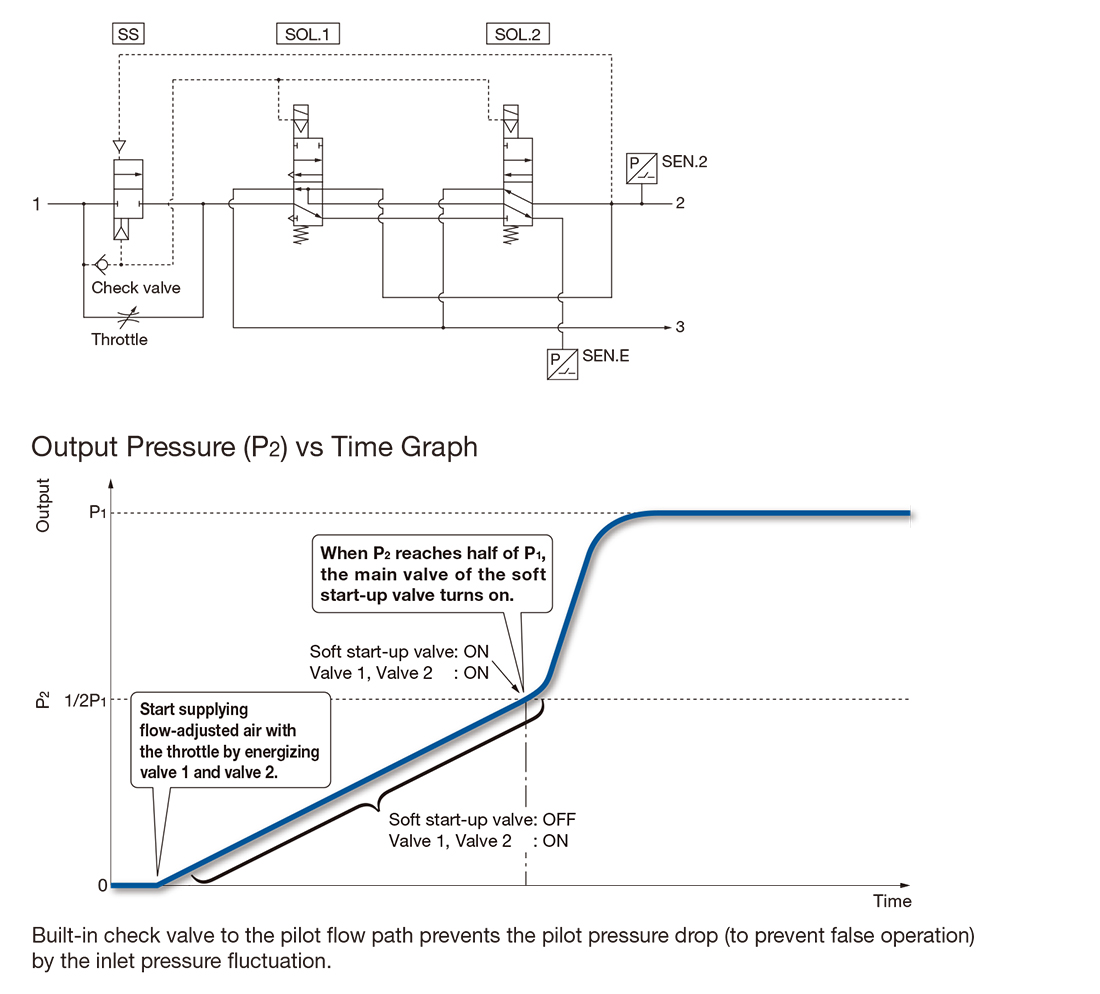

With soft start-up function & pilot flow path check valve

A function to gradually increase the initial pressure of the pneumatic system has been added.

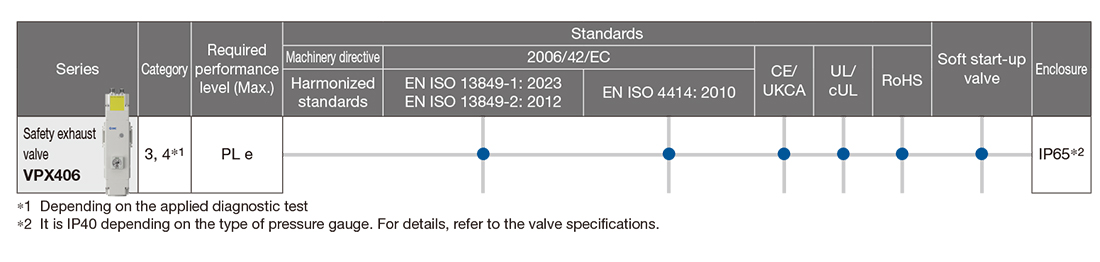

Standards and Enclosure

Go Top
