Speed Controllers Special Environments
Flame Resistant (Equivalent to UL-94 Standard V-0)

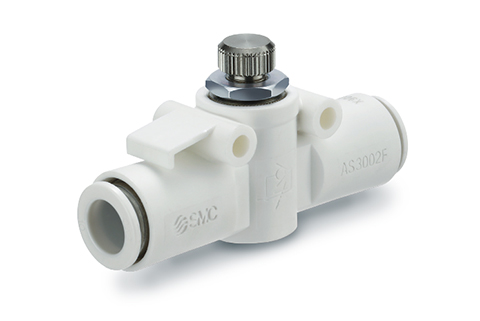

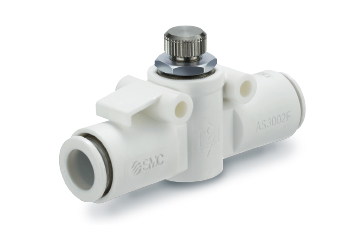

Speed Controller with One-touch Fittings/In-line Type AS-X900
-
?Uses flame-resistant resin (Equivalent to UL-94 Standard V-0)
Applicable tubing O.D.: ?6, ?8, ?10
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. |
|---|---|---|---|
| In-line type | AS2052F-06-X900 to AS3002F-10-X900 | ? | φ6 to φ10 |
Features
-
Uses flame-resistant resin (Equivalent to UL-94 Standard V-0)
Applicable tubing O.D.: ?6, ?8, ?10
-

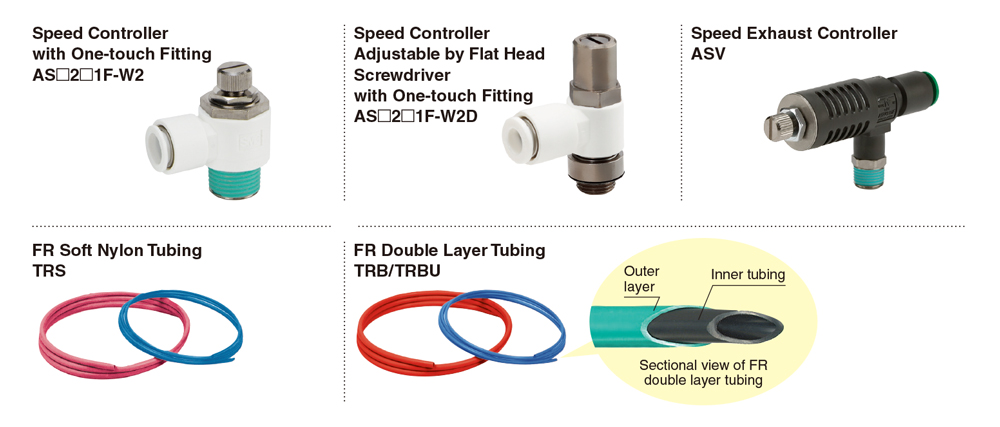

Related Products
