WEB Catalog

Product Information ?  WEB Catalog  ? Modular F.R.L./Pressure Control Equipment  ? Regulators

Regulators

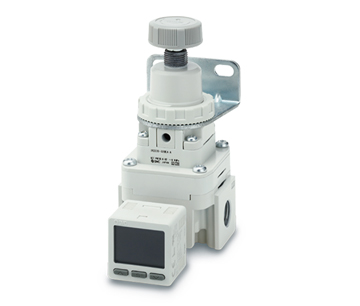

Regulator IR1200-A/2200-A/3200-A

    ?Air consumption: Bleed air “0”
    ?High flow rate: Up to approx.
    　twice that of the existing SMC product
    ?Lightweight: Reduced by up to approx. 27%
    　(Compared to the existing SMC product)
    ?Repeatability: ±1% (Full span)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

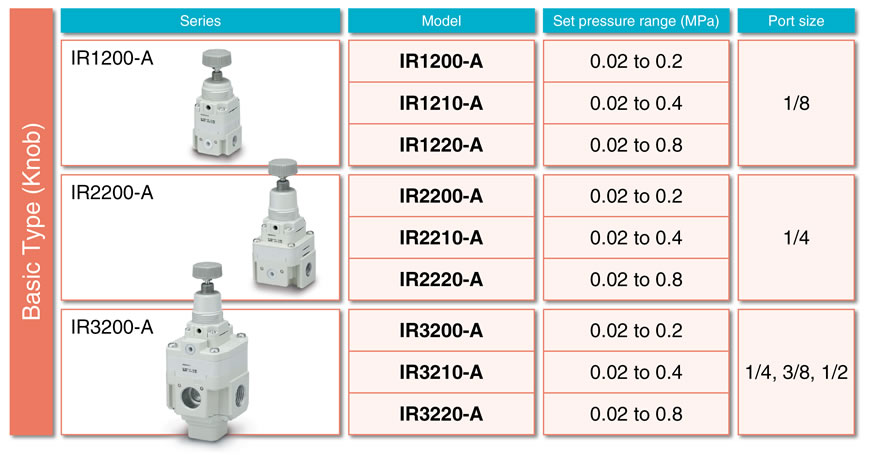

SeriesPort sizeSet pressure (MPa)
IR1200-A1/80.02 to 0.2
0.02 to 0.4
0.02 to 0.8
IR2200-A1/40.02 to 0.2
0.02 to 0.4
0.02 to 0.8
IR3200-A1/4, 3/8, 1/20.02 to 0.2
0.02 to 0.4
0.02 to 0.8

Features

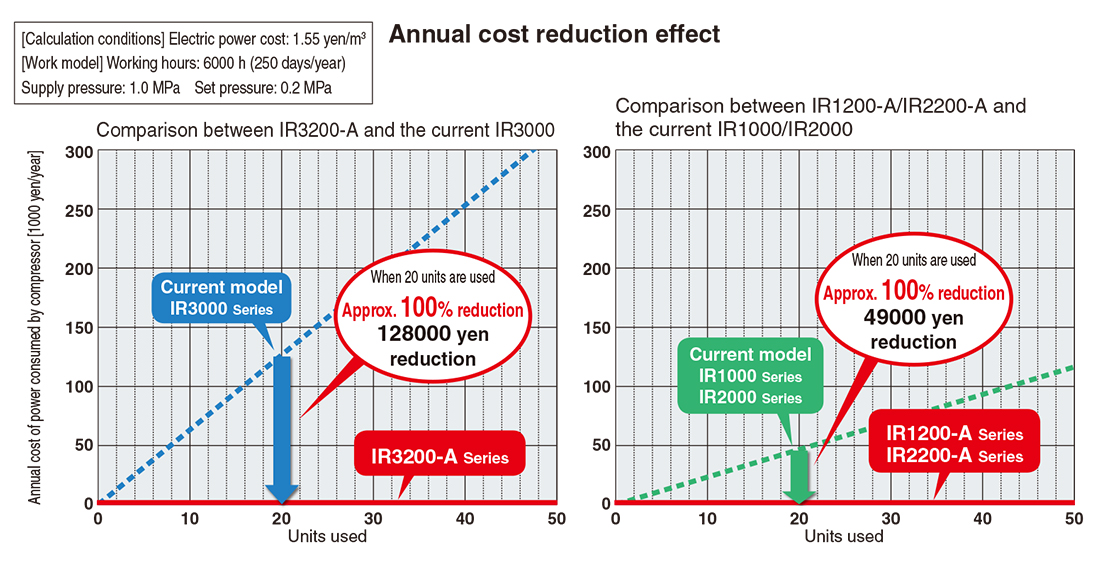

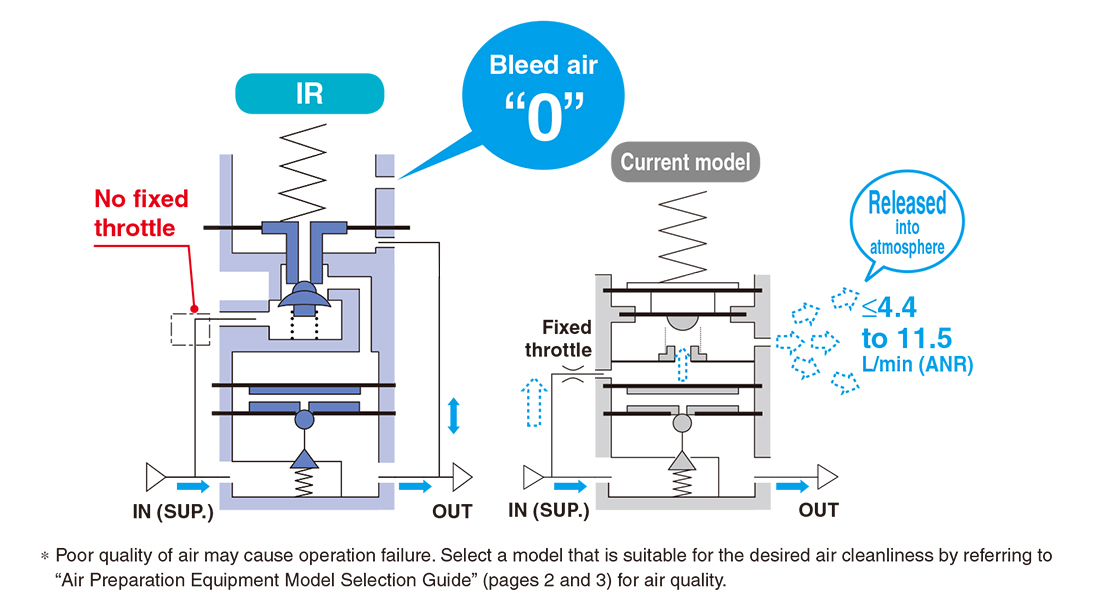

Reduction in air consumption: Bleed air "0"

Air consumption is reduced with a new original structure.

With this new original structure, running costs are reduced.

No fixed throttle in the new design.

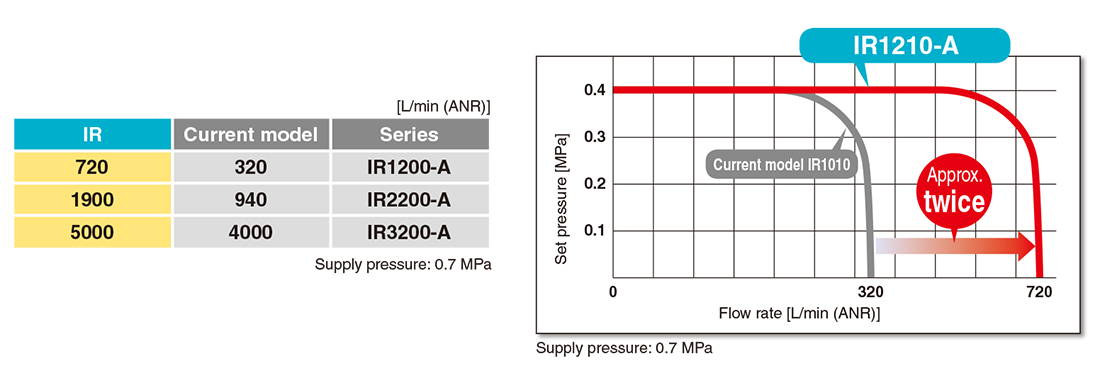

Flow rate: Up to approx. twice (Compared to the current SMC product)

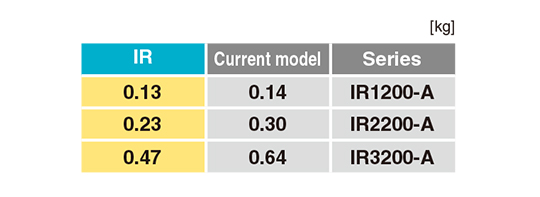

Weight: Reduced by up to approx. 27%

Repeatability: ±1% (Full span)



Mounting is interchangeable with the current SMC model.

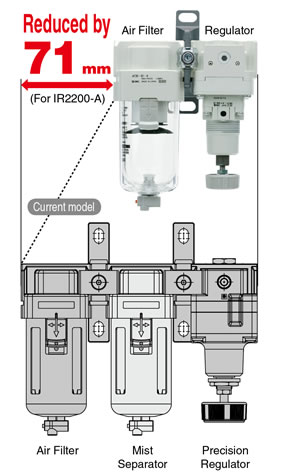

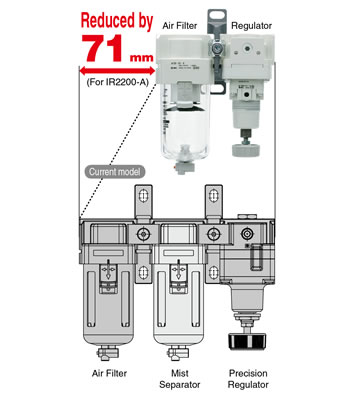

Space saving

New structure without fixed throttle does not require a mist separator.

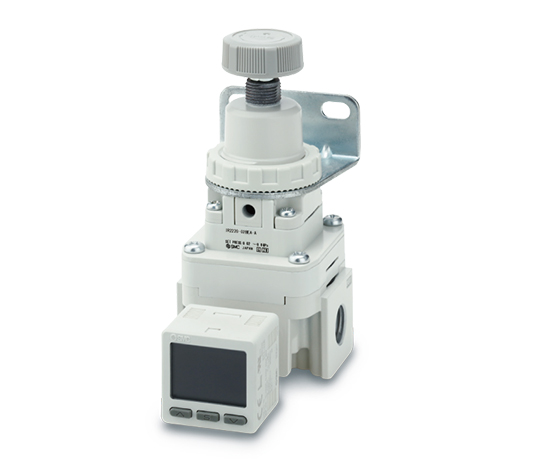

Digital pressure switch standardized

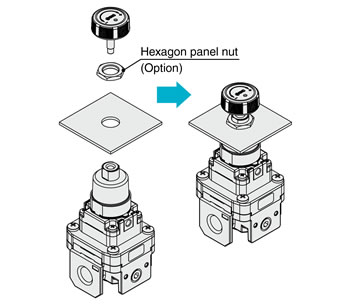

Hexagon panel nut mounting

* Interchangeable with the current SMC product

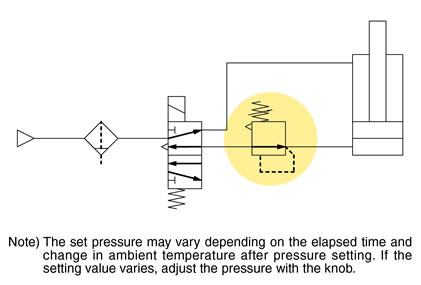

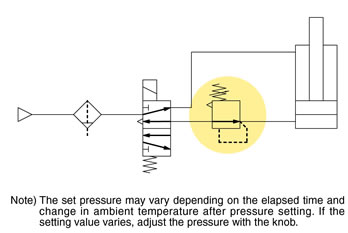

New IR can be used between a cylinder and solenoid valve.

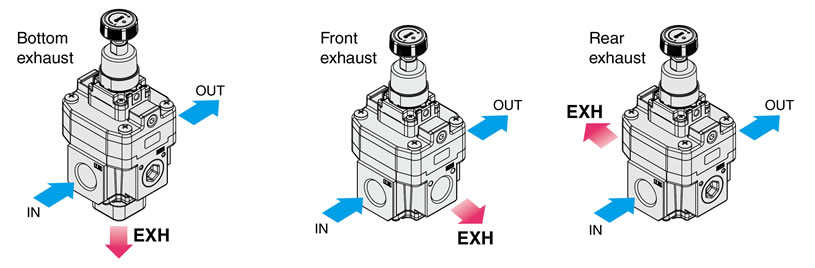

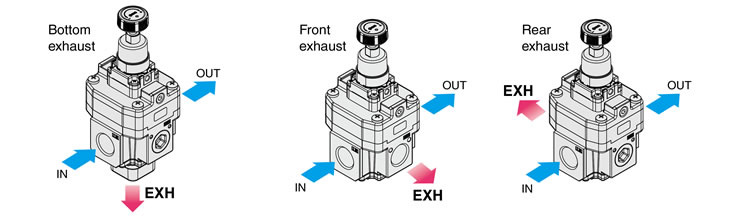

Exhaust (EXH) directions can be selected. (Series IR3200-A)

Bottom and front exhaust added.

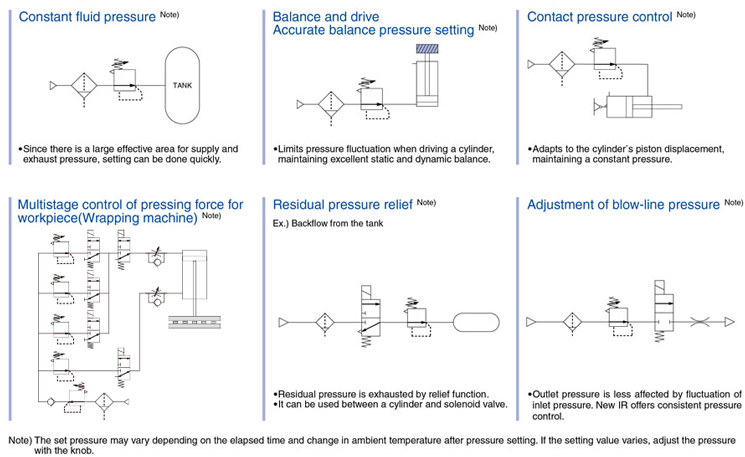

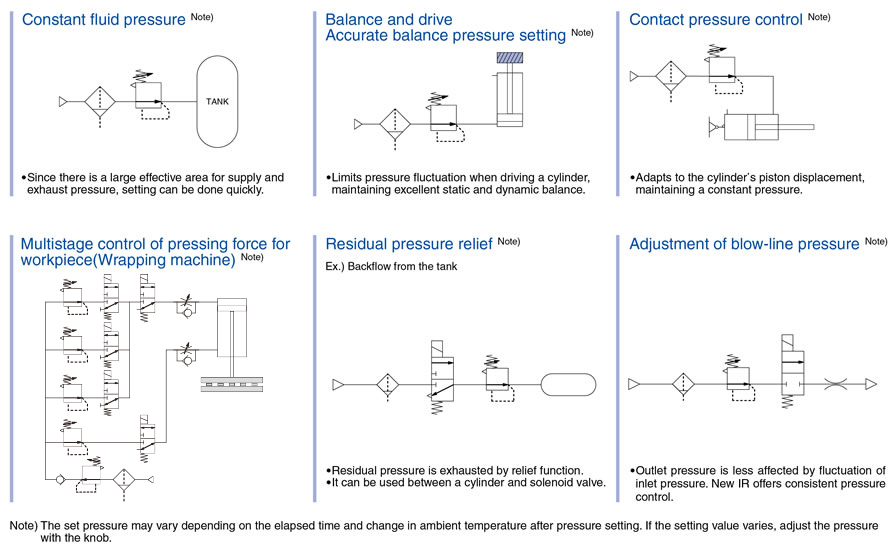

Application Examples

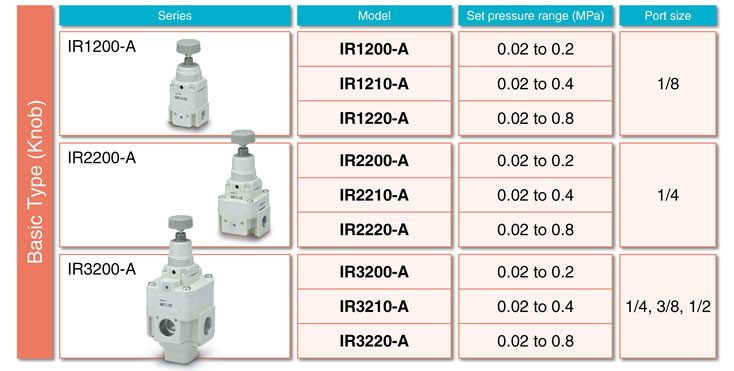

Series Variations
