WEB Catalog

Product Information ?  WEB Catalog  ? Flow Control Equipment  ? Speed Controllers with Special Functions

Speed Controllers with Special Functions

Speed Exhaust Controller with One-touch Fitting Compact Type
 JASV

    ?Quick exhaust valve and metering valve are integrated.
    ?Compact type

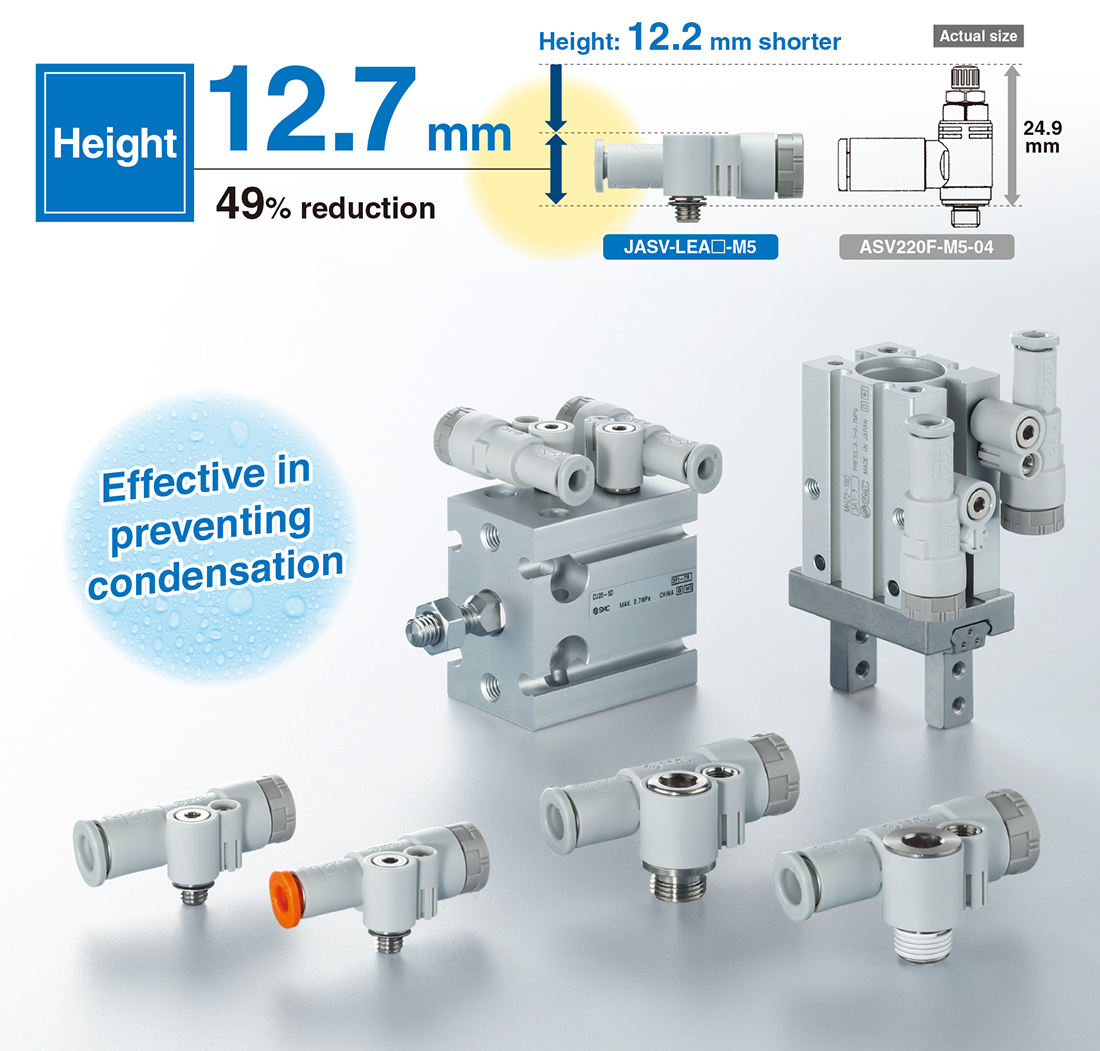

    　Height: 12.7 mm shorter (49% reduction)
    ?Effective in preventing condensation
    ?Applicable for high-speed cylinder actuation
    ?Push-lock type
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

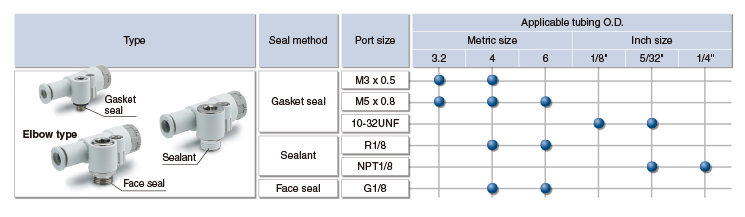

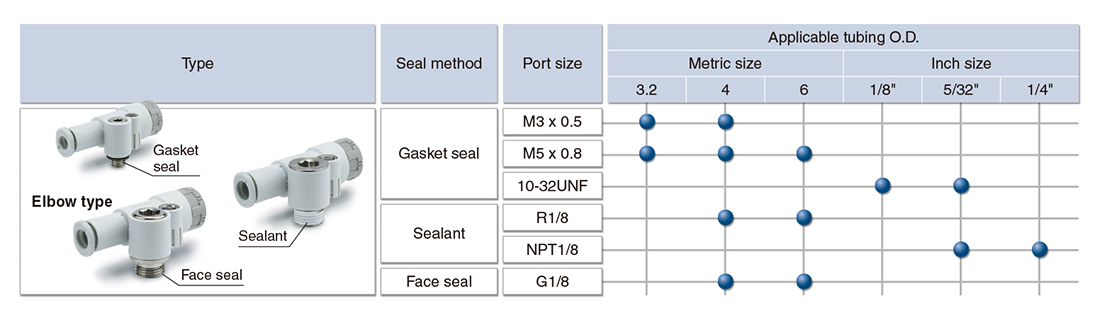

TypeSeriesPort sizeApplicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Speed Exhaust ControllerJASVM3×0.5
M5×0.8
10-32UNF
R, NPT, G 1/8		φ3.2 to φ6φ1/8'' to φ1/4''

Features

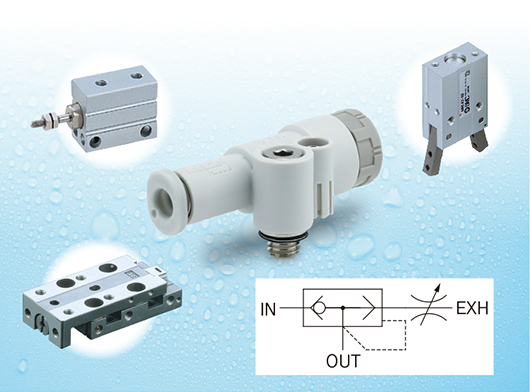

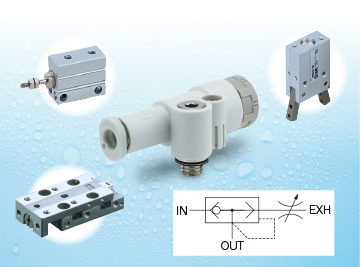

Quick exhaust valve and metering valve are integrated.

  • Effective in preventing condensation

    When operating an actuator with a small bore size and a short stroke at a high frequency, dew condensation (water droplets) may occur inside the piping depending on the conditions.
    Quick exhaust valve and metering valve are integrated.
    Prevents condensation from generating in the piping by directly exhausting the air in the cylinder to atmosphere

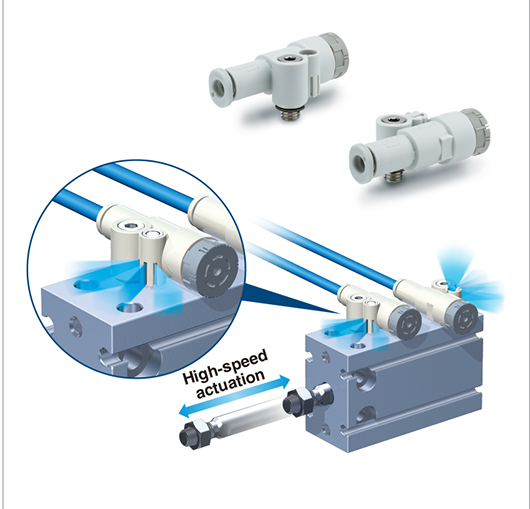

  • Applicable for high-speed cylinder actuation

    Direct exhaust port relieves air pressure from inside the cylinder regardless of the length of tubing used.

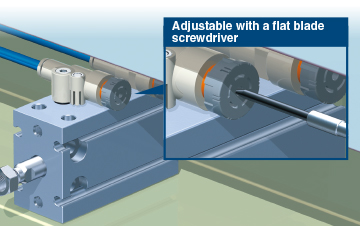

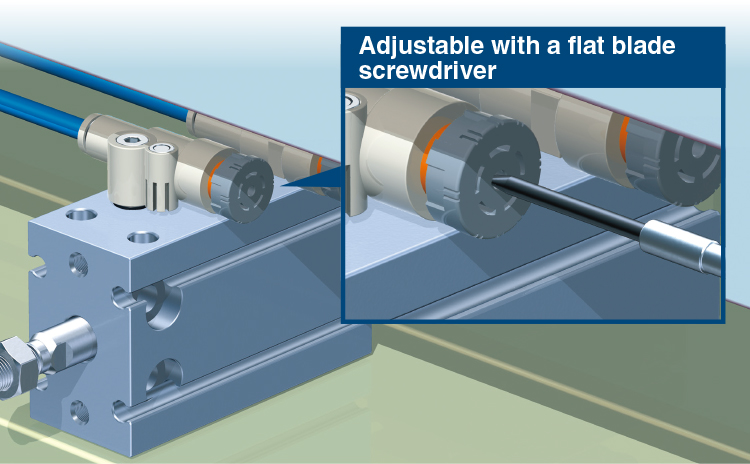

  • Possible to adjust flow rate even in narrow spaces

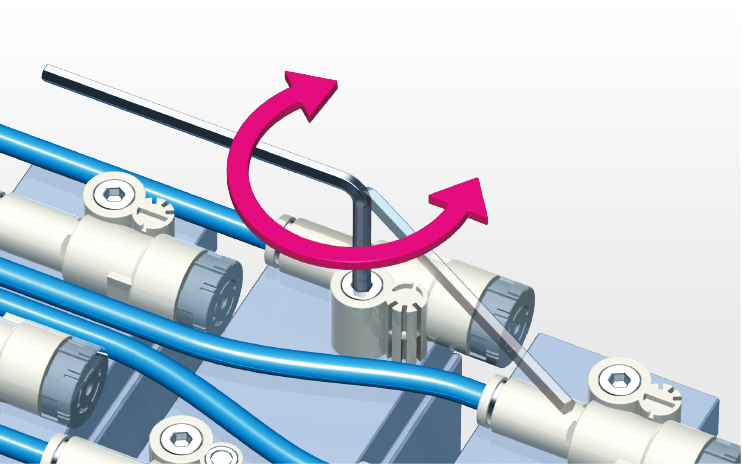

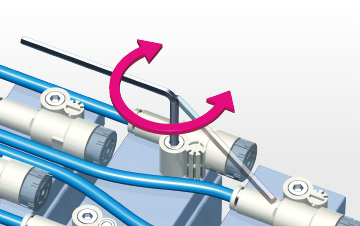

  • Easily mounted using a hexagon wrench

Variations

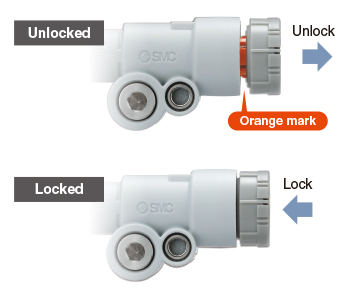

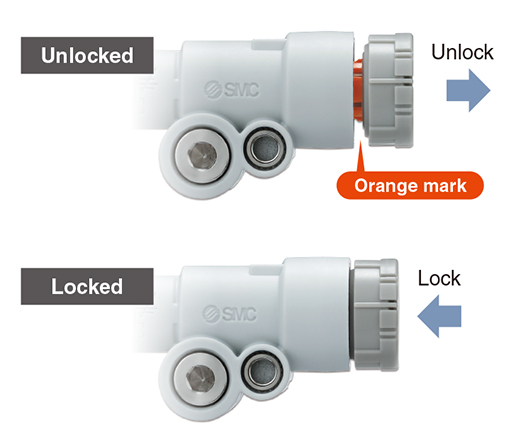

  • Easy to use push-lock type<

    Locked and unlocked states can be easily confirmed.

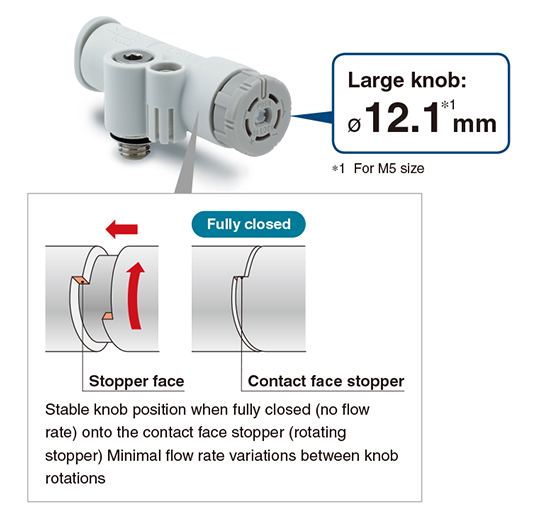

  • Easier and consistent flow setting

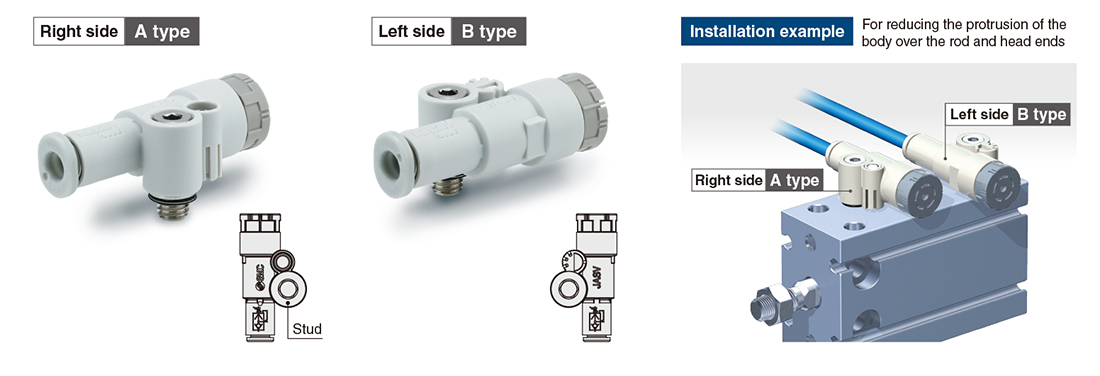

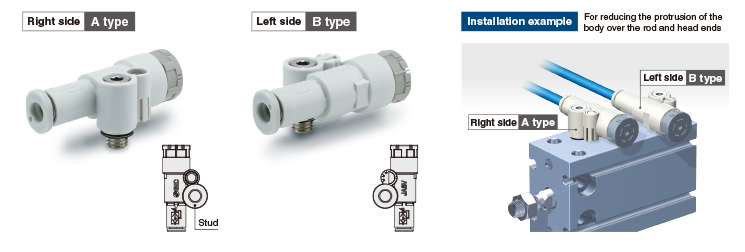

Available with the mounting stud on the left side or the right side

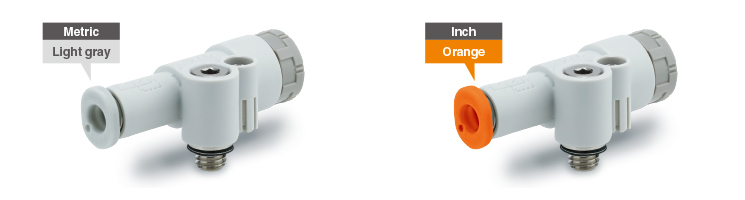

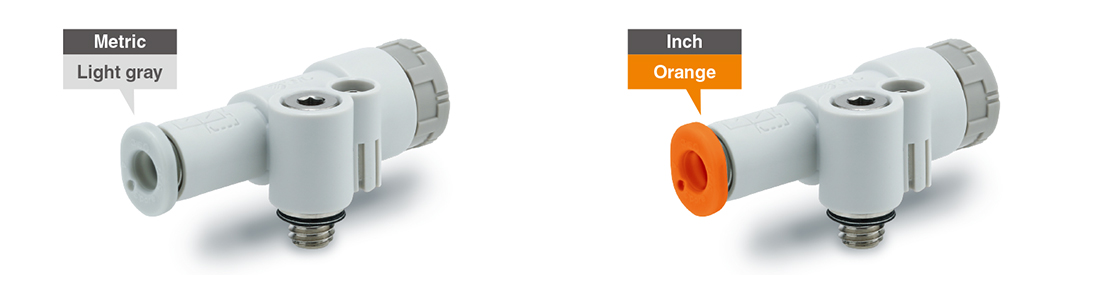

Easy identification of product type
