WEB Catalog

Product Information ?  WEB Catalog  ? Electric Actuators/Cylinders  ? Rod Type/Guide Rod Type

Rod Type/Guide Rod Type

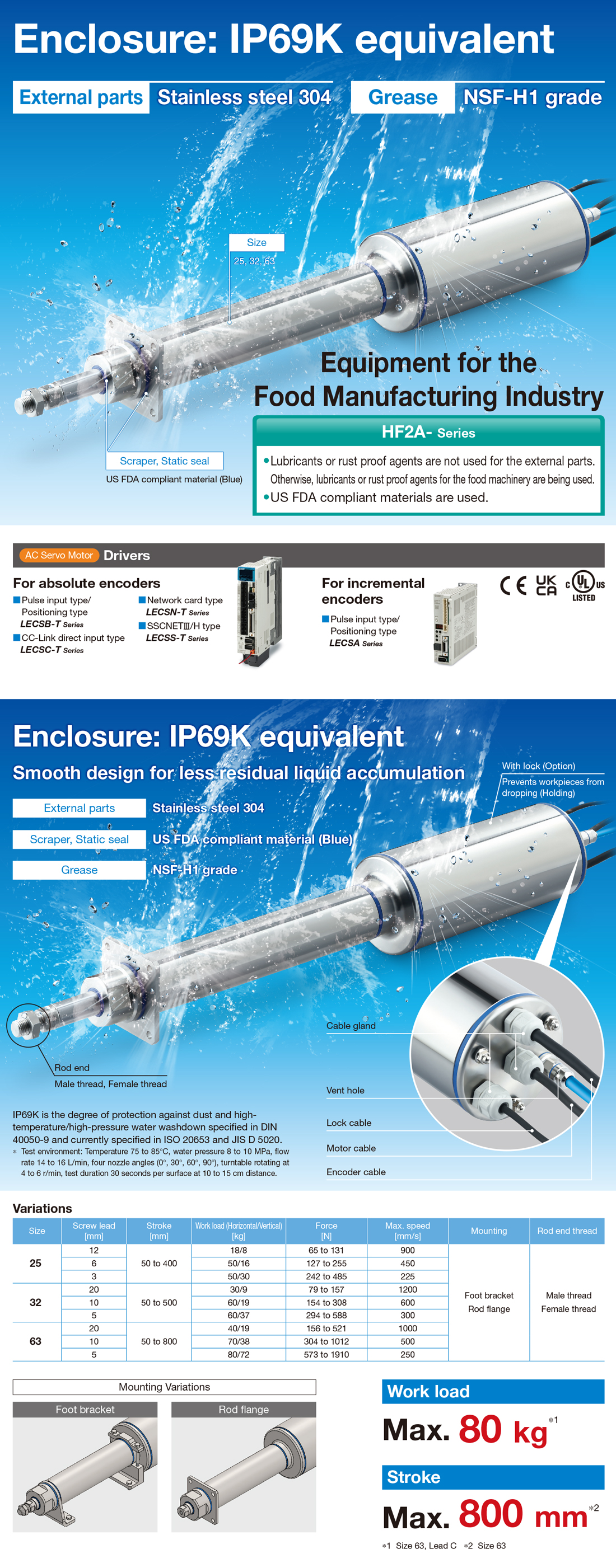

Dust-tight/Water-jet-proof (IP69K Equivalent) Electric Actuator/Rod Type HF2A-LEY

    ?Enclosure: IP69K equivalent
    　Smooth design for less residual liquid accumulation
    　External parts: Stainless steel 304
    　Scraper, Static seal: US FDA compliant material (Blue)
    　Grease: NSF-H1 grade
    ?Equipment for the food manufacturing industry HF2A- series
    　?Lubricants or rust proof agents are not used for the external parts.
    　　Otherwise, lubricants or rust proof agents for the food machinery are
    　　being used.
    　?US FDA compliant materials are used.
    ?Work load: Max. 80 kg? ? Size 63, Lead C
    ?Stroke: Max. 800 mm? ? Size 63

    * IP69K is the degree of protection against dust and high-temperature/
    　high-pressure water washdown specified in DIN 40050-9 and
    　currently specified in ISO 20653 and JIS D 5020.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Dust-tight/Water-jet-proof (IP69K Equivalent) Electric Actuator/Rod Type HF2A-LEY
    Manifold
    Model View search result
    HF2A-LEY25View search result
    HF2A-LEY32View search result
    HF2A-LEY63View search result
SpecificationModelStroke (mm)Pushing force (N)Speed (mm/s)Screw lead (mm)
AC servo motorHF2A-LEY2550 to 400Max. 485Max. 90012，20
AC servo motorHF2A-LEY3250 to 500Max. 588Max. 12006，10
AC servo motorHF2A-LEY6350 to 800Max. 1910Max. 10003，5

Features

Enclosure: IP69K equivalent
