WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

NAAMS Standards Compliant Power Clamp Cylinder
CKZ3N-X2742A/X2568□

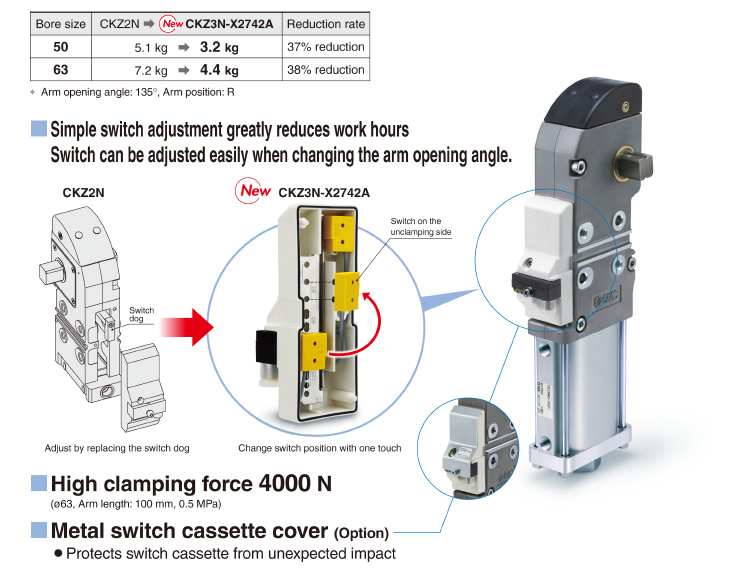

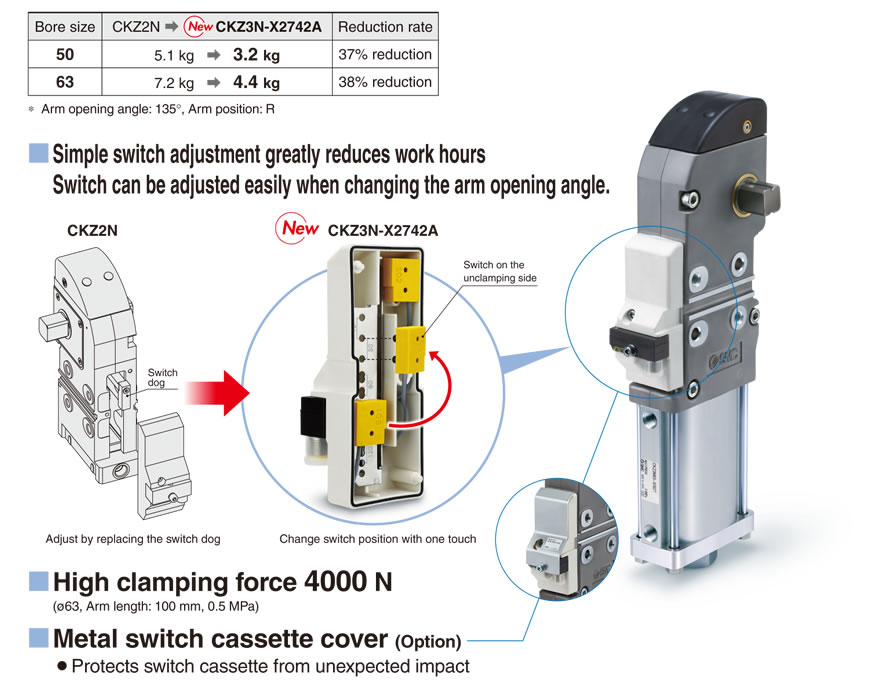

    ?Weight reduced by up to 38%
    　Aluminum body with greatly reduced weight
    　Suitable for robot material handling
    ?Simple switch adjustment greatly reduces work hours
    　Switch can be adjusted easily when changing the arm opening angle.
    ?High clamping force: 4000 N
    ?Metal switch cassette cover (Option)
    　Protects switch cassette from unexpected impact
    ?A model with a manually operated handle (lock specification) is available.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesArm opening angleSwitchBore size (mm)
CKZ3N-X2742A
(Base type)		15o，30o，45o， 60o，75o，90o，105o，120o，135oTURCK/P&F50，63
CKZ3N-X2568□
(With manually operated handle)		15o，30o，45o， 60o，75o，90o，105o，120oTURCK/P&F50，63

Features

■Weight reduced by up to 38%

?Aluminum body with greatly reduced weight
?Suitable for robot material handling

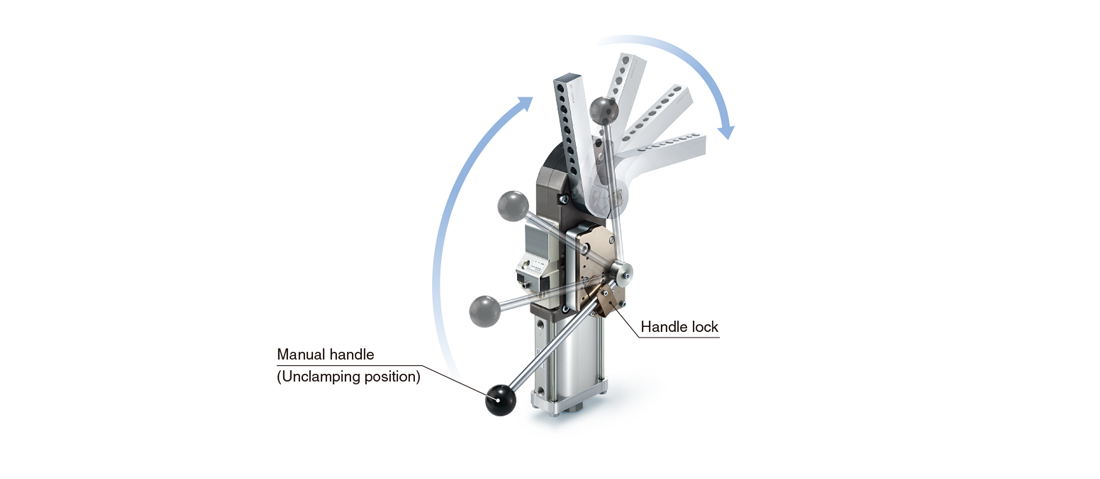

■Manual handle (lock specification) is available.

For manual workpiece setting processes

Go Top
