WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Stopper Cylinders

Stopper Cylinders

Stopper Cylinder RSQ/RSDQ/RSG/RSDG

    ?A wide range of models are available, so it is possible to select a cylinder that meets your needs.
    　Realizes the labor saving and automation of conveyor lines
    ?With auto switch (RSDQ series: RSDQ, RSDG series: RSDG)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Stopper Cylinder RSQ/RSDQ/RSG/RSDG
    Symbol Specifications Download
    -XA1 to XA38 Simple Specials RSQ(φ12 to φ50)/RSG(φ40 φ50):Change of rod end shape PDF
  • Stopper Cylinder RSQ/RSDQ/RSG/RSDG
    Symbol Specifications Download
    -XB11 Made to Order Common Specifications Long stroke type PDF
    -XC3 Made to Order Common Specifications Special port location PDF
TypeSeriesActionBore size（mm）
Fixed mounting heightRSQDouble acting
Double acting with spring
Single acting, spring extend		12，16，20，32，40，50
Adjustable mounting heightRSGDouble acting
Double acting with spring
Single acting, spring extend		40，50

Features

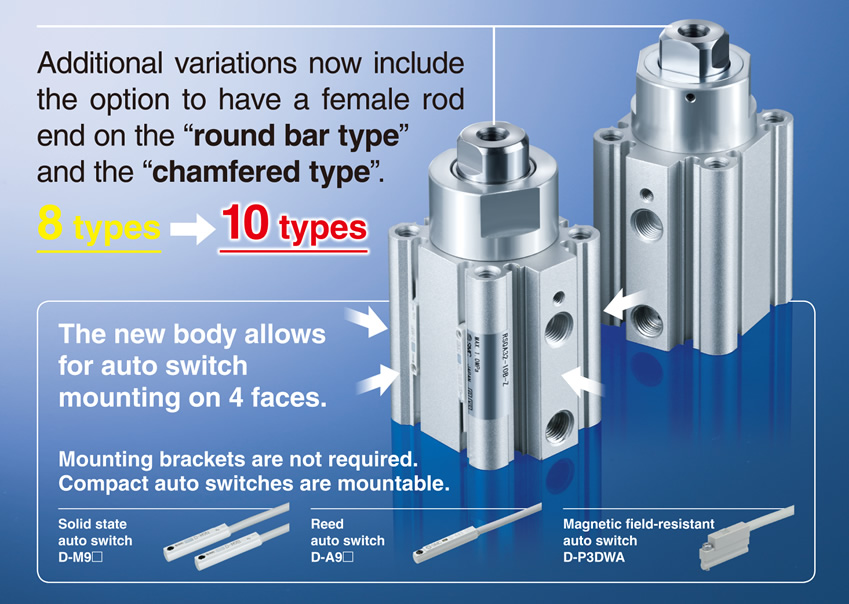

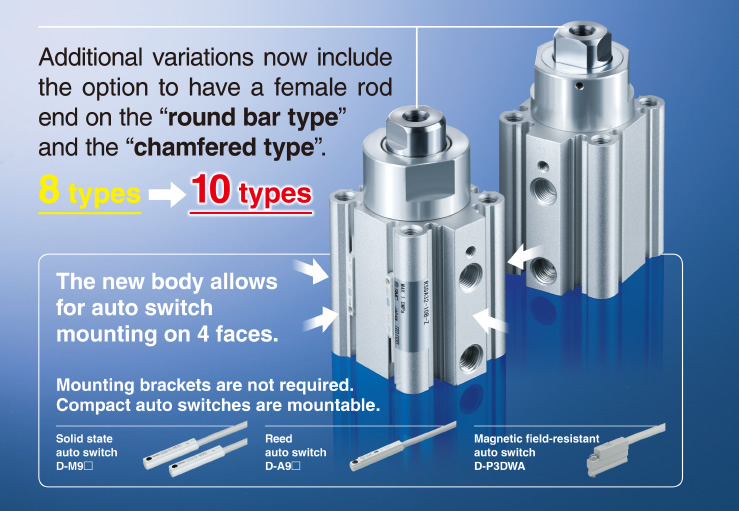

■Additional variations now include the option to have a female rod end on the “round bar type” and the “chamfered type”. : 8 types → 10 types
■The new body allows for auto switch mounting on 4 faces.
■Various rod end configurations:10 types

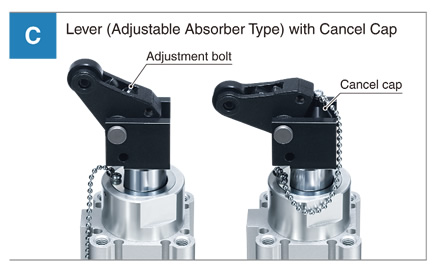

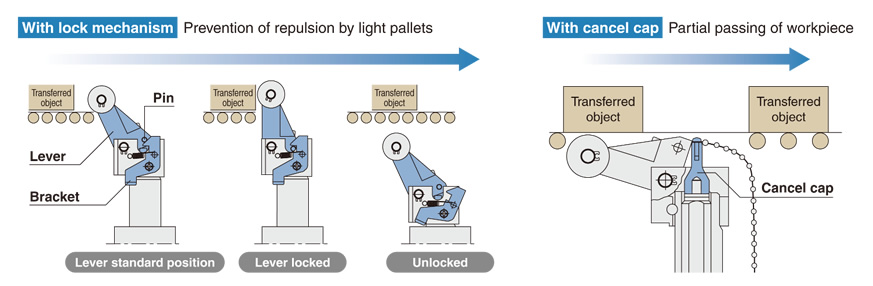

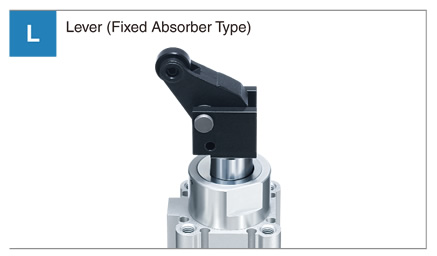

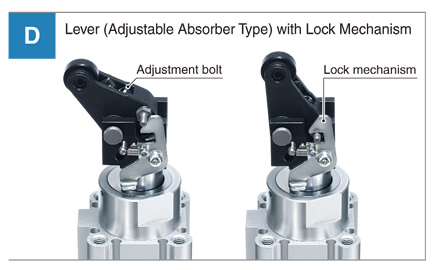

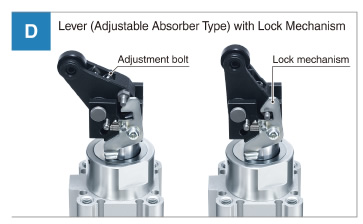

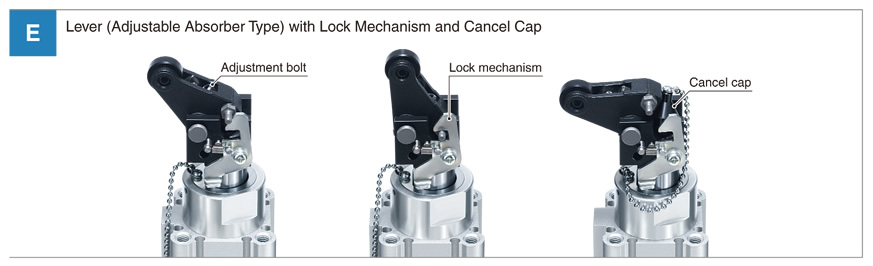

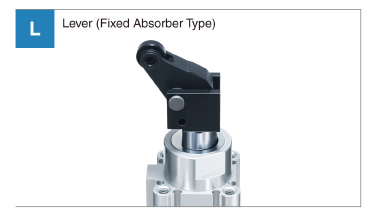

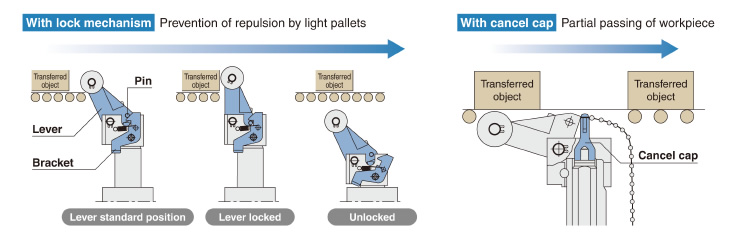

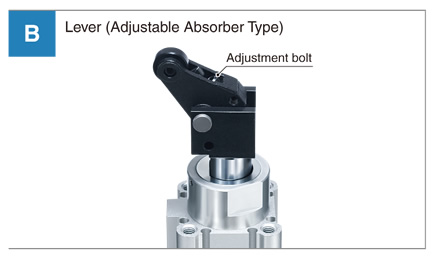

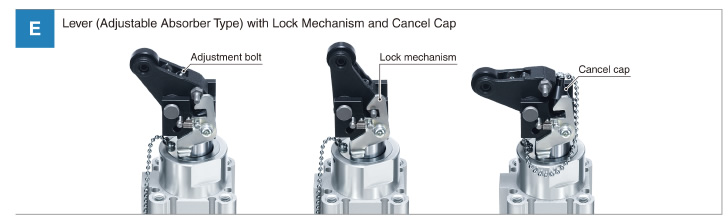

■Lever type rod end selected according to applications

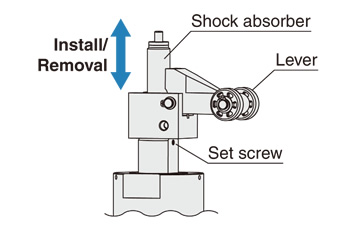

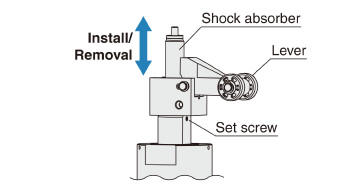

■Easy replacement of shock absorbers
  • Easy replacement of shock absorbers
    （?32, ?40, ?50）
  • Replaceable just by loosening the set screw

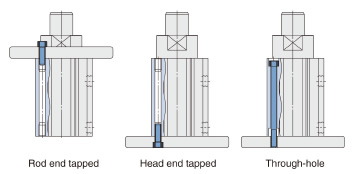

■Three types of mounting

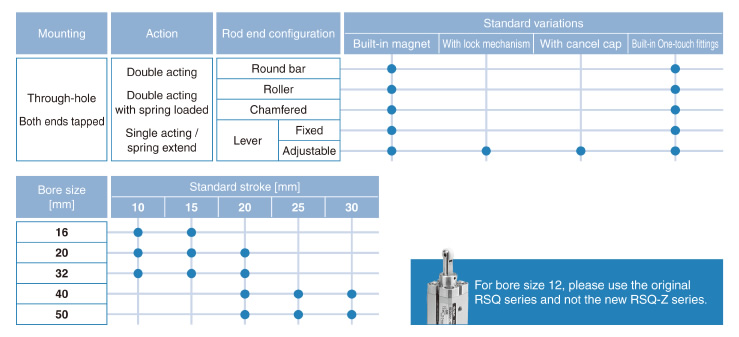

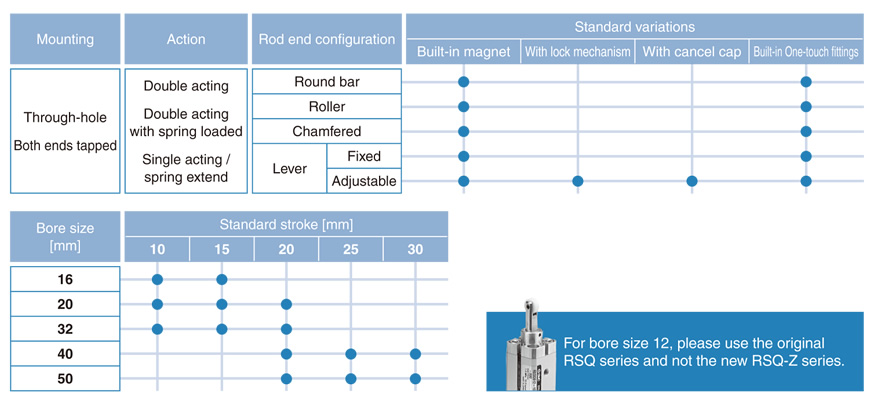

■Series Variations
