Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

Pin Clamp Cylinder/Compact Type C（L）KQG32-X3036

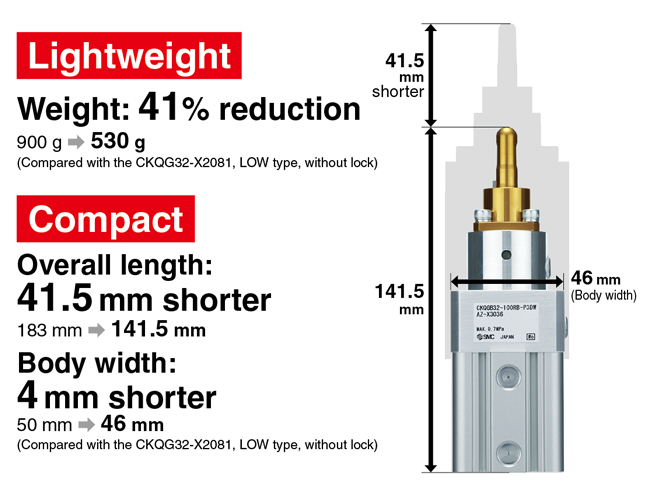

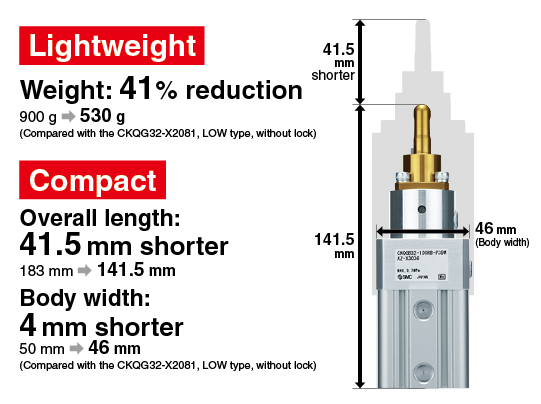

    ?Lightweight: Weight: 41% reduction(900 g→530 g)
    ?Compact
    　Overall length: 41.5 mm shorter(183 mm→141.5 mm)
    　Body width: 4 mm shorter(50 mm→46 mm)
    ?Lock mechanism to prevent the dropping of workpieces during emergency stops
    ?Guide pin shapes for workpieces with ?8 to ?20 hole diameters
    ?Easy arm replacement
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesGuide pin shapeBore size (mm)
Compact type
Without lock		CKQG32-X3036Round type
Diamond type		32
Compact type
With lock		CLKQG32-X3036Round type
Diamond type		32

Features

■Lightweight:, Compact
■Lock mechanism to prevent the dropping of workpieces during emergency stops
■Round type and diamond type guide pins for workpieces with ?8 to ?20 hole diameters are available.

? ?10 to ?20 for the diamond type

■Fine adjustment of the clamping height is possible with shims. (Option)

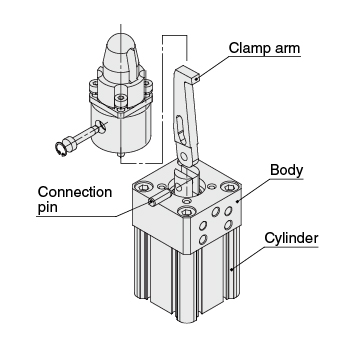

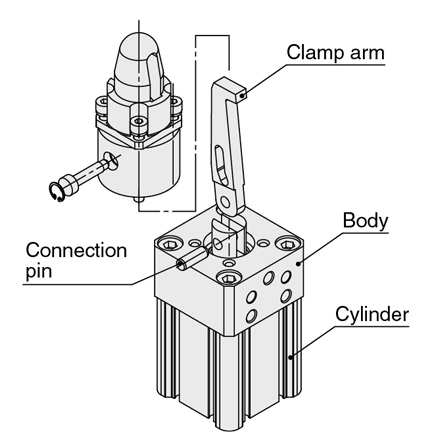

■Easy arm replacement

The arm can be easily replaced without detaching the body and the cylinder by simply removing the connection pin.

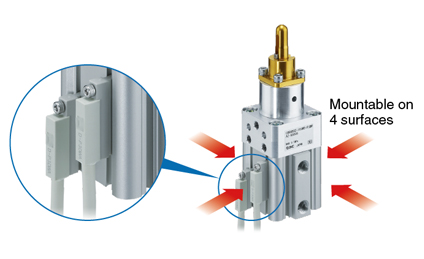

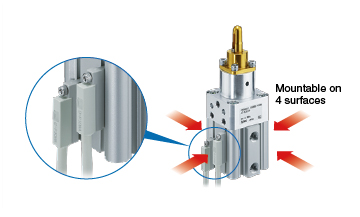

■Auto switches are mountable on 4 surfaces.(Mountable on 3 surfaces for the D-P4DWm)

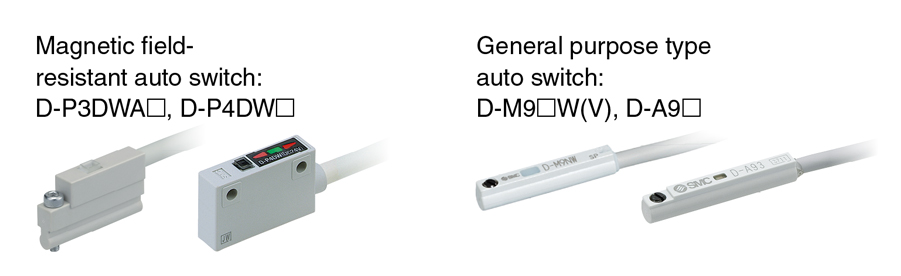

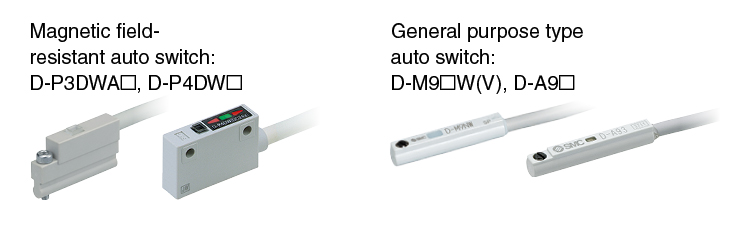

■Applicable Auto Switches

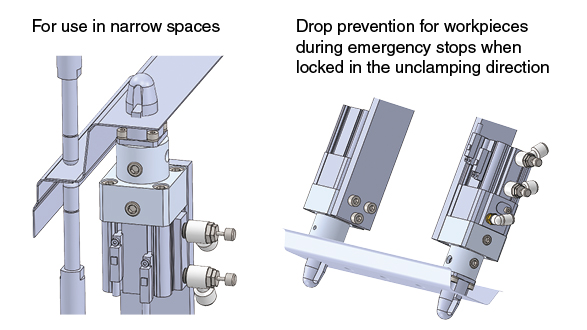

■Application Examples
