Product Information ?  WEB Catalog  ? Process Valves  ? Compact 2/3 Port Solenoid Valves/Air Operated Valves

Compact 2/3 Port Solenoid Valves/Air Operated Valves

High Speed 2 Port Valve (2 Way Valve) SX10

    ?High-speed response ON: 0.45 ms, OFF: 0.4 ms (±0.05 ms)
    ?Long service life: 5 billion cycles or more
    ?High frequency: 1200 Hz
    ?Width: 9 mm
    ?Low power consumption: 4 W

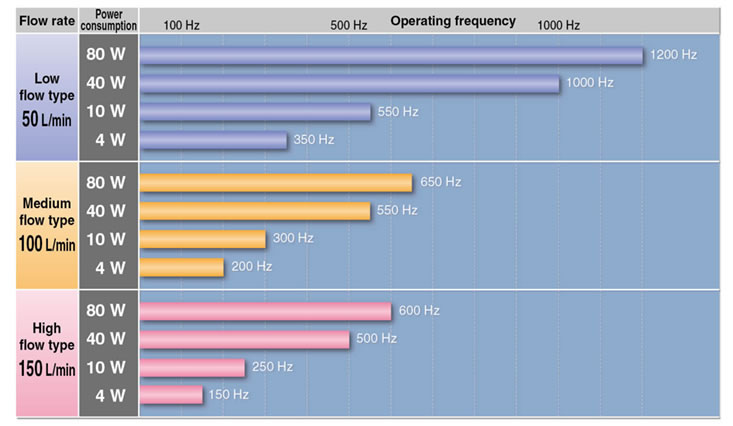

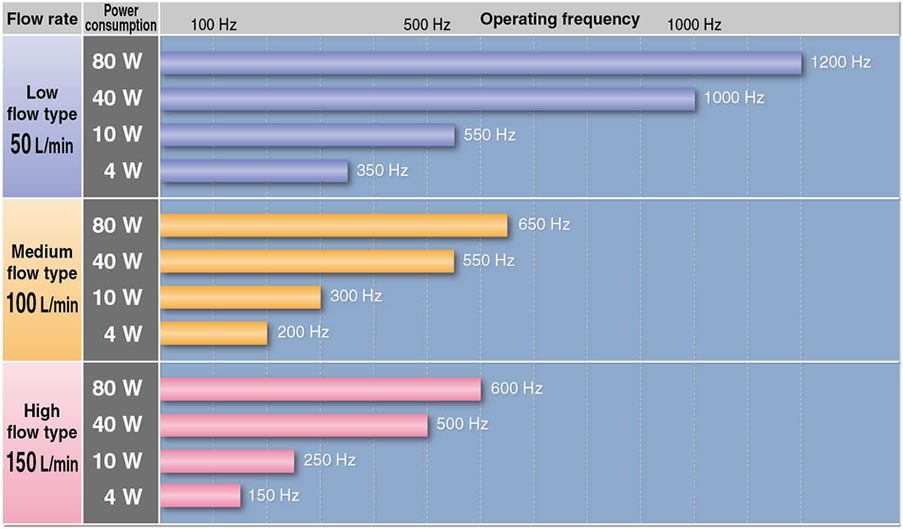

SeriesFlow rate (L/min)Power consumption (W)Max. operating frequency (Hz)
SX105080
40
10
4		1200
1000
550
350
SX1010080
40
10
4		650
550
300
200
SX1015080
40
10
4		600
500
250
150

Features

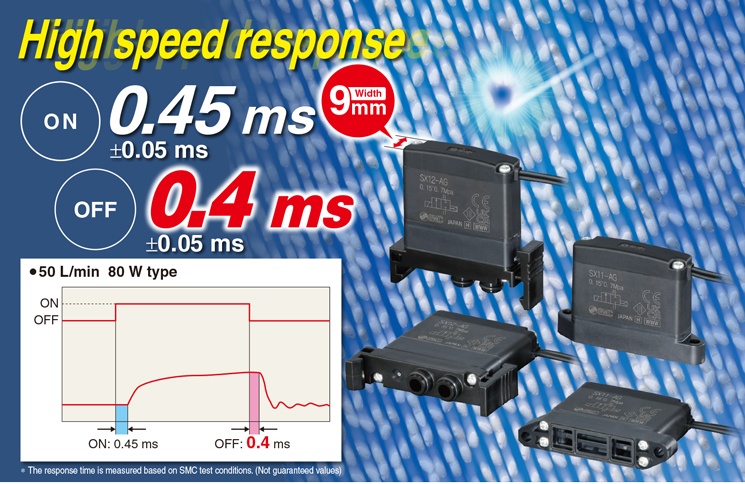

High speed response: ON 0.45ms, OFF 0.4ms (±0.05ms)

* The response time is measured based on SMC testa conditions. (Not guaranteed values)

Long service life: 5 billion cycles or more

SMC’s original valve and coil structure realizes a longer product life and requires less maintenance frequency.

(50 L/min type, 24 VDC, 0.25 MPa. Based on SMC life test conditions.)

Low power consumption: 4 W

Continuous energization for extended periods is possible.

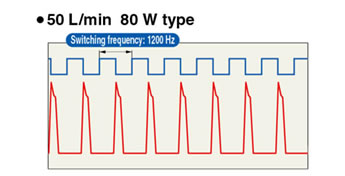

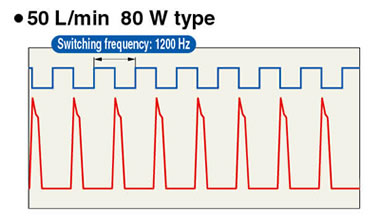

High frequency: 1200 Hz

Good followability and response to successive electrical signal input. Continuous operation possible.

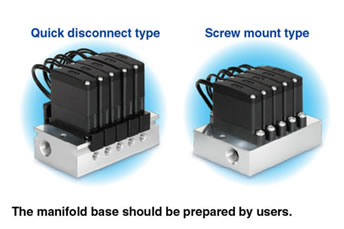

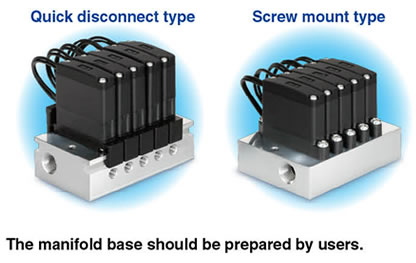

2 mounting types

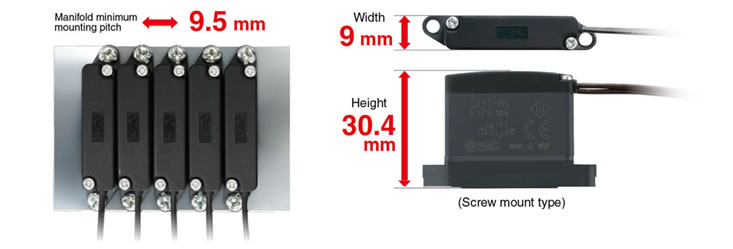

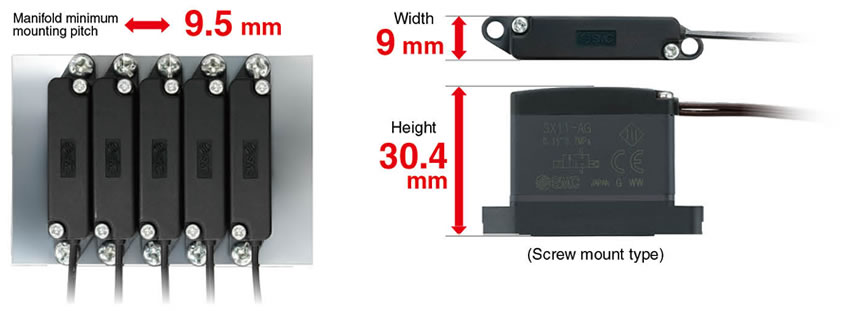

Compact and Space-saving

*The manifold base should be prepared by users.

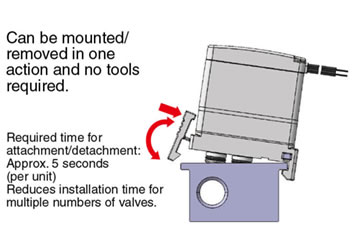

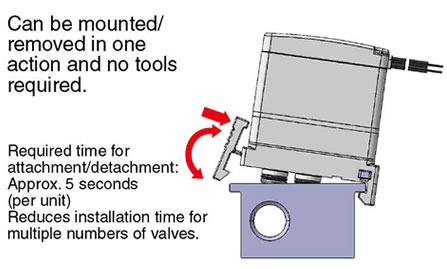

Reduction in installation labor (Quick disconnect type)

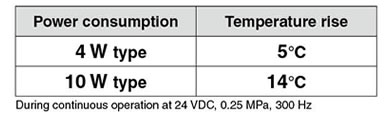

Coil temperature rise: 5°C (4 W type)

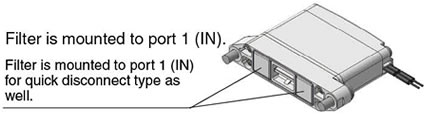

Filter attached type available

Variations

All models have the same body size.
