WEB Catalog

Product Information ?  WEB Catalog  ? Directional Control Valves  ? Pilot Operated 4/5 Port Solenoid Valves

Pilot Operated 4/5 Port Solenoid Valves

5-Port Solenoid Valve/Plug-in Type S0700

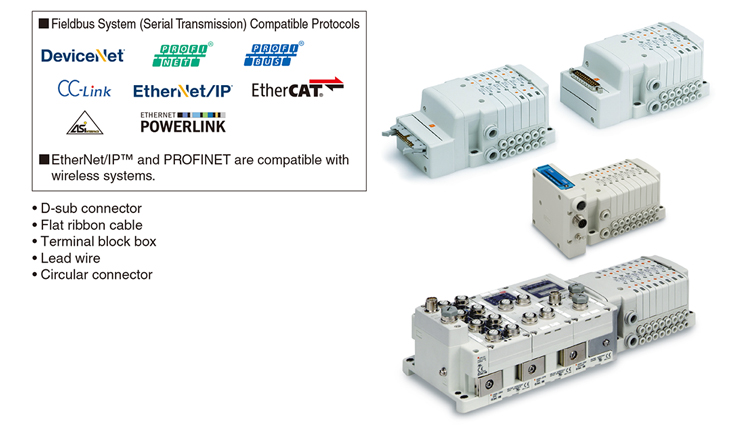

    ?A variety of common wiring methods are available.

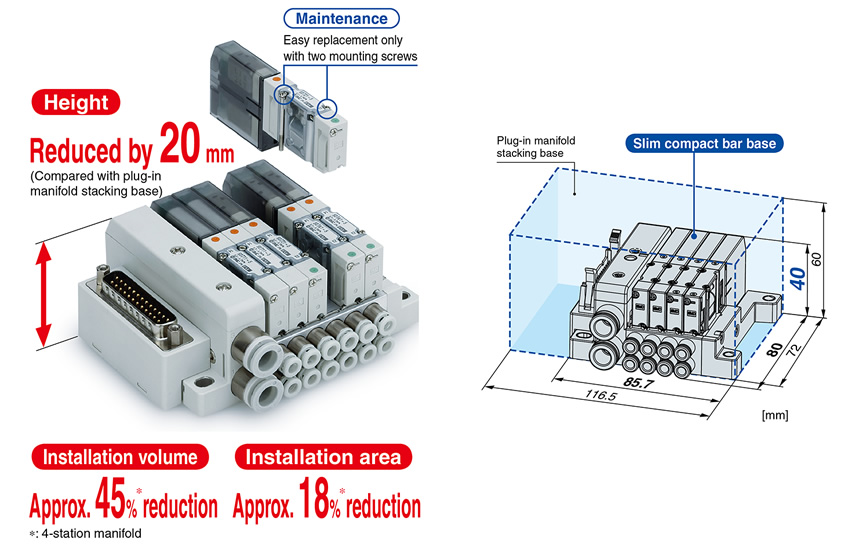

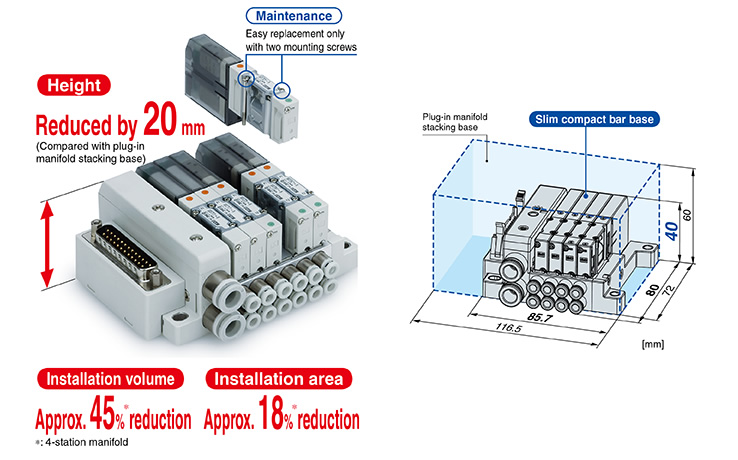

    ?Slim, compact plug-in manifold: Required installation space reduced by
    　45%*, Height reduced by 20 mm*
    * Compared with plug-in manifold stacking base
    ?4-position, dual 3-port valve
    ?Manifold type no.: SS0751, SS0750

    ＊The EX250/500 series is to be discontinued. When designing new
    　equipment and facilities, consider using another series (EX260/EX600)
    　instead.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 5-Port Solenoid Valve/Plug-in Type S0700
    DoC
    Series View search result
    S0700View search result
  • 5-Port Solenoid Valve/Plug-in Type S0700
    Manifold
    Series View search result
    S0700View search result
SeriesFlow rate characteristics
1→4/2（P→A/B）
C［dm3/（s?bar）］		Flow rate characteristics
1→4/2（P→A/B）
b		Flow rate characteristics
1→4/2（P→A/B）
Cv		Applicable
cylinder size		Power
consumption
(W)
S07000.390.390.11φ250.35

Features

Slim Compact Bar Base

Plug-in Type Stacking Base

Flow rate characteristics

C[dm3/（s?bar）]：0.39　b：0.39　Cv：0.11

Power consumption: 0.35 W

Possible to drive cylinders Up to ?25 （At 300 mm/s）

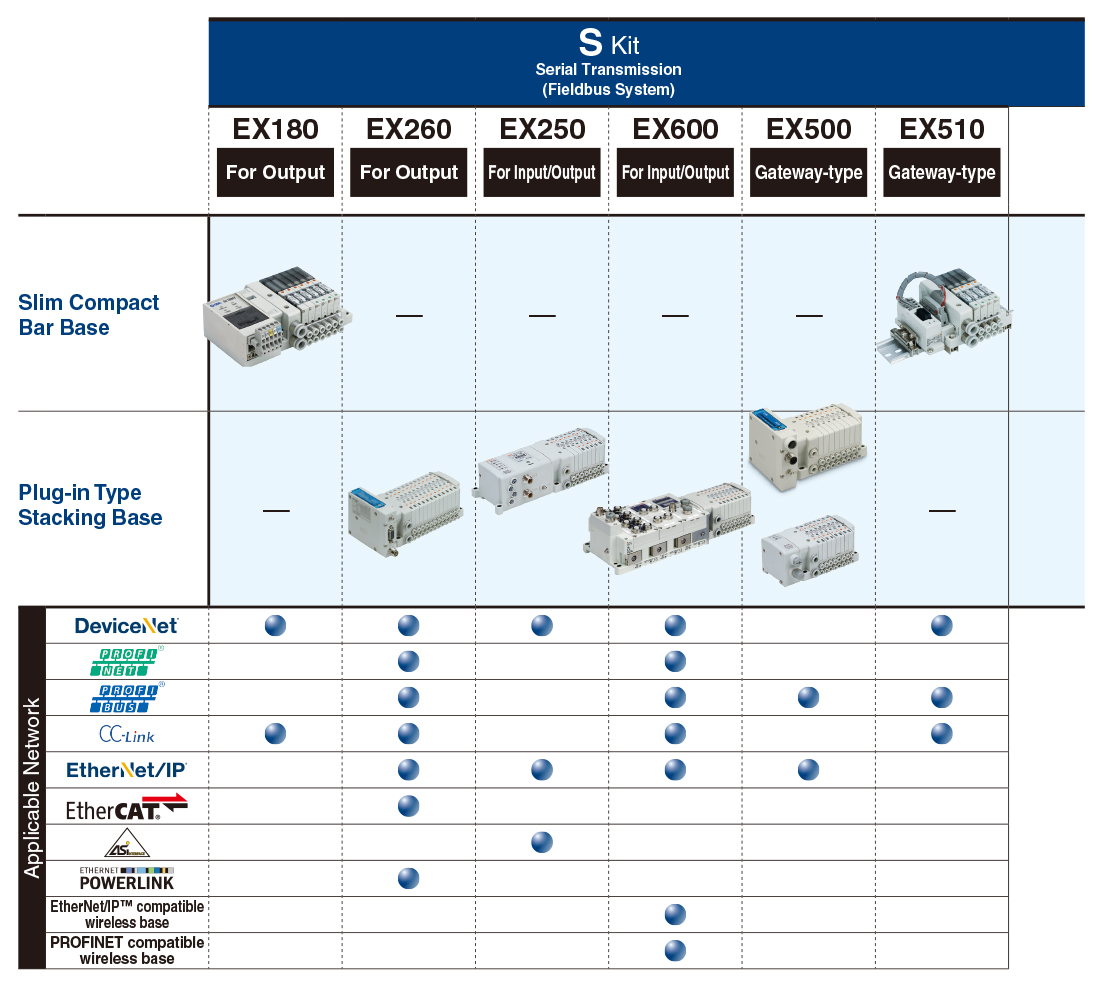

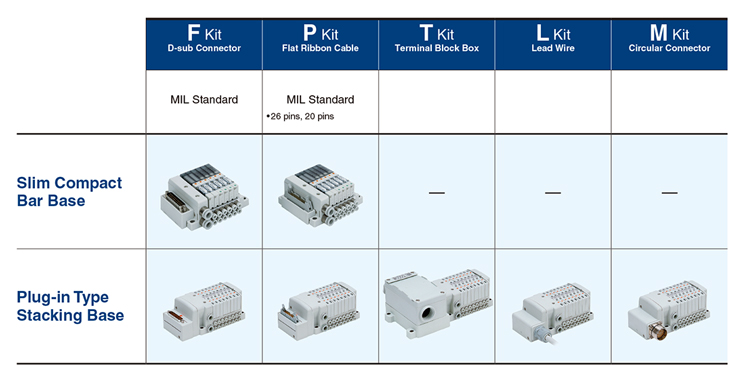

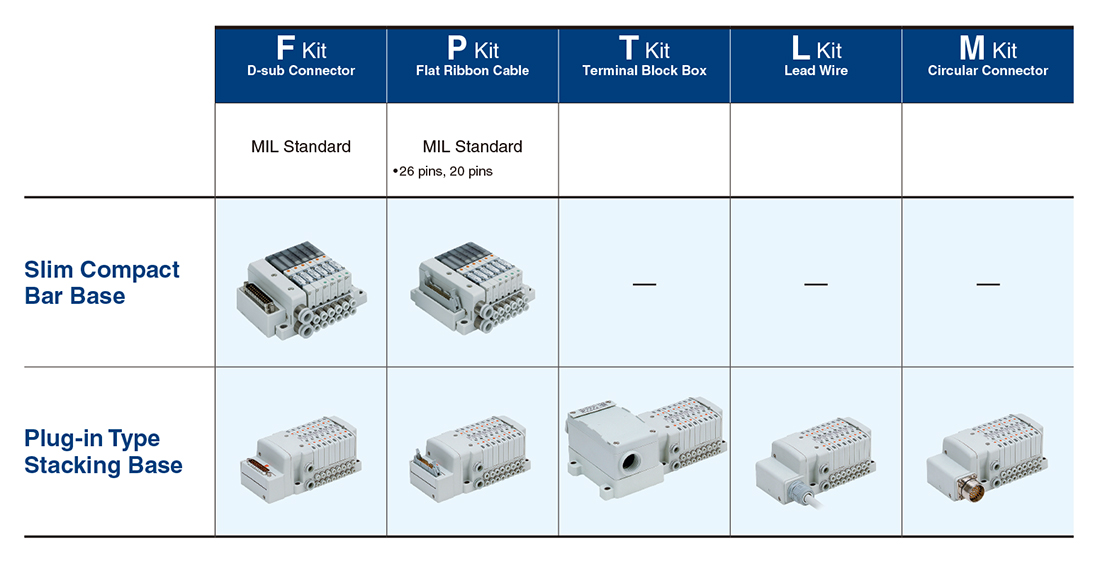

Plug-in Manifold Variations

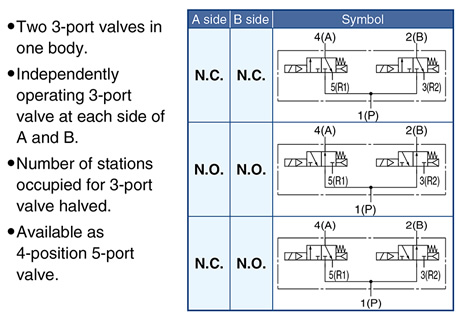

4-Position Dual 3-Port Valve

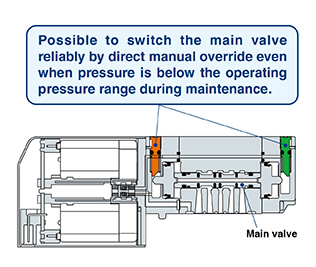

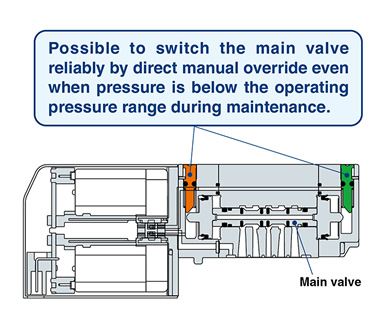

Adopted Direct Manual.

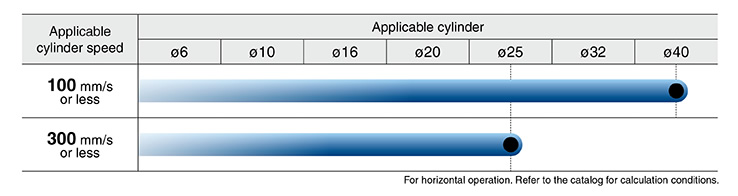

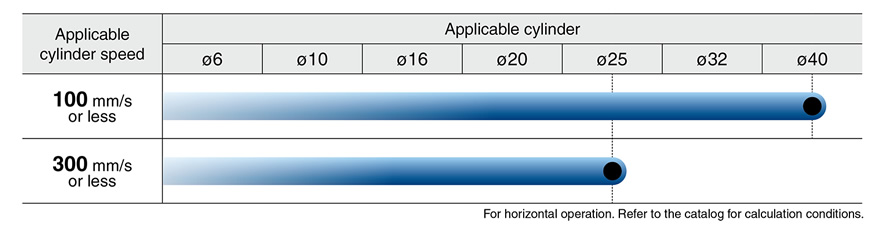

Optimum Actuation Size Chart of Air Cylinder

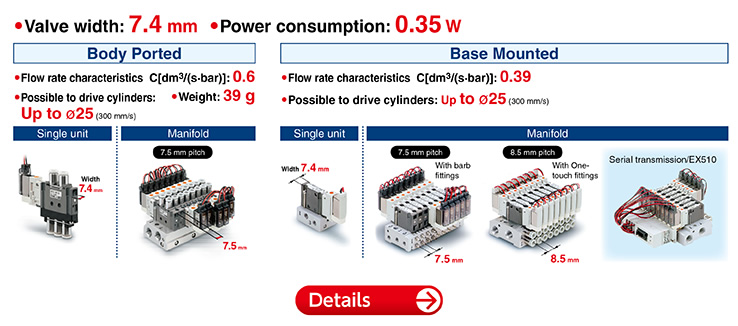

5 Port Solenoid Valve Plug Lead Type Series S0700
