WEB Catalog

Product Information ?  WEB Catalog  ? Electric Actuators/Cylinders  ? Controllers/Drivers

Controllers/Drivers

Step Motor Controller JXCE1/91/P1/D1/L□/M1

    ?EtherCAT, EtherNet/IP?, PROFINET, DeviceNet?,
    　IO-Link, and CC-Link compatible
    ?Two types of operation command:
    　Step no. defined operation, Numerical data defined operation
    ?Transition wiring of communication cables
    ?Numerical monitoring available
    ?IO-Link communication can be performed.
    ?Controller with STO sub-function/JXC□F
SeriesCompatible
motor		Power
supply
voltage		Fieldbus
JXCE1 (Standard)
JXCEF (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		EtherCAT?
JXC91 (Standard)
JXC9F (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		EtherNet/IP?
JXCP1 (Standard)
JXCPF (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		PROFINET
JXCD1 (Standard)Step motor
(Servo/24 VDC)		24 VDC
±10%		DeviceNet?
JXCL1 (Standard)
JXCLF (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		IO-Link
JXCM1 (Standard)Step motor
(Servo/24 VDC)		24 VDC
±10%		CC-Link

Features

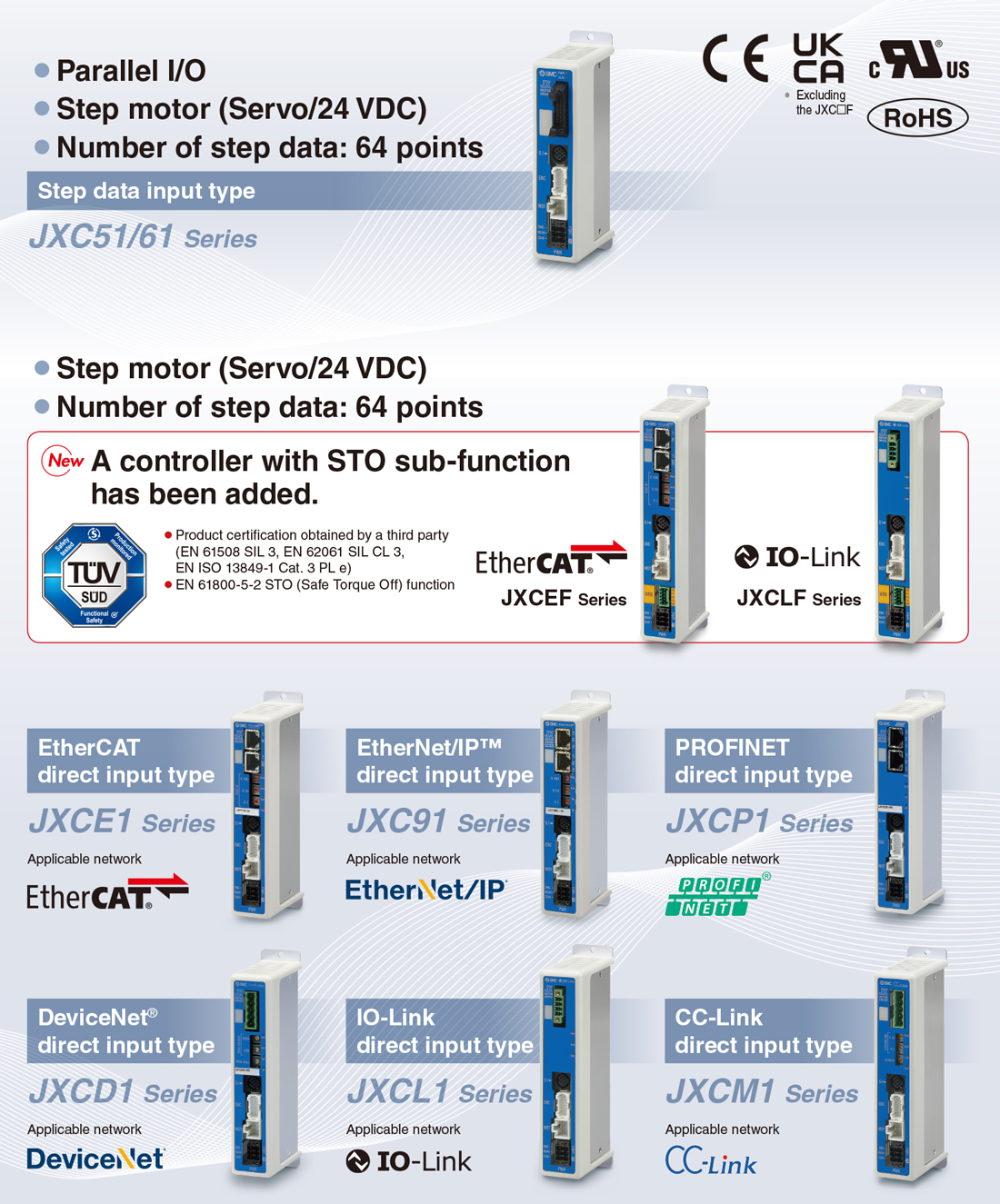

Step Motor Controller

Step Data Input Type JXC51/61 Series

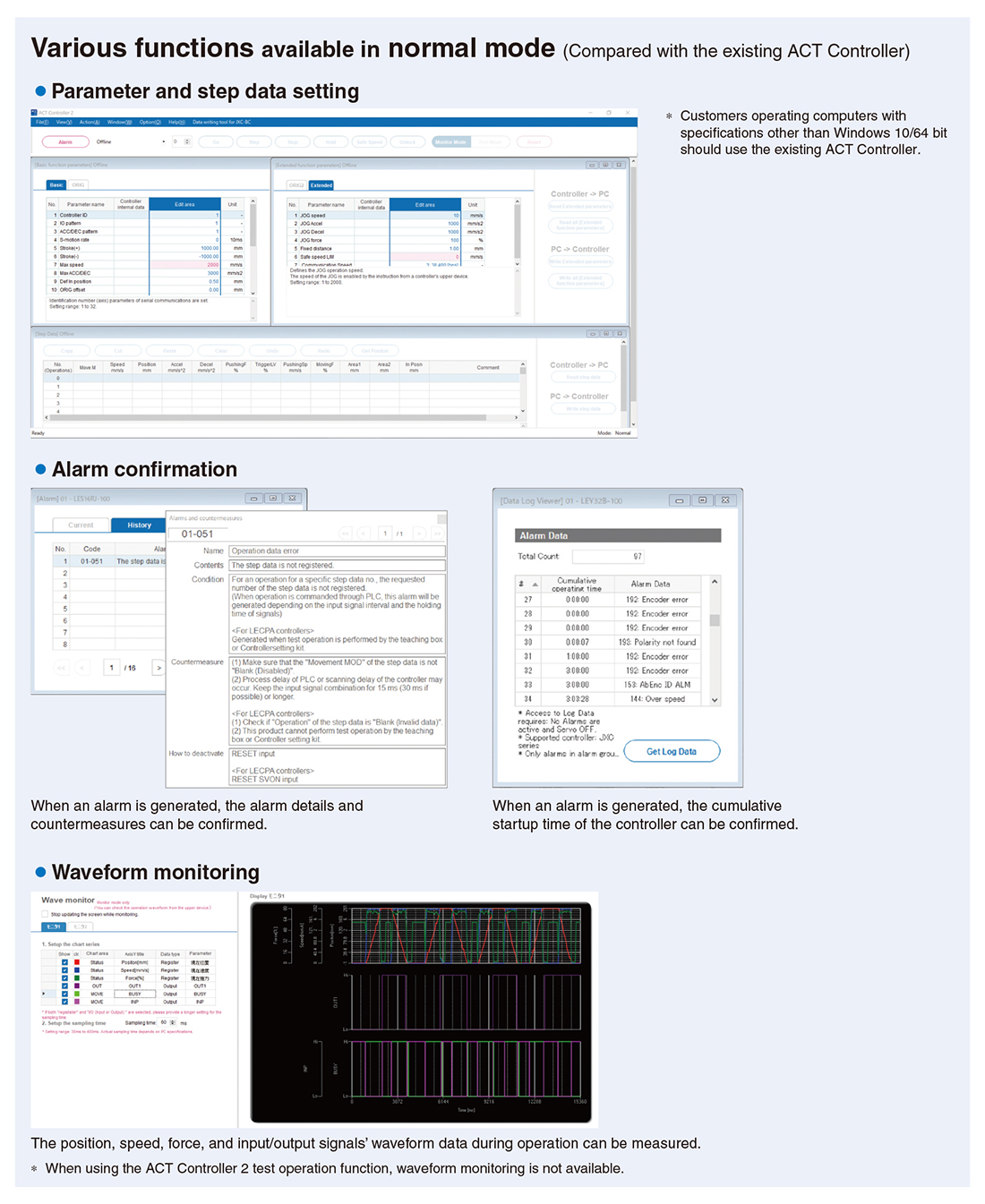

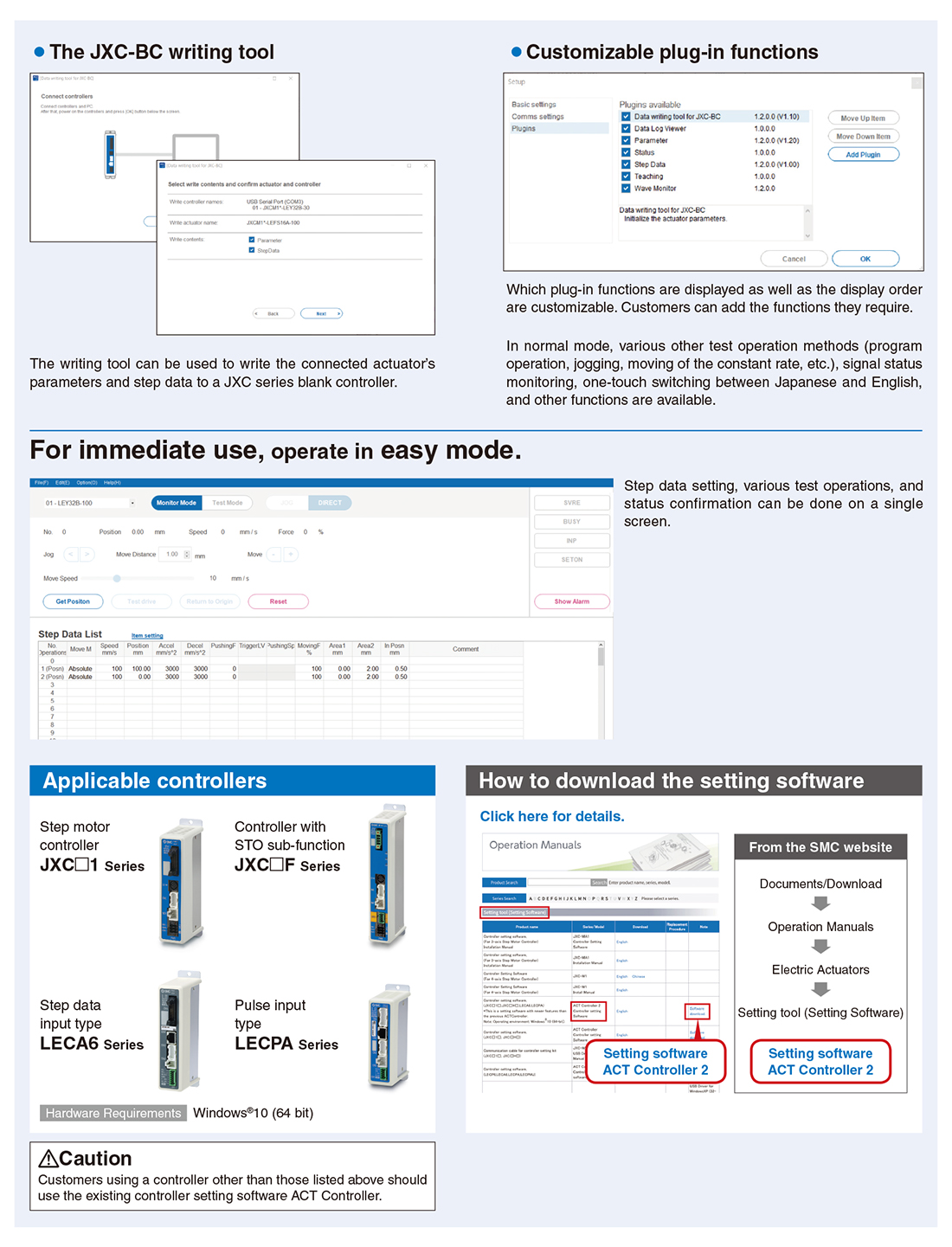

Easy-to-use setting software ACT Controller 2 (For PC)

?ACT2　Controller Setting Software ACT Controller 2

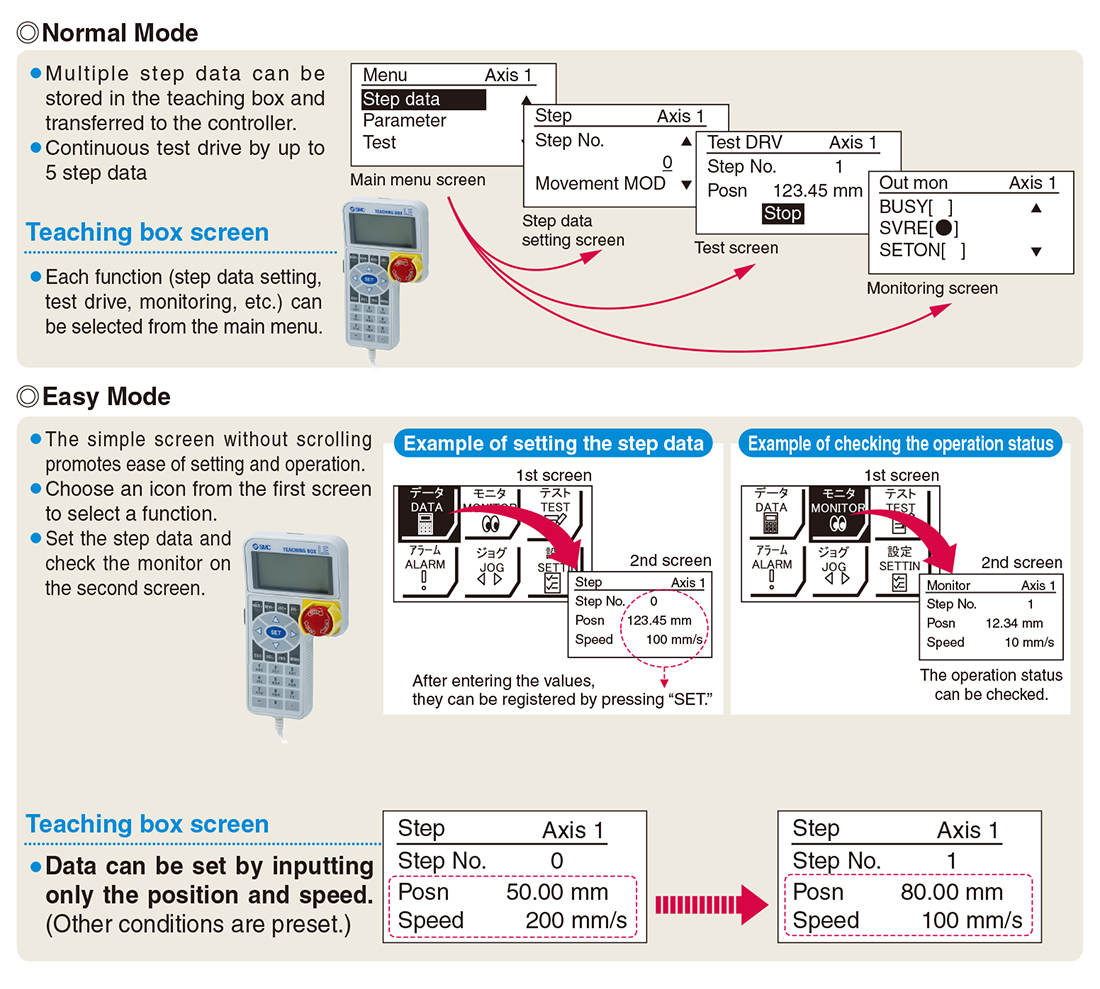

?Teaching Box

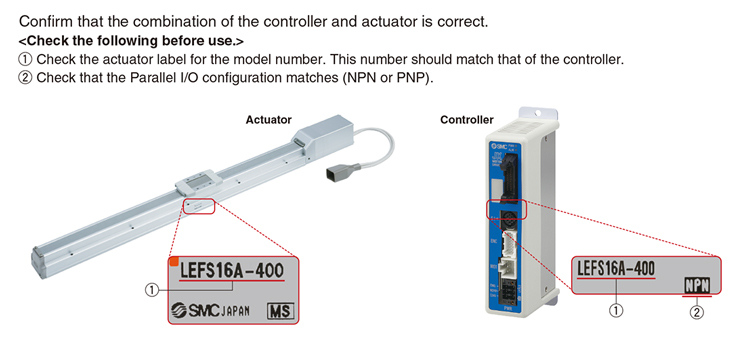

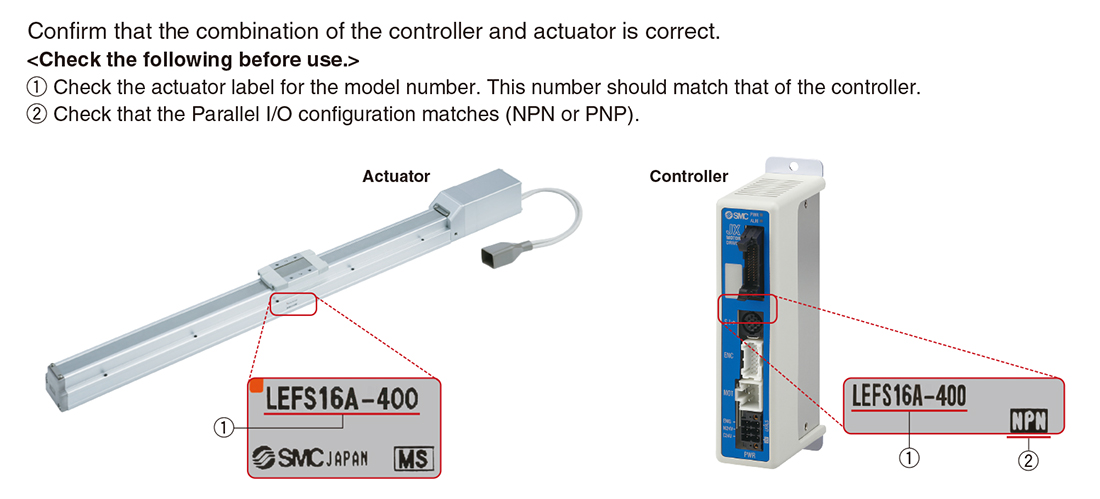

The actuator and controller are provided as a set. (They can be ordered separately as well.)

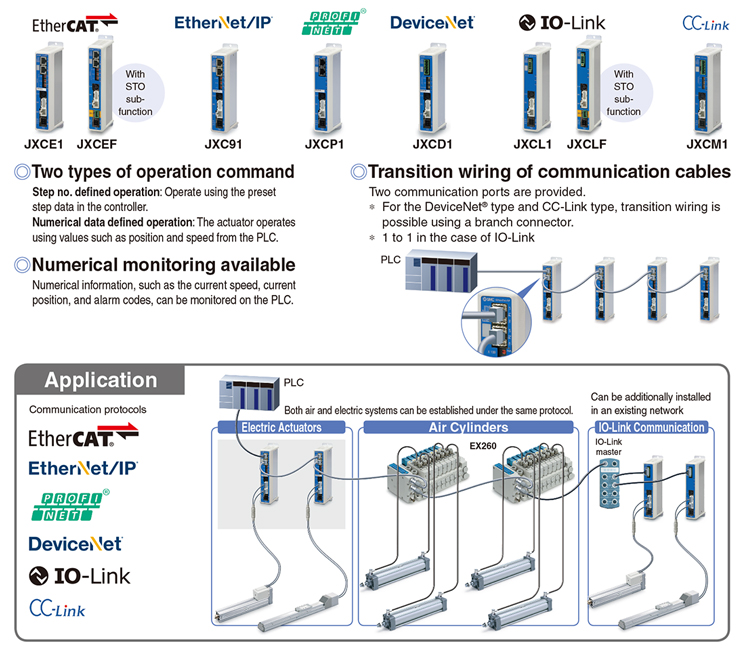

Fieldbus Network
EtherCAT/EtherNet/IP?/PROFINET/
DeviceNet?/CC-Link Direct Input Type
Step Motor Controller/JXC□ Series

?Controller Setting Software ACT Controller 2

Controller with STO Sub-Function JXC□F Series

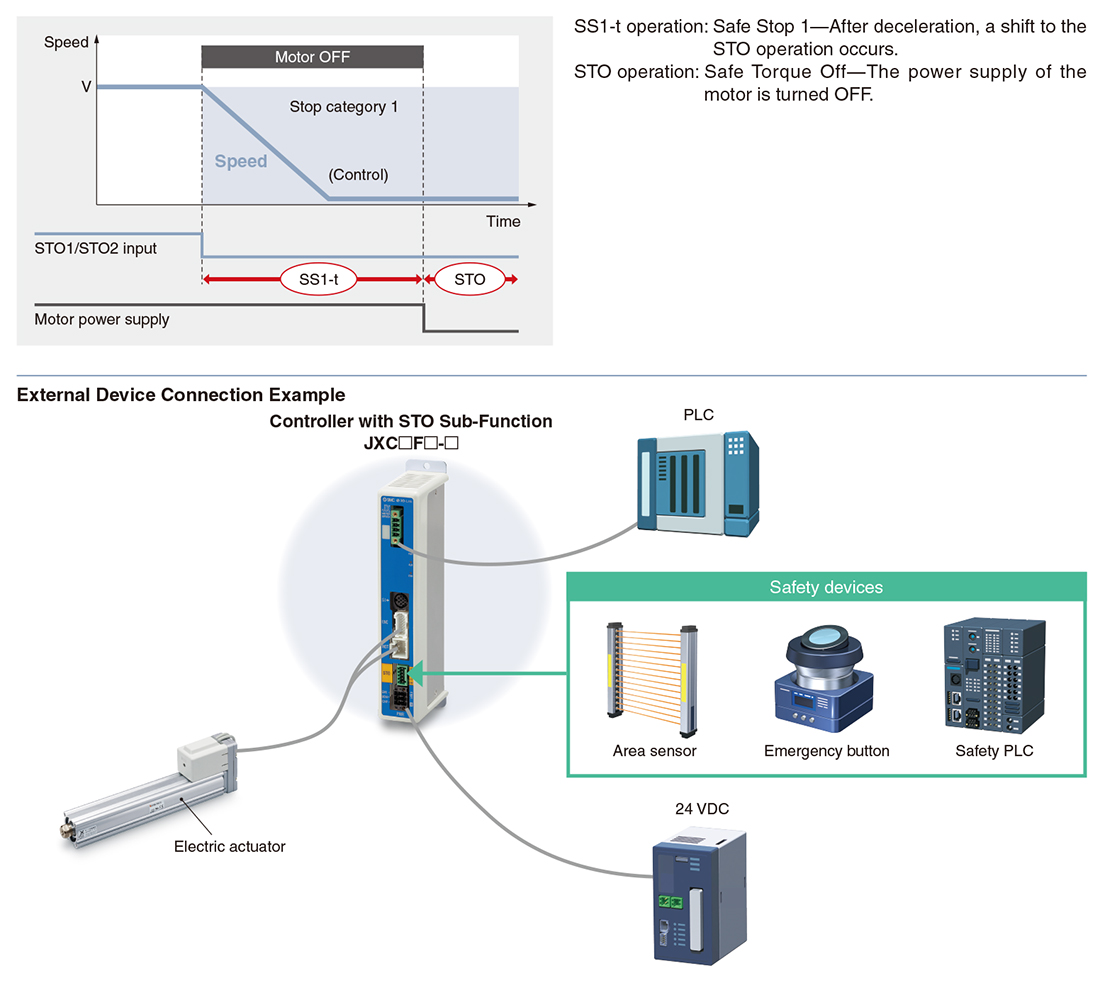

Safety function/STO, SS1-t (EN 61800-5-2)
When the STO signal is input from the safety device, after the SS1-t operation is completed, the unit shifts to the STO operation and the power supply of the motor is turned OFF.

Certified by a third-party organization

Facilitates the safety designing of equipment and facilities (compliant with ISO/IEC standards)
