Product Information ?  WEB Catalog  ? Temperature Control Equipment  ? Thermo-Chillers (Circulating Fluid Temperature Controllers) Standard Type/Basic Type

Thermo-Chillers (Circulating Fluid Temperature Controllers) Standard Type/Basic Type

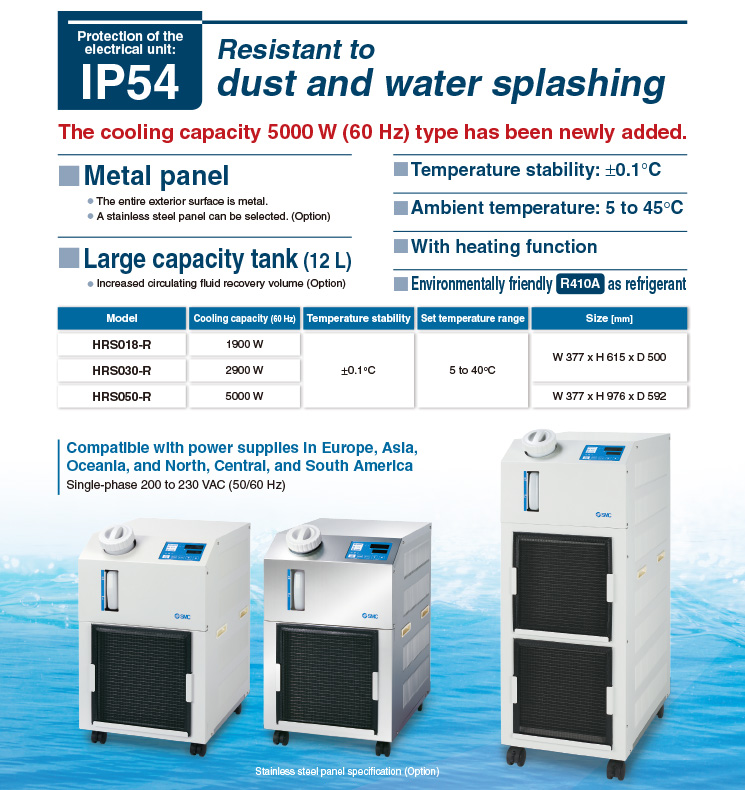

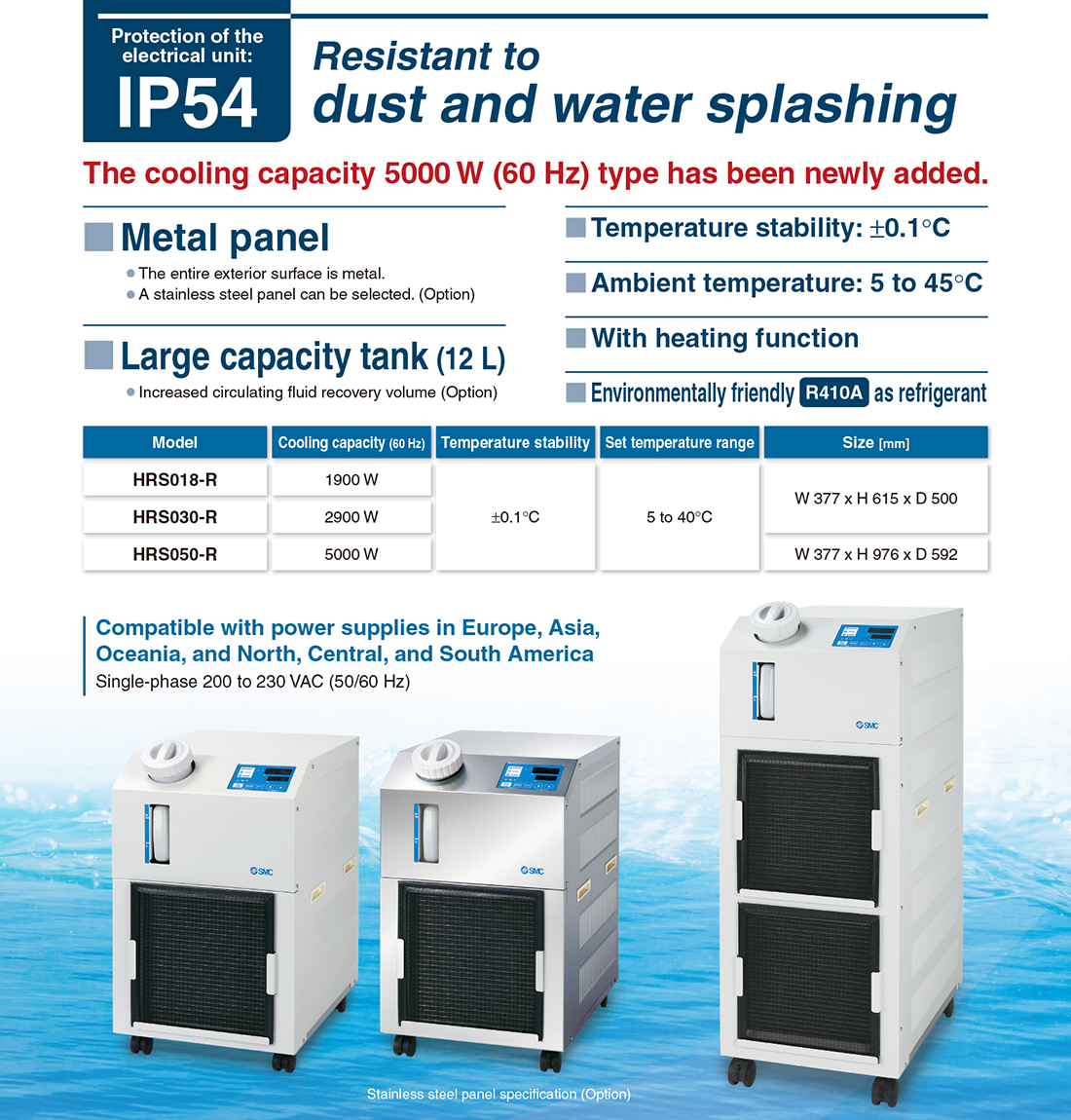

Thermo-chiller/Environmentally Resistant Type HRS-R

    ?Resistant to dust and water splashing
    ?Protection of the electrical unit: IP54
    ?Metal panel
    　The entire exterior surface is metal.
    　A stainless steel panel can be selected. (Option)
    ?A large capacity tank (12 L) is available. (Option)
    ?Ambient temperature: 5 to 45°C
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Thermo-chiller/Environmentally Resistant Type HRS-R
    Manual
    Series View search result
    HRS-RView search result
  • Thermo-chiller/Environmentally Resistant Type HRS-R
    DoC
    Series View search result
    HRS-RView search result
SeriesSet temperature
range		Cooling
capacity		Temperature
stability		Cooling methodCirculating fluid
HRS-R5 to 40℃1.9 kW
2.9 kW
5 kW
(60 Hz)		±0.1℃Air-cooled refrigerationTap water
Ethylene glycol aqueous solution (15%)

Features

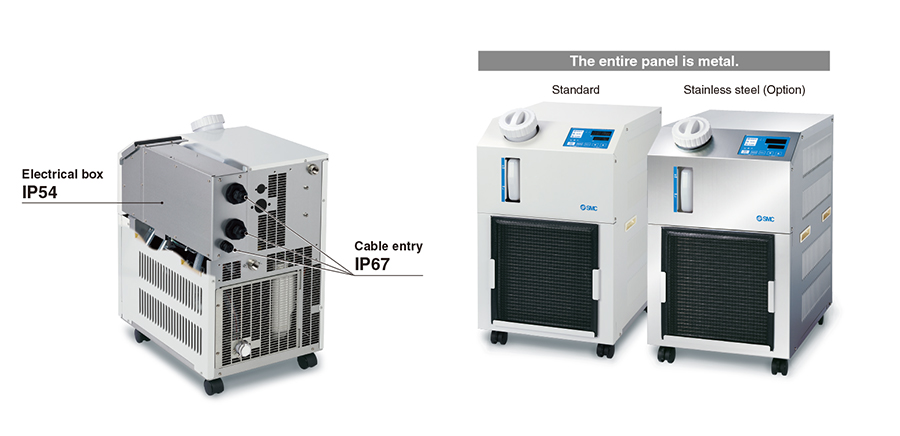

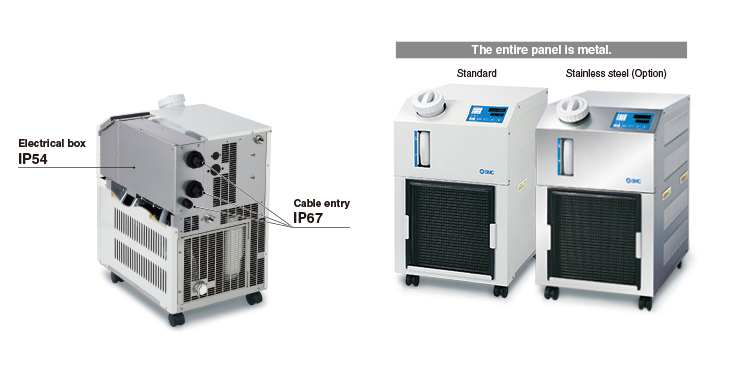

Protection of the electrical unit: IP54

The board and electric parts are located inside the electrical box, where they can be protected from dust particles and water splashing.

Compatible with power supplies in Europe, Asia, Oceania, and North, Central, and South America

Single-phase 200 to 230 VAC (50/60 Hz)

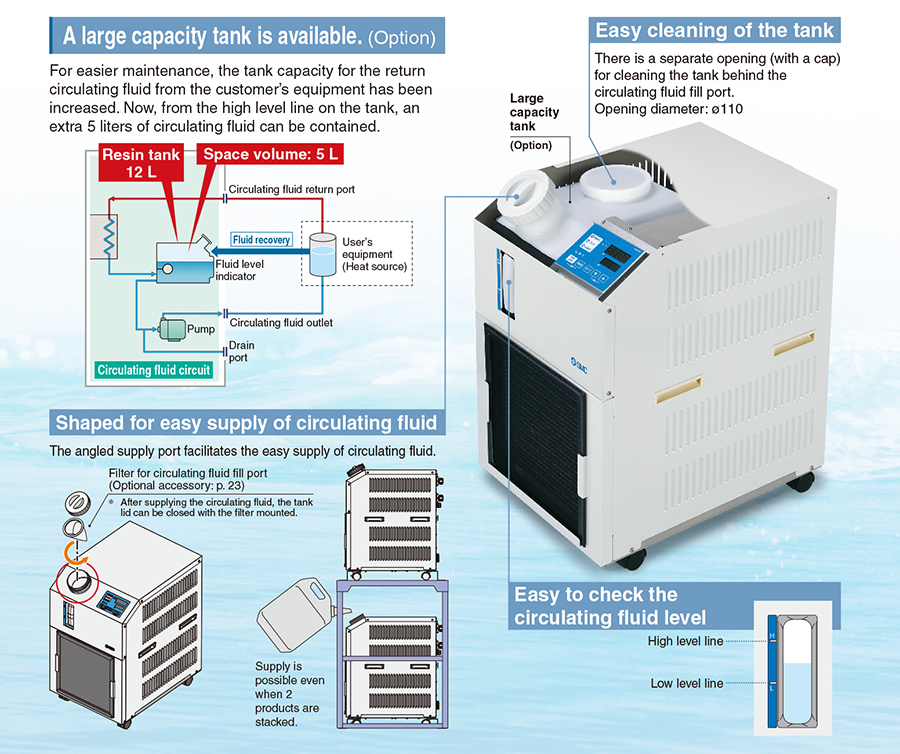

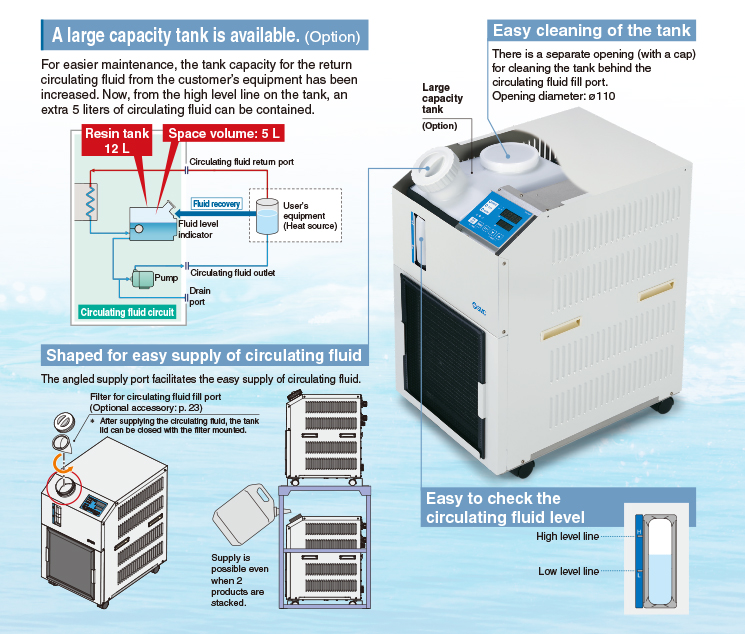

A large capacity tank is available. (Option)

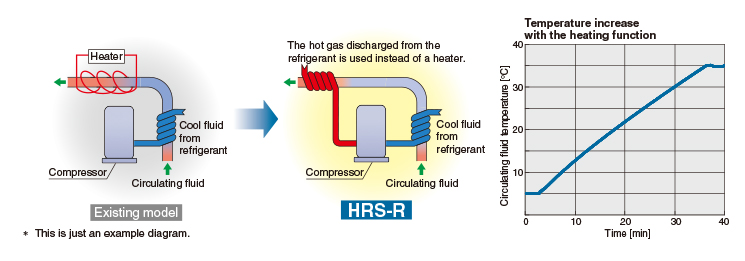

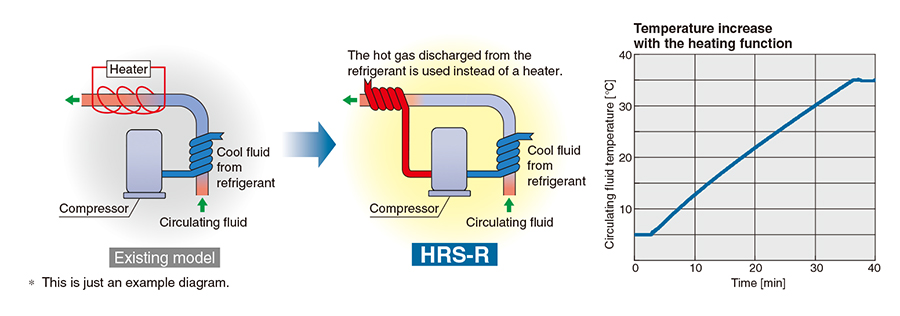

With heating function

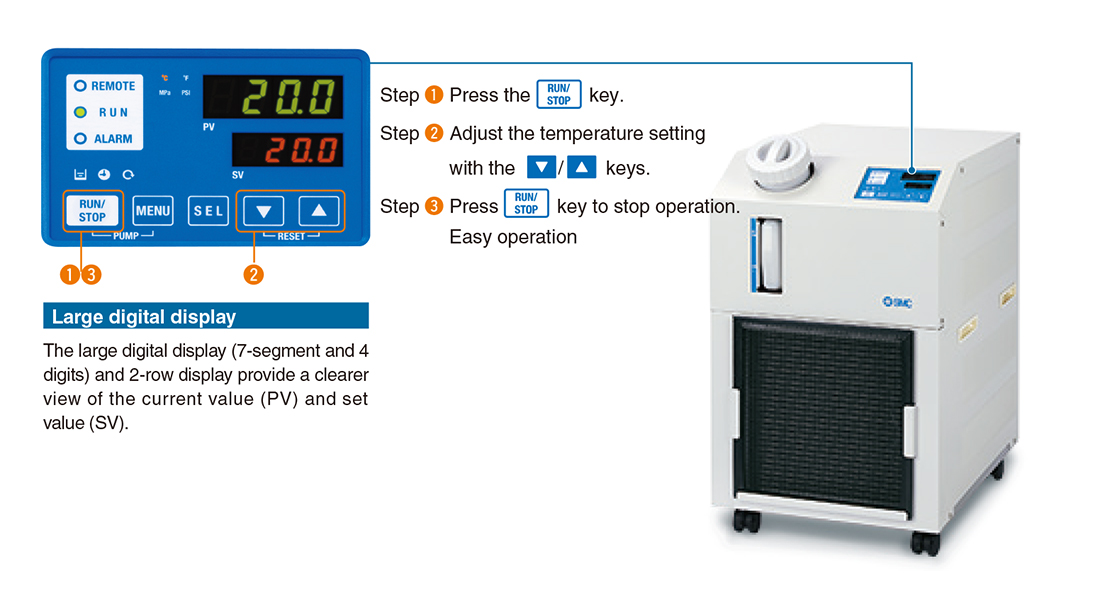

Simple operation

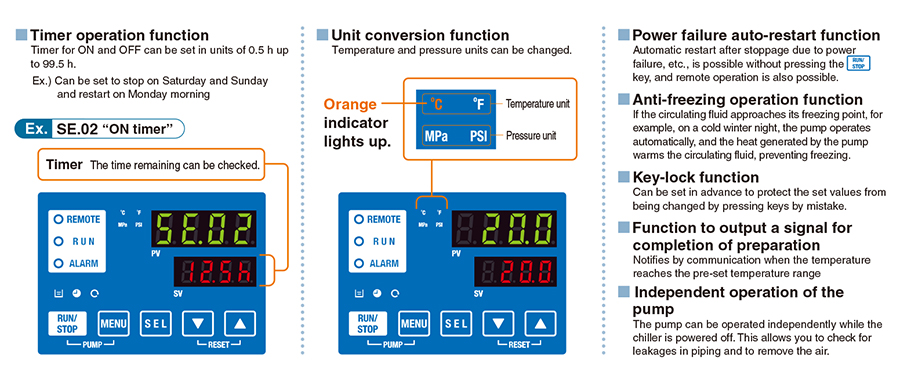

Convenient functions(Refer to the Operation Manual for details.)

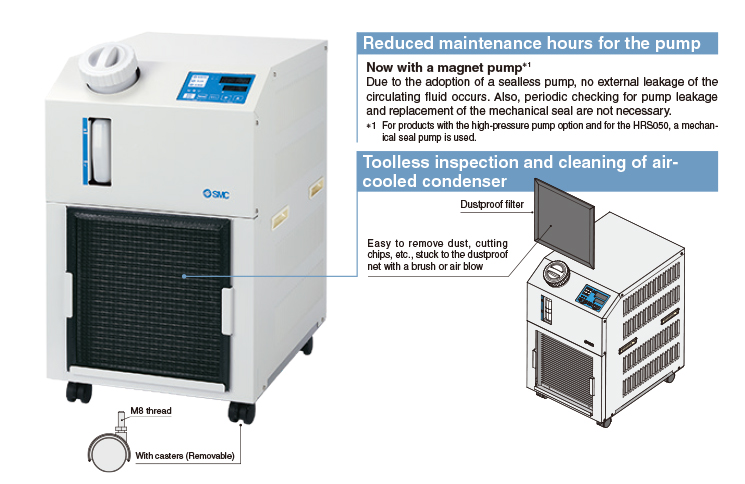

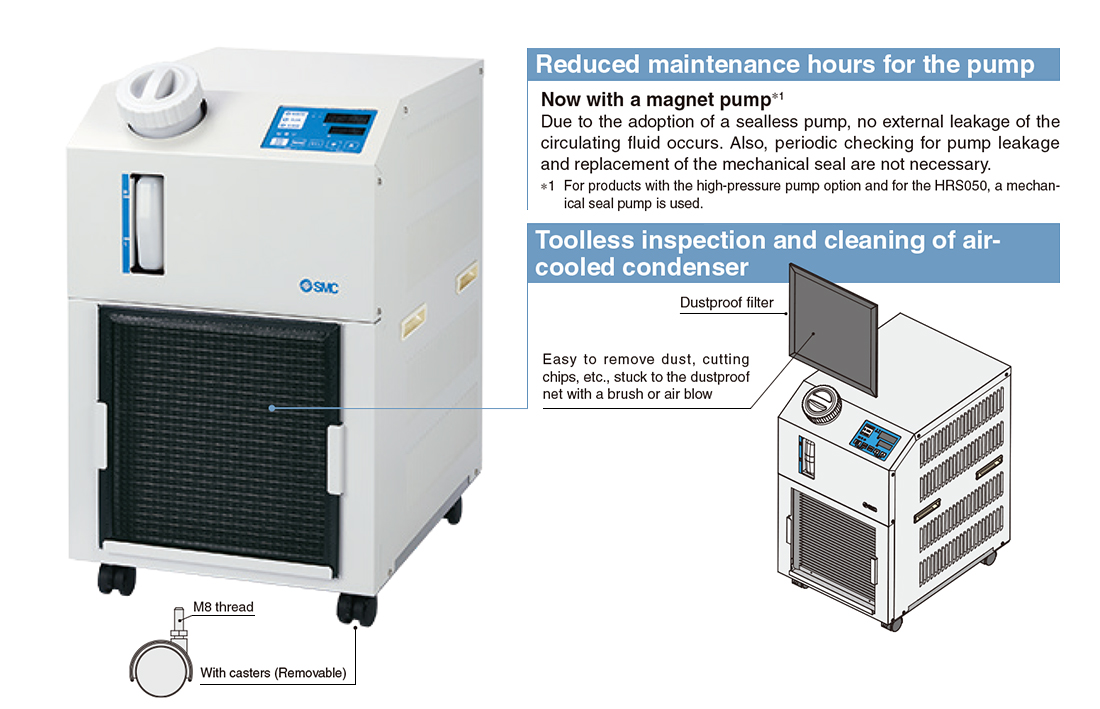

Reduced maintenance hours for the pump

Toolless inspection and cleaning of aircooled condenser

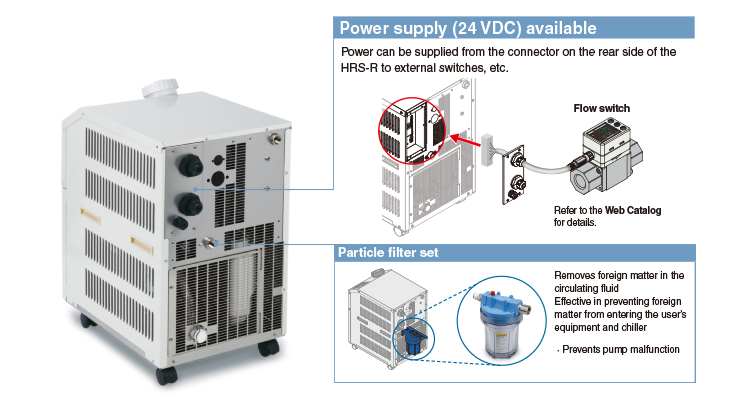

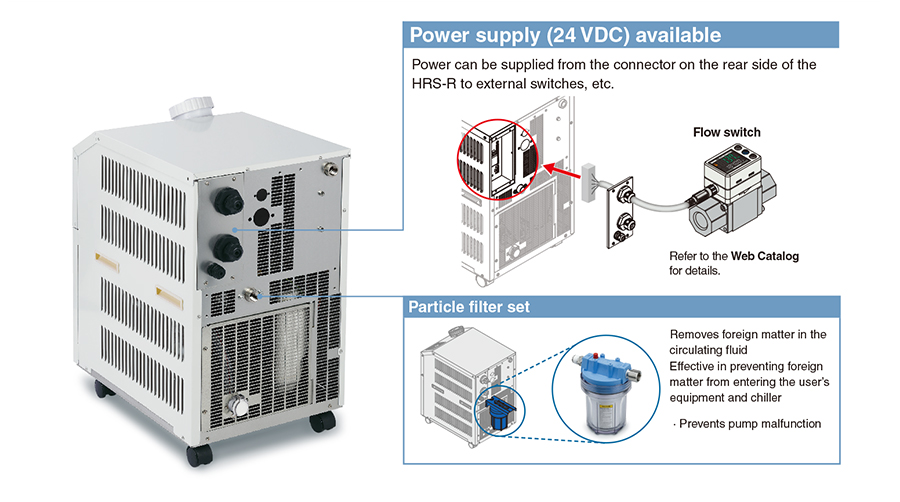

Power supply (24 VDC) available

Particle filter set

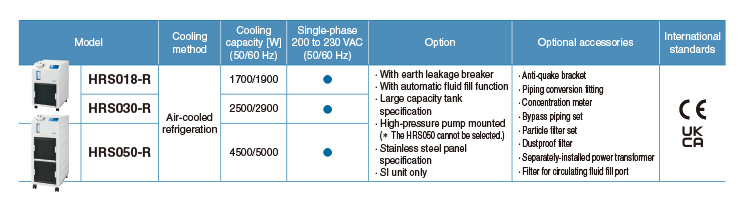

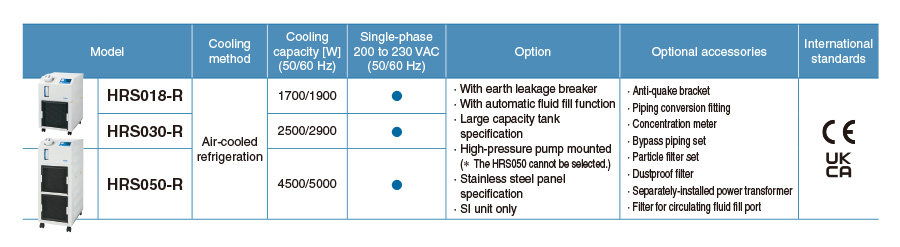

Variations

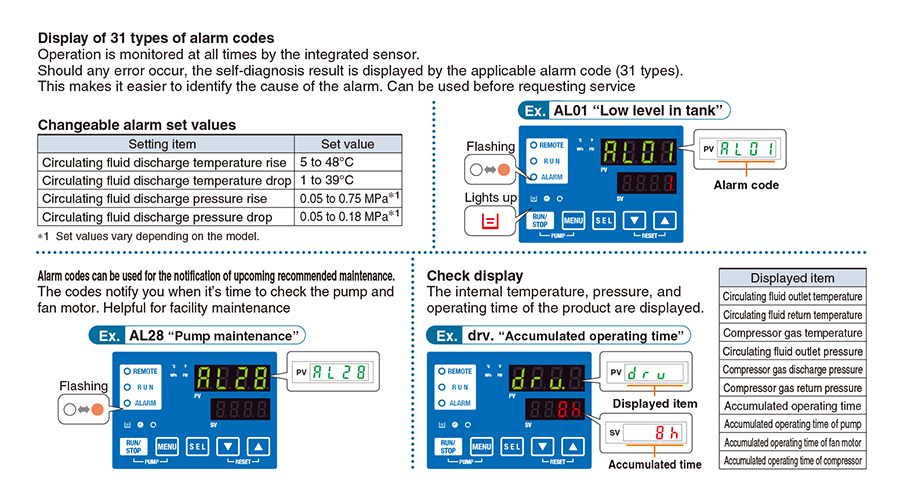

Self-diagnosis function and check display

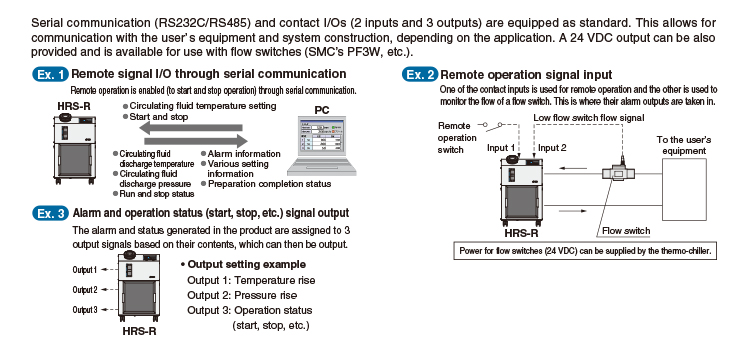

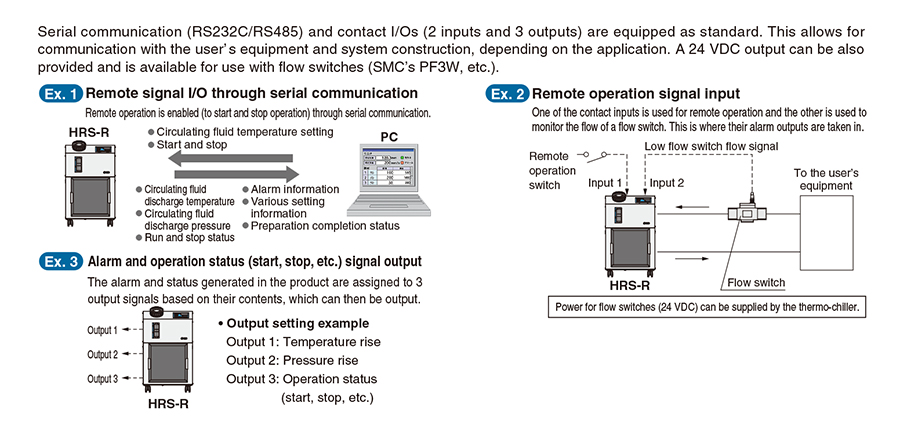

Communication function

Serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard. This allows for communication with the user’ s equipment and system construction, depending on the application. A 24 VDC output can be also provided and is available for use with flow switches (SMC’s PF3W, etc.).

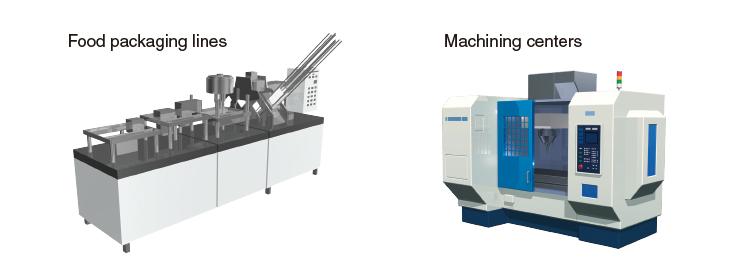

Application Examples

Global Supply Network

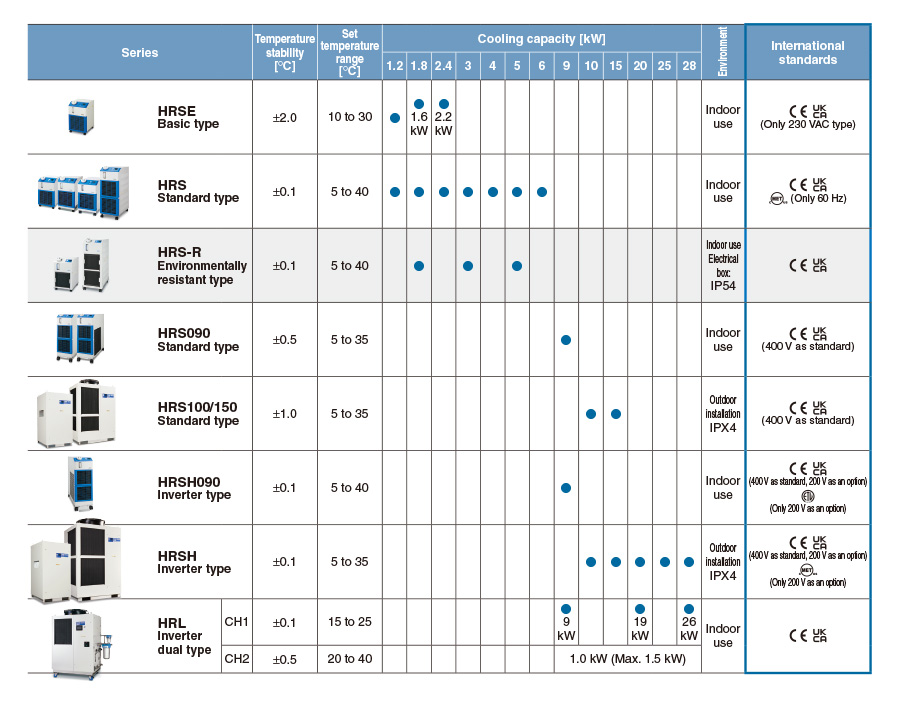

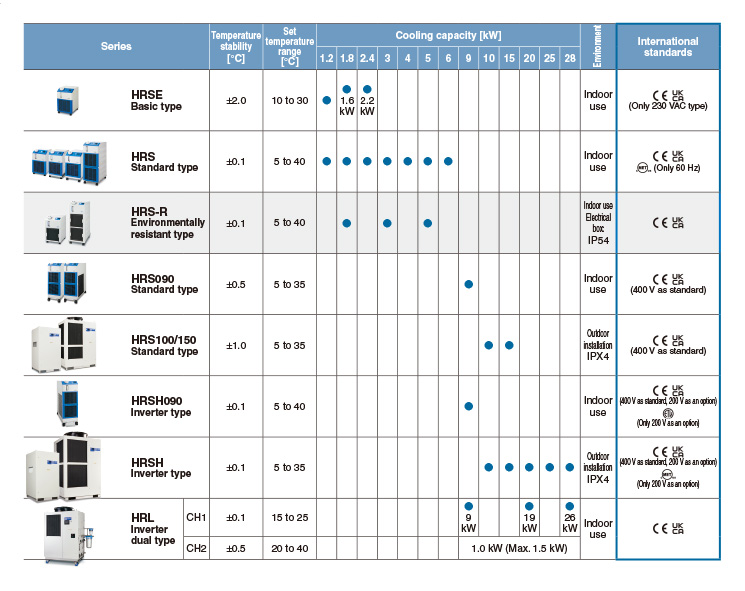

SMC Thermo-chiller Variations
