Speed Controllers for General Purposes
Speed Controller with Compact Indicator AS-FSA
-
?Height: Max. 5.4 mm shorter
?Flow rate can be controlled numerically with the indicator window.

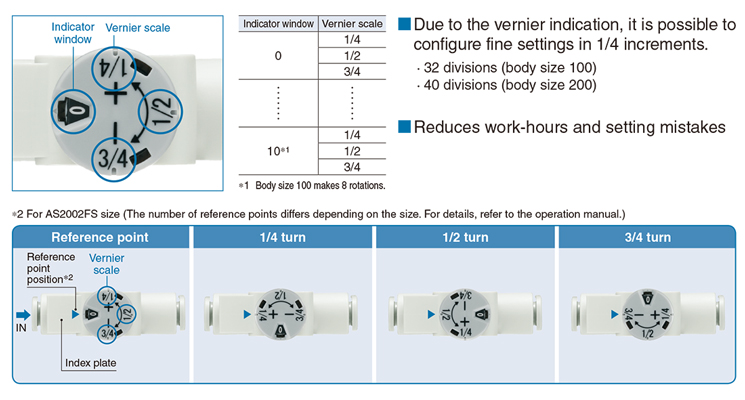

Due to the vernier indication, it is possible to configure fine settings in
1/4 increments.
Reduces work-hours and setting mistakes
?A type with a panel mount adapter has been added.
No tools required, Reduced installation work
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Speed Controller with Compact Indicator AS-FSA
Manual

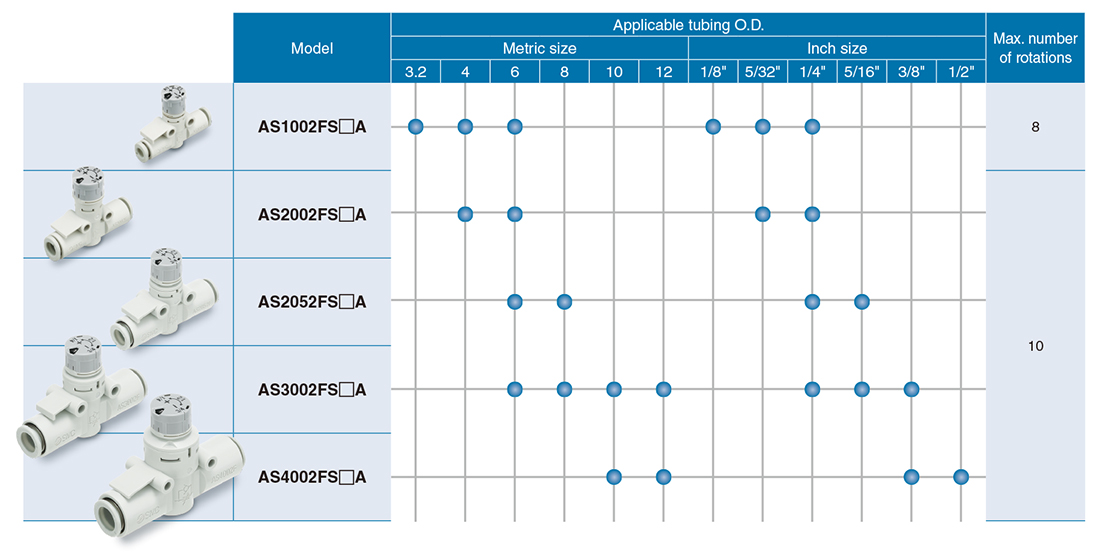

Type Series View search result In-line type AS1002FS-□A to AS4002FS-□A View search result
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| In-line type | AS1002FS-□A to AS4002FS-□A | - | φ3.2 to φ12 | φ1/8'' to φ1/2'' |
Features

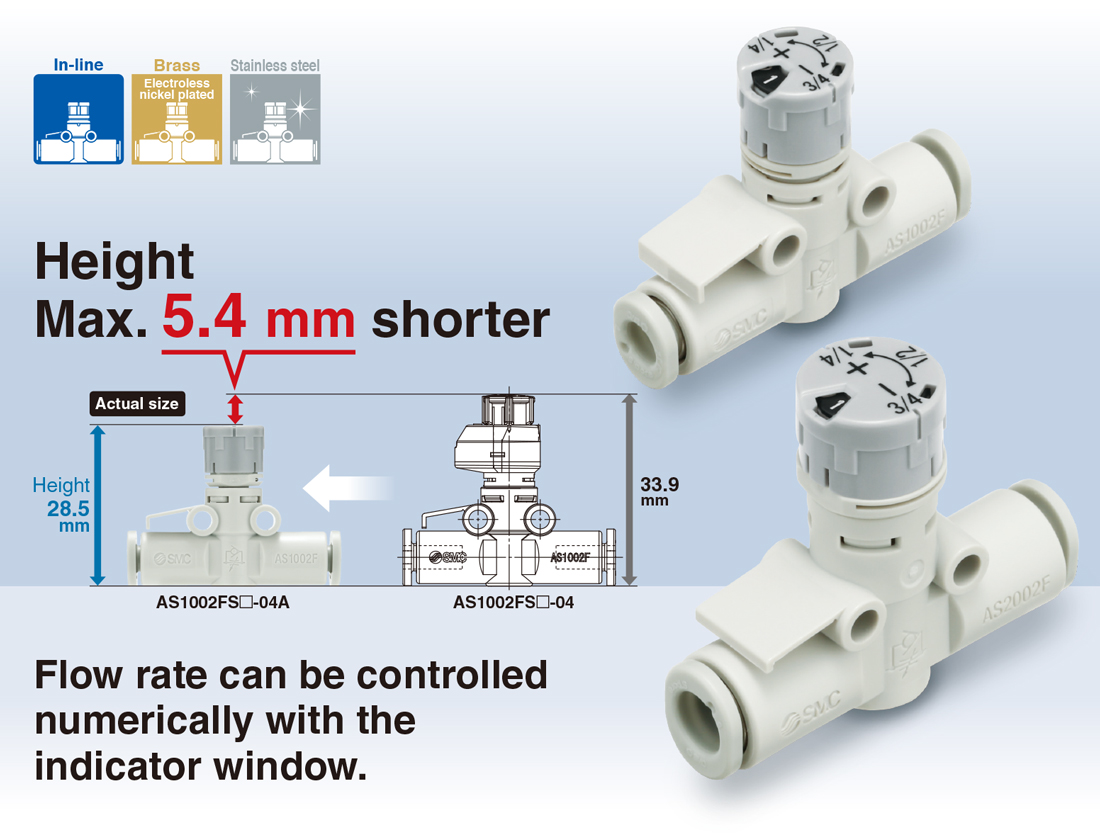

Height: Max. 5.4 mm shorter
Flow rate can be controlled numerically with the indicator window.

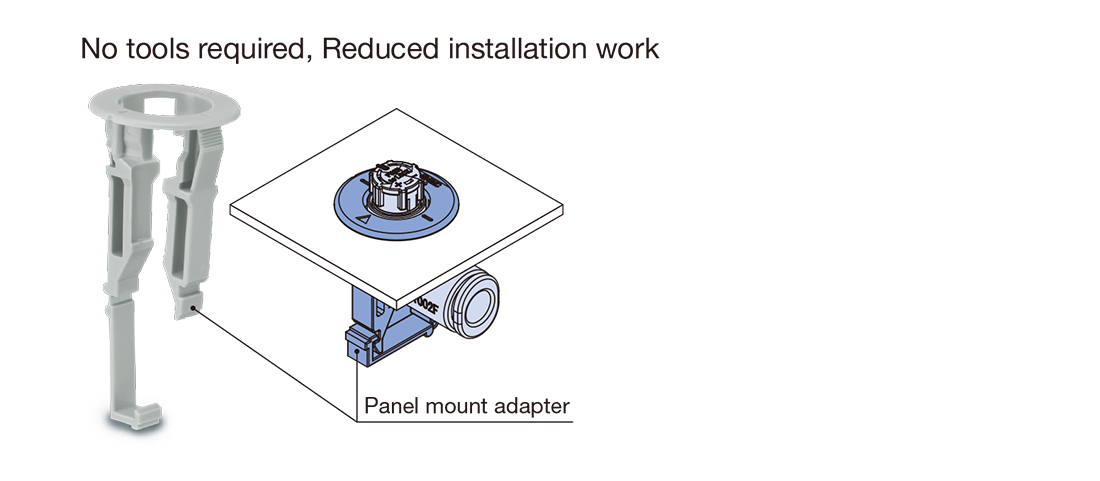

A type with a panel mount adapter has been added. New
Series Variations

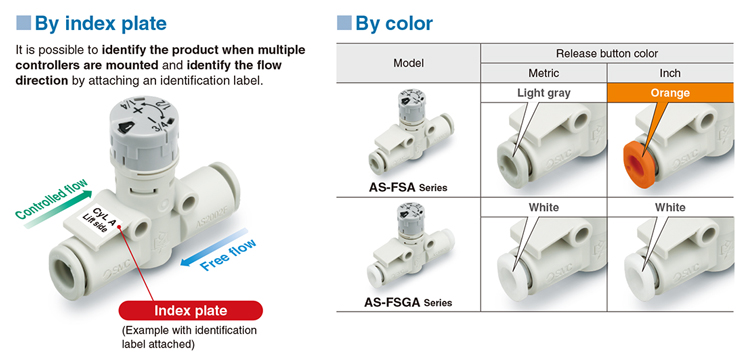

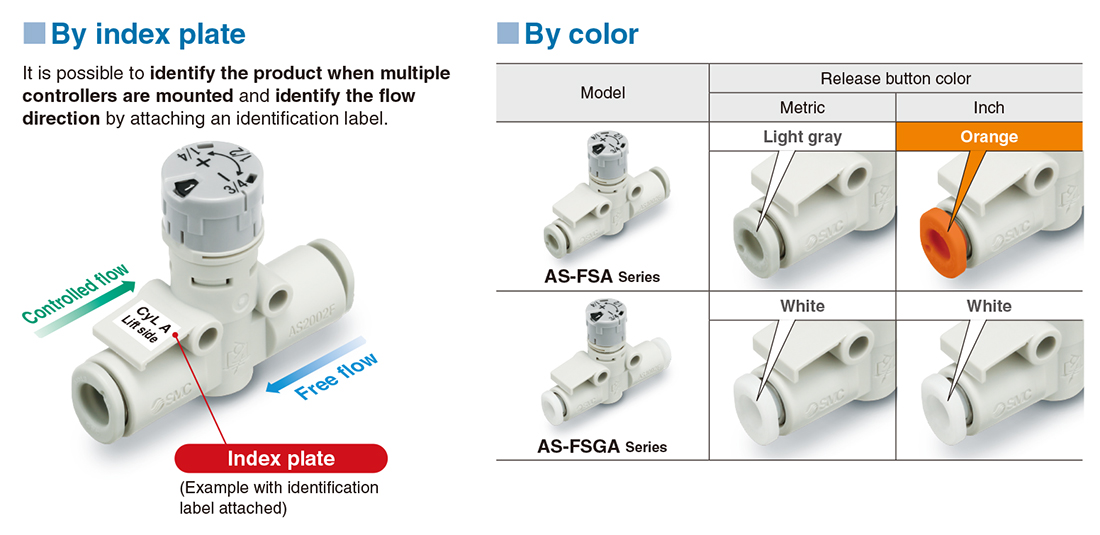

Easy Identification of Product Type
