Controllers

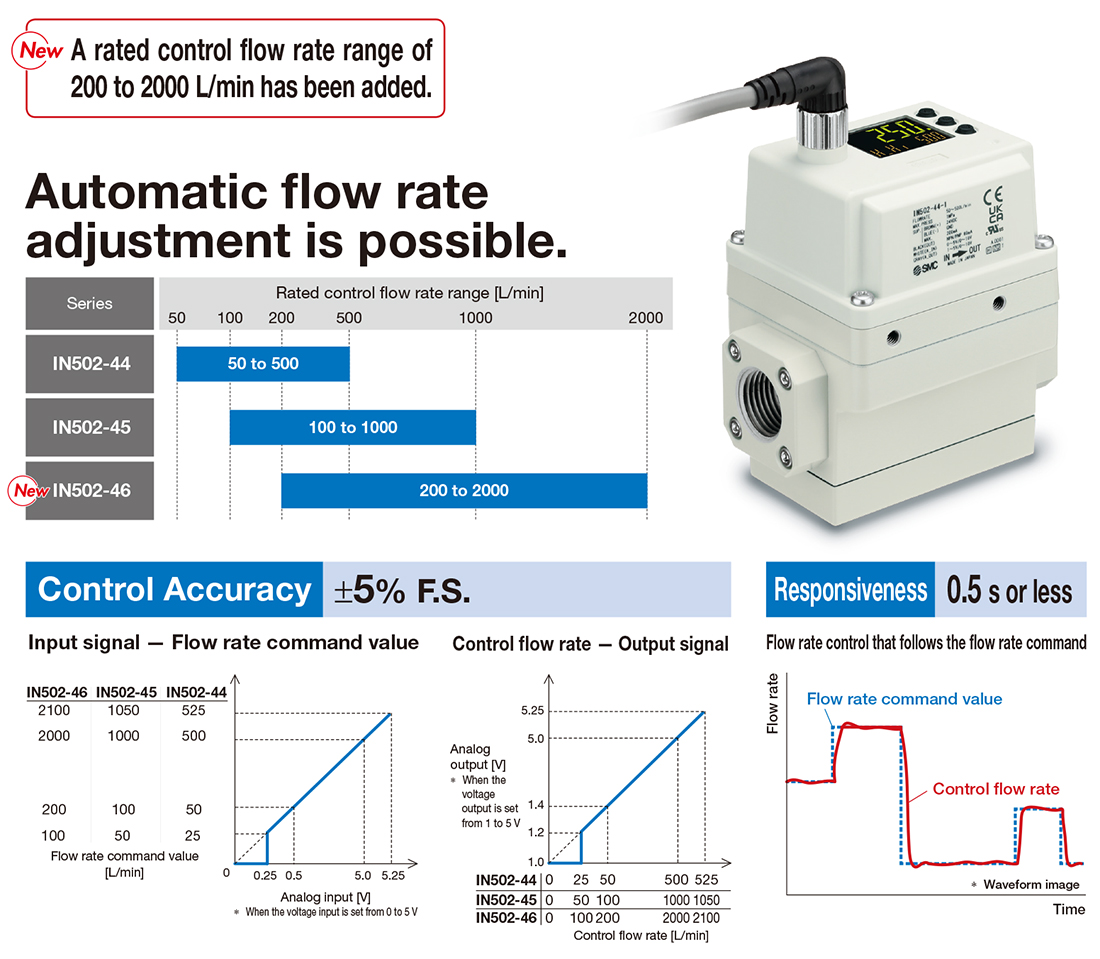

Air Flow Controller IN502-44/45/46
-
?A rated control flow rate range of 200 to 2000 L/min has been added.New
?Automatic flow rate adjustment is possible.
?Dry air, N?
?Control accuracy: ±5% F.S.
?Responsiveness: 0.5 s or less
?Space saving/Reduced piping, wiring, and installation labor

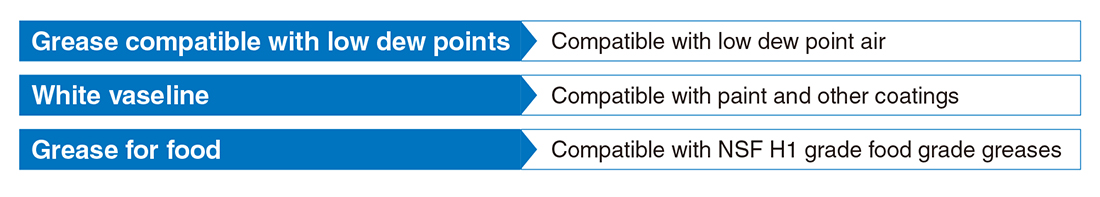

?Various types of grease can be selected.
Grease compatible with low dew points, White vaseline, Grease for food
?IO-Link compatible
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Air Flow Controller IN502-44/45/46
Manual
Series View search result IN502-44/45/46 View search result Air Flow Controller IN502-44/45/46
DoC
Series View search result IN502-44/45/46 View search result
| Series | Rated control flow rate range (L/min) | Set control flow rate range (L/min) |
|---|---|---|
| IN502-44/45/46 | 50 to 500 100 to 1000 200 to 000 | 25 to 525 50 to 1050 100 to 2100 |
Features
Automatic flow rate adjustment is possible.

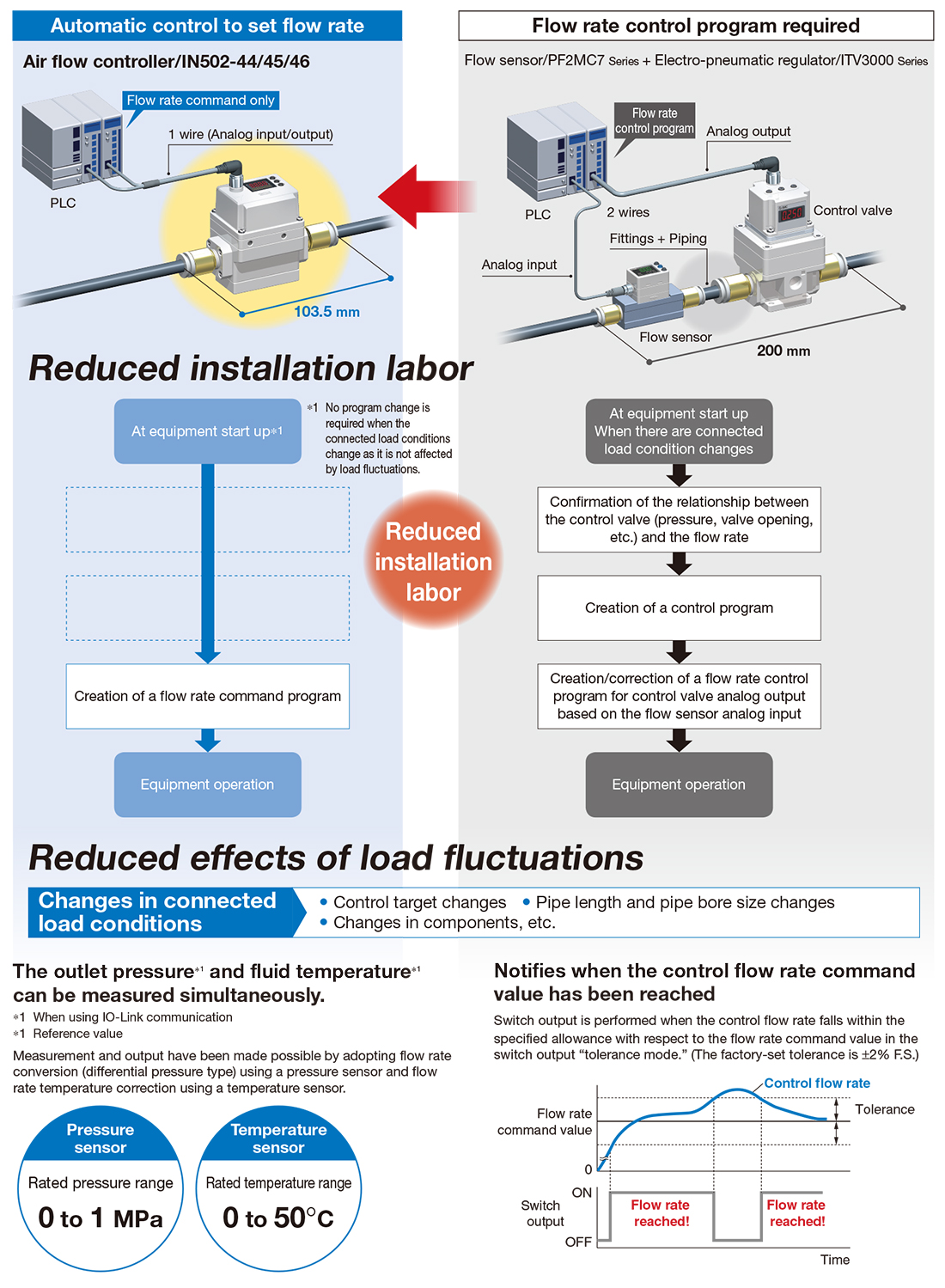

Space saving/Reduced piping, wiring, and installation labor
Various types of grease can be selected.

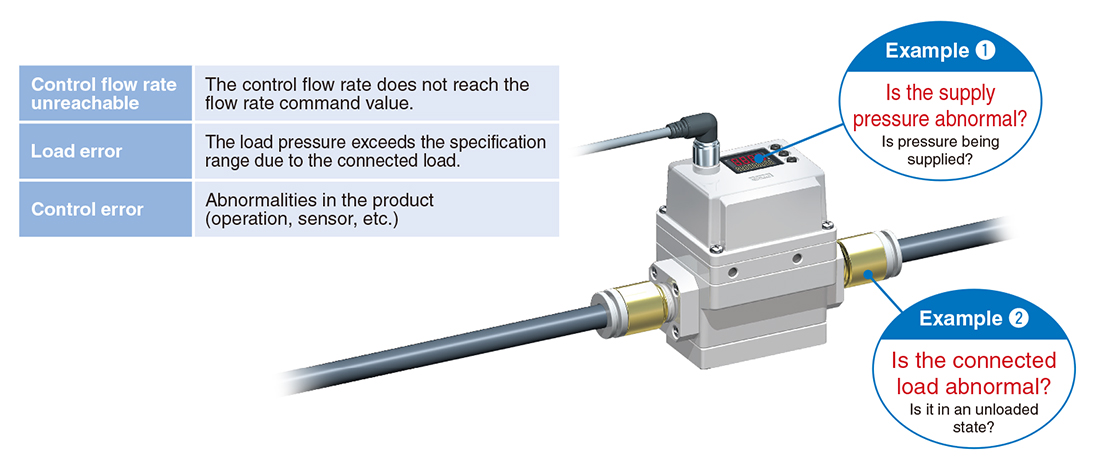

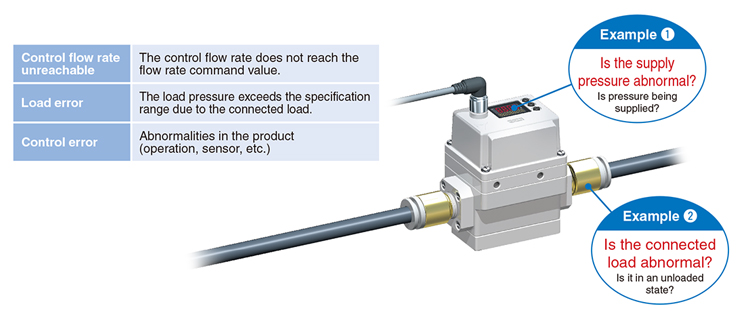

Various control diagnostics

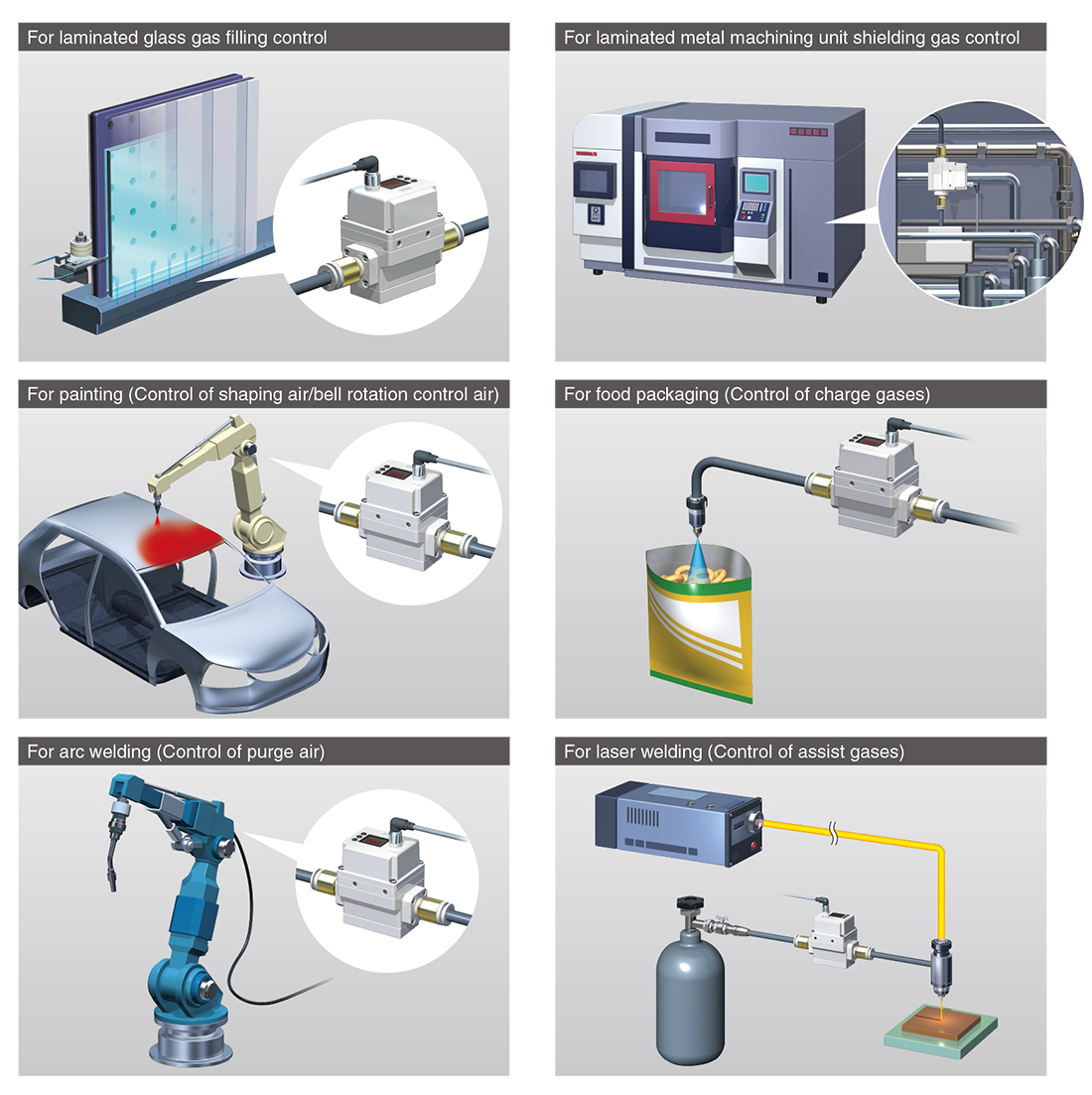

Applications

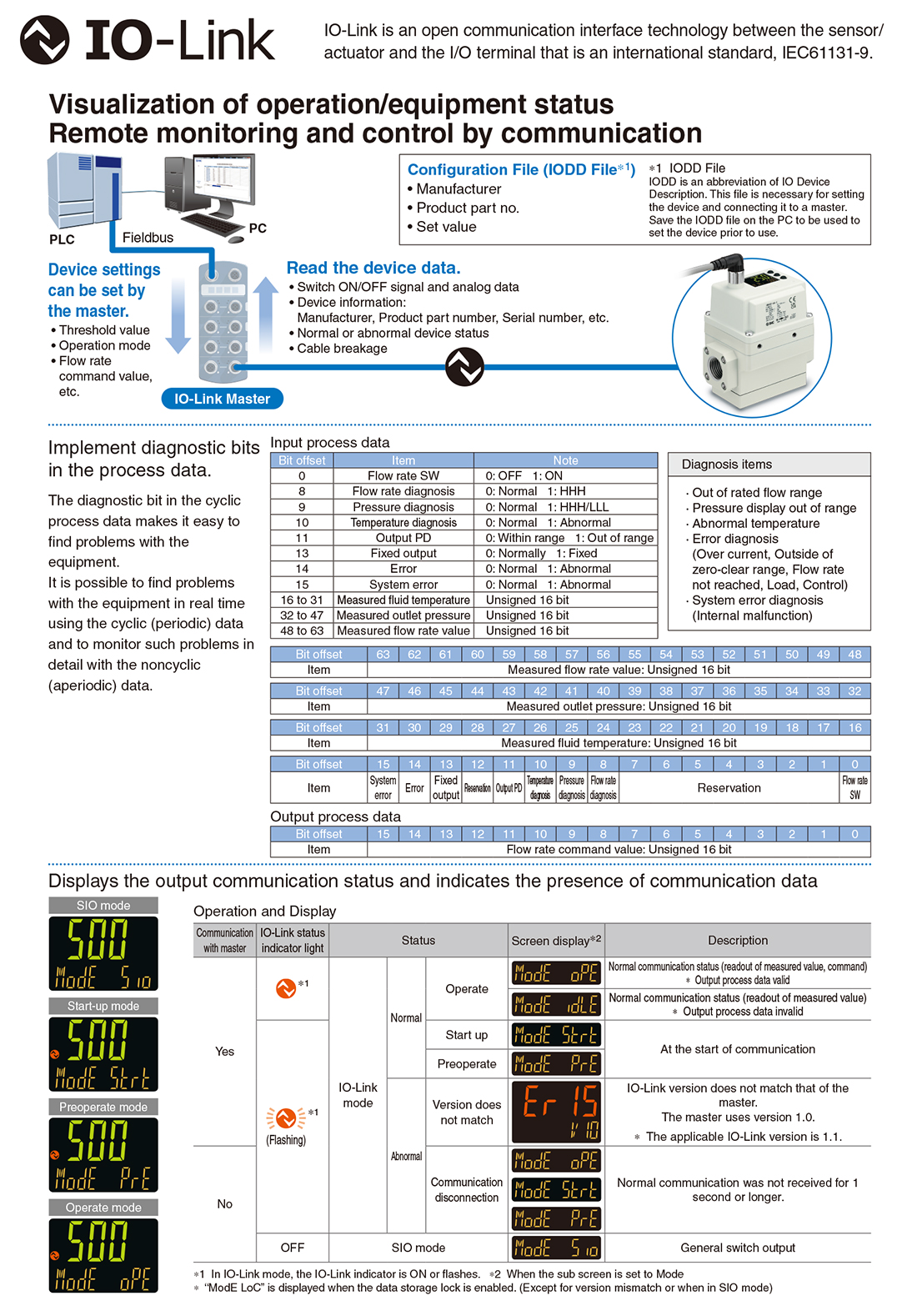

IO-Link compatible
Visualization of operation/equipment status Remote monitoring and control by communication

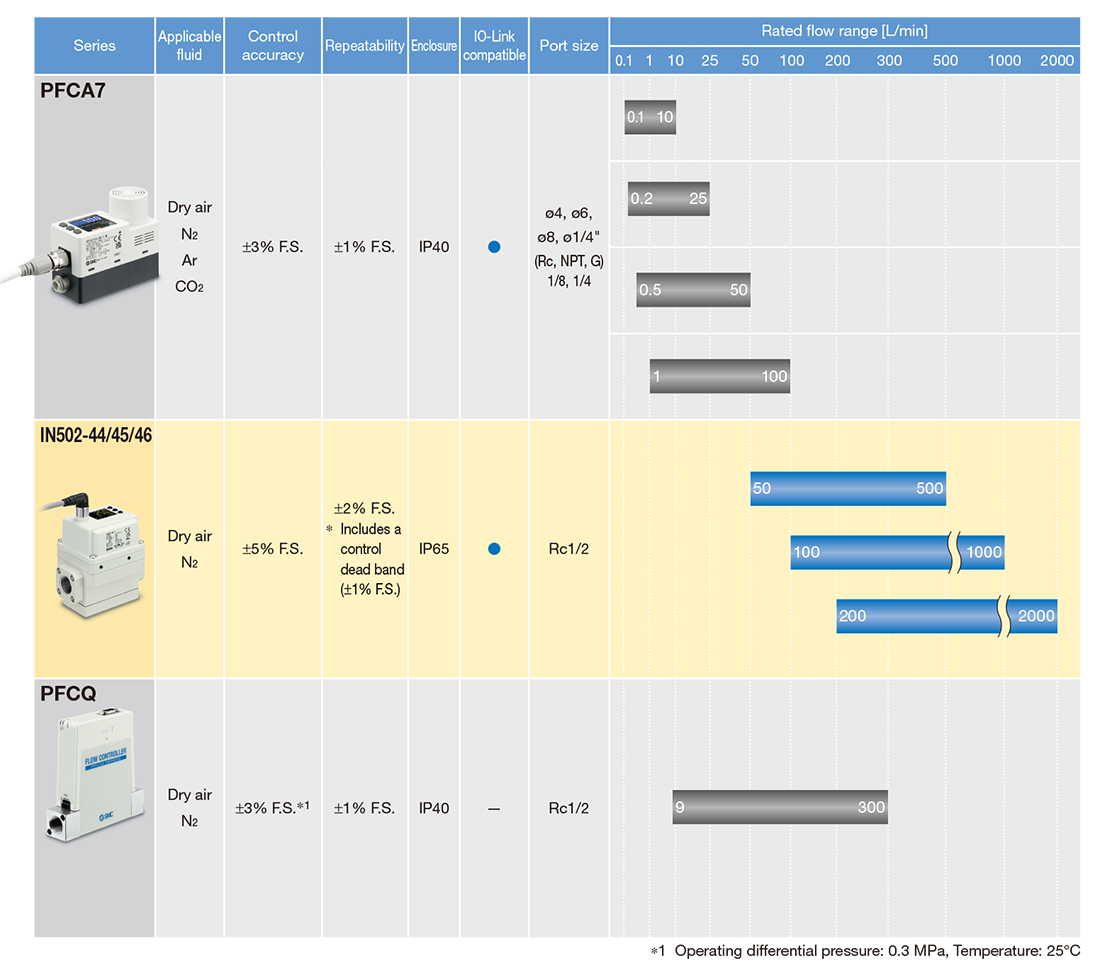

Flow Controller Flow Rate Variations
