WEB Catalog

Product Information ?  WEB Catalog  ? Modular F.R.L. Units  ? Regulators

Regulators

Regulator with Backflow Function AR□K-D

    ?The regulator with backflow function incorporates a mechanism that exhausts the air pressure in the outlet side quickly.
    ?Easy to handle
    　Easy to hold when unlocked

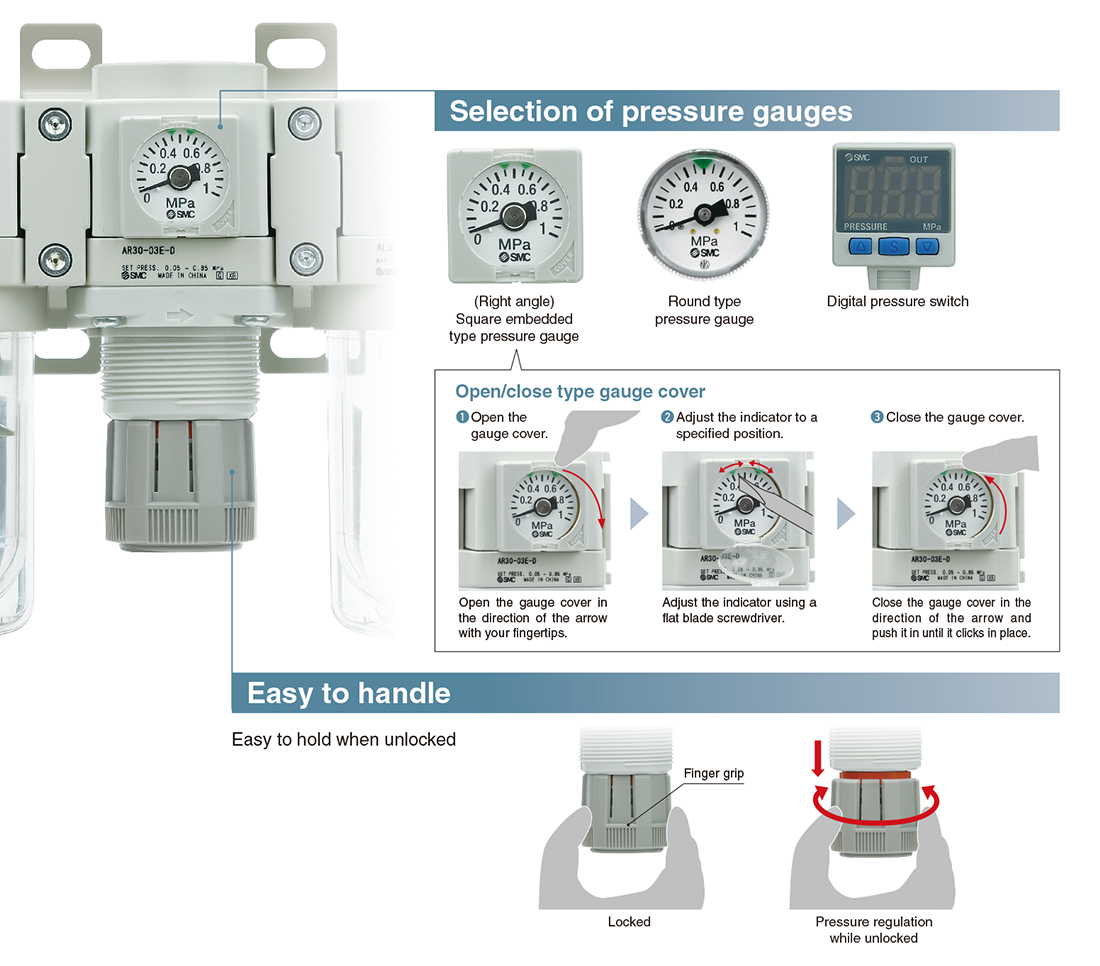

    ?Selection of pressure gauges
    　Square embedded type pressure gauge, Round type pressure gauge,
    　Digital pressure switch
    ?Interchangeability is maintained.
    　The mounting pitch for panel mounting is interchangeable with the AR(K)-B.
    　The brackets and set nuts are the same for both existing and new products.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Regulator with Backflow Function AR□K-D
    Manual
    Series View search result
    AR20K to 60K-DView search result
SeriesPort sizeSet pressure (MPa)
AR20K to 60K-D1/8，1/4，3/8，1/2，3/4，10.05 to 0.85
0.02 to 0.2

Features

Modular Design with Uniform Body Style

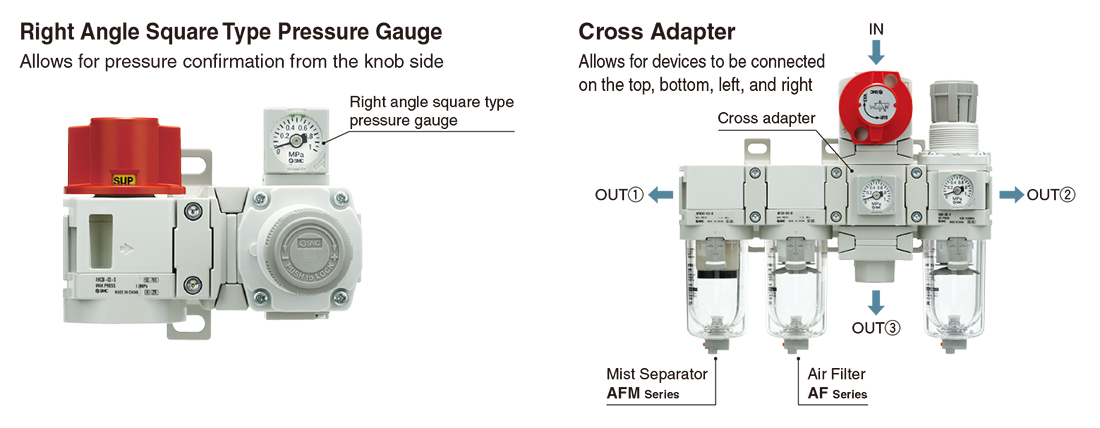

A right angle square type pressure gauge and a cross adapter attachment have been added. New

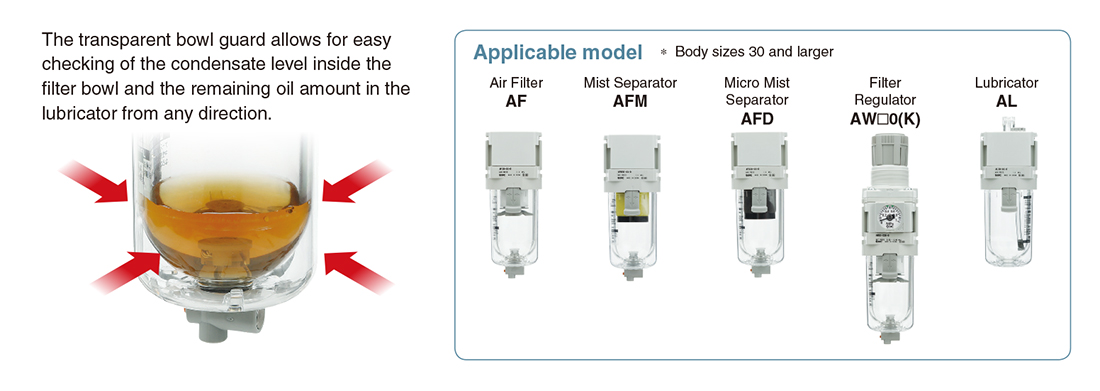

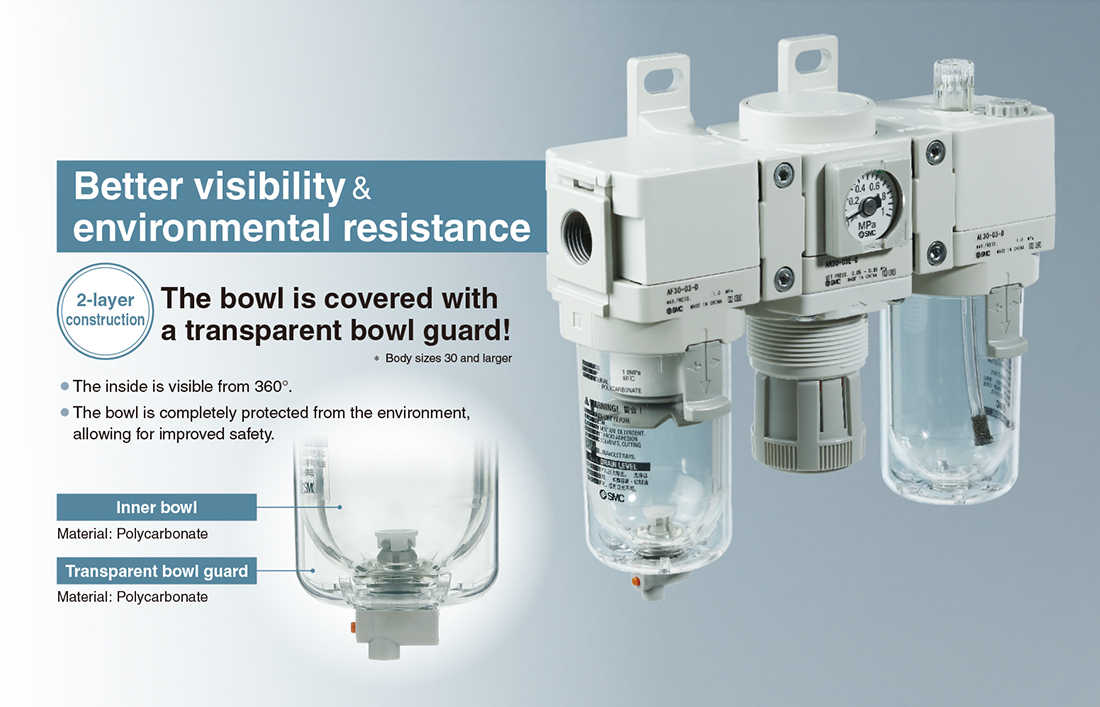

Transparent bowl guard

Better environmental resistance: The transparent bowl guard protects the inner bowl!



Better visibility: 360°

  • No tools are required.

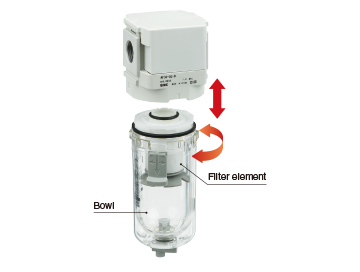

    Easier replacement of the element
    * AF20-D to AF40-D only

Selection of pressure gauges, Easy to handle

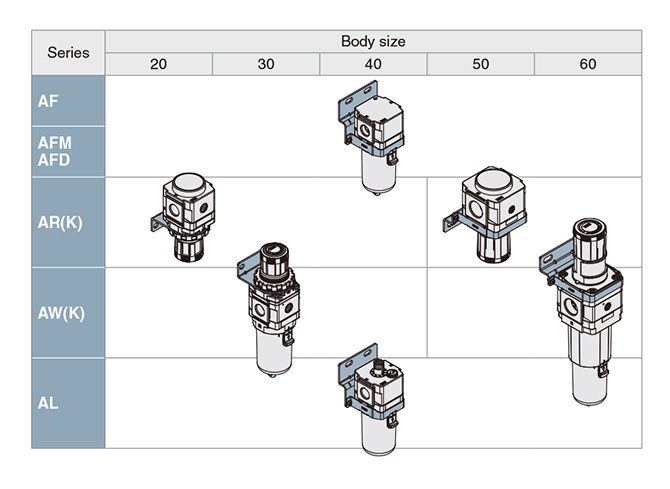

Mounting (Single unit)

?The mounting pitch for panel mounting is interchangeable between the AR20(K)-D to AR40(K)-06-D and the AR(K)-B series and between the AW20(K)-D to AW40(K)-06-D and the AW(K)-B series.
The brackets and set nuts are the same for both existing and new products.

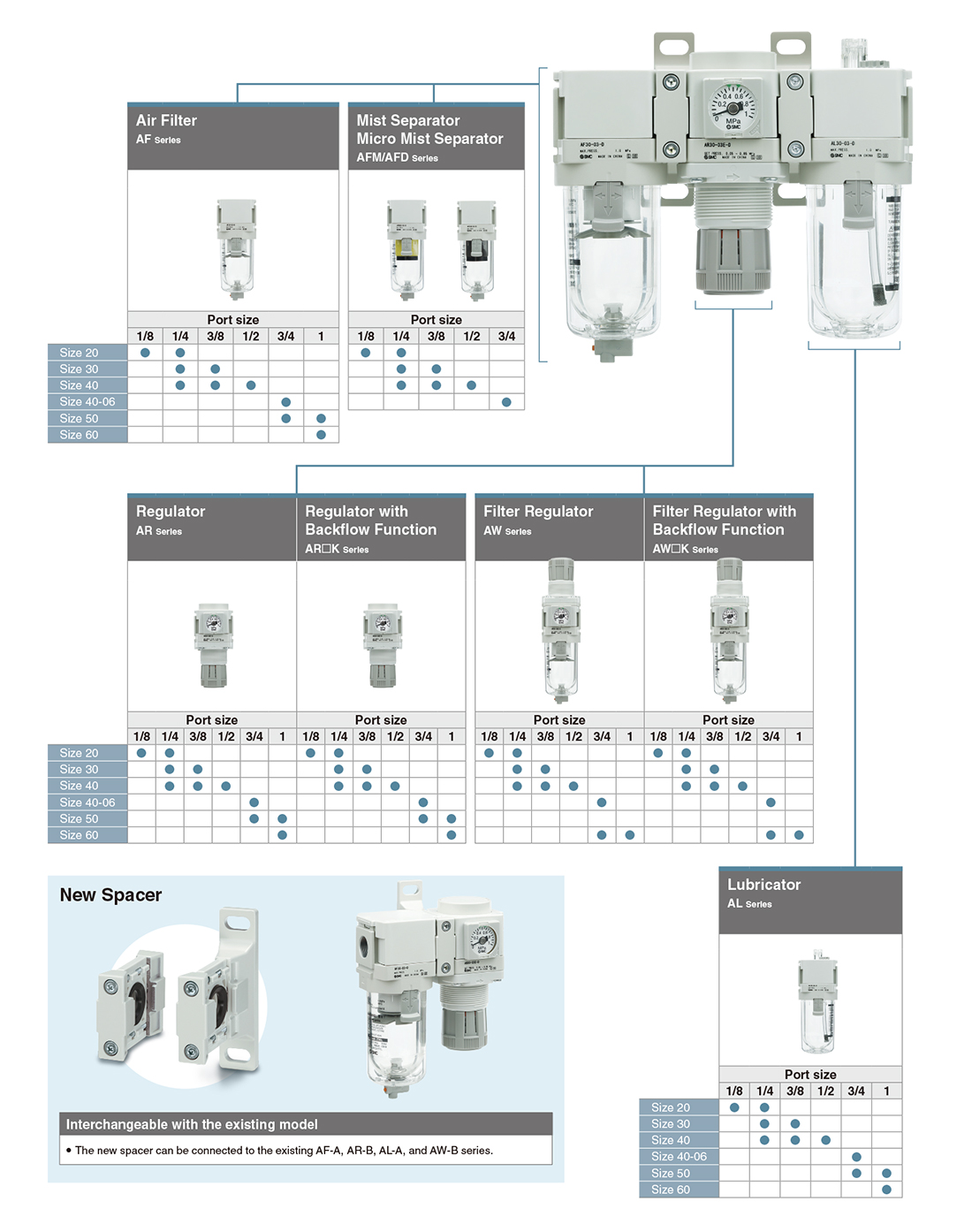

Series Configuration

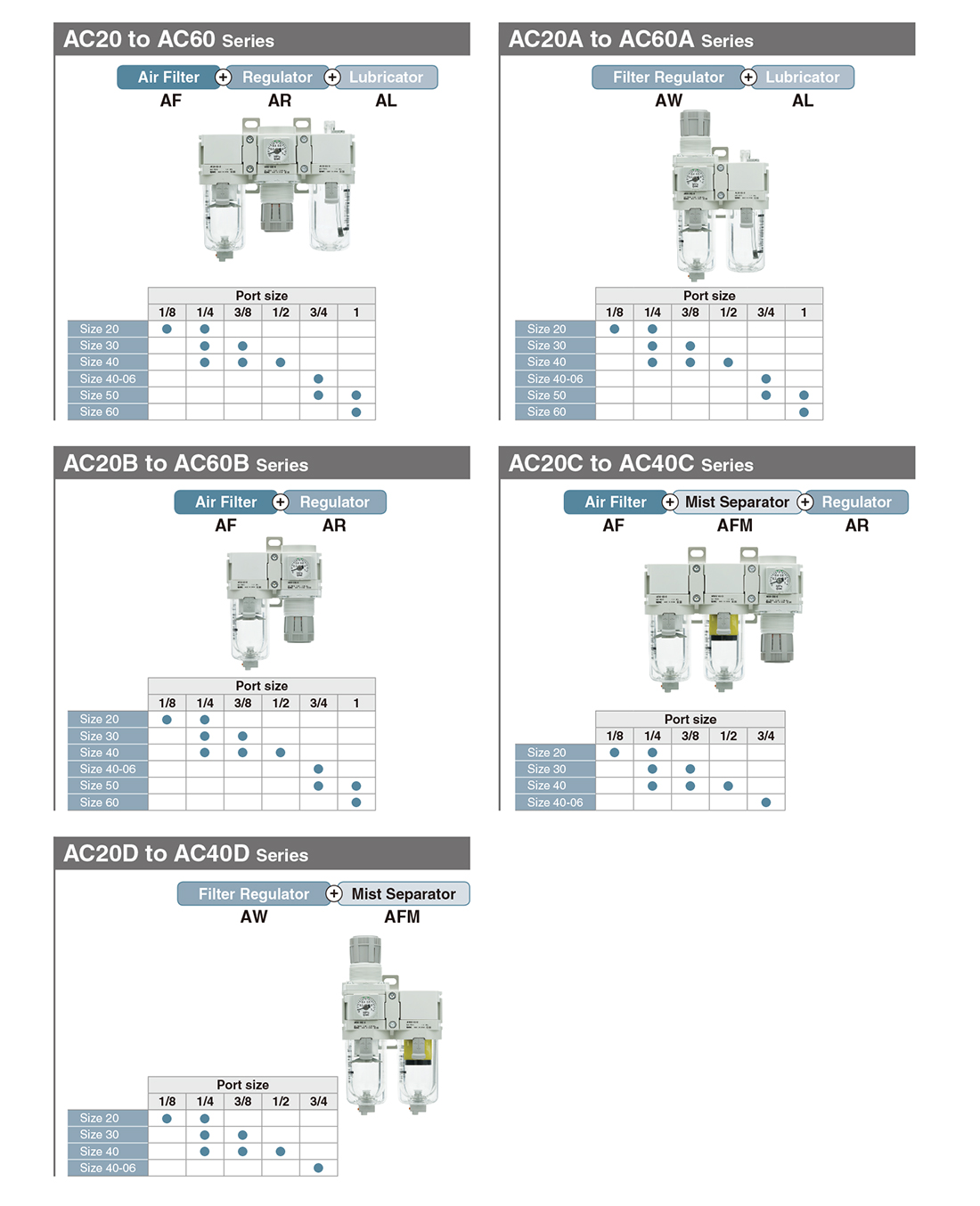

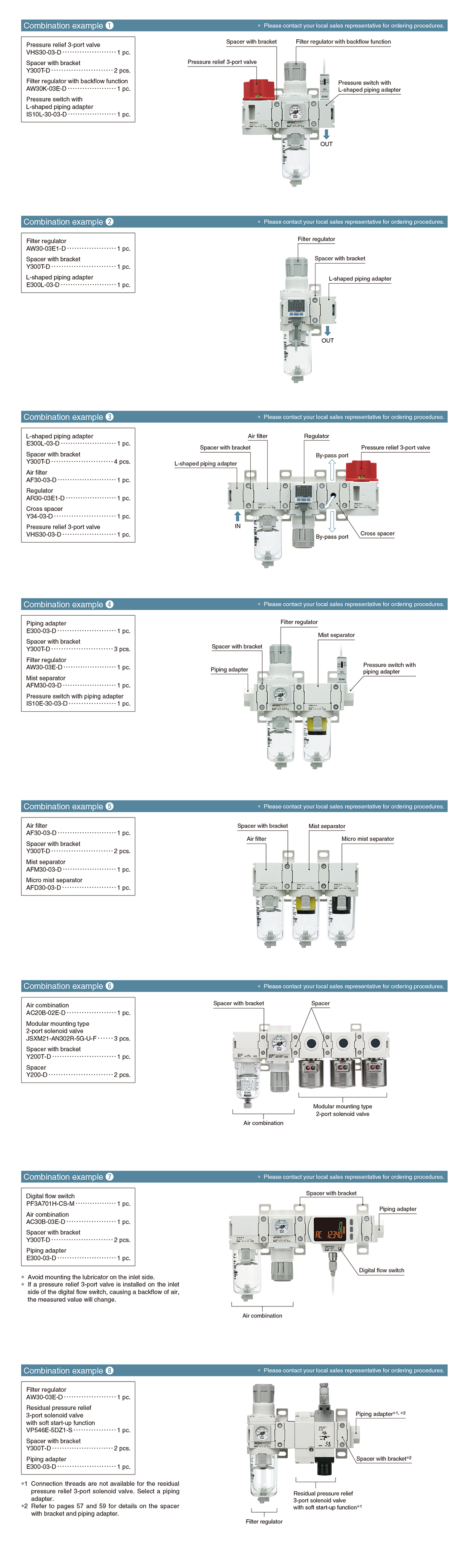

Table of Modular F.R.L. Unit Combinations for AC Assembly

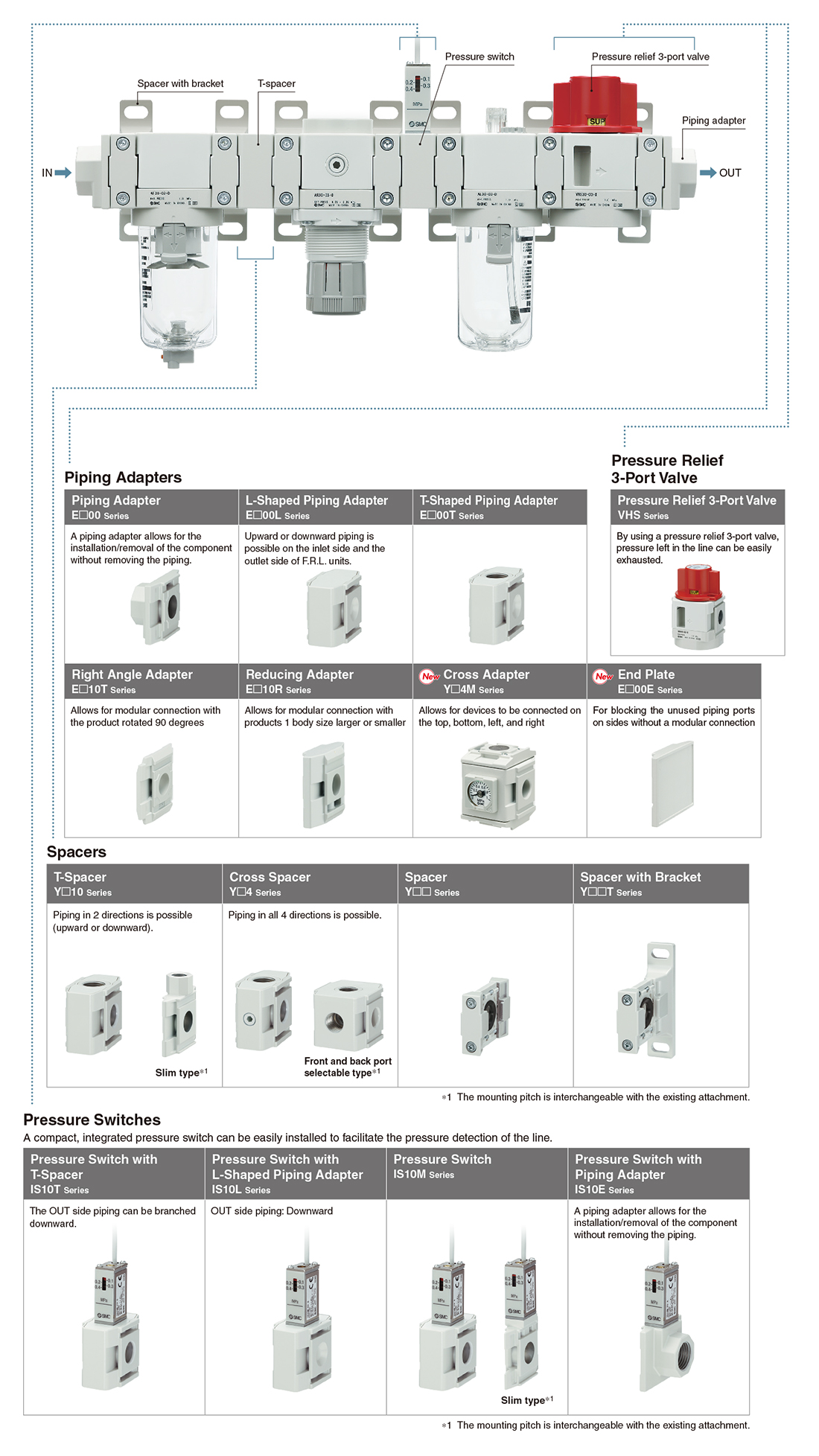

Attachment List

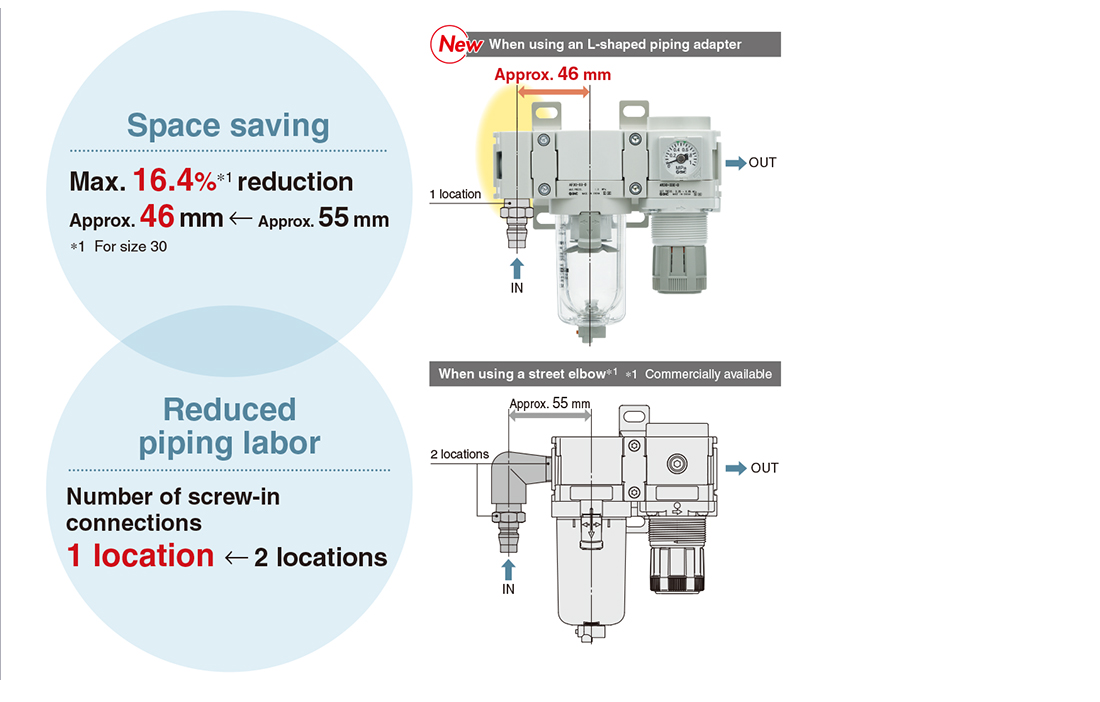

Space saving/Reduced piping labor

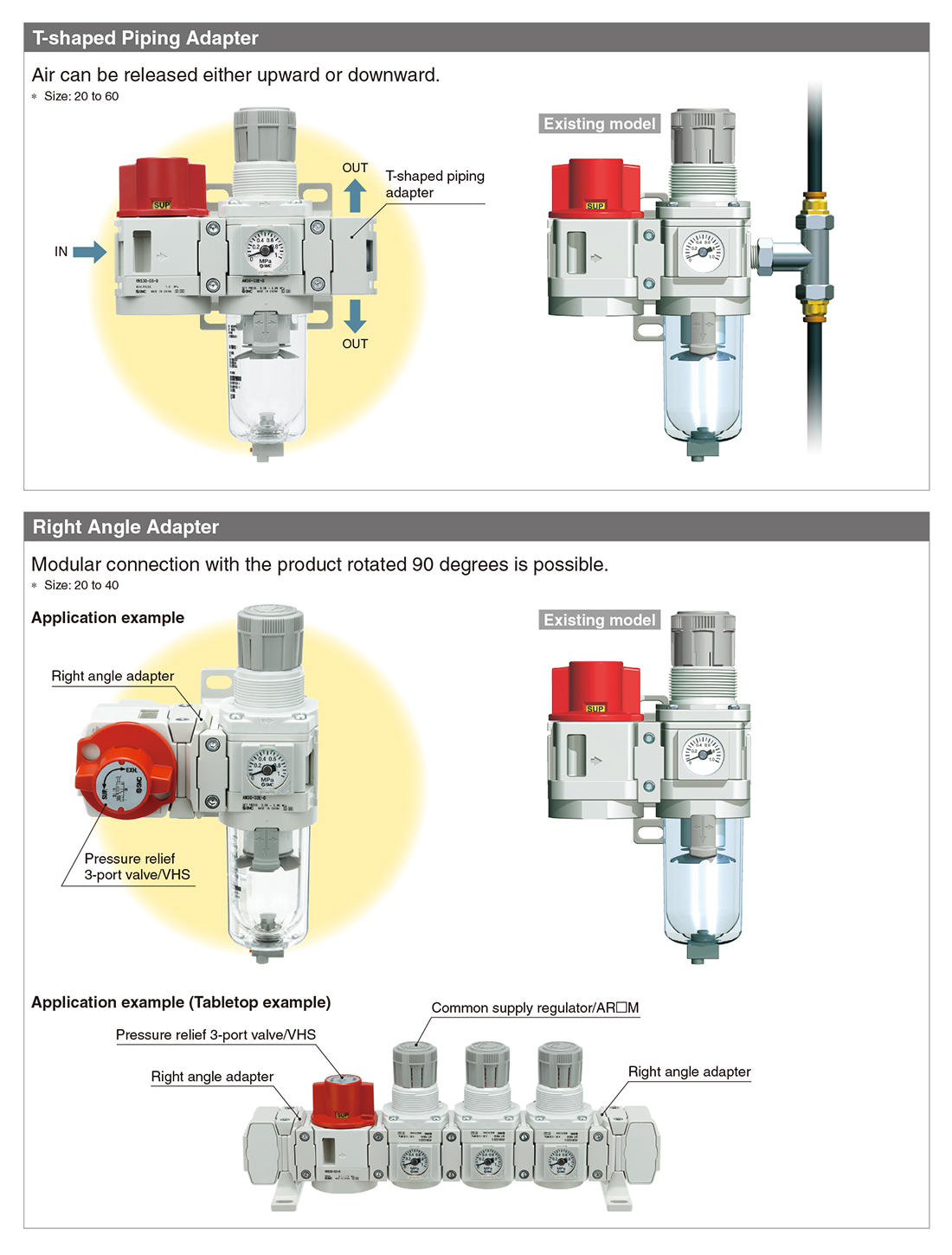

Improved piping design flexibility

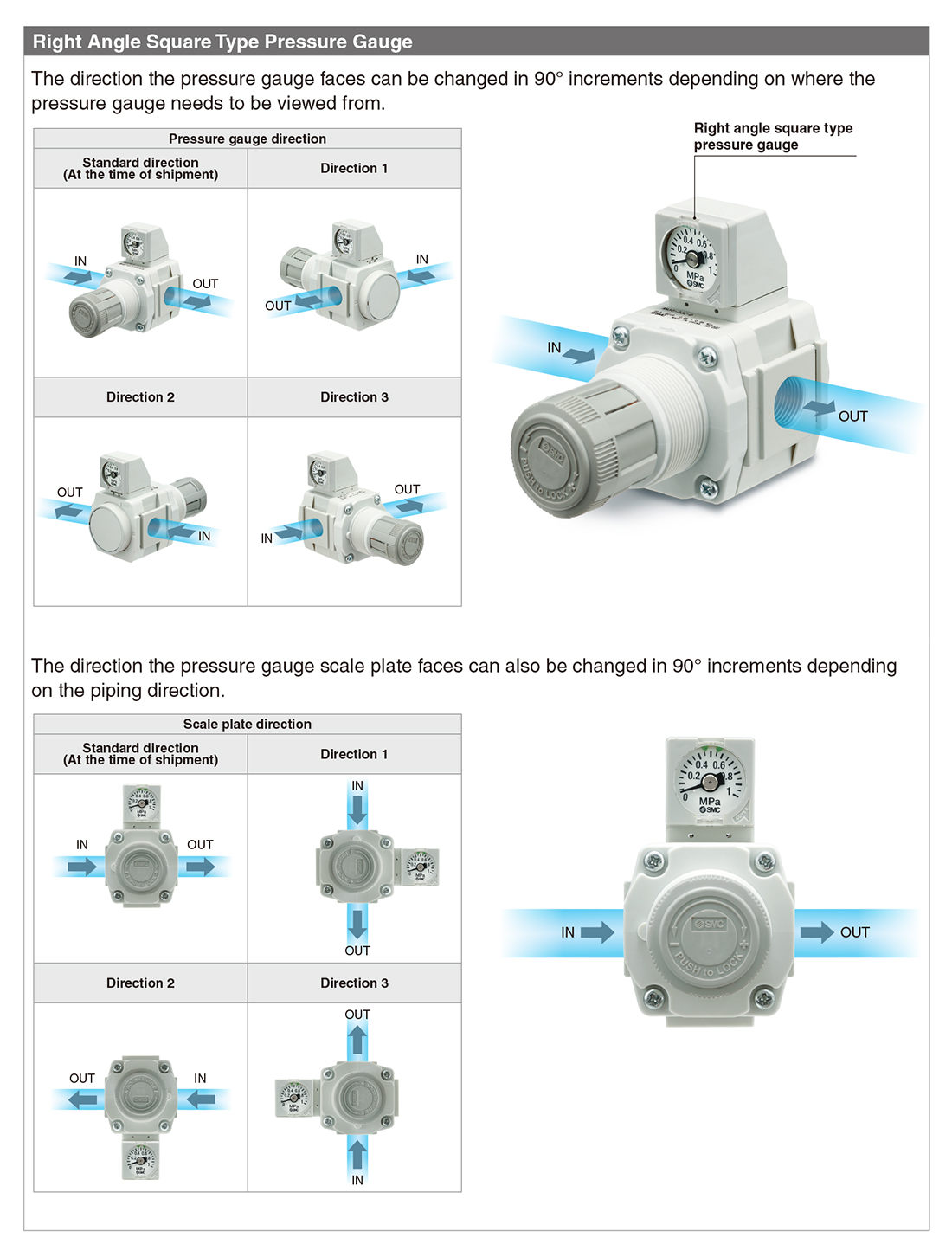

The direction the pressure gauge faces can be changed freely.

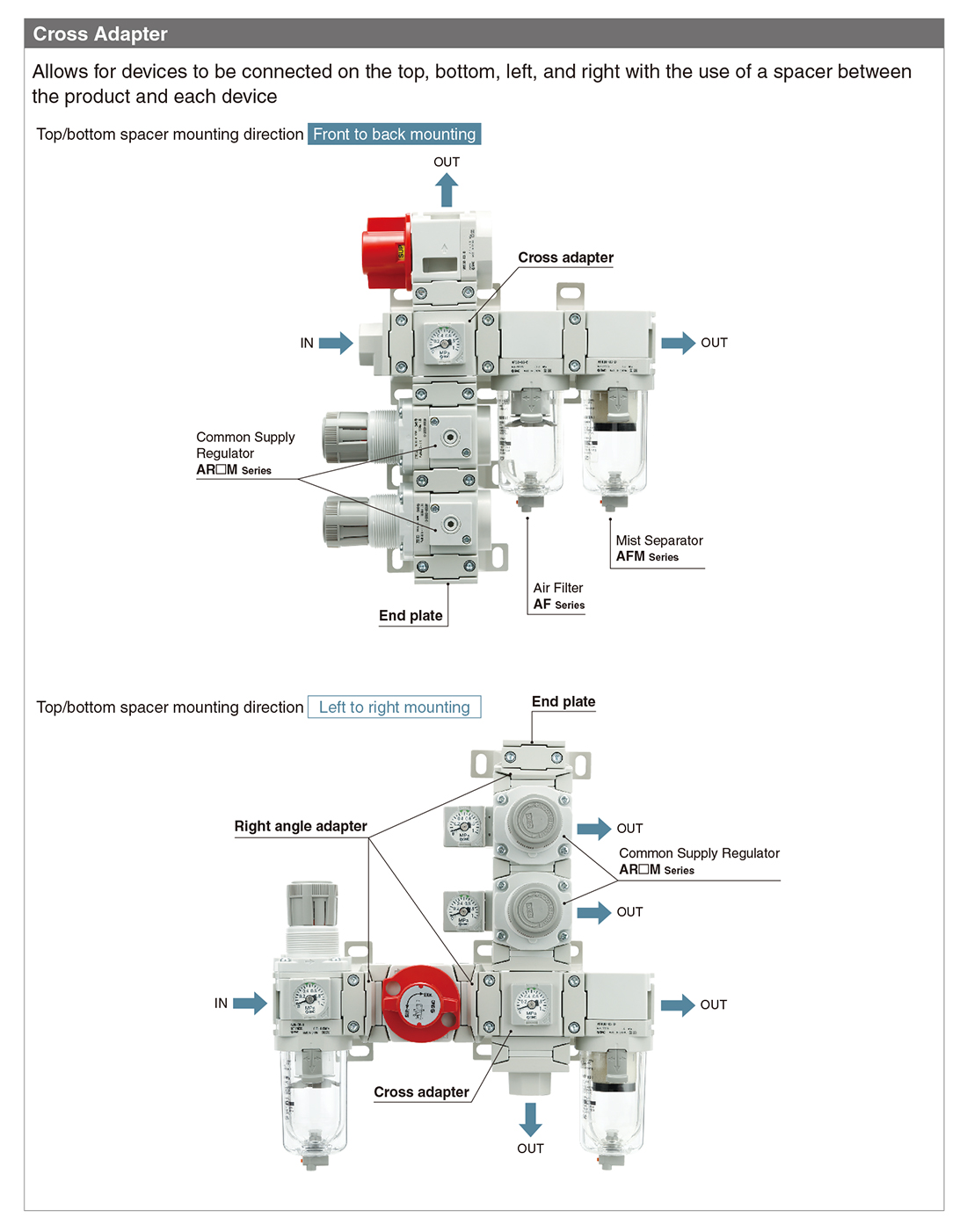

Improved piping design flexibility

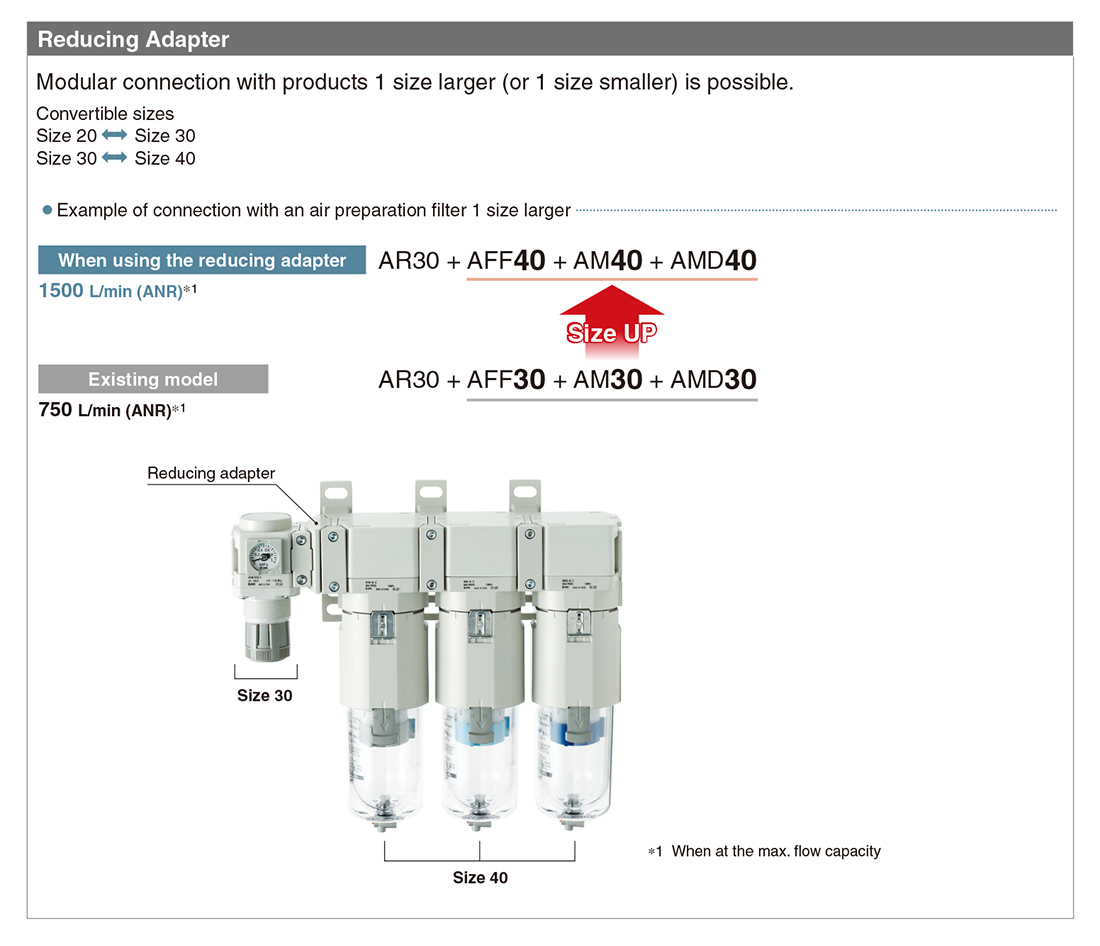

Size conversion is possible

?Flow capacity UP
?Extended maintenance cycle

Simple Specials System

A system designed to respond quickly and easily to your special ordering needs

Please contact your local sales representative for more details.

Examples of Simple Specials



Common Supply Regulator AR□M(K)-D Residual Pressure Relief 3-Port Solenoid Valve VP546E/746E Mist Separator Regulator AWM-D Micro Mist Separator Regulator AWD-D 3-Port Solenoid Valve/Residual Pressure Release Valve with Detection of Main Valve Position VP546/746 Compressed Air Preparation Filter Line Filter AFF Mist Separator AM Micro Mist Separator AMD Activated Carbon Filter AMK Direct Operated/Pilot Operated 2-Port Solenoid Valve JSX/JSX□ OSHA Standard Compliant Pressure Relief 3-Port Valve with Locking Holes VHS□-D/VHS□W-D 3-Color Display Digital Flow Switch PF3A7/8□H（-L） 5-Port Solenoid Valve SY3000/5000-X990
