Related Equipment

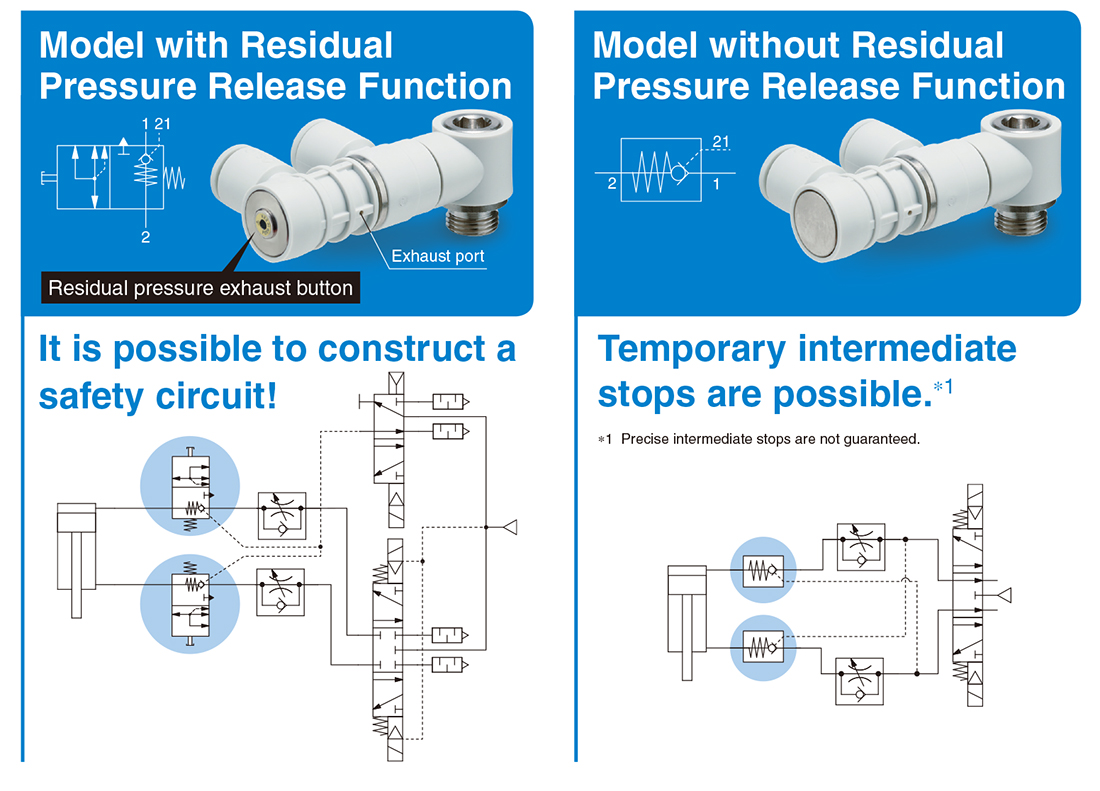

[Model with Residual Pressure Release Function] Pilot Check Valve/Compact Type AKP

    ?Model with residual pressure release function
    　It is possible to construct a safety circuit!
    ?Model without residual pressure release function
    　Temporary intermediate stops are possible.*
    　* Precise intermediate stops are not guaranteed.
    ?Vertical and horizontal types are available, which can be selected
    　depending on the installation conditions.
    ?Improved piping design flexibility (360°-rotation type)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • [Model with Residual Pressure Release Function] Pilot Check Valve/Compact Type AKP
    Manual
    Type Series View search result
    Model with
    residual pressure release function
    Pilot check valve
    Horizontal type    		AKP-□B□EView search result
    Model with
    residual pressure release function
    Pilot check valve
    Vertical type    		AKP-□A□EView search result
    Model without
    residual pressure release function
    Pilot check valve
    Horizontal type    		AKP-□B□View search result
    Model without
    residual pressure release function
    Pilot check valve
    Vertical type    		AKP-□A□View search result

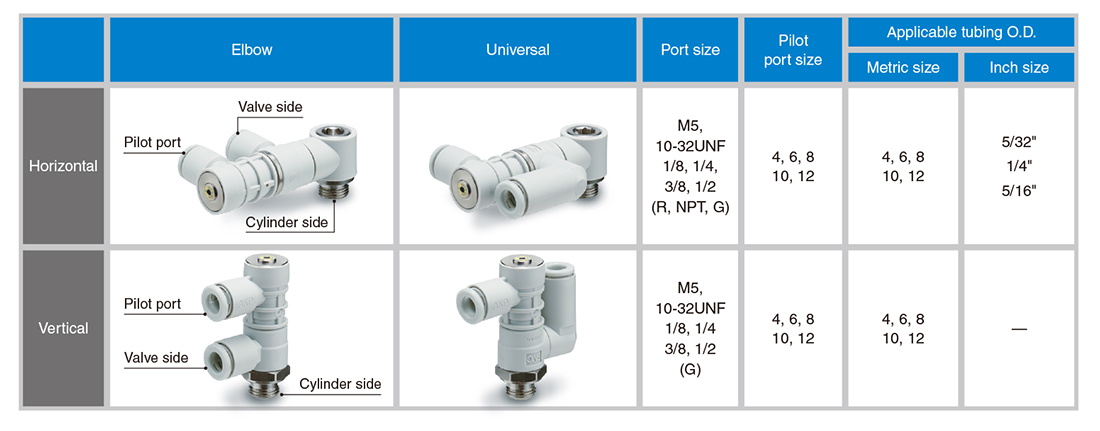

TypeSeriesPort size on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Model with
residual pressure release function
Pilot check valve
Horizontal type		AKP-□B□EM5×0.8, 10-32UNF
1/8, 1/4, 3/8, 1/2
（R, NPT, G）		φ4, φ6, φ8, φ10, φ12φ5/32",φ1/4",φ5/16"
Model with
residual pressure release function
Pilot check valve
Vertical type		AKP-□A□EM5×0.8, 10-32UNF
1/8, 1/4, 3/8, 1/2
（G）		φ4, φ6, φ8, φ10, φ12-
Model without
residual pressure release function
Pilot check valve
Horizontal type		AKP-□B□M5×0.8, 10-32UNF
1/8, 1/4, 3/8, 1/2
（R, NPT, G）		φ4, φ6, φ8, φ10, φ12φ5/32",φ1/4",φ5/16"
Model without
residual pressure release function
Pilot check valve
Vertical type		AKP-□A□M5×0.8, 10-32UNF
1/8, 1/4, 3/8, 1/2
（G）		φ4, φ6, φ8, φ10, φ12-

Features

Features

Variations

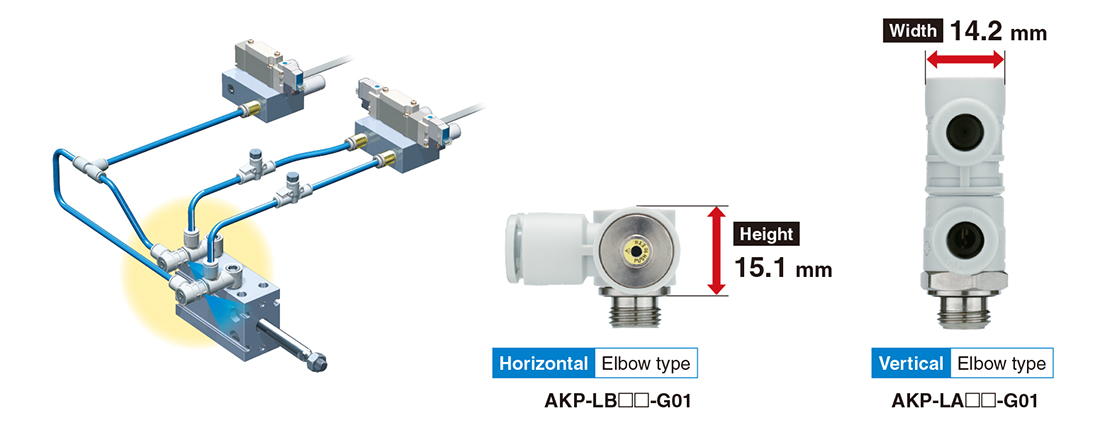

Vertical and horizontal types are available, which can be selected depending on the installation conditions.

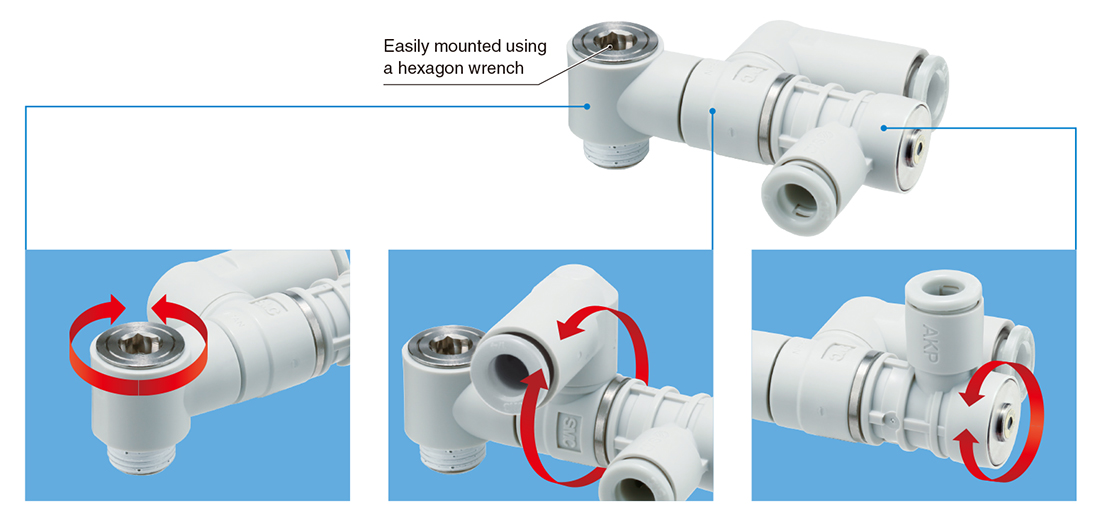

Improved piping design flexibility (360°-rotation type)

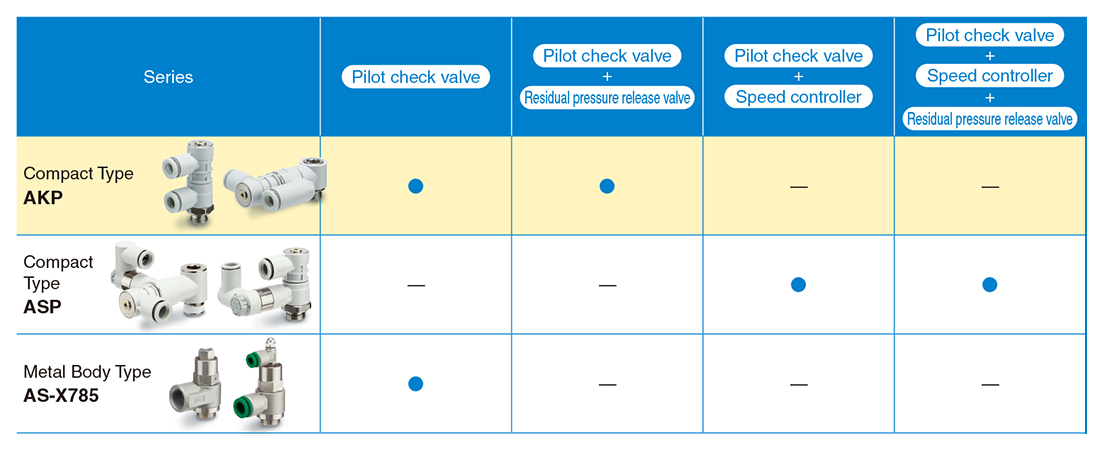

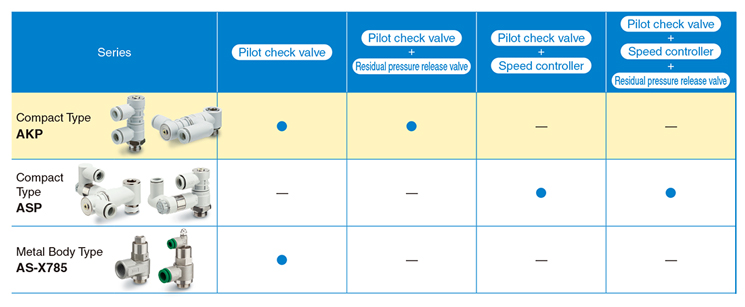

Pilot Check Valve Variations by Function
