Product Information ?  WEB Catalog  ? Temperature Control Equipment  ? Thermo-cons/Thermoelectric Baths (Peltier-Type Temperature Control Equipment)

Thermo-cons/Thermoelectric Baths (Peltier-Type Temperature Control Equipment)

Peltier-Type Thermo-con/Compact Type HEF

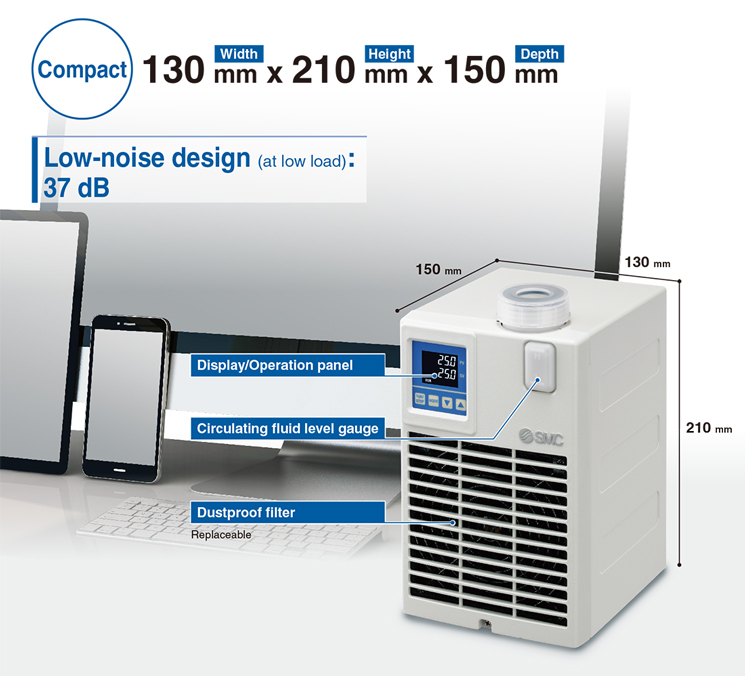

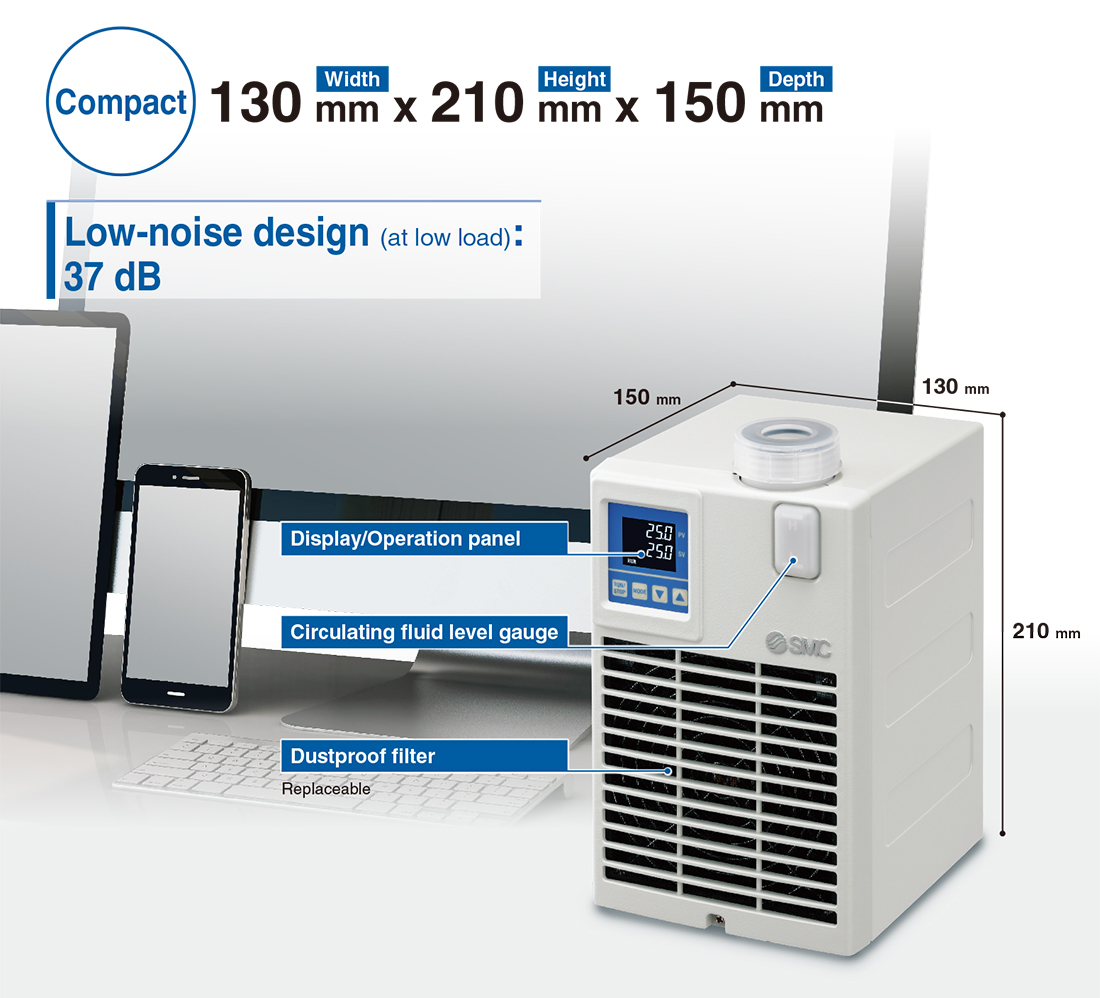

    ?Compact: 130 mm (Width) x 210 mm (Height) x 150 mm (Depth)
    ?Low-noise design (at low load): 37 dB
    ?Cooling capacity: 220 W
    ?Temperature stability: ±0.1°C
    ?Set temperature range: 10°C to 60°C
    ?Superior temperature control
    　Now only takes about 41 seconds to lower the temperature by 10°C
    　86% reduction (41 s ← 294 s) ? Compared with the existing product
    　HECR002
    　? Time to change the circulating fluid temperature from 30°C to 20°C
    　(when the circulating fluid IN and OUT are directly connected)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Peltier-Type Thermo-con/Compact Type HEF
    Manual
    Series Cooling capacity View search result
    HEF220 WView search result
  • Peltier-Type Thermo-con/Compact Type HEF
    DoC
    Series Cooling capacity View search result
    HEF220 WView search result
SeriesSet temperature
range		Cooling capacityTemperature
stability		Cooling method
HEF10 to 60℃220 W±0.1℃Thermoelectric device
(Thermo-module)

Features

Can precisely control the temperature of a heat source or process fluid

Precisely control the temperature of the circulating fluid by using the Peltier device. Refrigerant-free and environmentally friendly

Cooling capacity: 220 W

Temperature stability: ±0.1°C

Set temperature range: 10°C to 60°C

Superior temperature control

Now only takes about 41 seconds to lower the temperature by 10°C 86% reduction (41 s ← 294 s) ? Compared with the existing product HECR002

? Time to change the circulating fluid temperature from 30°C to 20°C (when the circulating fluid IN and OUT are directly connected)

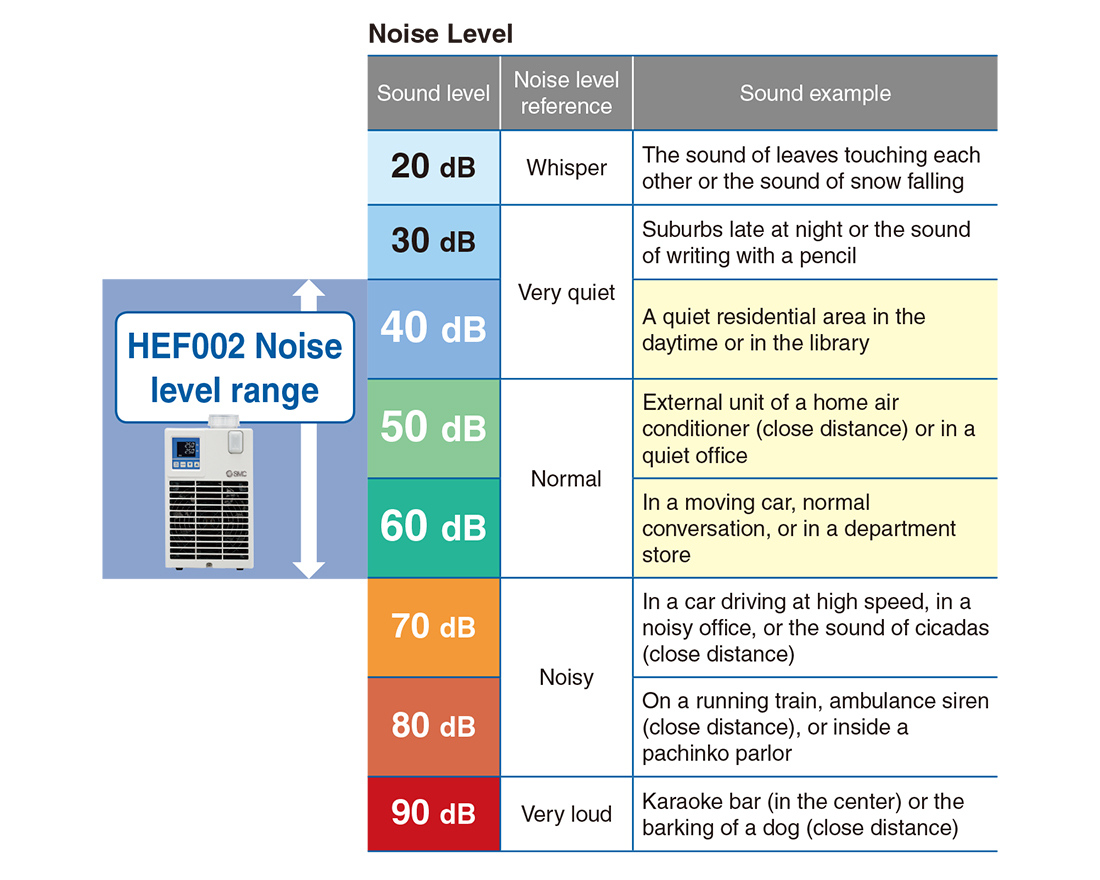

Low-noise design: 37 dB (at low load)

This product generates less vibration, dust, and noise due to its lack of moving parts, such as a compressor.
The noise is kept low by reducing the fan speed in low-load operation.
Customers can reduce the noise by setting the unit to constant fan speed mode when the noise at high load is concerned.
? Note that in constant fan speed mode, cooling performance is reduced.

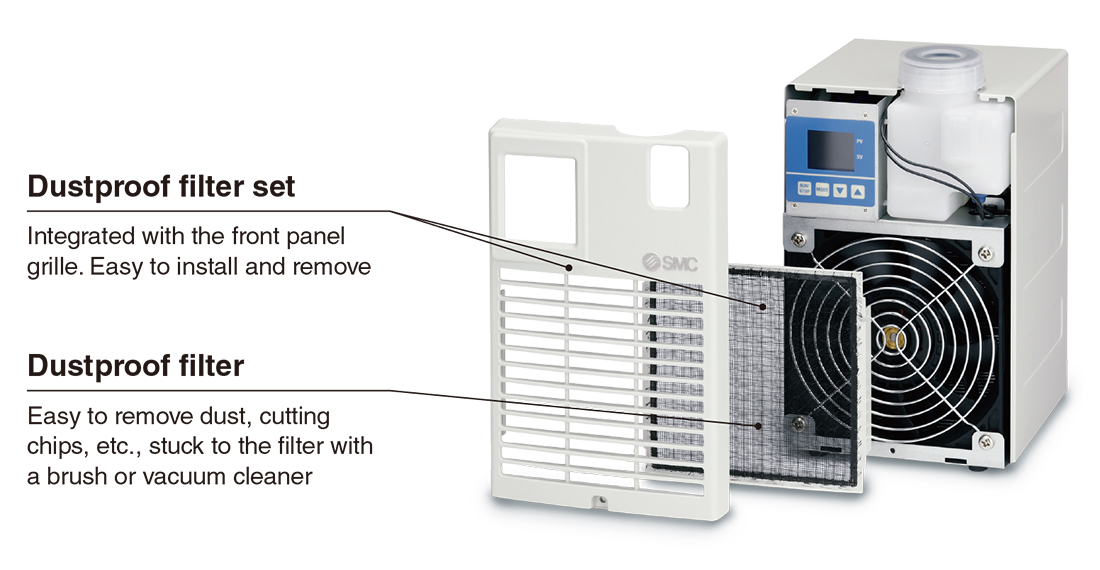

Easy maintenance

Easy to clean and replace the dustproof filter

Refrigerant-free

Fluid contact material: Stainless steel, Resin, Rubber (Aluminum and copper material-free)

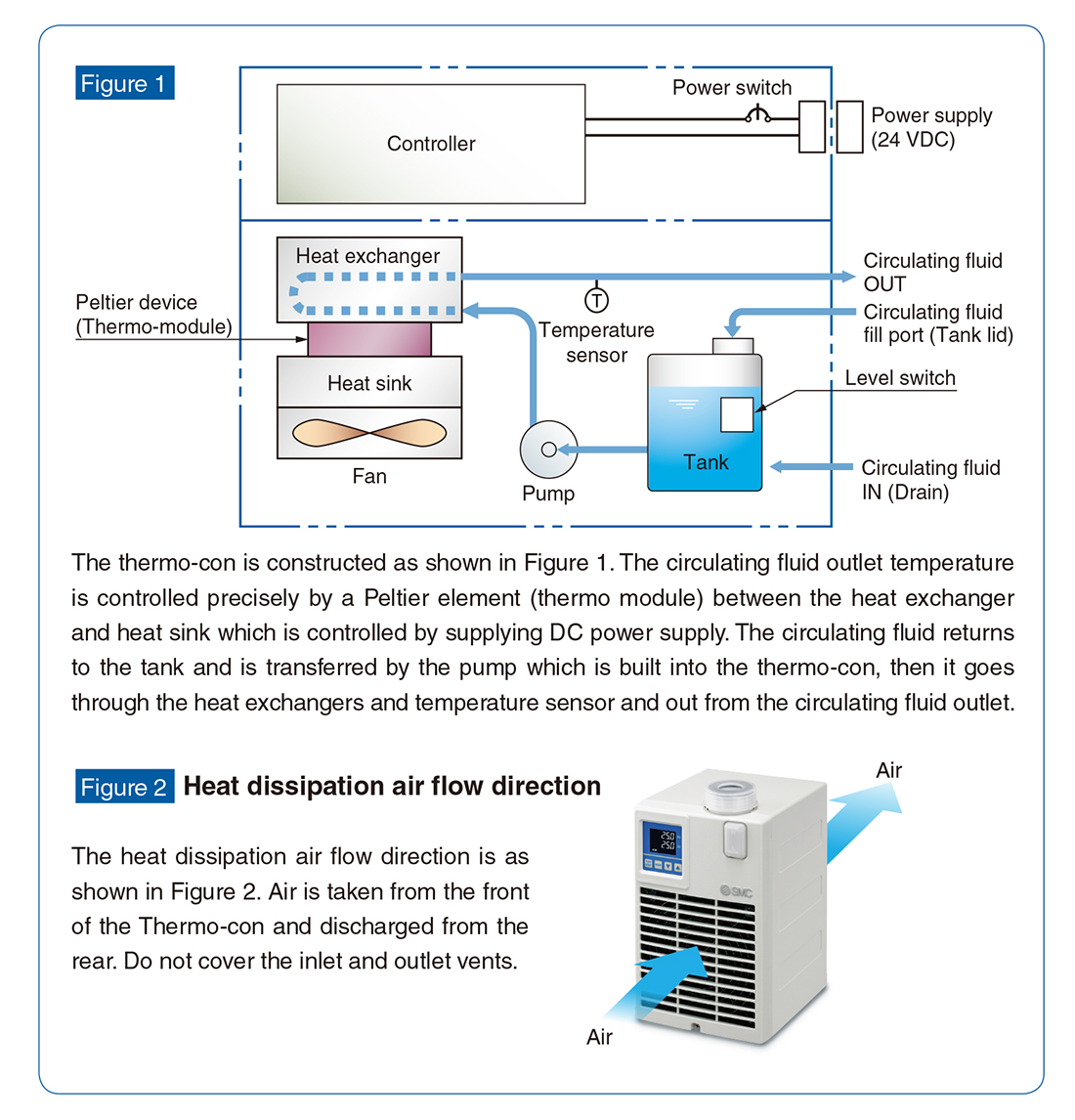

Construction and Principles

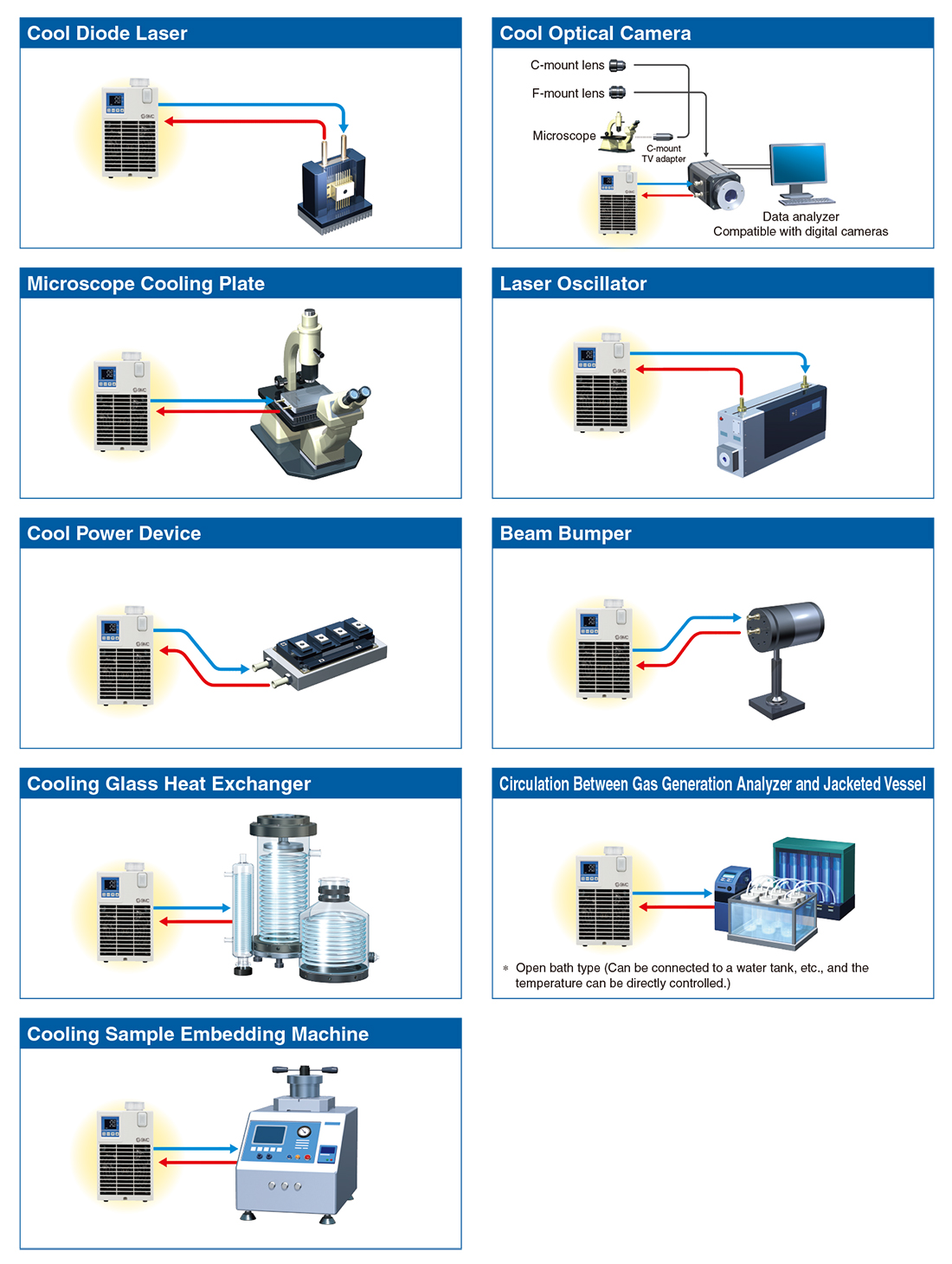

Application Examples
