Vacuum Pads (Vacuum Suction Cups)

Vacuum Pad/Bellows Type (Vacuum Suction Cup) ZP3P-JT

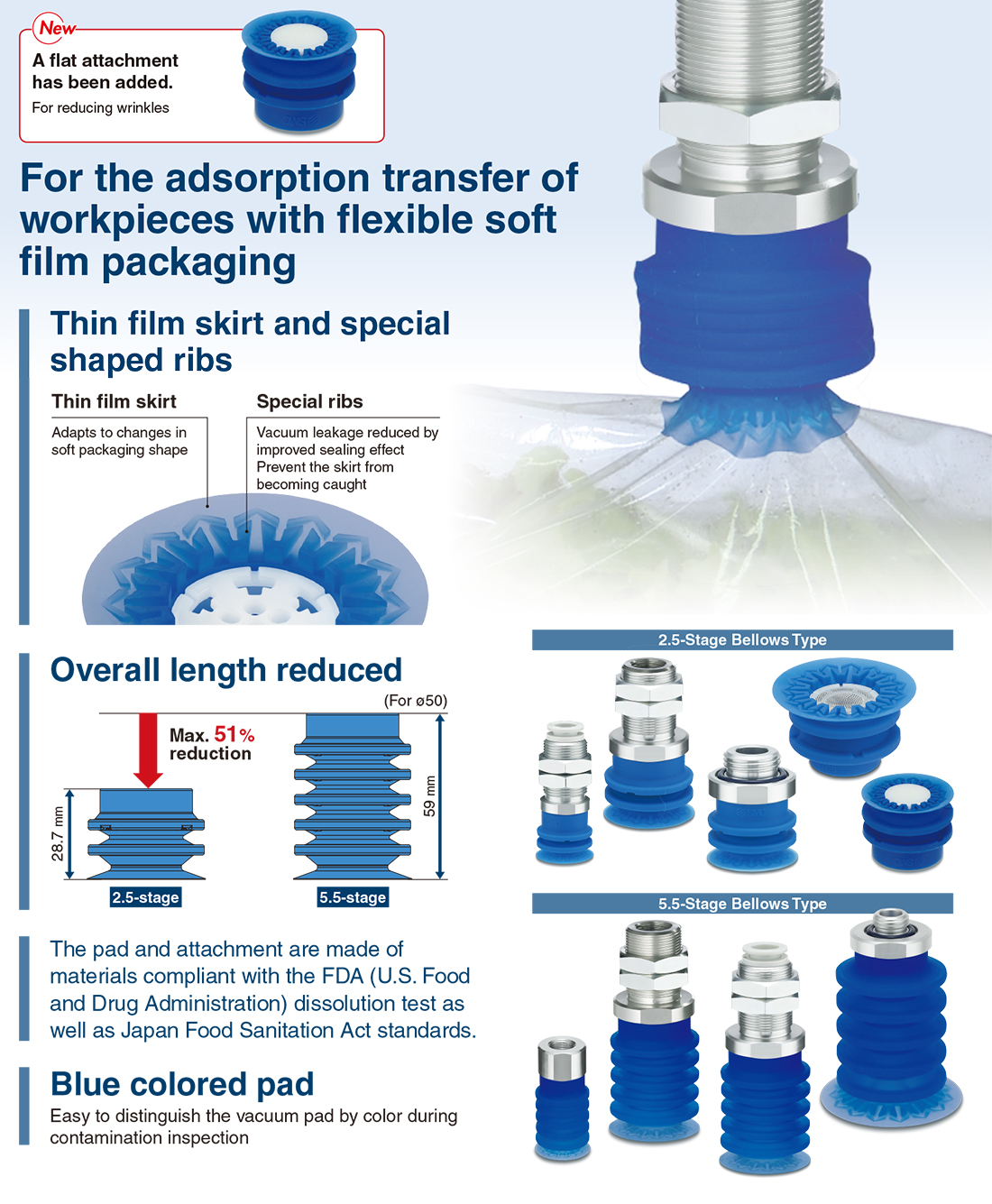

    ?For the adsorption transfer of workpieces with flexible soft film
    　packaging

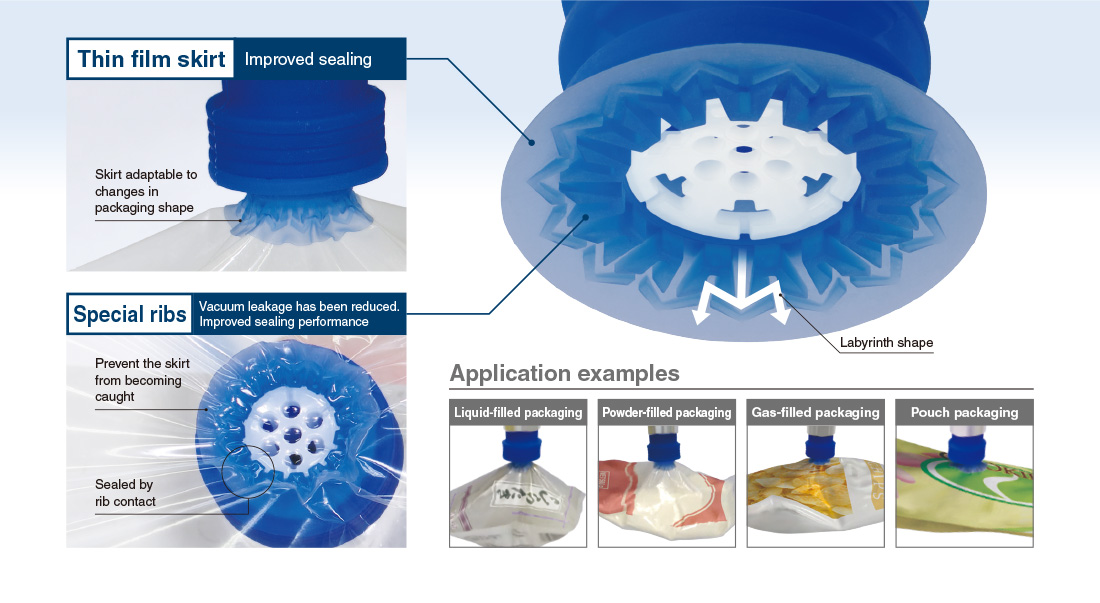

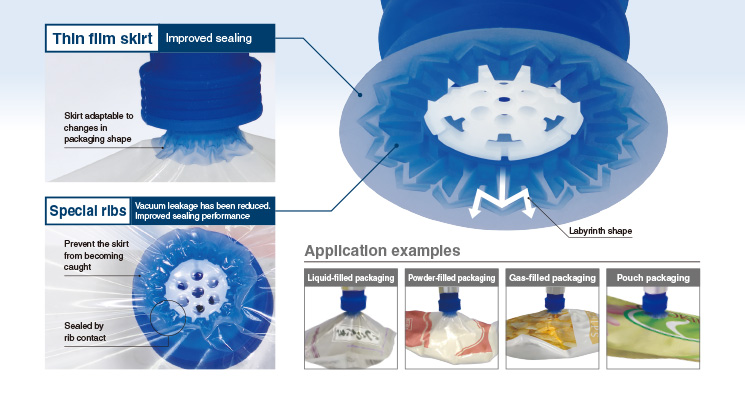

    ?Thin film skirt and special shaped ribs

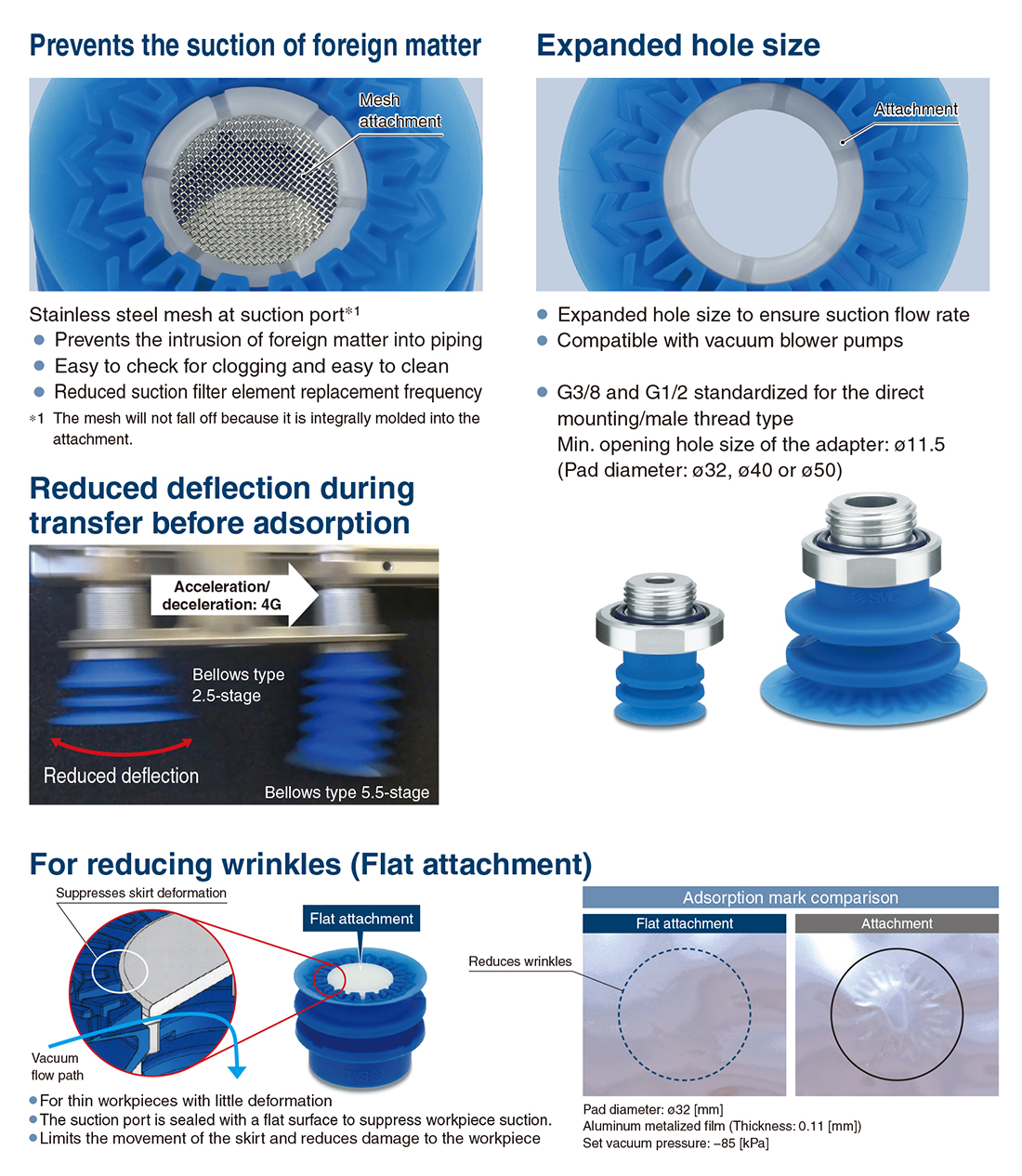

    ?Flat attachment (2.5-stage)
    　For reducing wrinkles

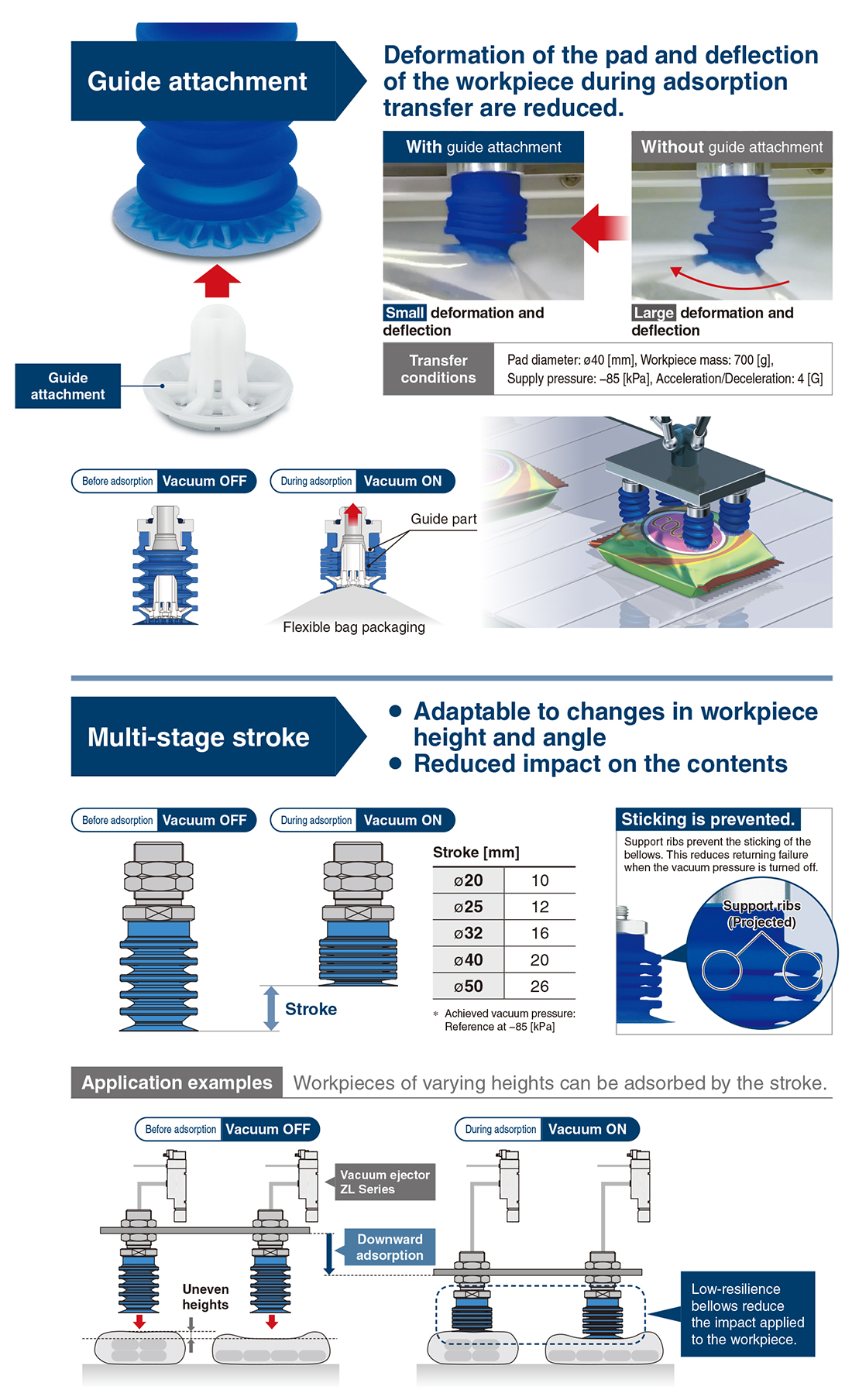

    ?Guide attachment (5.5-stage)
    　Acceleration/deceleration: Adsorption transfer possible at 4G
    ?The pad and attachment are made of materials compliant with the FDA
    　 (U.S. Food and Drug Administration) dissolution test as well as Japan
    　Food Sanitation Act standards.
    ?Blue colored pad
    　Easy to distinguish the vacuum pad by color during contamination
    　inspection
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesPad formPad diameter(mm)
ZP3P-JTBellows (2.5-stage)φ20,φ25,φ32,φ40,φ50
ZP3P-JTBellows (5.5-stage)φ20,φ25,φ32,φ40,φ50

Features

For the adsorption transfer of workpieces with flexible soft film packaging

Unstable workpieces such as bagged liquid or powder can be transferred.

2.5-stage/Bellows Type

5.5-stage/Bellows Type

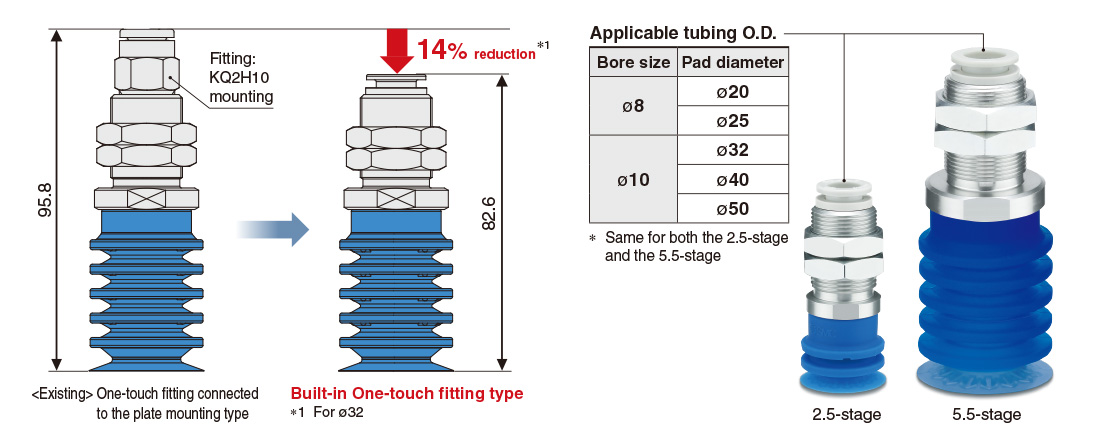

Standardized built-in One-touch fitting type

Reduced overall length, assembly, and labor time

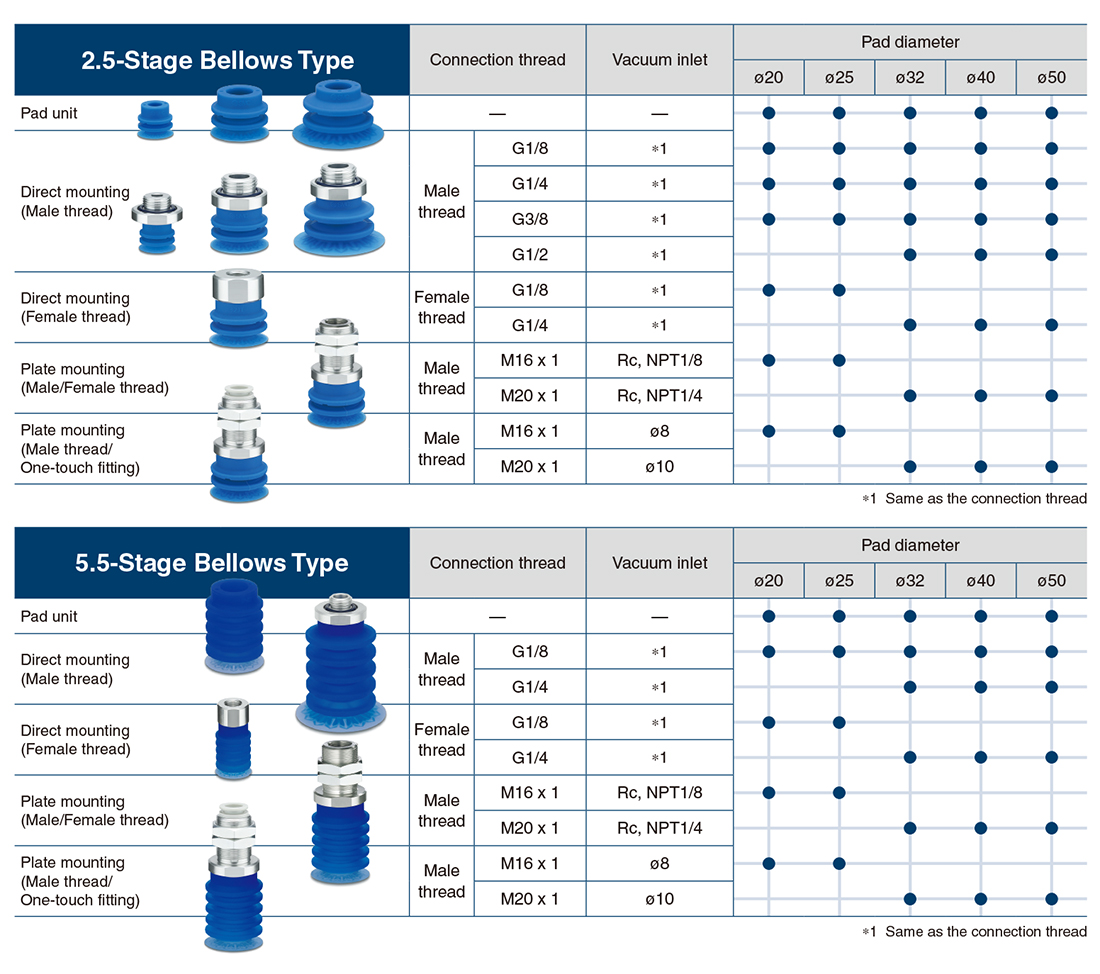

Variations
