WEB Catalog

Product Information ?  WEB Catalog  ? Temperature Control Equipment  ? Thermo-Chillers (Circulating Fluid Temperature Controllers) Standard Type/Basic Type

Thermo-Chillers (Circulating Fluid Temperature Controllers) Standard Type/Basic Type

Thermo-chiller/Standard Type HRS090

    ?Lightweight and compact
    ?Cooling capacity: 9 kW
    ?Temperature stability: ±0.5°C
    ?Set temperature range: 5 to 35°C
    ?Max. ambient temperature: 45°C
    ?Power supply: 3-phase 200 to 230 VAC, 380 to 415 VAC, 460 to 480VAC
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Thermo-chiller/Standard Type HRS090
    Manual
    Series View search result
    HRS090View search result
SeriesSet temperature
range		Cooling
capacity		Temperature
stability		Cooling methodCirculating fluid
HRS0905 to 35℃9kW (60Hz)±0.5℃Air-cooled refrigeration
Water-cooled refrigeration		Tap water
Deionized water
Ethylene glycol aqueous solution （15％）

Features

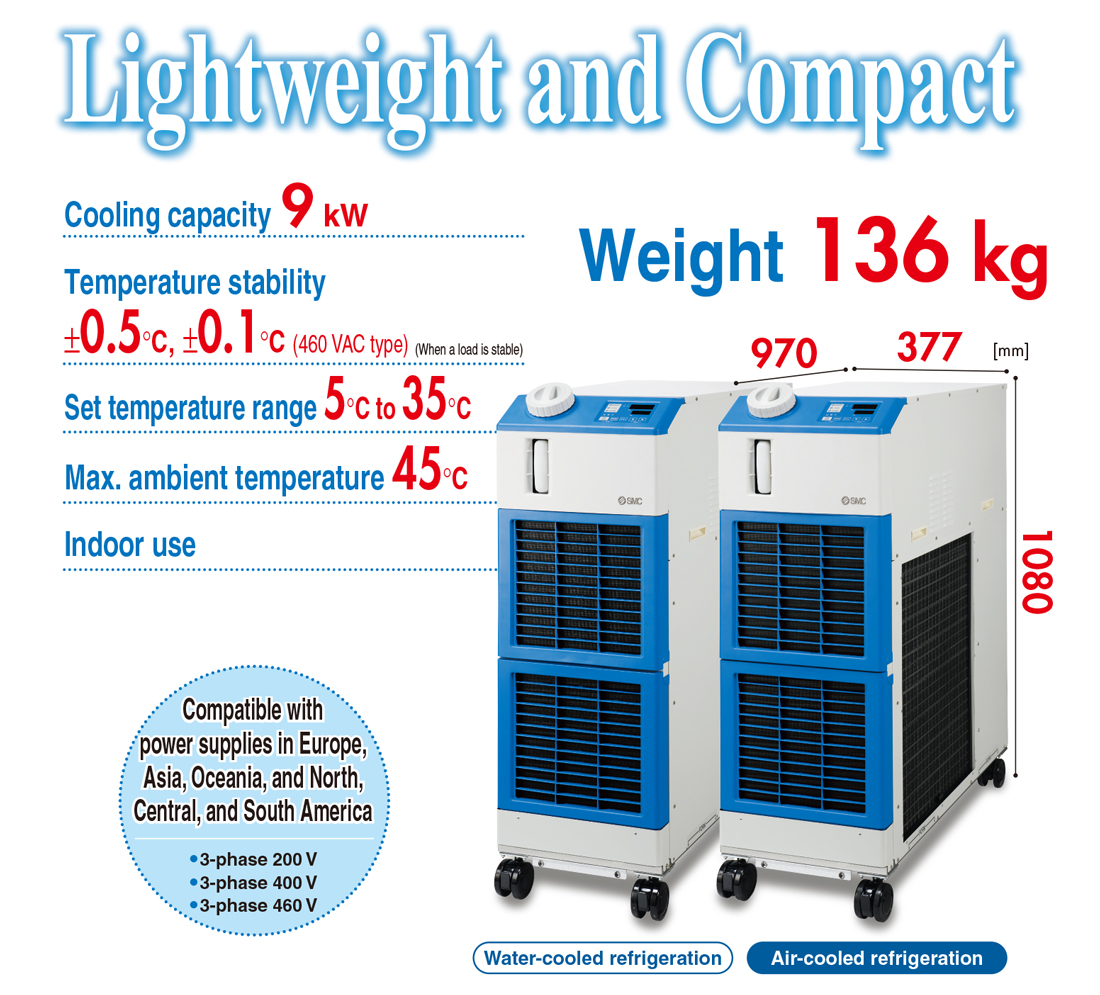

■Lightweight and Compact Weight 136 kg

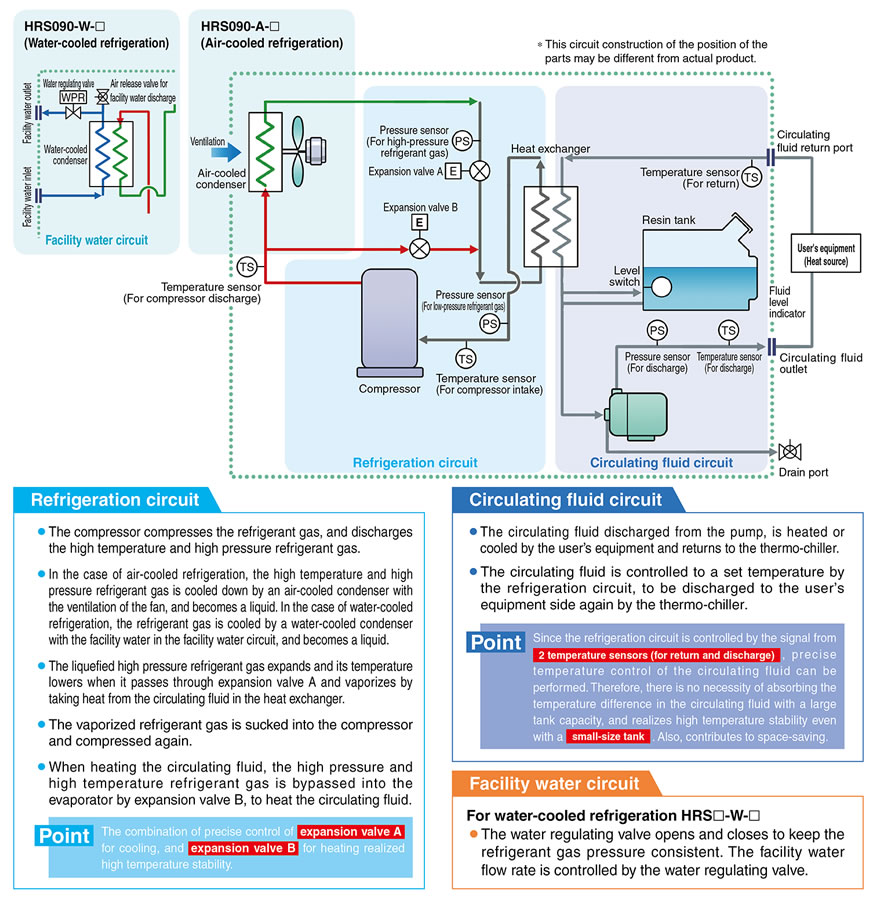

The precision temperature control method by expansion valve and temperature sensor, realized high temperature stability of ±0.5°C and a small-size tank.

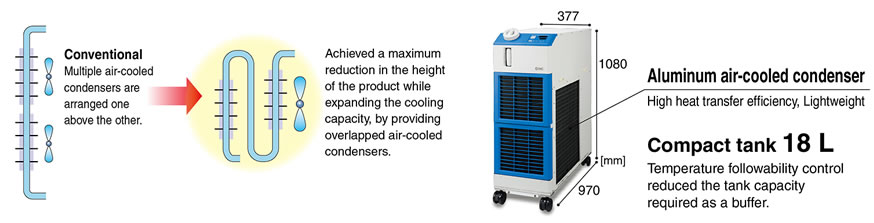

Reduced-height double condenser structure

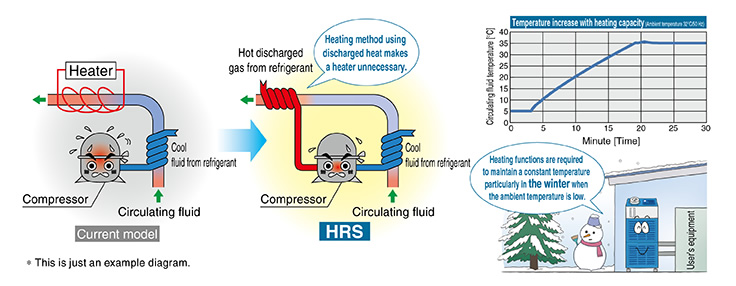

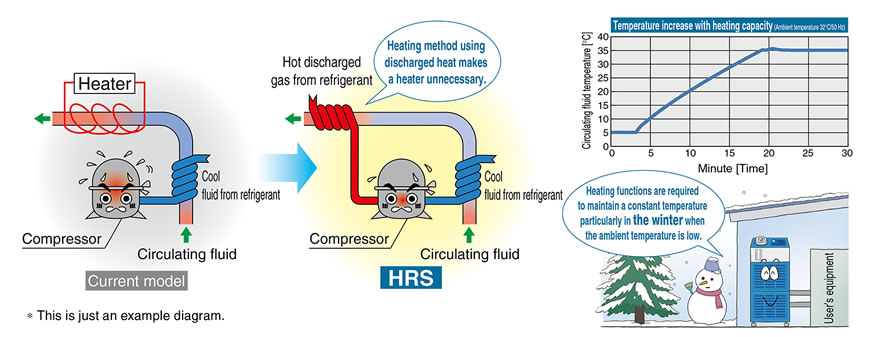

■With heating function

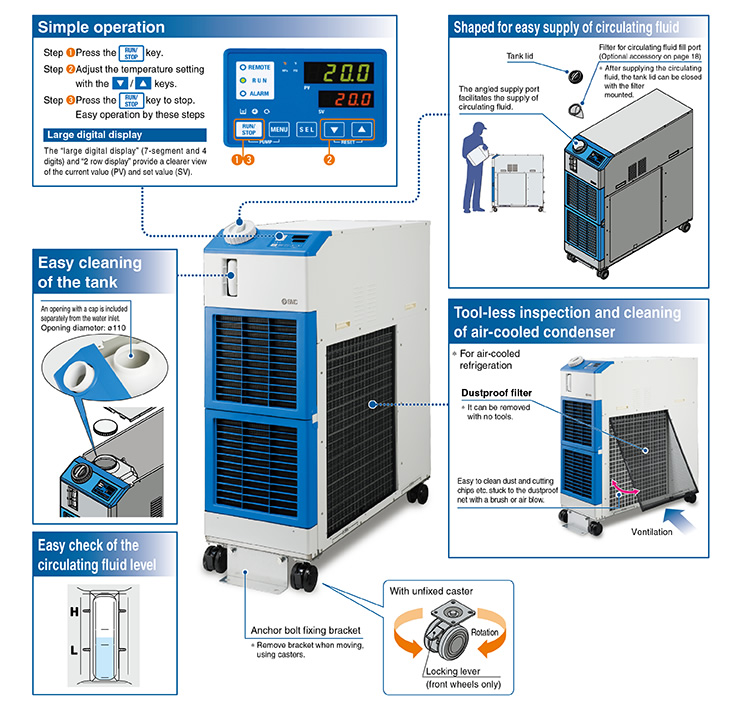

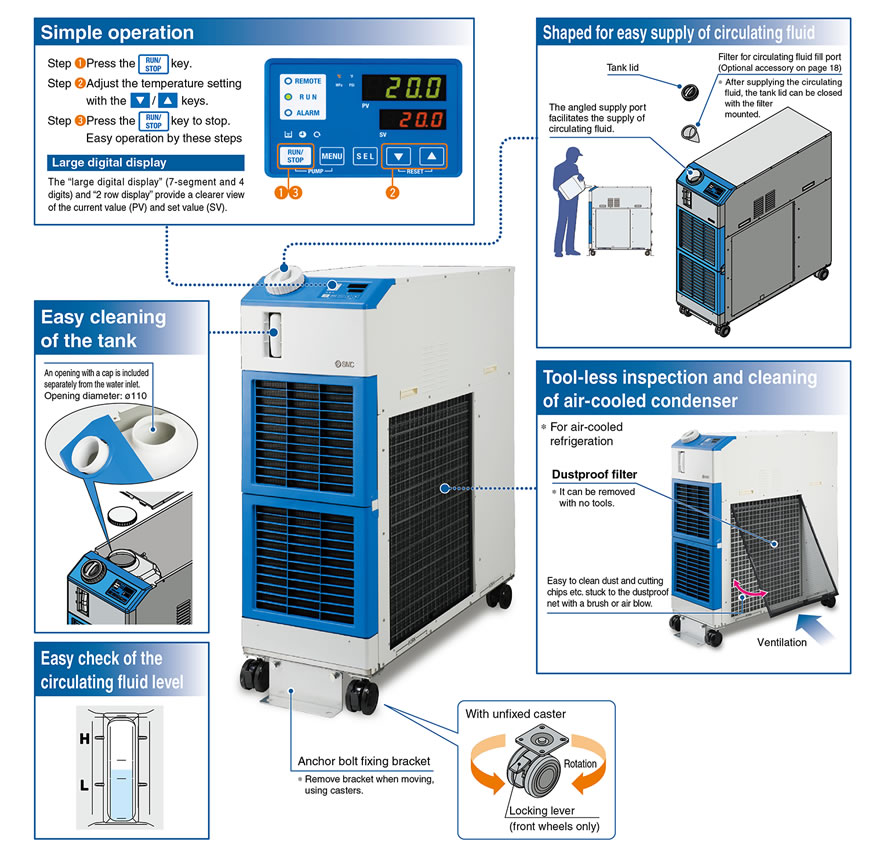

■Easy maintenance and operation

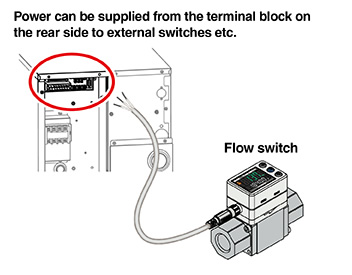

■Power supply(24 VDC)available

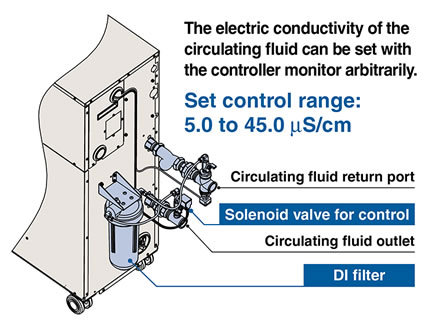

■Electric conductivity control set

With DI filter + Solenoid valve kit for control

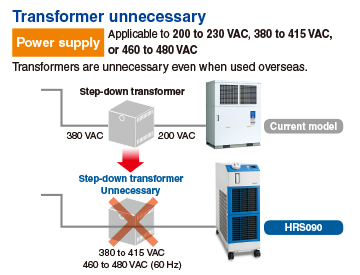

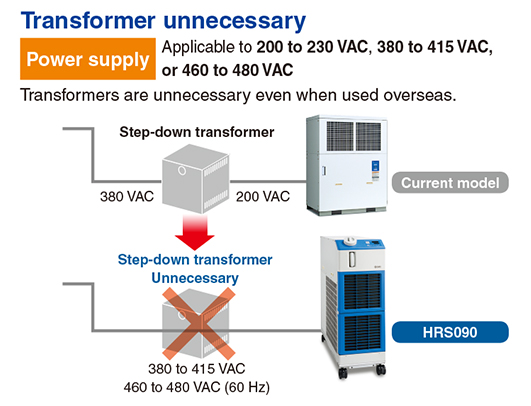

■Globally compatible power supplies

Europe, Asia, Oceania, North, Central and South America: Only 400/460 VAC type

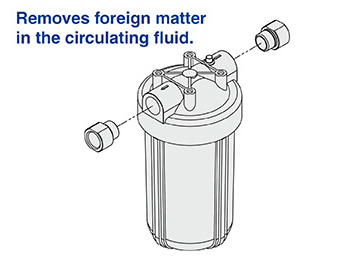

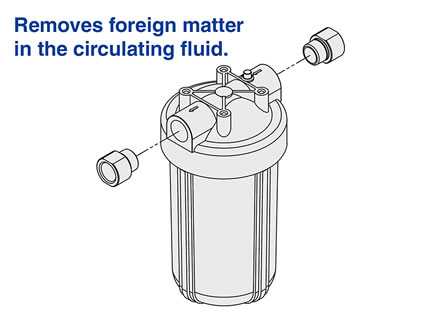

■Particle filter set

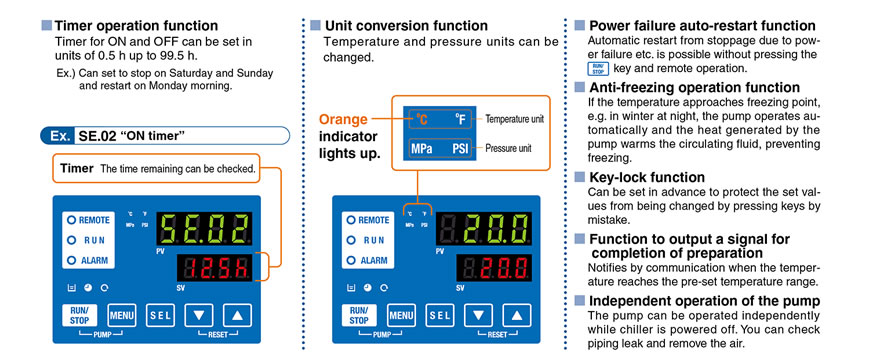

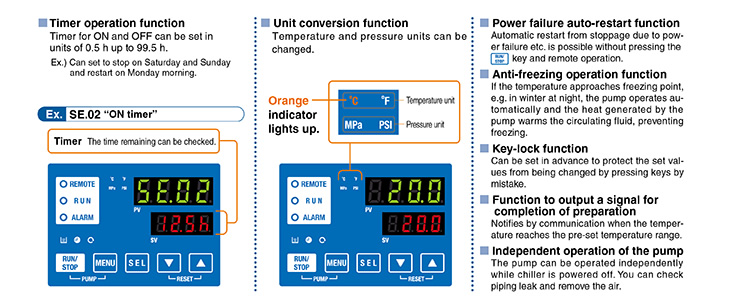

■Convenient functions

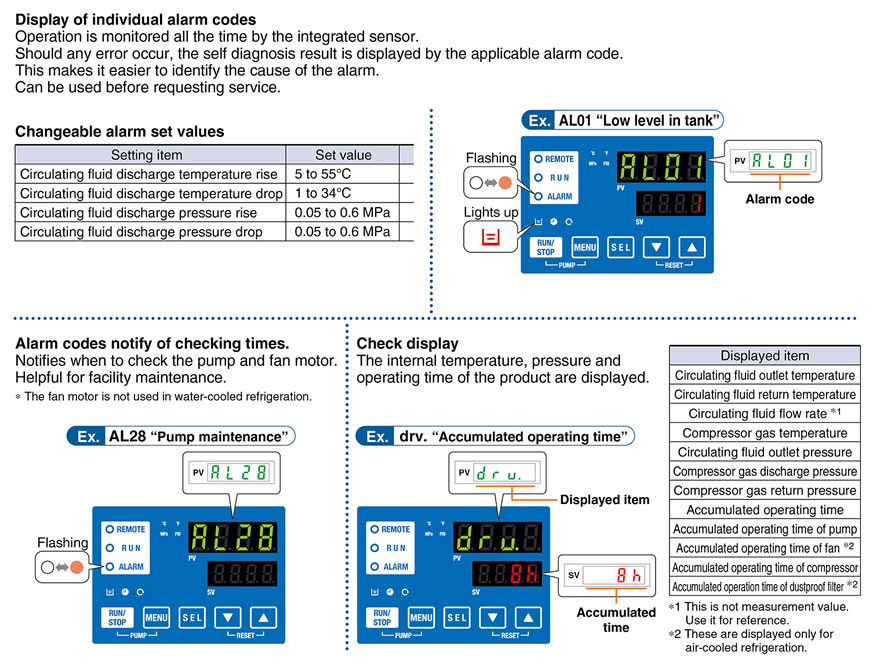

■Self diagnosis function and check display

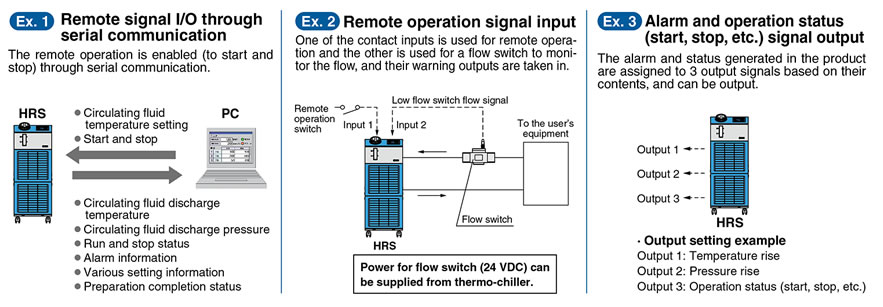

■Communication function

The serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard. Communication with the user’s equipment and system construction are possible, depending on the application.

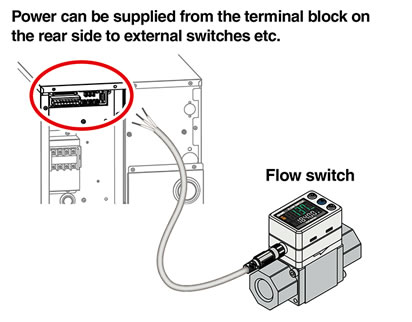

A 24 VDC output can be also provided, and is available for a flow switch (SMC’s PF2W etc.).

■Applications

Laser beam machine/
Laser welding machine

Cooling of the laser oscillation part and power source


Printing machine

Temperature control of the roller


Cleaning machine

Temperature control of cleaning solution

Arc welding machine

Cooling of the torch



Resistance welding machine
(spot welding)

Cooling of the welding head electrodes, transformers and transistors (thyristors)

High frequency induction heating equipment

Cooling of the heating coils, high frequency power source and around inverters

X-ray (digital) instrument

Temperature control of X-ray tube and X-ray light sensing part

Packaging line (sealing of film and paper package)

Cooling of workpieces for bonding

MRI



Injection molding




Atomizing device
(food and cosmetics)　

Temperature control of sample and device

Crushing machine

Cooling of the jacket

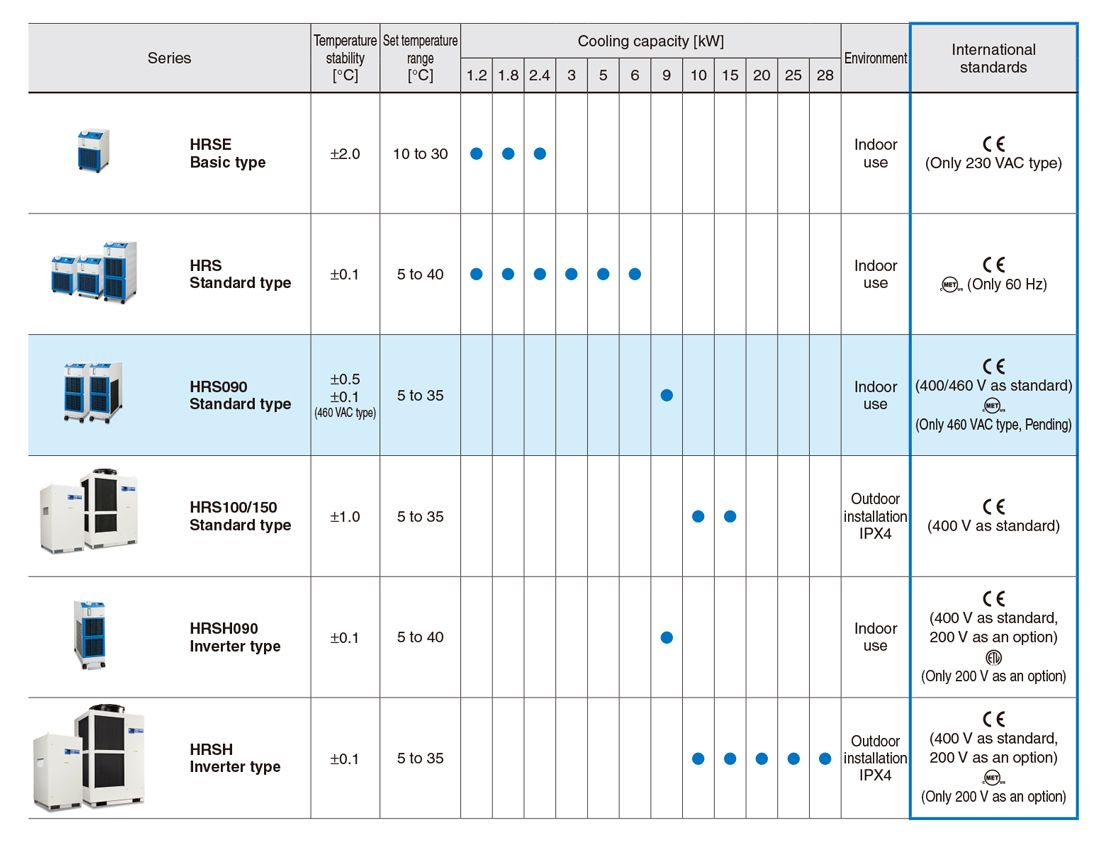

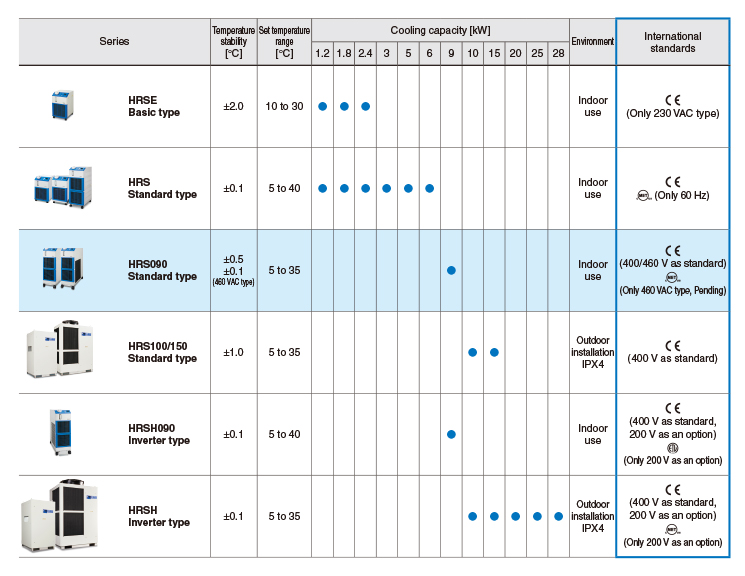

■SMC Thermo-chiller Variations

Lots of variations are available according to the users’ requirements.
