WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Specialty Cylinders

Specialty Cylinders

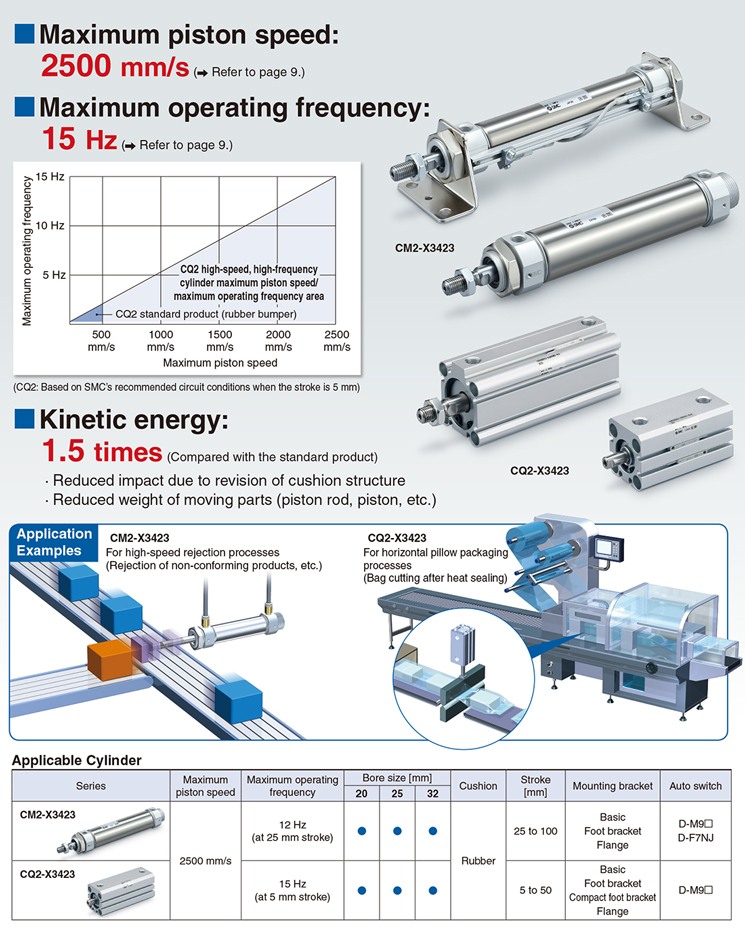

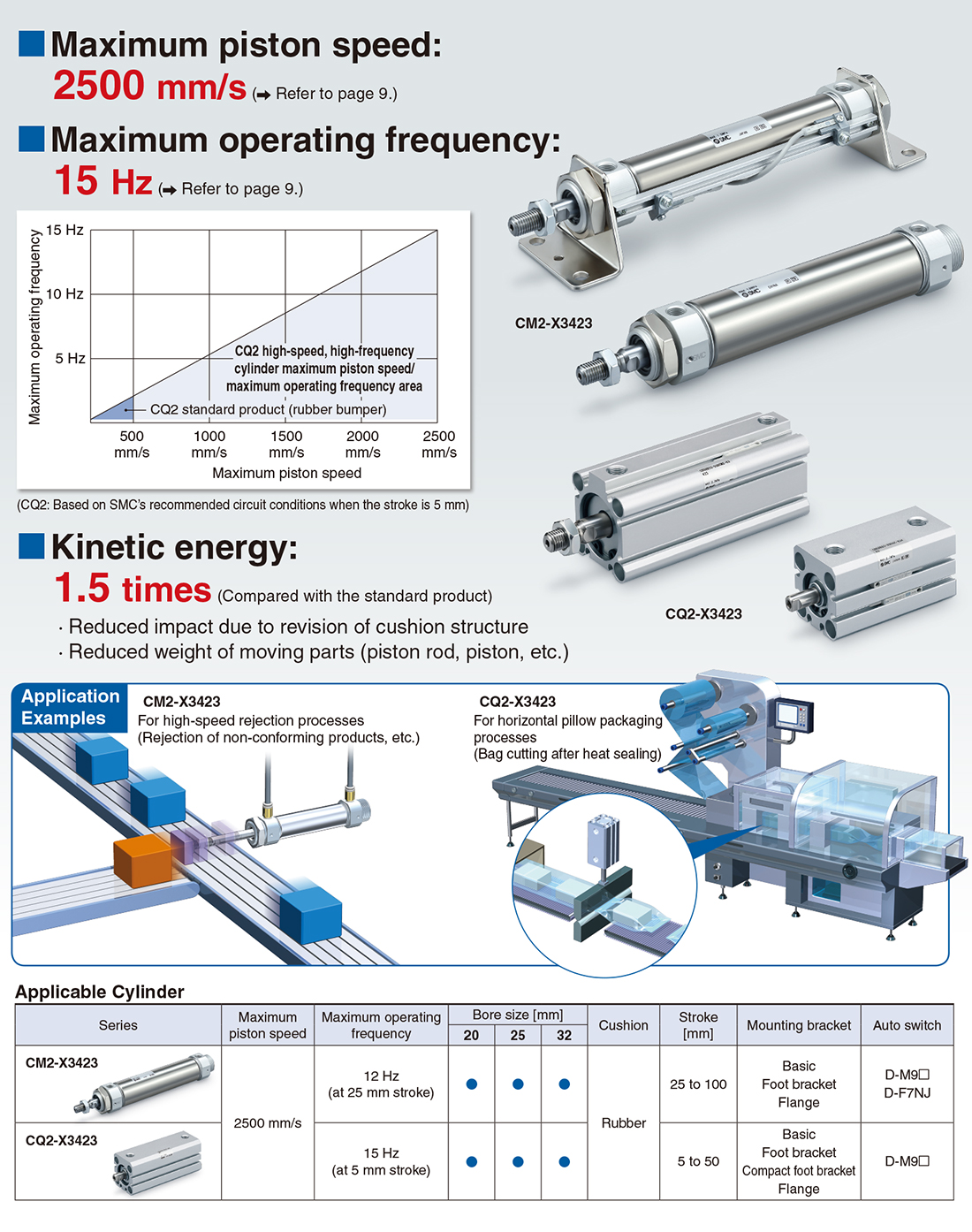

High Speed/High Frequency Cylinder CM2/CQ2-X3423

    ? Maximum piston speed: 2500mm/s
    ? Maximum operating frequency: 15Hz
    ? Kinetic energy: 1.5 times (Compared with the standard product)
    ? Reduced impact due to revision of cushion structure
    ? Reduced weight of moving parts (piston rod, piston, etc.)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • High Speed/High Frequency Cylinder CM2/CQ2-X3423
    Manual
    型式 Series View search result
    CylinderCM2-X3423View search result
    Compact CylinderCQ2-X3423View search result
型式SeriesMaximum piston speedMaximum operating frequencyBore size (mm)
CylinderCM2-X34232500mm/s12Hz
(at 25 mm stroke)		20, 25, 32
Compact CylinderCQ2-X34232500mm/s15Hz
(at 5 mm stroke)		20, 25, 32

Features

Maximum piston speed: 2500mm/s



Maximum operating frequency: 15Hz

Go Top
