Battery-less Absolute Encoder Type
Battery-less Absolute Encoder Type
Electric Actuator/High Performance High Rigidity Guide Rod Type LEG
-

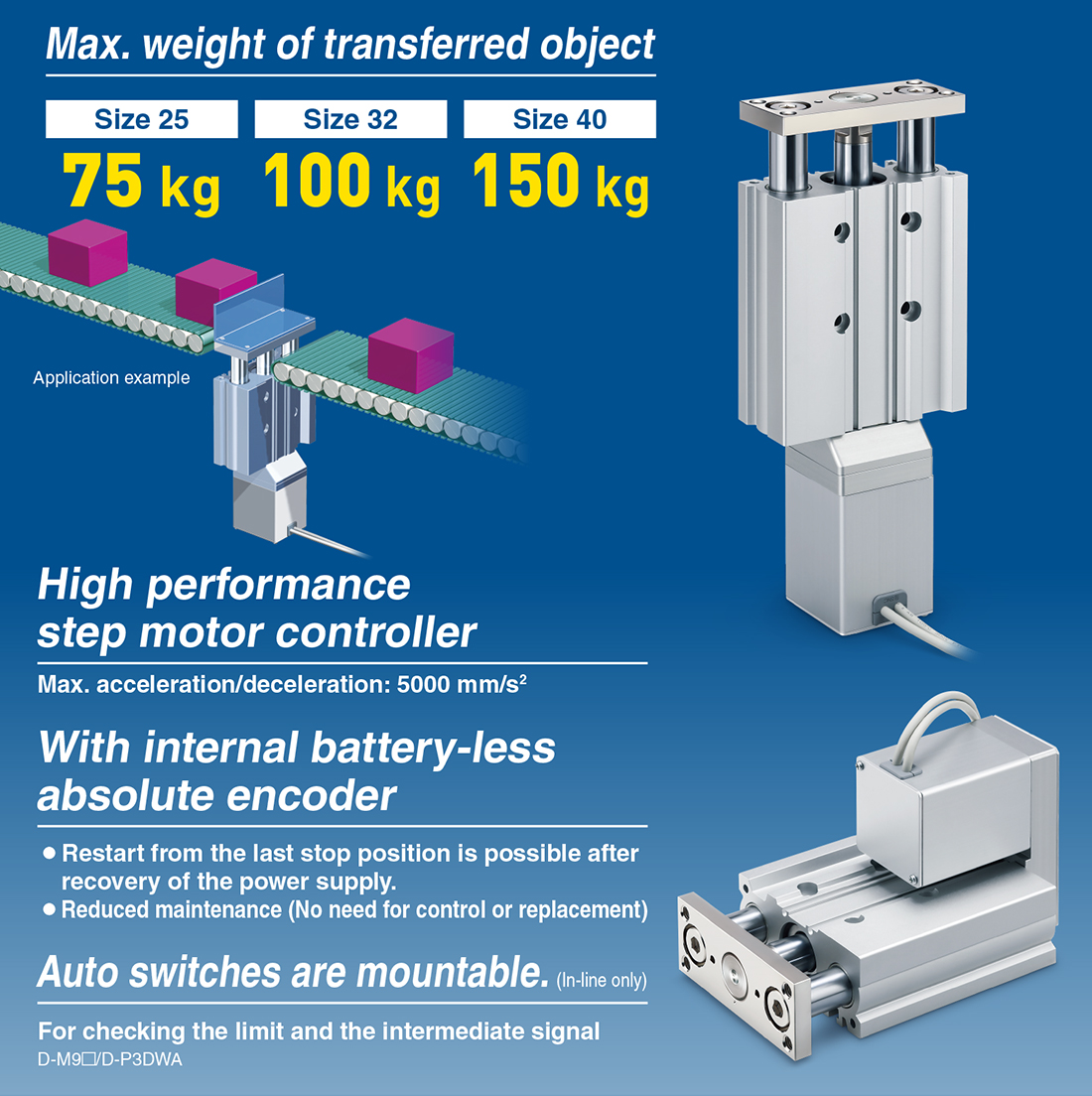

?Max. weight of transferred object: 75 kg (Size 25), 100 kg (Size 32), 150 kg (Size 40)
?High performance step motor controller
(Max. acceleration/deceleration: 5000 mm/s2)
?With internal battery-less absolute encoder
?Auto switches are mountable. (In-line only)
For checking the limit and the intermediate signal
?Fully integrated the compact guide unit for improved lateral load capacity
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Battery-less Absolute Encoder Type
Electric Actuator/High Performance High Rigidity Guide Rod Type LEGManual
Model View search result LEG25 View search result LEG32 View search result LEG40 View search result Battery-less Absolute Encoder Type
Electric Actuator/High Performance High Rigidity Guide Rod Type LEGDoC
Model View search result LEG25 View search result LEG32 View search result LEG40 View search result
Safety Instructions Electric Actuators/Precautions Auto Switches/Precautions Green Procurement (RoHS)

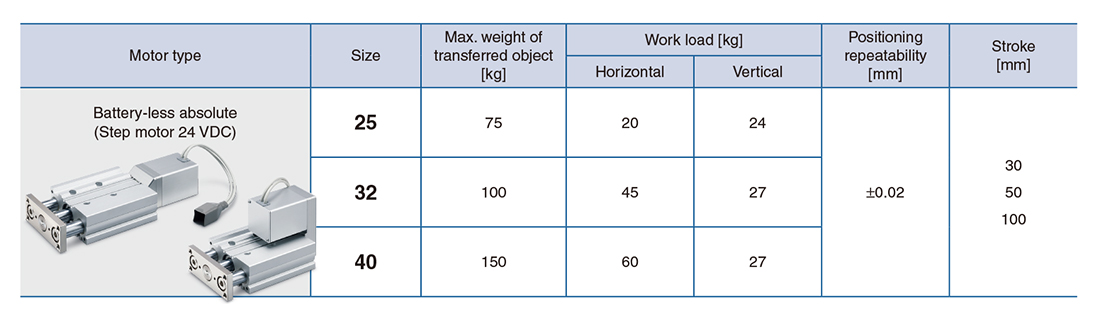

| Specification | Model | Stroke (mm) | Pushing force [N] | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|
| Battery-less absolute (Step motor/24 VDC) | LEG25 | 30 to 100 | Max. 238 | Max. 250 | 6，8 |
| Battery-less absolute (Step motor/24 VDC) | LEG32 | 30 to 100 | Max. 370 | Max. 200 | 6，8 |
| Battery-less absolute (Step motor/24 VDC) | LEG40 | 30 to 100 | Max. 553 | Max. 150 | 6，8 |
Features
Max. weight of transferred object: 75 kg (Size 25), 100 kg (Size 32), 150 kg (Size 40)

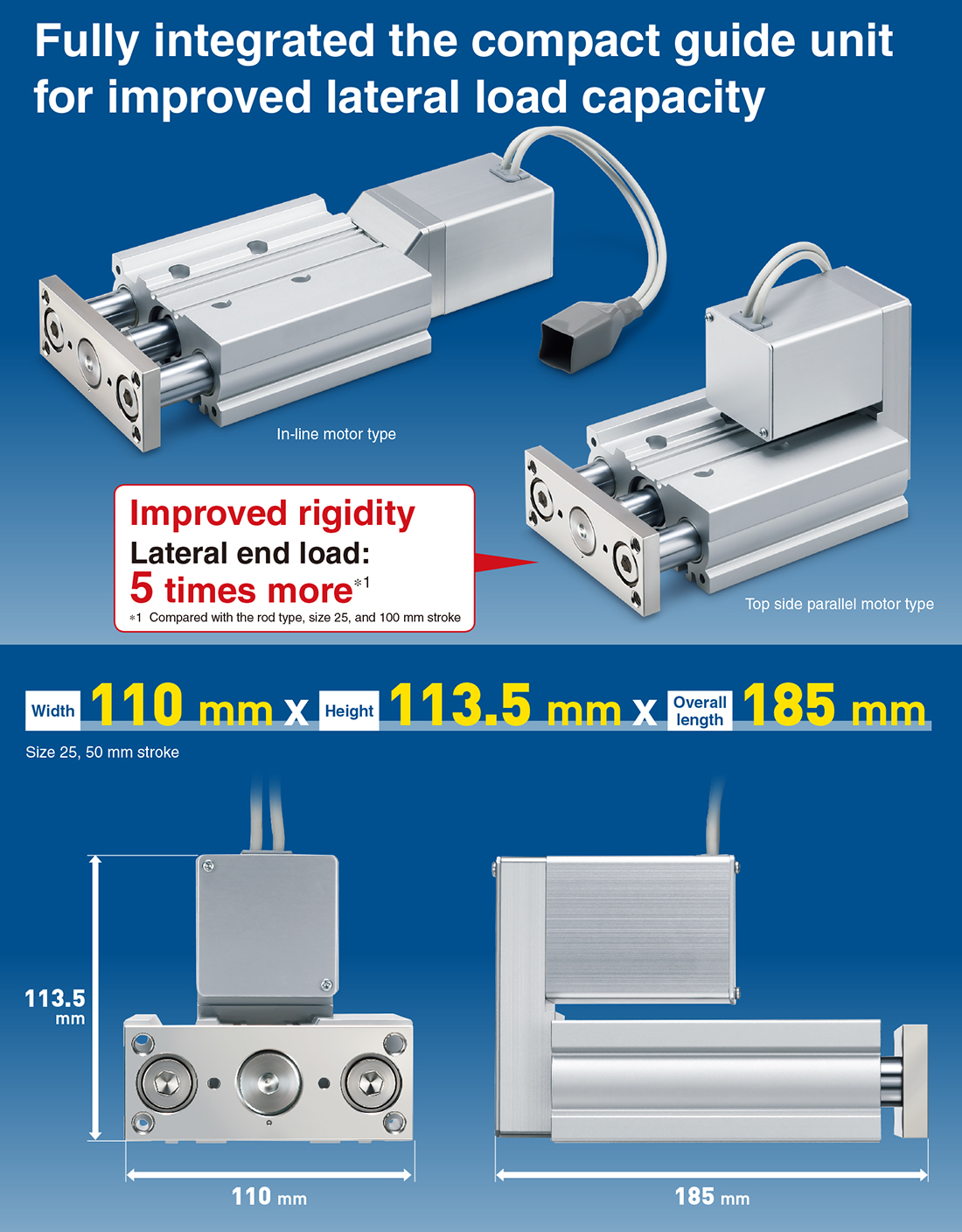

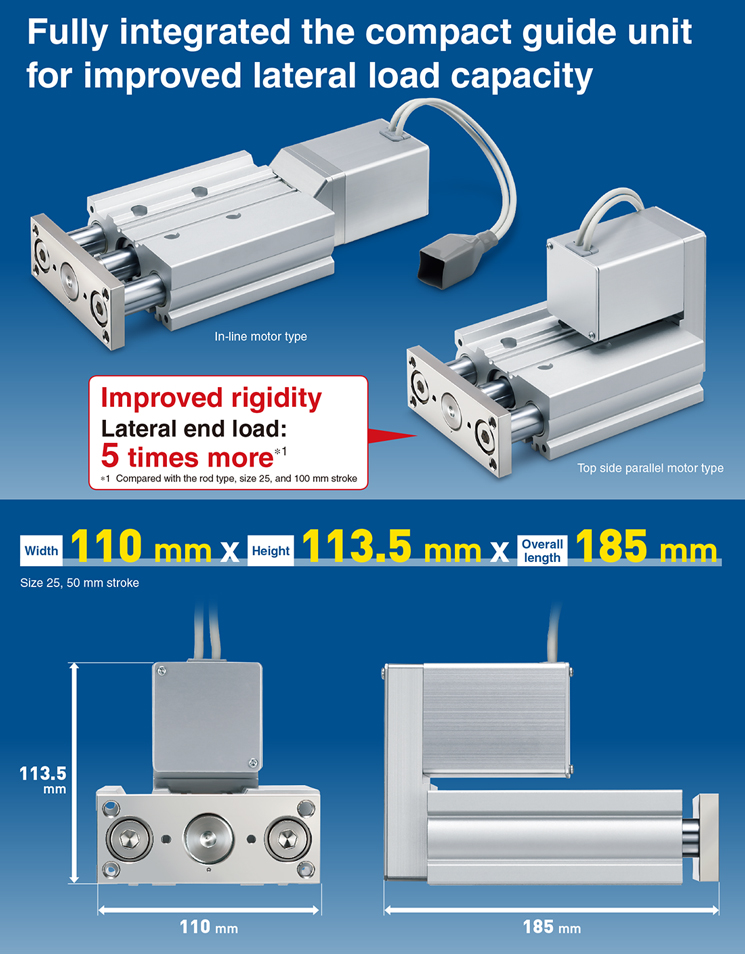

Fully integrated the compact guide unit for improved lateral load capacity

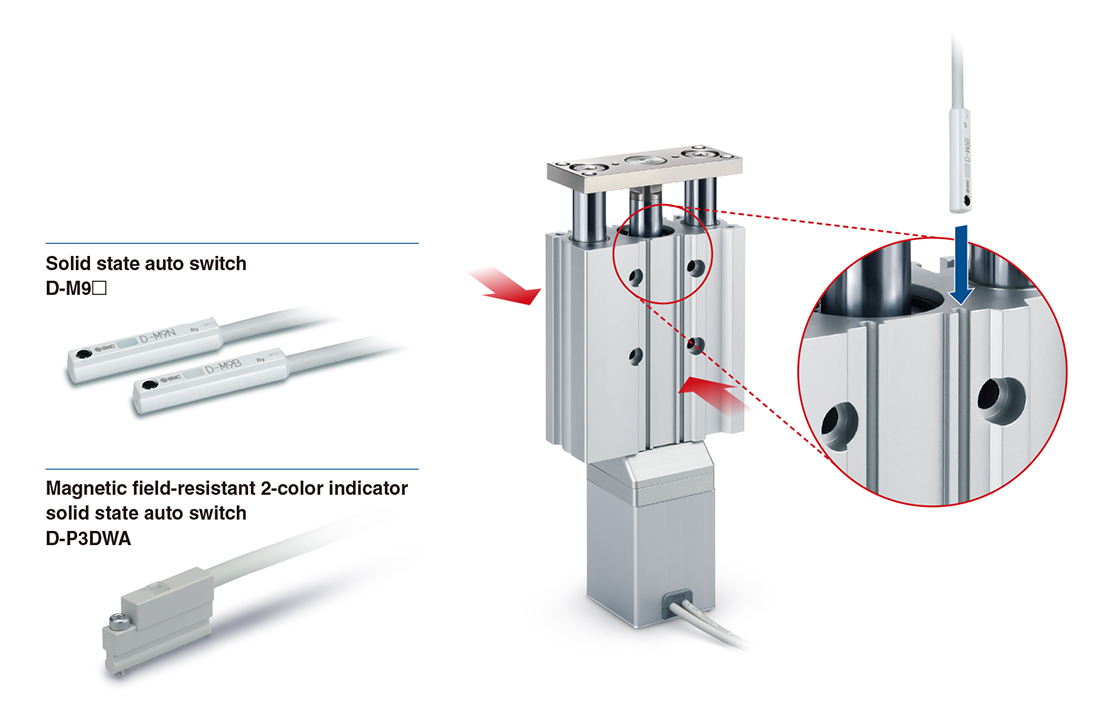

Small auto switches can be directly mounted on 2 surfaces.
For checking the limit and the intermediate signal
＊Motor mounting position: In-line only
Variations

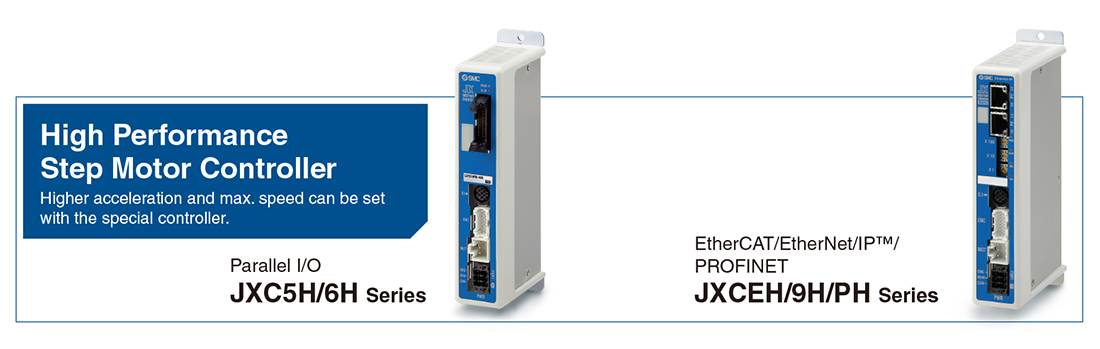

High Performance Step Motor Controller
Higher acceleration and max. speed can be set with the special controller.
