Thermo-Chillers (Circulating Fluid Temperature Controllers) Standard Type/Basic Type

Thermo-chiller/Standard Type HRS

    ?With this chiller, cooling water can be obtained anywhere it is necessary because of easy installation and easy operation.
    ?For a wide range of applications, such as laser machine tools, analytical equipment,
    　LCD manufacturing equipment, mold temperature control, etc.

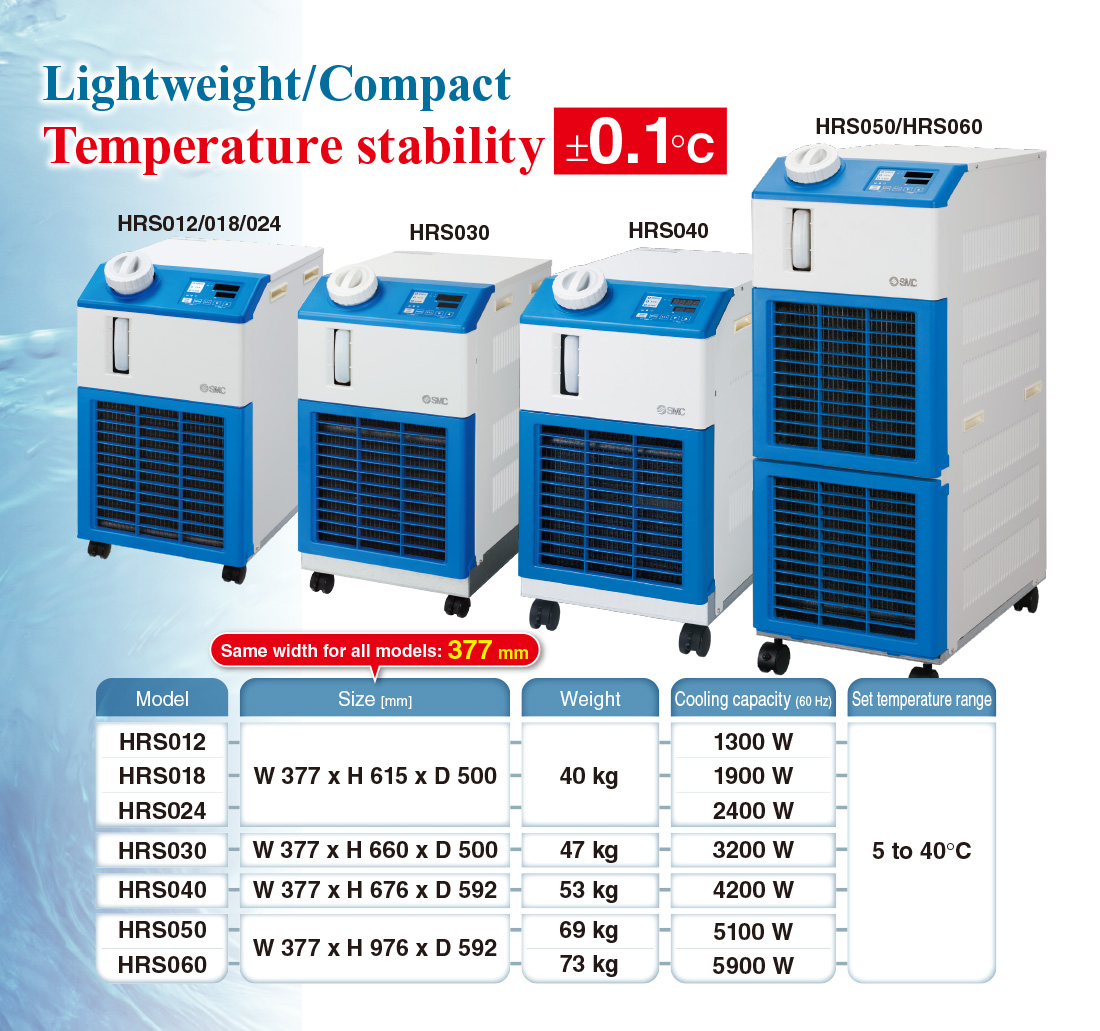

    ?Compact: W 377 x H 615 x D 500 mm, 40 kg (HRS012/018/024)
    ?Timer function, Low liquid level protection, Power failure auto-restart,
    　Anti-freezing function, etc.
    ?Self diagnosis function
    ?Ideal for overseas models (Single-phase 200 to 230 VAC, Single-phase 100, 115 VAC)
    ?Compliant with UL Standards, CE-marking
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Thermo-chiller/Standard Type HRS
    Manual
    Series View search result
    HRS012 to 060View search result
  • Thermo-chiller/Standard Type HRS
    DoC
    Series View search result
    HRS012 to 060View search result
SeriesSet temperature
range		Cooling
capacity		Temperature
stability		Cooling methodCirculating fluid
HRS012 to 0605 to 40℃1.3 kW
1.9 kW
2.4 kW
3.2 kW
4.2 kW
5.1 kW
5.9 kW
（60 Hz）		±0.1℃Air-cooled refrigeration
Water-cooled refrigeration		Tap water
Deionized water
Ethylene glycol aqueous solution （15％）

Features

The cooling capacity(W) 4200 W New

Compatible with power supplies in Europe, Asia, Oceania, North, Central, and South America

?Single-phase 100 VAC (50/60 Hz), 115 VAC (60 Hz)
?Single-phase 200 to 230 VAC (50/60 Hz)

Temperature stability ±0.1℃ / Compact

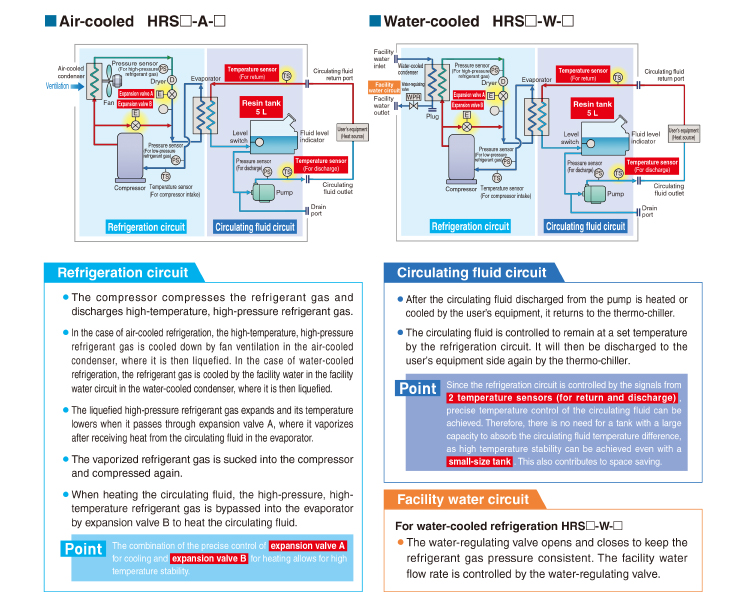

A precision temperature control method which utilizes expansion valves and temperature sensors allowed for the realization of a product with a high temperature stability of ±0.1℃ and a small-size tank.

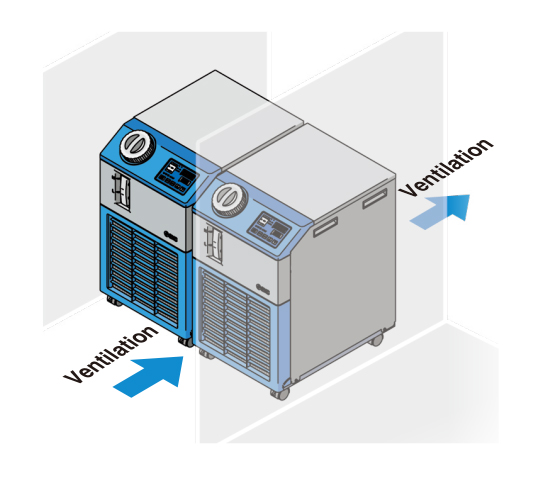

  • Can be installed with both sides close to a wall

    (HRS012/018/024 * Except option G)

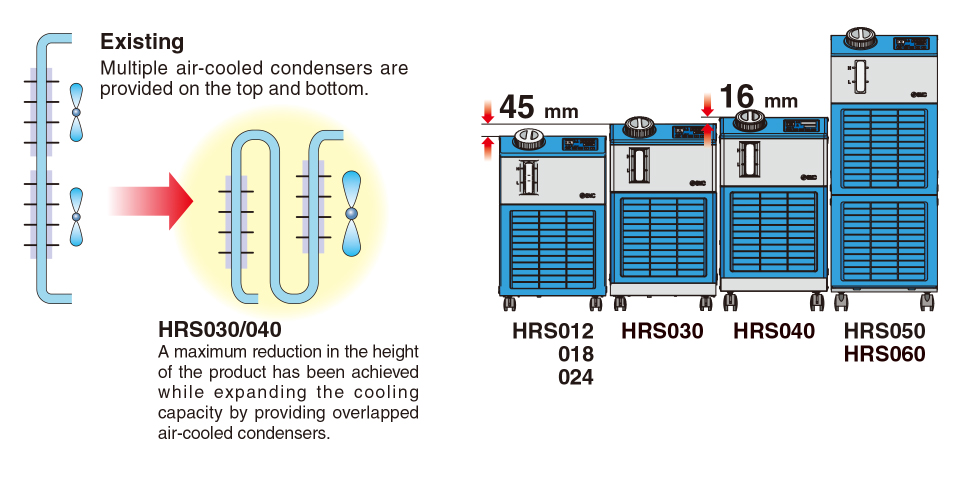

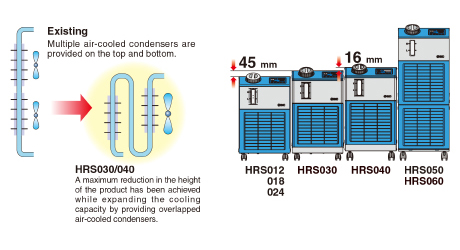

  • Reduced-height double condenser structure (HRS030/040/060)

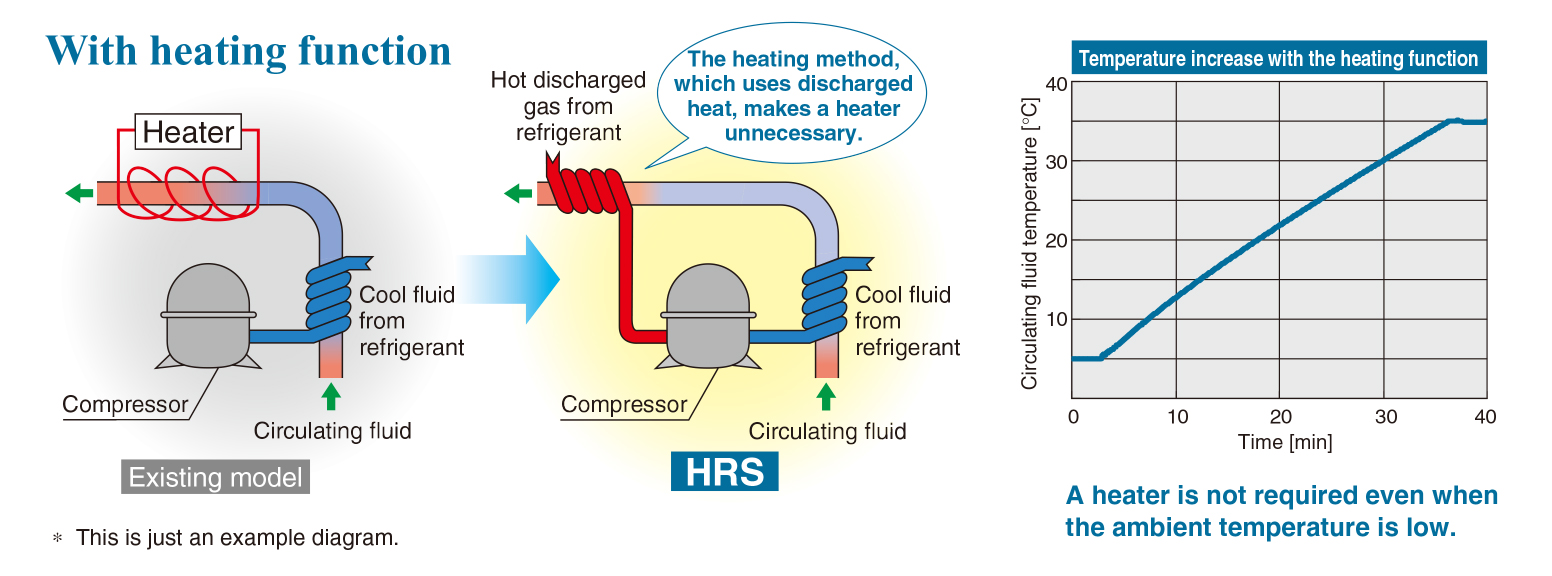

With heating function

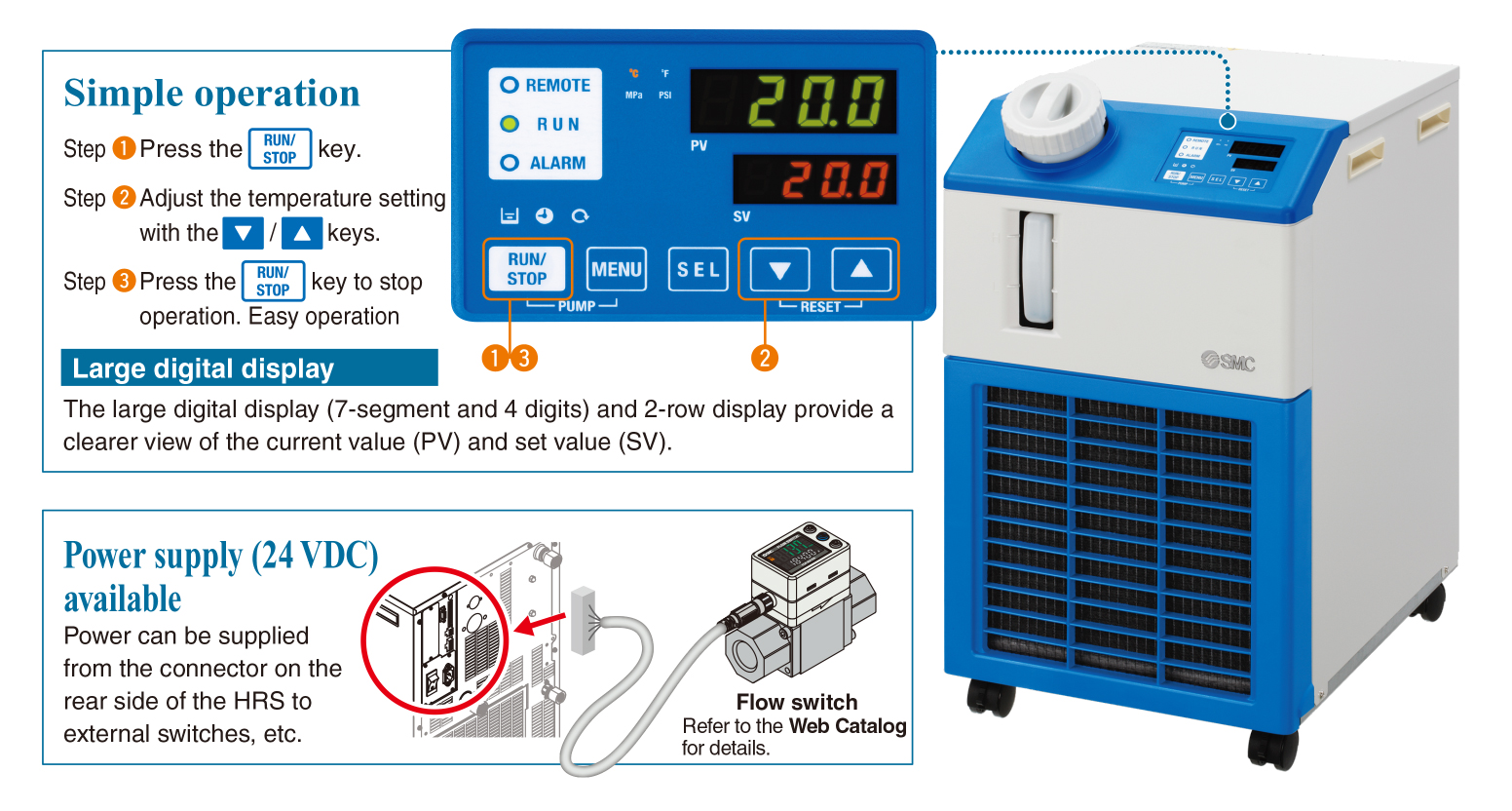

Simple operation, Power supply (24 VDC) available

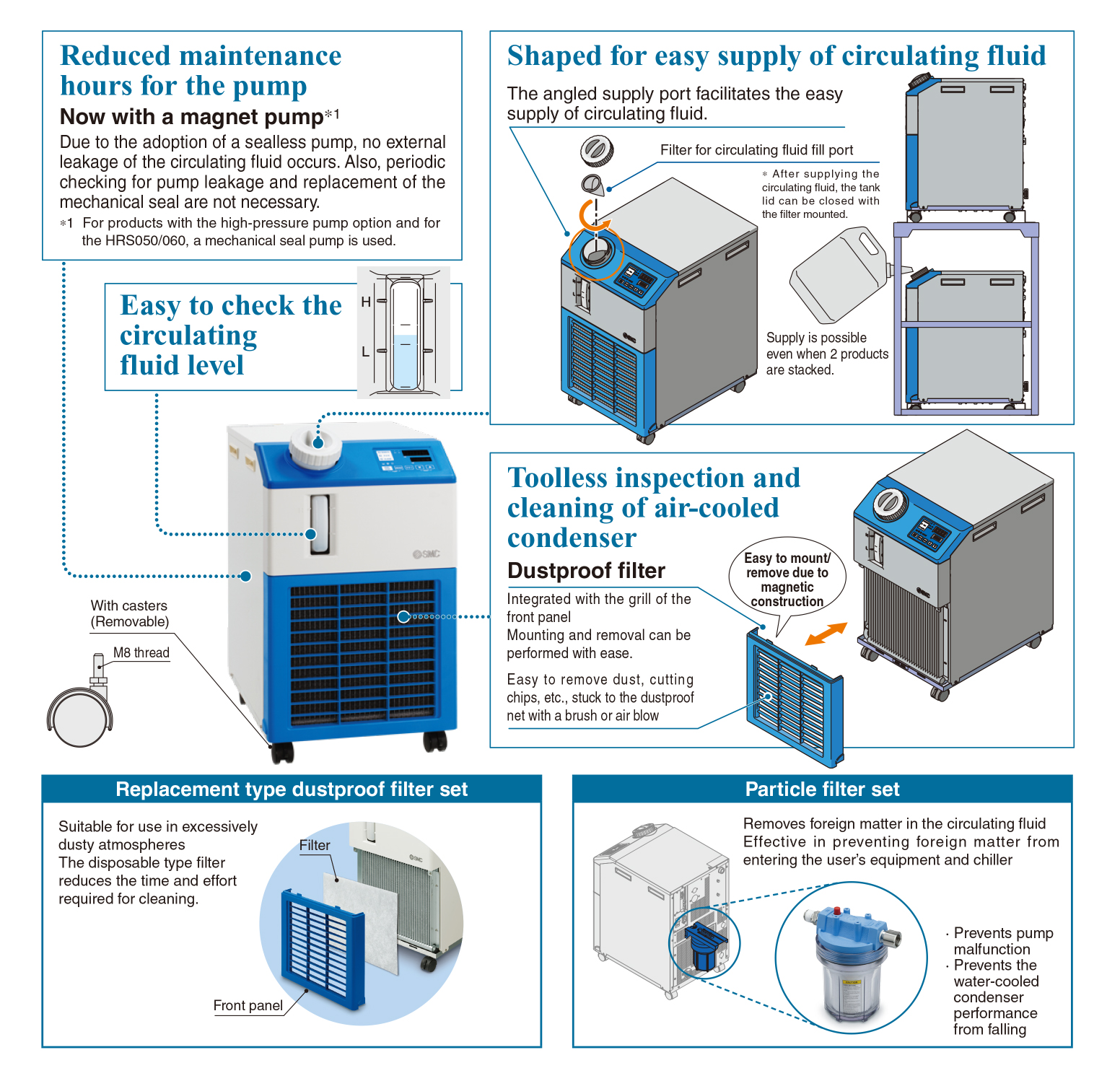

Other features

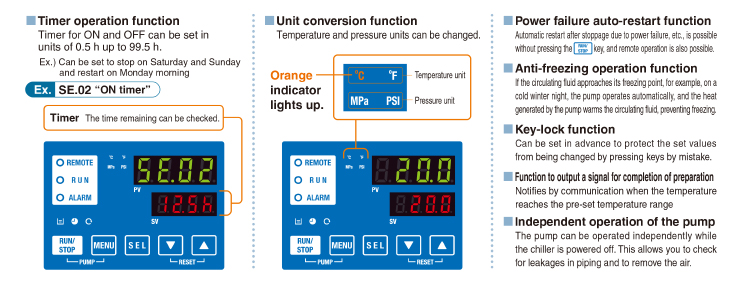

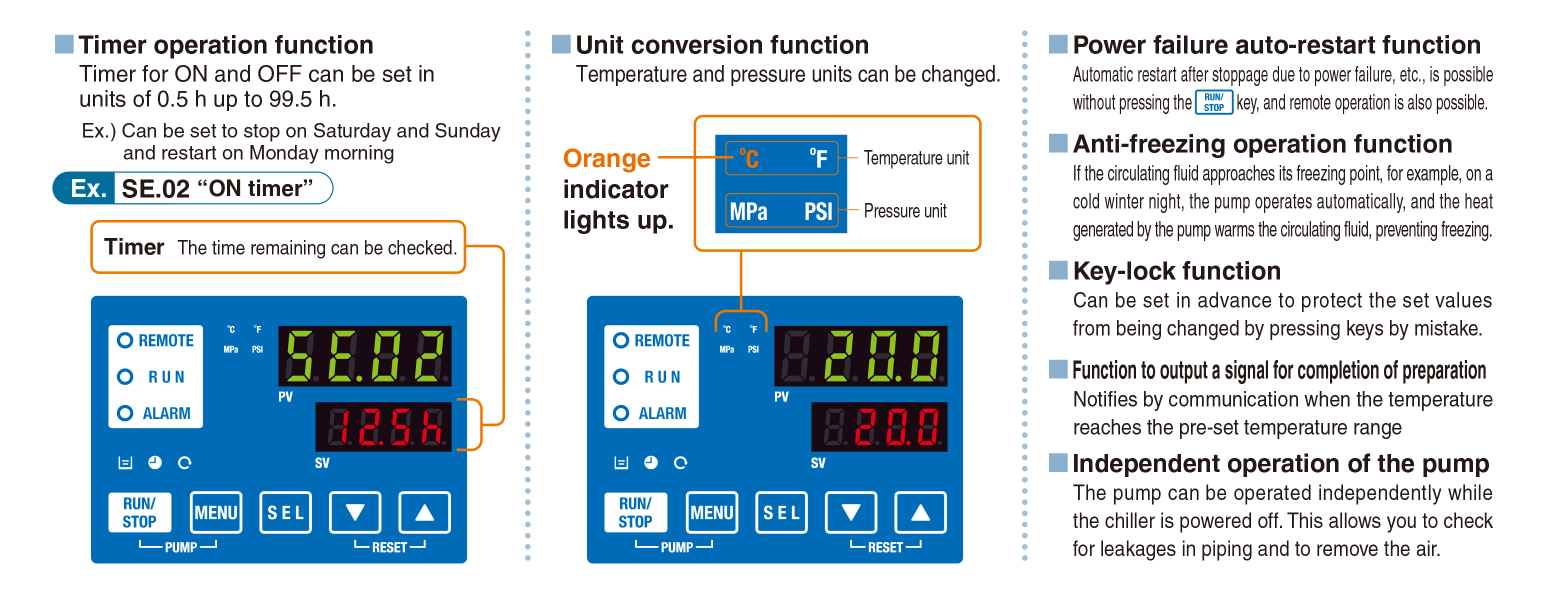

Convenient functions

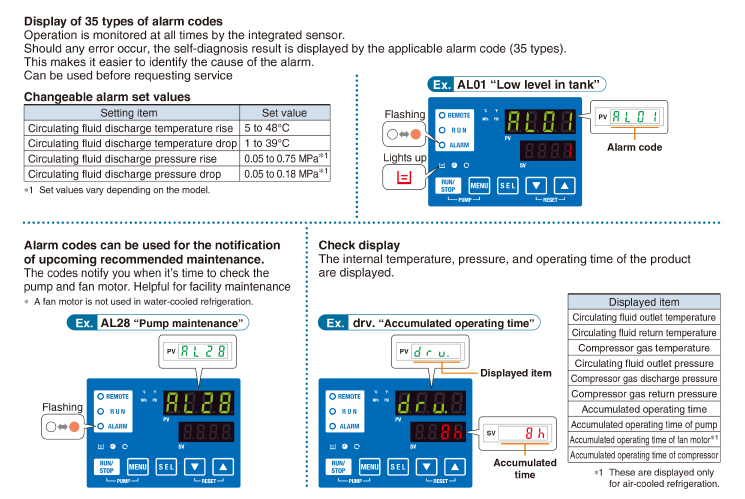

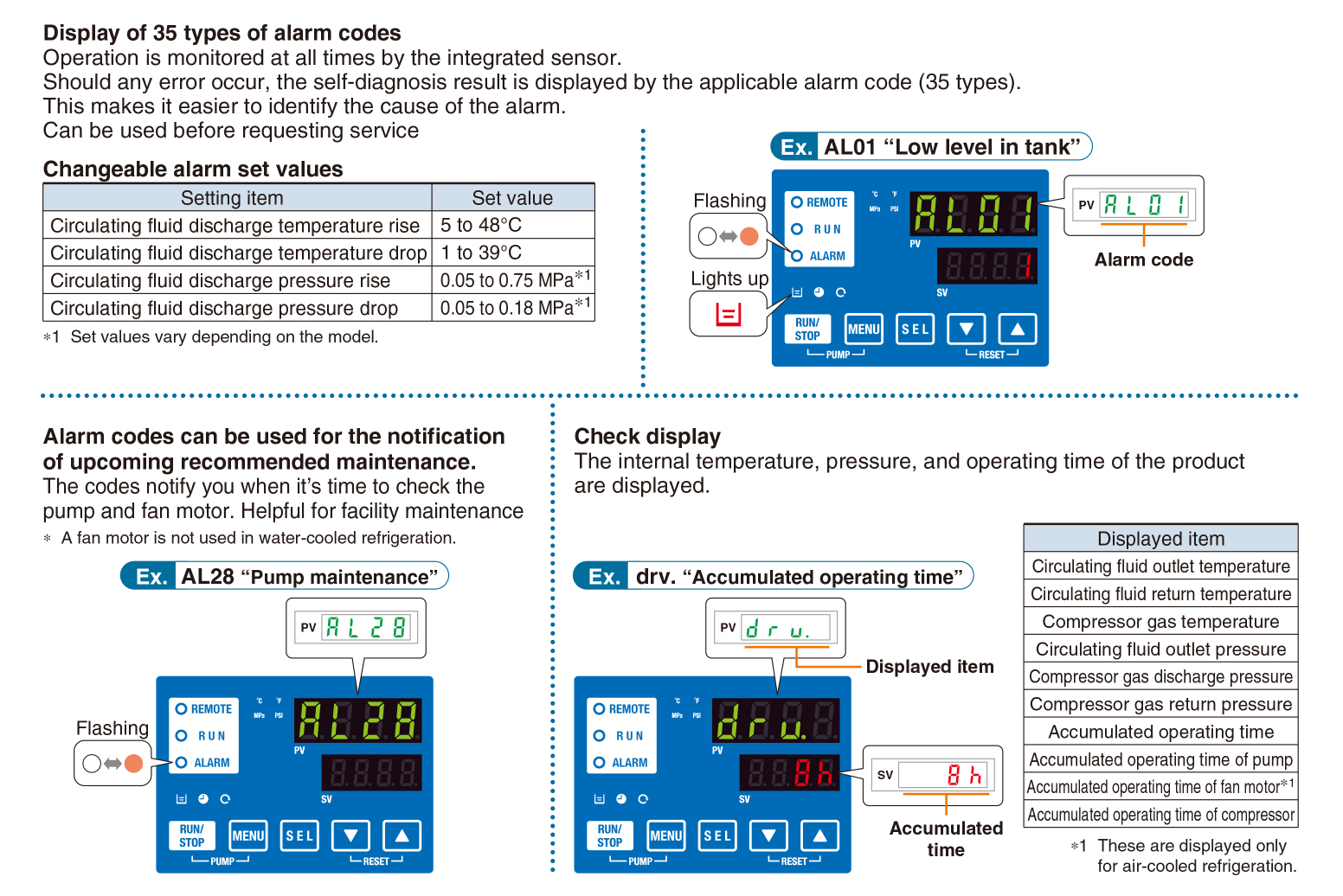

Self-diagnosis function and check display

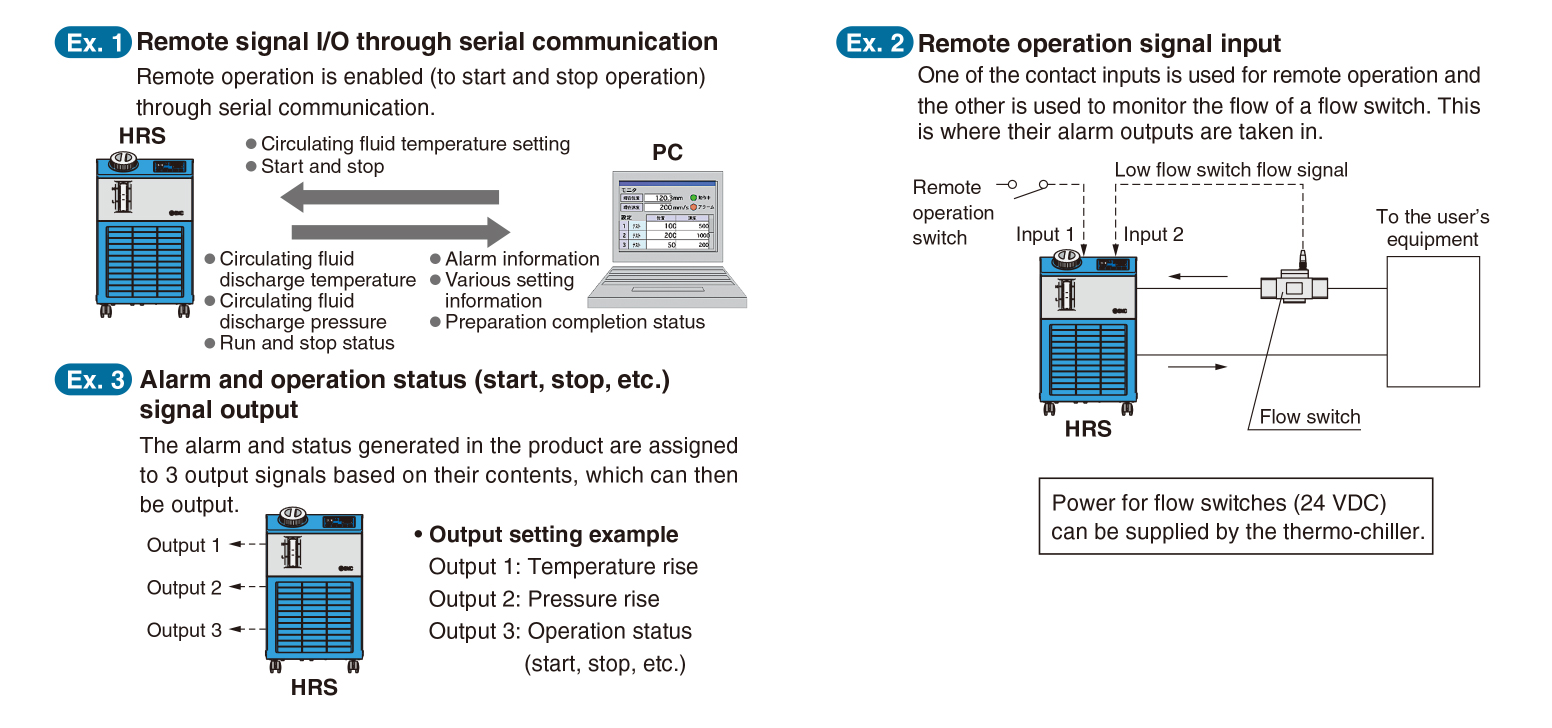

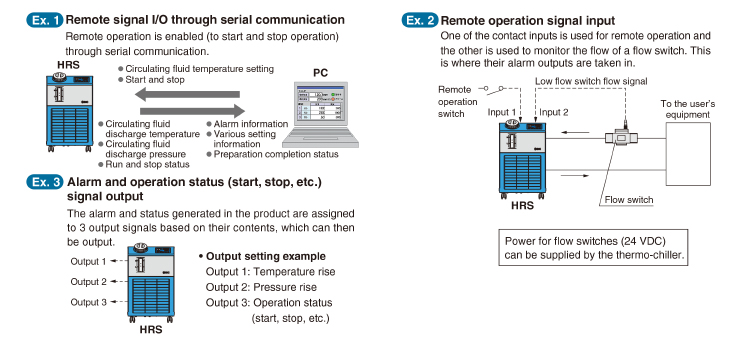

Communication function

Serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard. This allows for communication with the user’s equipment and system construction, depending on the application. A 24 VDC output can be also provided and is available for use with flow switches (SMC’s PF2W, etc.).

Global Supply Network

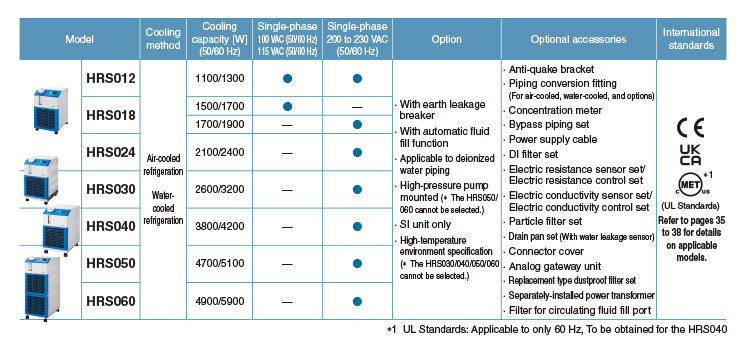

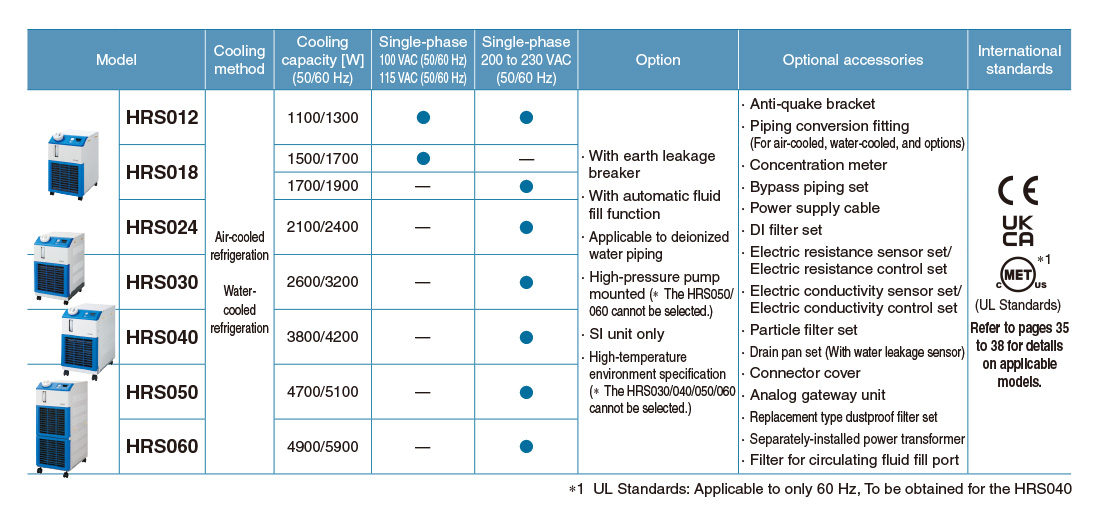

Variations

Lots of variations are available according to the users’ requirements.
