WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

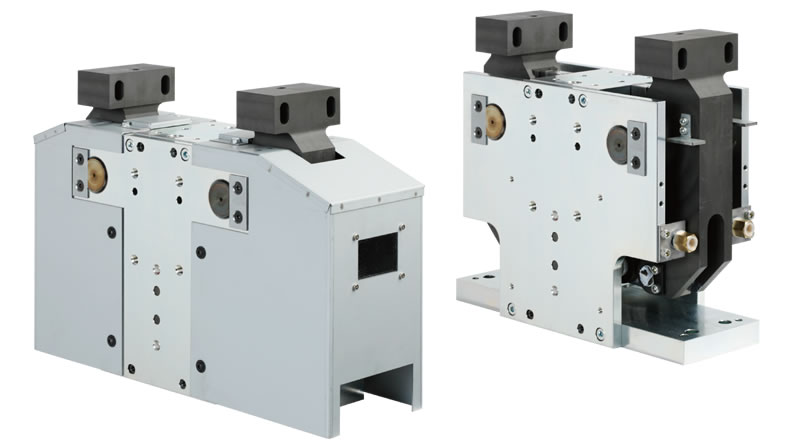

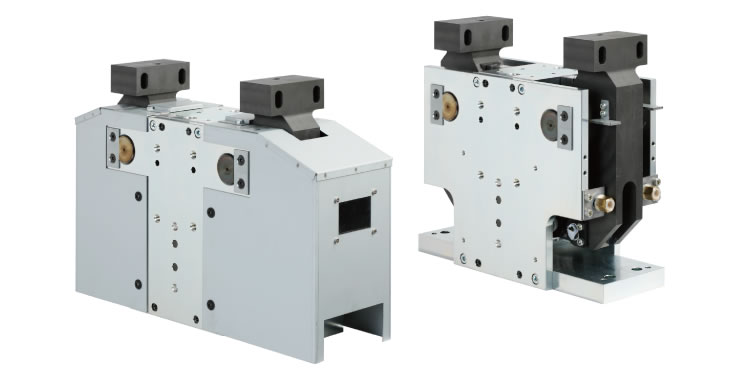

Frame Clamp Cylinder WRF100

  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesBore size (mm)Stroke (mm)
WRF10010048

Features

■High output 20,000 N (Operating pressure: At 0.5 MPa)

High clamping force makes it suitable for a broad range of applications

High repeatability

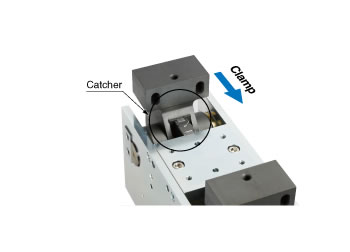

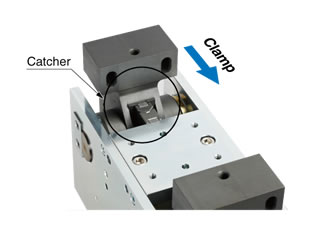

Catcher (detented positioning structure) is a standard feature for repeatable positioning.

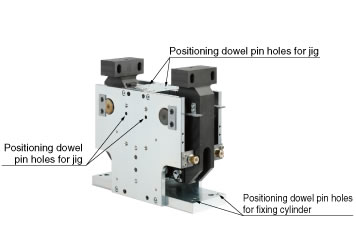

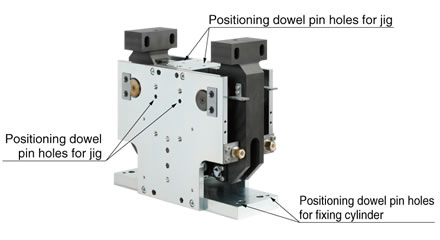

Dowel pin holes for repeatable mounting when reassembling

Allows for repeatable mount positioning in reassembly.

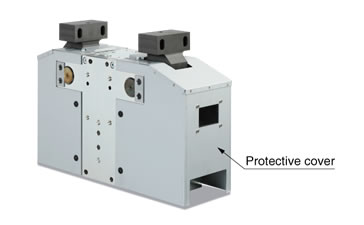

Optional spatter protective cover available

Modular structure allows easy assembly even after the cylinder is installed.

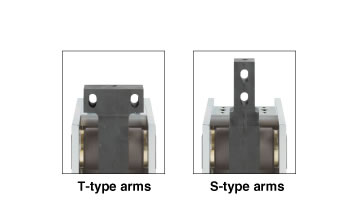

Standardized T-type arms and S-type arms

Shape selectable to meet specifications/application.
T-type arm width: 200, 240, 270 mm
S-type arm width: 200, 240 mm

Go Top
