Heavy Duty Stopper Cylinder RS2H

Manual

Type Series Action View search result

Flange RS2H Double acting
Double acting with spring
Single acting, spring extend View search result
Heavy Duty Stopper Cylinder RS2H

Symbol Specifications Download
-XC102 Made to Order Common Specifications Lock Release Specification PDF

Type	Series	Action	View search result
Flange	RS2H	Double acting Double acting with spring Single acting, spring extend	View search result

Symbol	Specifications	Download
-XC102 Made to Order Common Specifications	Lock Release Specification	PDF

Safety Instructions　Actuators/Precautions　Auto Switches/Precautions
Model Selection/Technical Data　Made to Order Common Specifications
Green Procurement (RoHS)

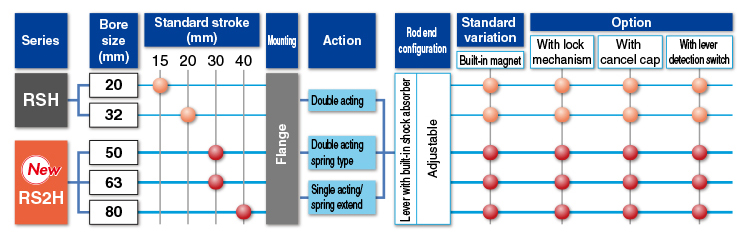

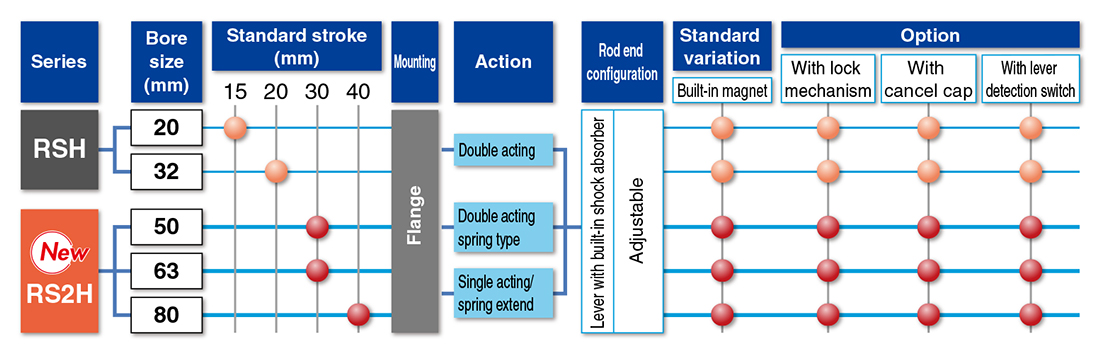

Type	Series	Action	Bore size（mm）
Flange	RS2H	Double acting Double acting with spring Single acting, spring extend	50，63，80

Features

■Light weight / compact

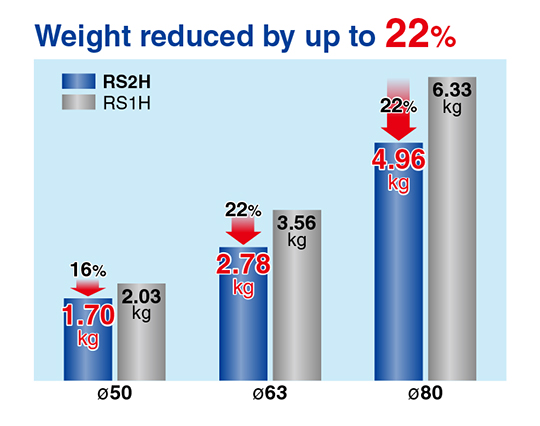

Weight: Reduced by up to 22%

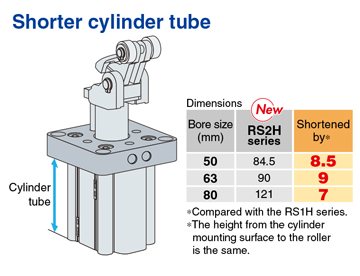

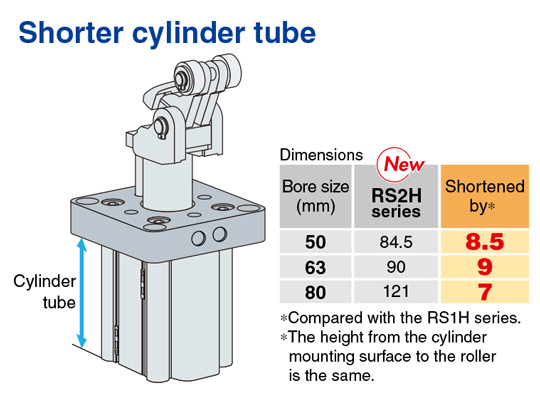

Cylinder tube: Shortened by up to 9mm

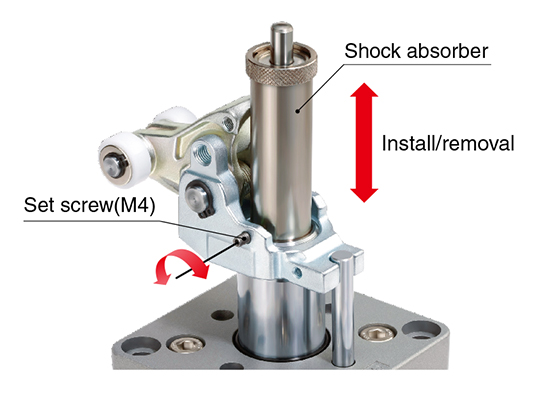

■Easy replacement of shock absorbers

Replaceable just by loosening the set screw

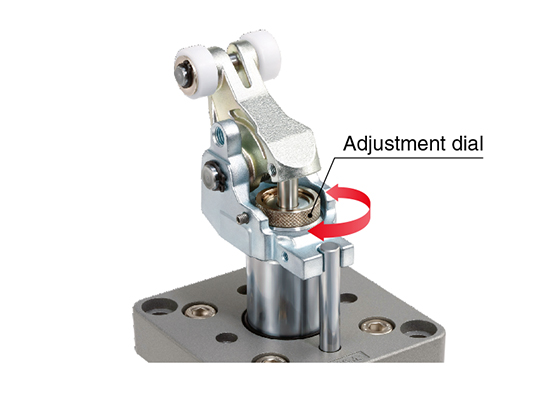

■Stop the workpiece gently with adjustable shock absorber.

Resistance value can be adjusted by rotating the adjustment dial.

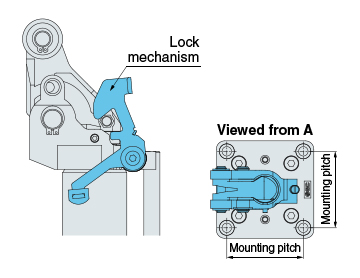

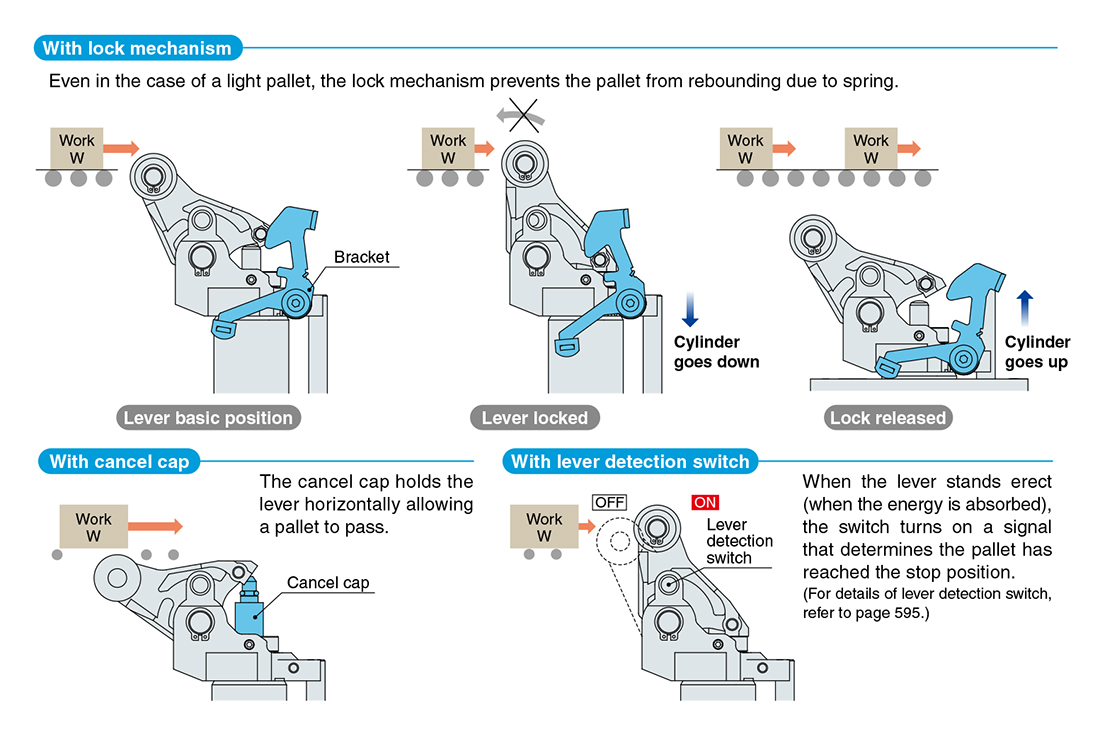

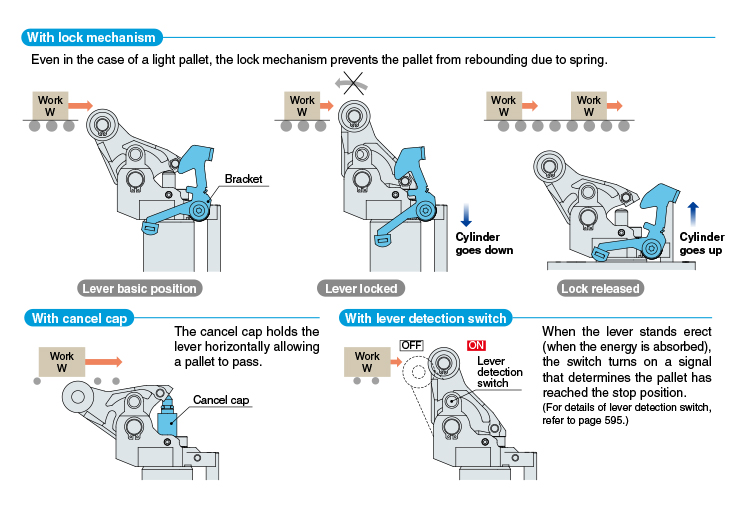

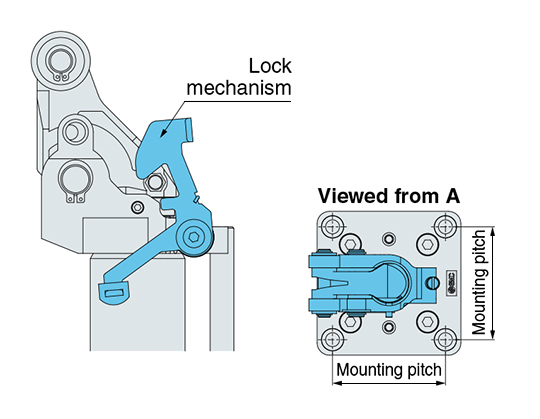

■Better handling and visibility of the lock mechanism (Option)

The shape of the lock is changed. Easy to unlock manually,
and instantly see whether it is locked.

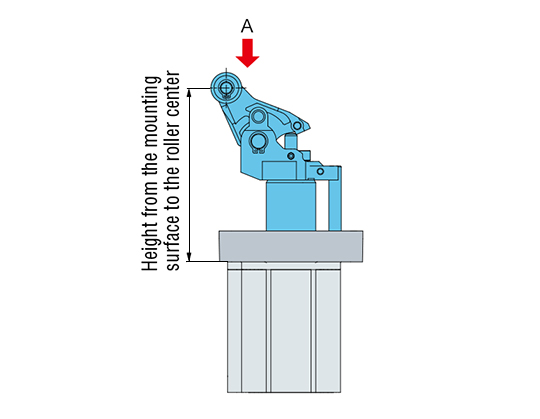

■Mounting is interchangeable with the current RS1H series.

Cylinder mounting pitch and the height from the mounting
surface to the roller center are interchangeable with the RS1H series.

■Compact auto switch (D-M9□) and magnetic
field resistant auto switch (D-P3DW) can be
mounted to three sides.

Compact auto switch can be directly mounted to round switch mounting groove.

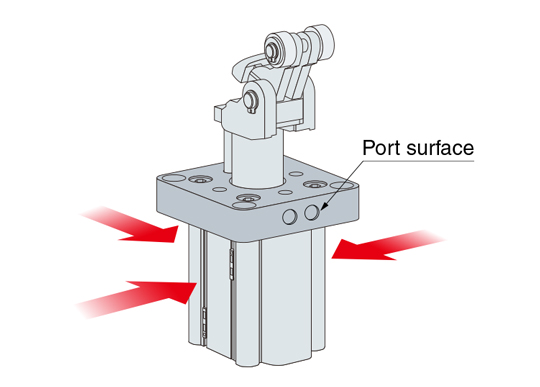

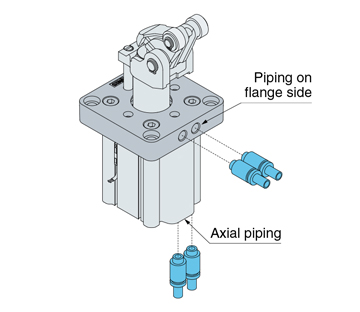

■Piping is available from 2 directions.

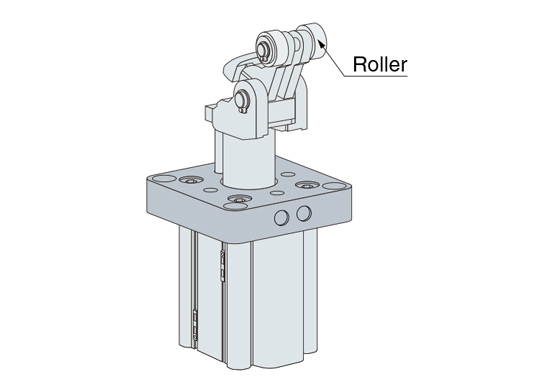

■The roller can be selected from two materials to suit the application.
(Resin, Carbon steel)

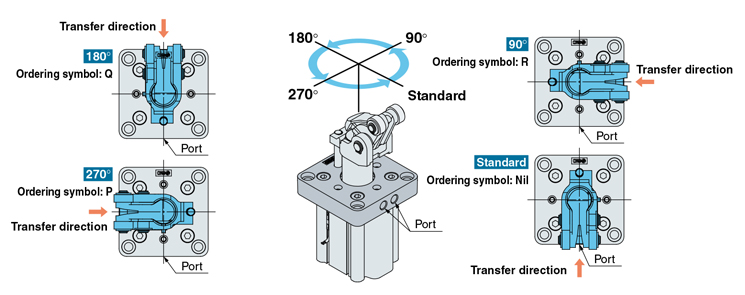

■The roller lever direction can be changed in 90° steps.

To adapt the roller lever of the stopper to the work piece direction,
the roller lever can be positioned in 4 different directions in 90° steps around the piston rod.
