Clamp Cylinders
Pin Clamp Cylinder Lateral Compact Type C(L)KQ32-X3445
-
?Lateral Compact Type

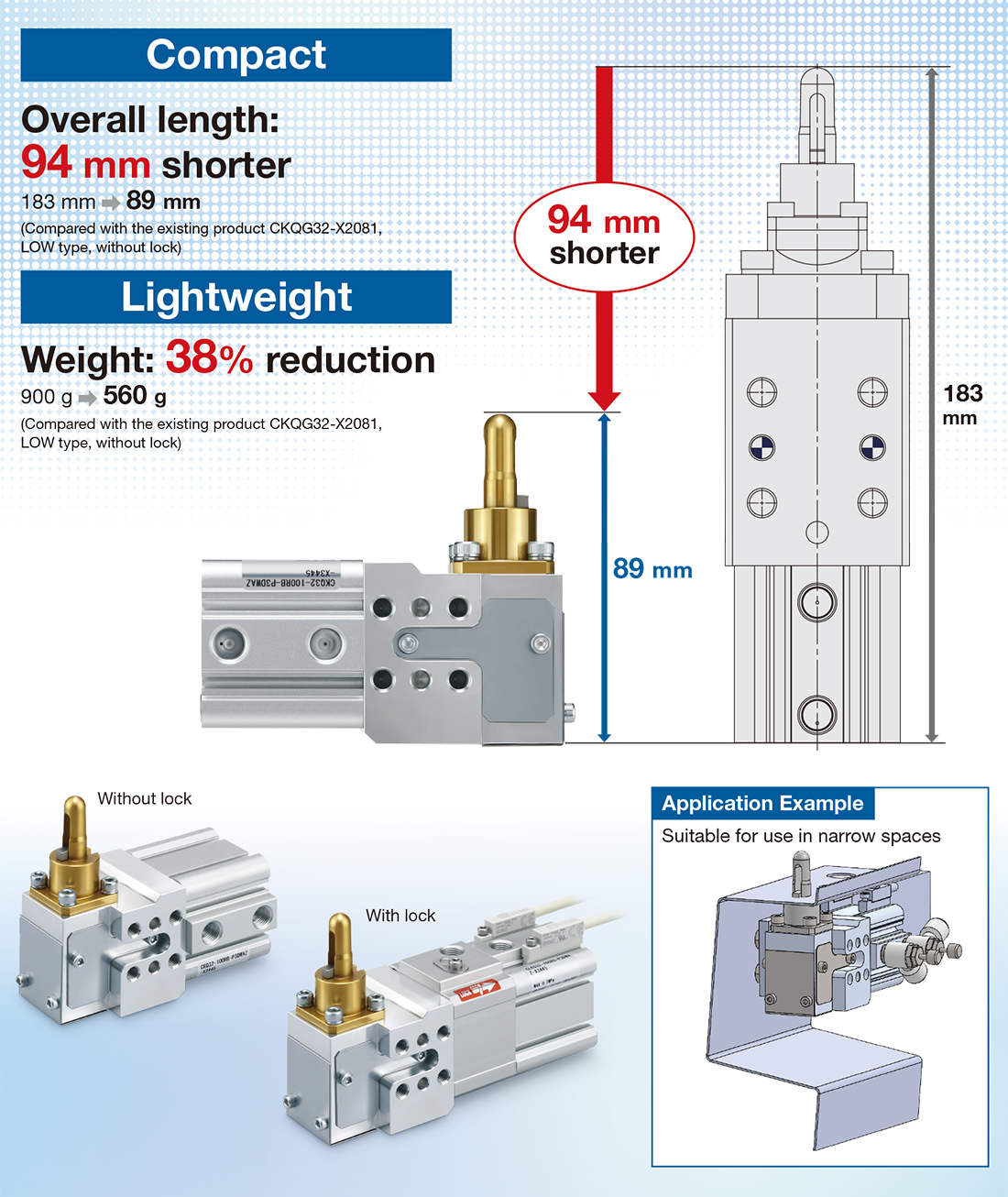

?Compact: Overall length: 94 mm shorter (183mm→89mm)?
?Lightweight: Weight: 38% reduction (900g→560g)?
? Compared with the existing product CKQG32-X2081, LOW type, without
lock
?Lock mechanism to prevent the dropping of workpieces during
emergency stops
?Various clamp arm positions and port positions are available.
?Mountable on 2 surfaces
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD
Safety Instructions Actuators/Precautions Auto Switches/Precautions
Model Selection/Technical Data Green Procurement (RoHS)
Model Selection/Technical Data Green Procurement (RoHS)
| Type | Series | Guide pin shape | Bore size（mm） |
|---|---|---|---|
| Lateral Compact Type Without lock | CKQ32-X3445 | Round type Diamond type | 32 |
| Lateral Compact Type With lock | CLKQ32-X3445 | Round type Diamond type | 32 |
Features
Lateral Compact Type

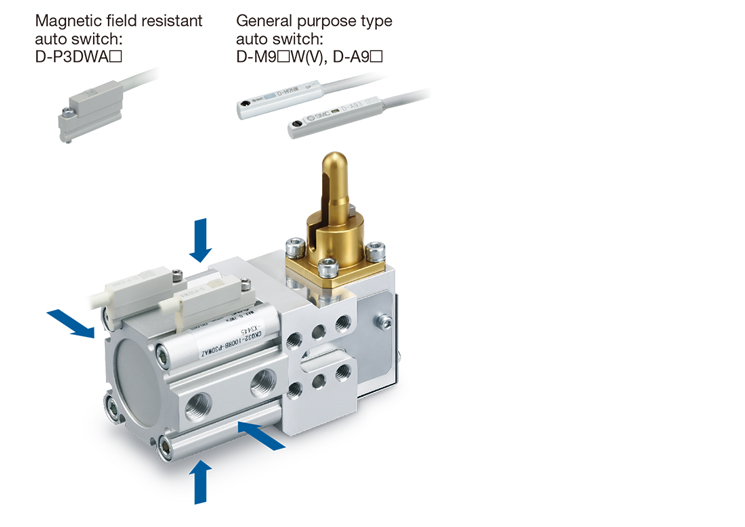

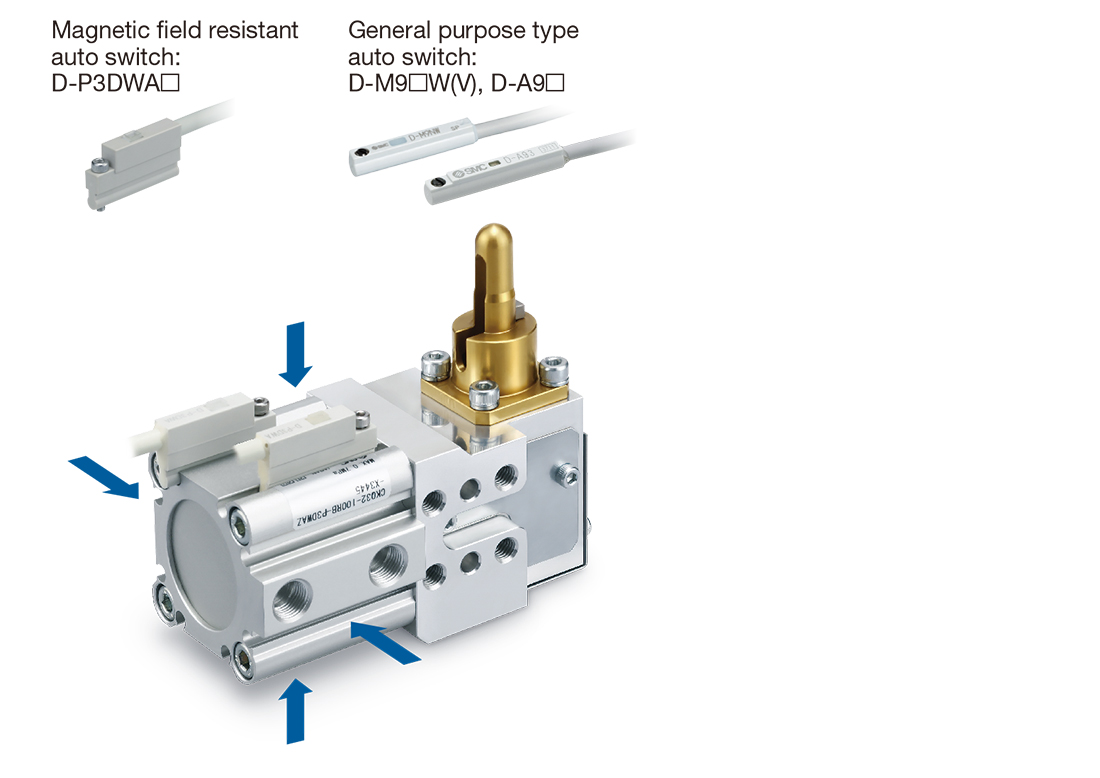

Auto switches are mountable on 4 surfaces.
Lock mechanism to prevent the dropping of workpieces during emergency stops

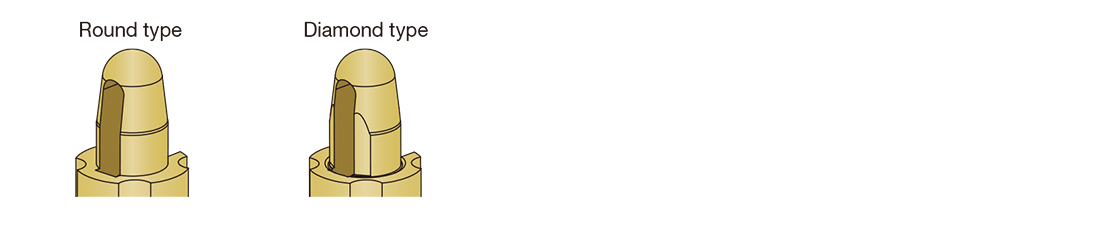

Guide pin shape: Round type/Diamond type
Fine adjustment of the clamping height is possible with shims. (Option)
? The clamping force changes depending on the clamping height. (Refer to Graph 1, “Relationship Between Clamping Height and Clamping Force,” for details.)

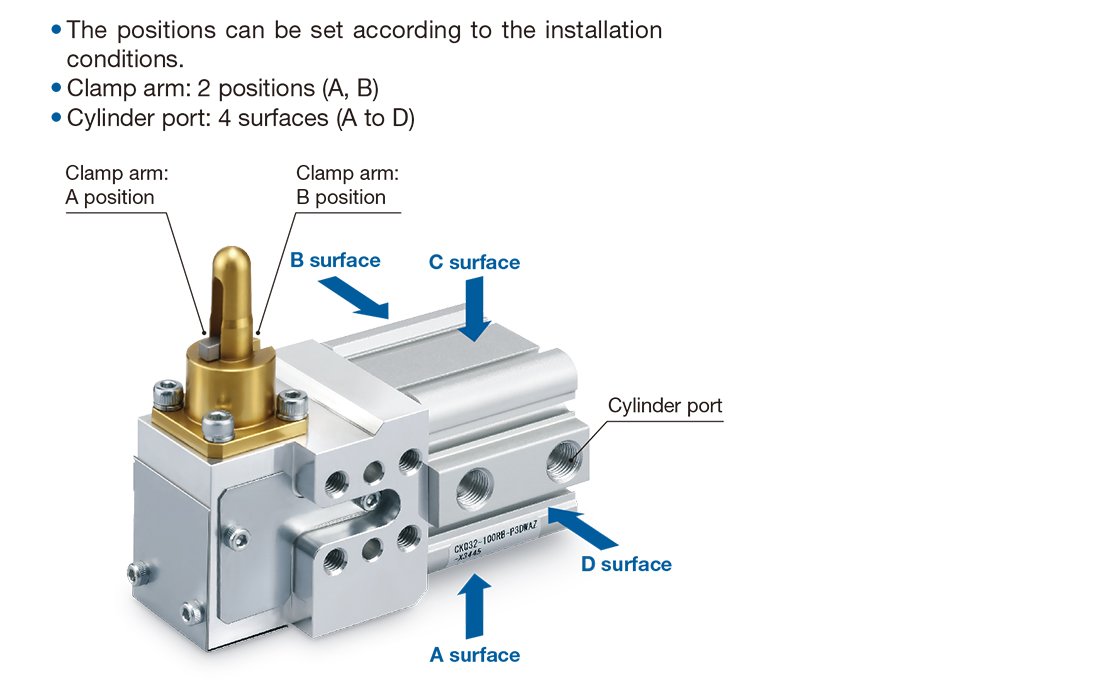

Various clamp arm positions and port positions are available.

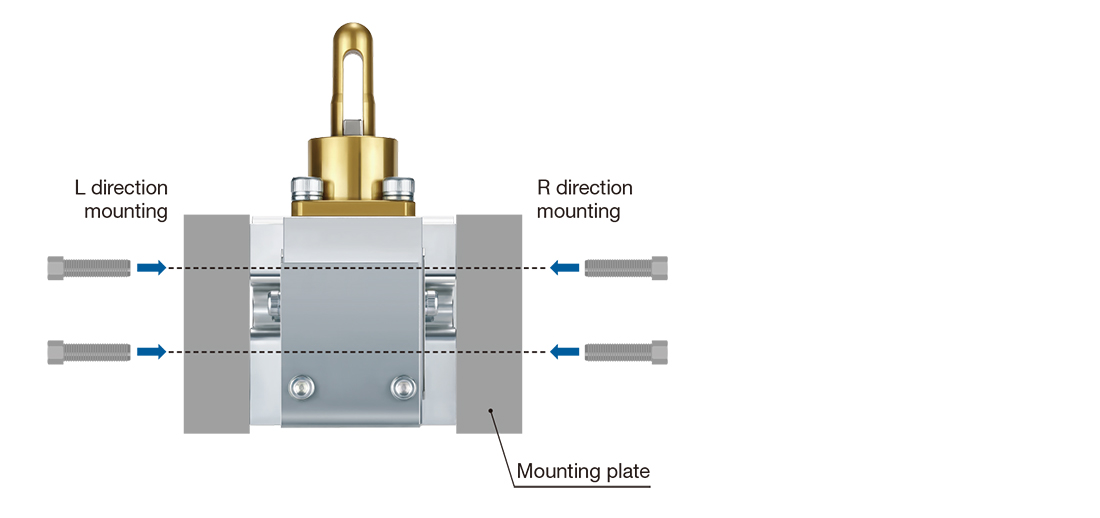

Mountable on 2 surfaces
