WEB Catalog

Product Information ?  WEB Catalog  ? Directional Control Valves  ? Pilot Operated 4/5 Port Solenoid Valves

Pilot Operated 4/5 Port Solenoid Valves

5-Port Solenoid Valve/Plug Lead Type S0700

    ?Valve width: 7.4 mm
    ?Driveable cylinders: Up to ?32 (Body ported)
    ?Power consumption: 0.35 W
    ?Weight: 39 g (Body ported)
    ?Manifold type no.: SS0752, SS0755

    ＊The EX510 series is to be discontinued. When designing new equipment
    　and facilities, consider using another series (EX260/EX600) instead.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 5-Port Solenoid Valve/Plug Lead Type S0700
    DoC
    Series View search result
    SS0752
    Body ported    		View search result
    SS0755
    Base mounted    		View search result
  • 5-Port Solenoid Valve/Plug Lead Type S0700
    Manifold
    Series View search result
    SS0752
    Body ported
    SS0755
    Base mounted    		View search result
SeriesFlow rate characteristics
1→4/2（P→A/B）
C［dm3/（s?bar）］		Flow rate characteristics
1→4/2（P→A/B）
Cv		Applicable
cylinder size		Power
consumption
(W)
SS0752
Body ported		0.620.18φ320.35
SS0755
Base mounted		0.390.11φ250.35

Features

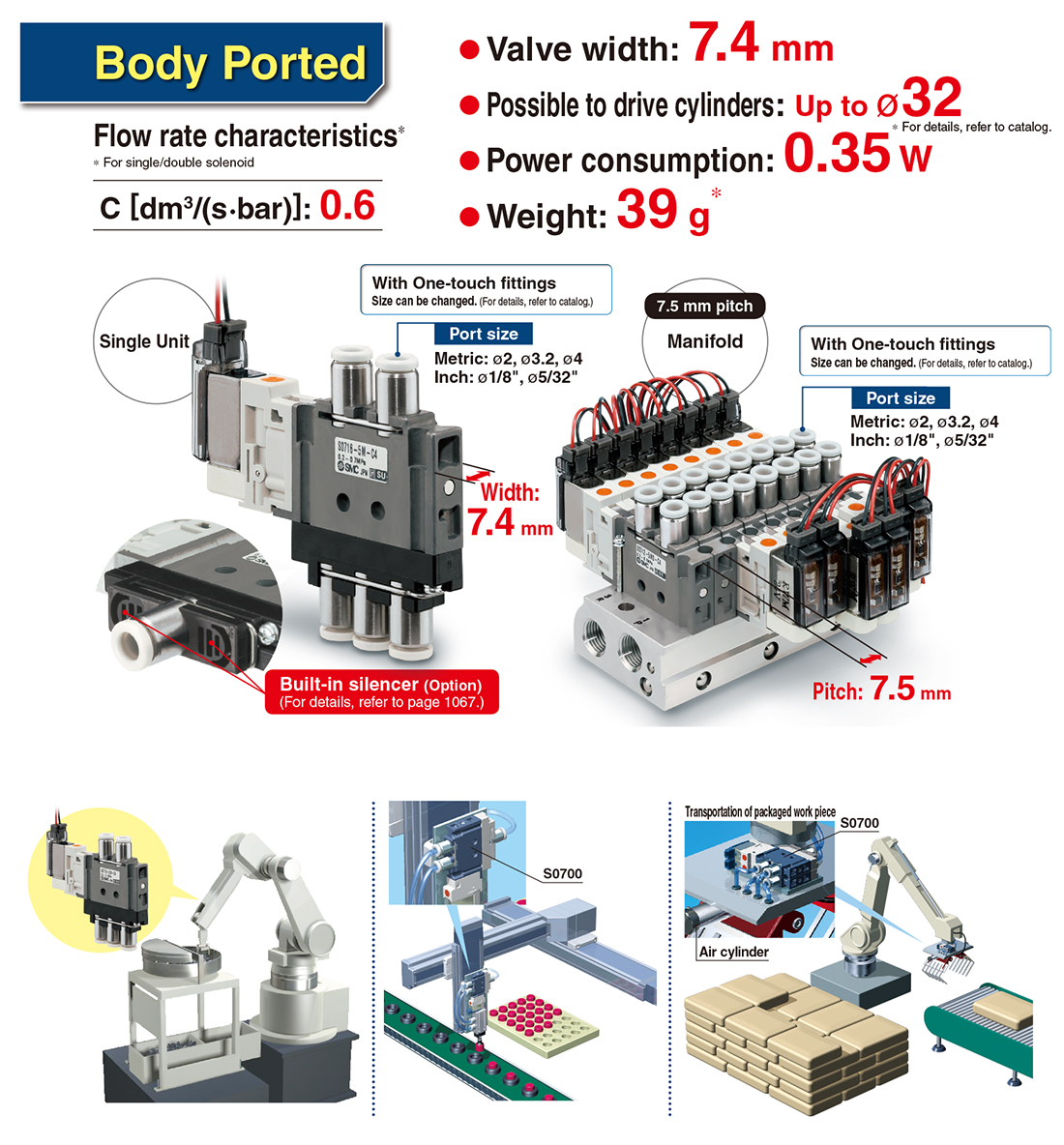

Body Ported

●Flow-rate characteristics：C[dm3/（s?bar）]：0.6
●Valve width：7.4mm
●Possible to drive cylinders：Up to ?32
●Power consumption：0.35 w
●Weight：39 g

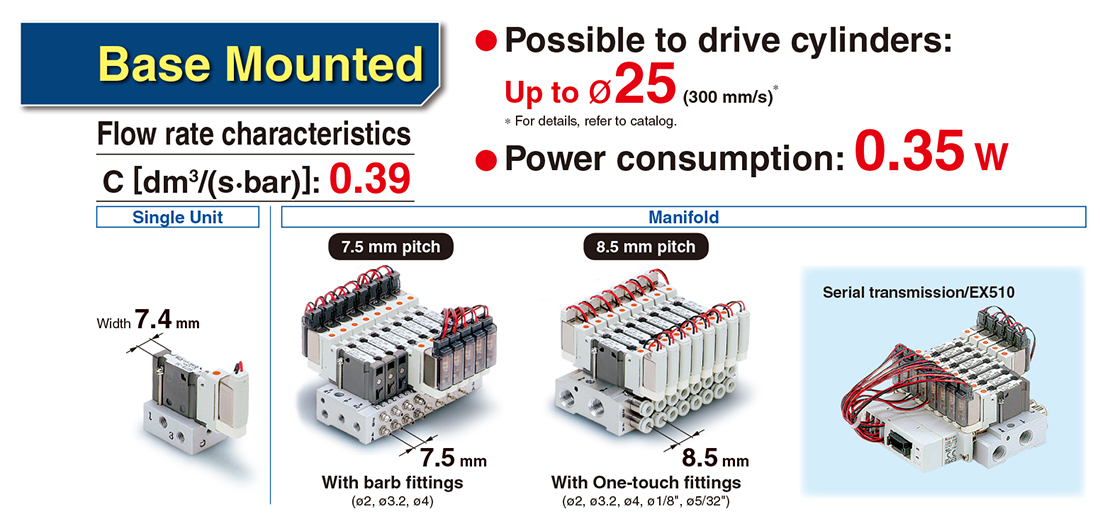

Base Mounted

●Flow-rate characteristics：C[dm3/（s?bar）]：0.39
●Valve width：7.4 mm
●Possible to drive cylinders：Up to ?25
●ower consumption：0.35 w

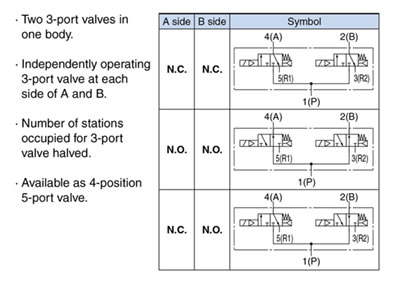

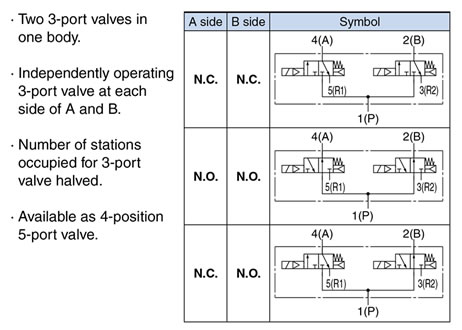

4-Position Dual 3-Port Valve

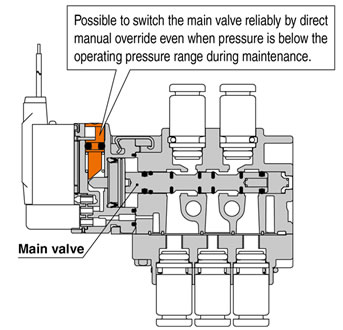

Adopted Direct Manual.
