Tubing(Tubing for Special Environments)
Flame Resistant (Equivalent to UL-94 Standard V-0)
FR 2-Layer Soft Polyurethane Tubing TRBU-X259
-
?Peeling of the outer layer not required to connect fittings
Reduced labor time, Improved workability
?Improved flexibility (Compared with the TRBU)
?Lightweight and compact
Weight: 57% reduction, Cross sectional area: 37% reduction (Compared with the TRBU0805)
?Suitable for air and water piping in environments where spot welding spatter may be a problem
?Increased flow rate due to I.D. expansion: Max. 69% improvement
(Comparison between the TRBU1208 and the TRBU1210-X259)
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TRBU-X259 | φ3.2，φ4，φ6，φ8，φ10，φ12 (Some products are available as a special order. Please refer to the catalog for details.) | Black, White, Red, Blue, Yellow, Green (Some products are available as a special order. Please refer to the catalog for details.) | Air, Water |

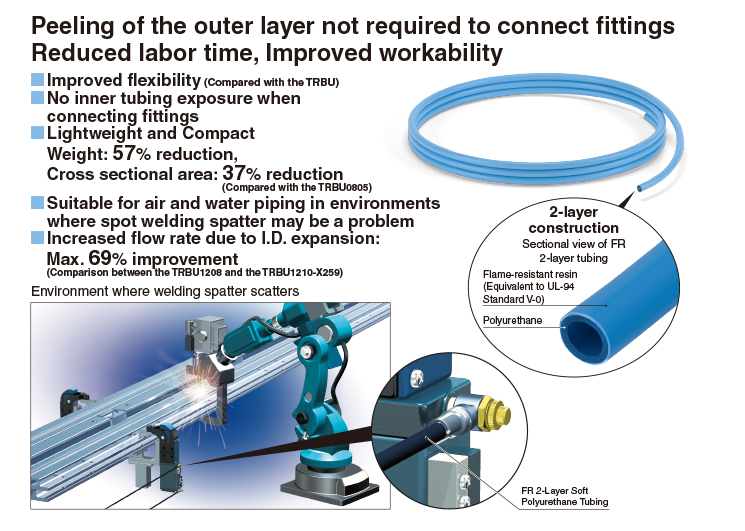

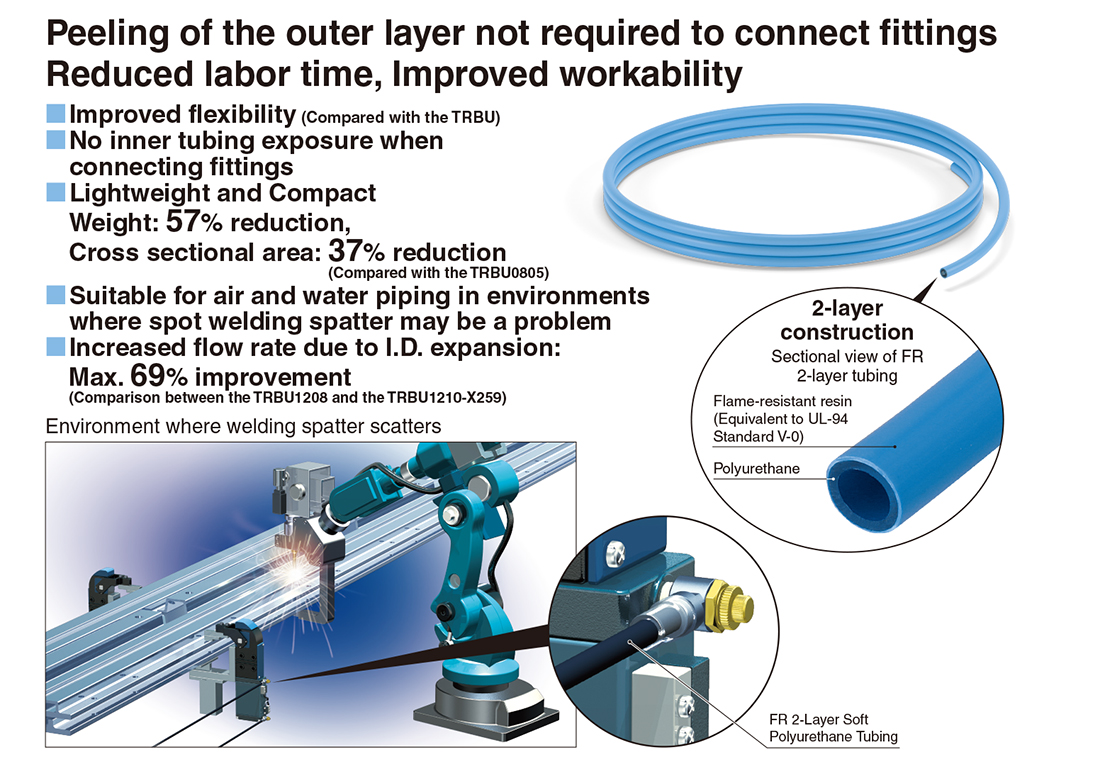

Features
Peeling of the outer layer not required to connect fittings
Reduced labor time, Improved workability

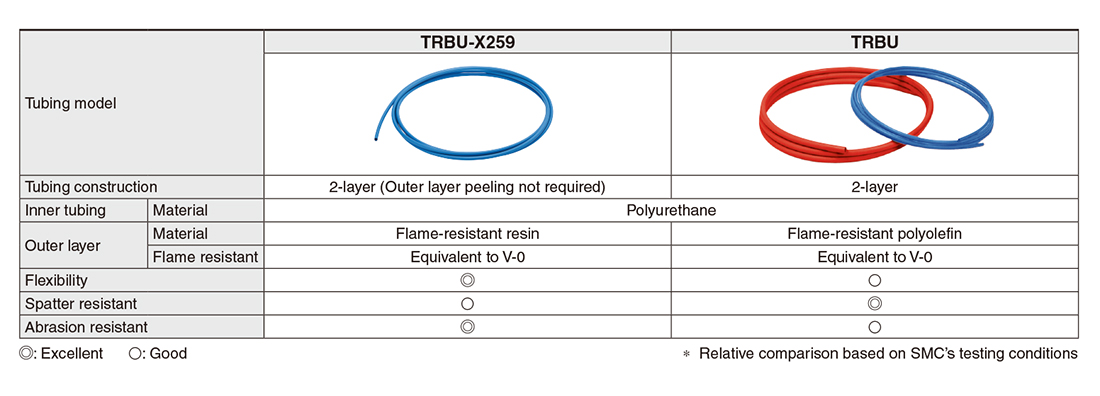

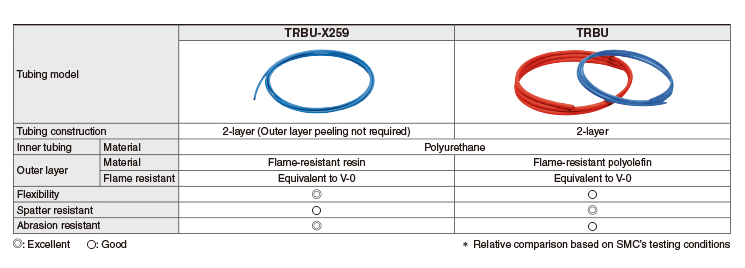

Series Comparison
