WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Guide Cylinders

Guide Cylinders

Compact Guide Cylinder MGPK

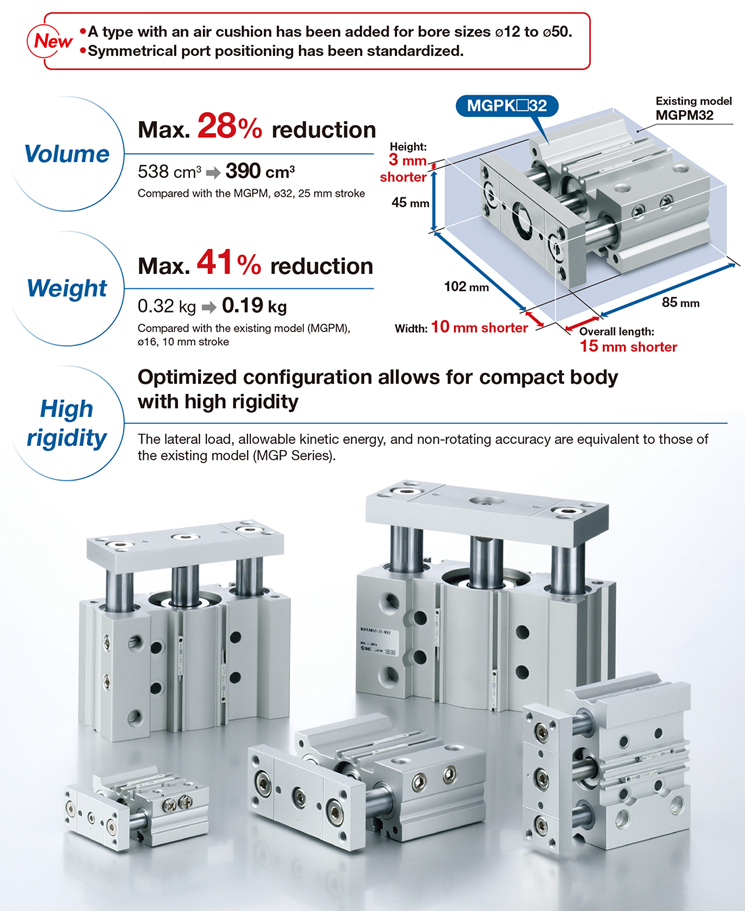

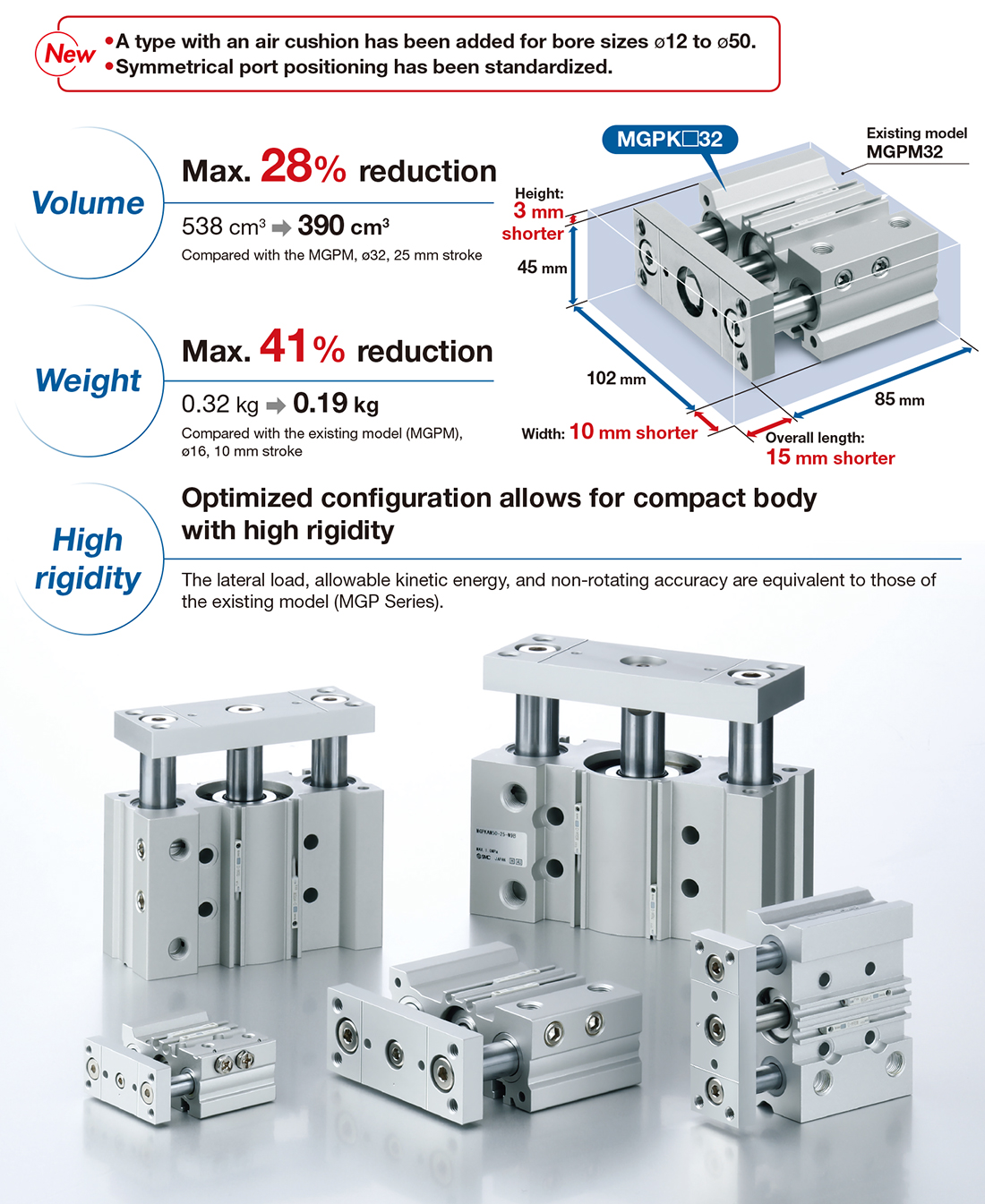

    ?Volume: Max. 28% reduction (538 cm3 → 390 cm3)
    ?Weight: Max. 41% reduction (0.32 kg → 0.19 kg)
    ?High rigidity: Optimized configuration allows for compact body with high
    　rigidity

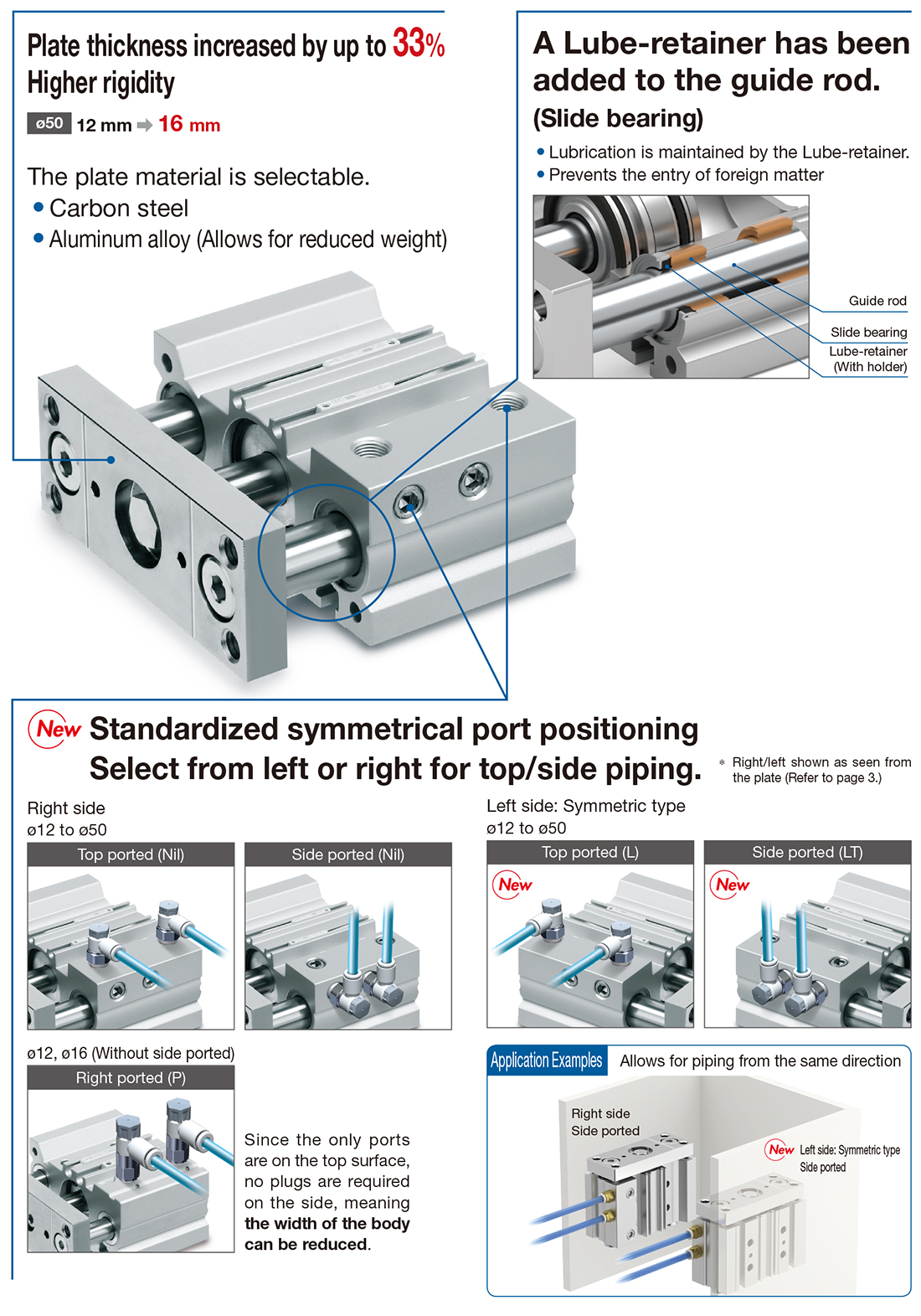

    　Plate thickness increased by up to 33%, Higher rigidity
    ?A Lube-retainer has been added to the guide rod.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD

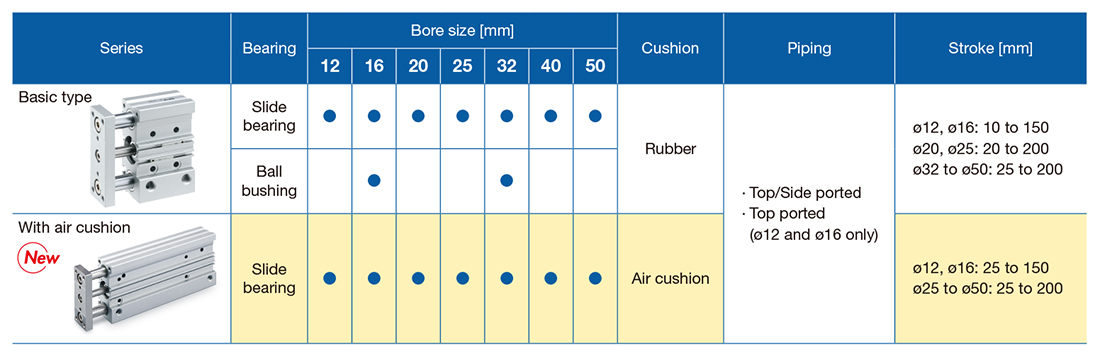

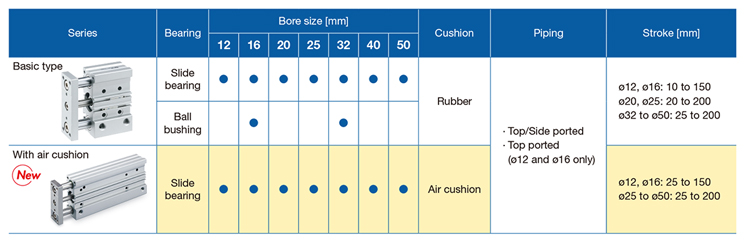

TypeBearingSeriesActionBore size (mm)
Basic typeSlide bearingMGPKDouble acting12，16，20，25，32，40，50
Basic typeBall bushingMGPKLDouble acting16，32
With air cushionSlide bearingMGPKM-HDouble acting12，16，20，25，32，40，50

Features

Volume: Max. 28% reduction, Weight: Max. 41% reduction

Features

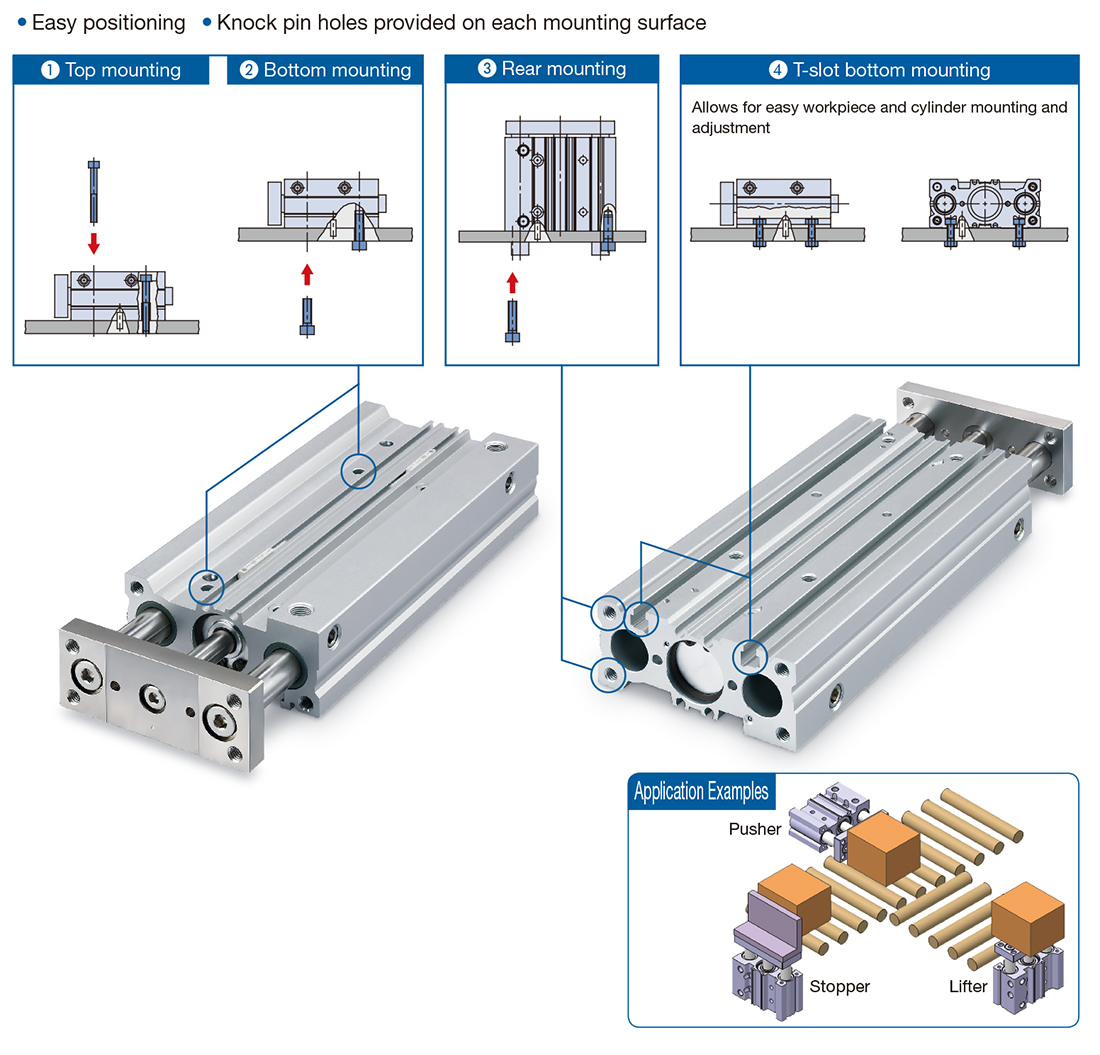

4 types of mounting are possible.

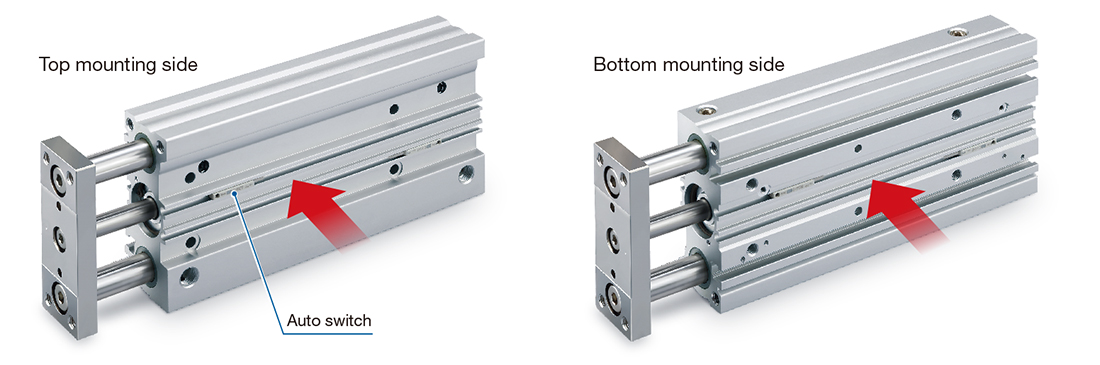

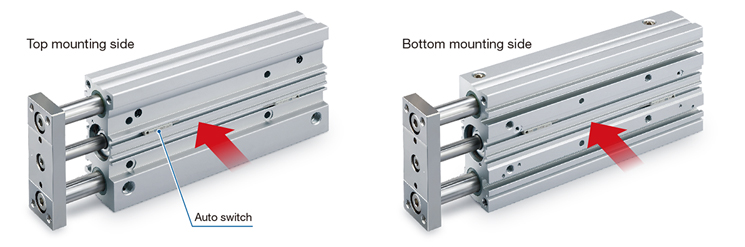

Small auto switches can be directly mounted on 2 surfaces. D-M9□ D-A9□

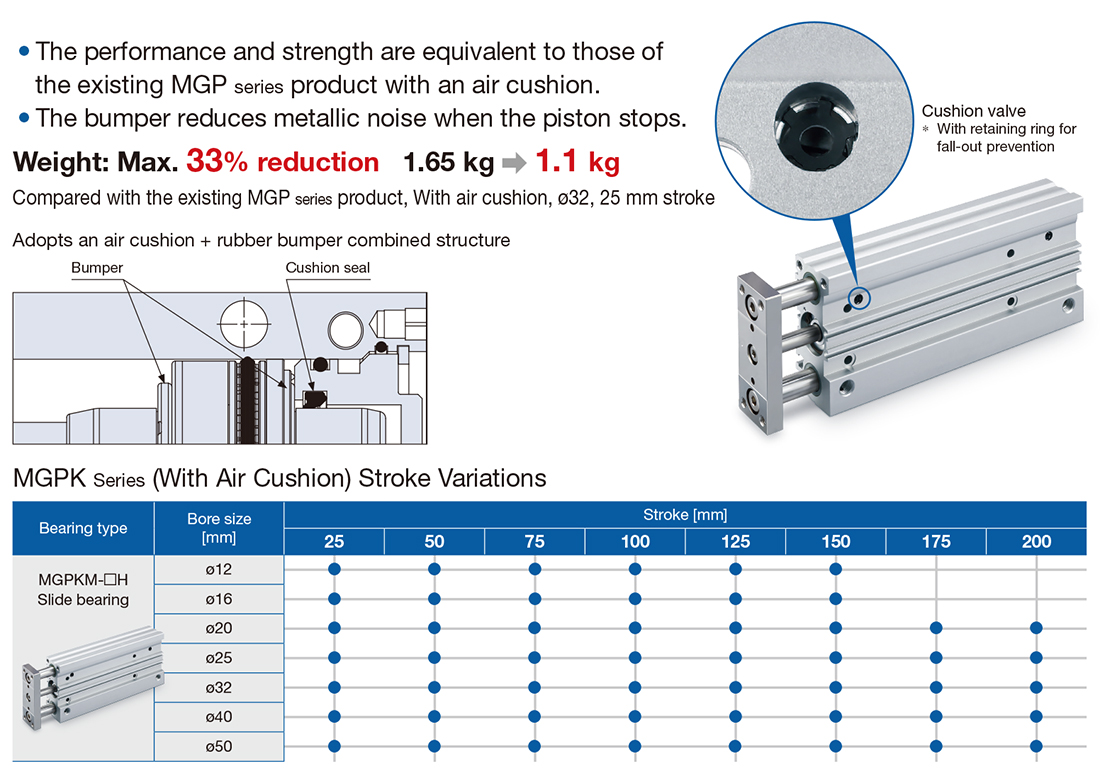

A type with an air cushion has been added. New

Compact Guide Cylinder Variations
