Compact 2/3 Port Solenoid Valves/Air Operated Valves
Pinch Valve LPV
-
?A 3-port type has been added. [New]
Valve type
N.C. on one side (Normally in clamping position)
N.O. on one side (Normally in unclamping position)

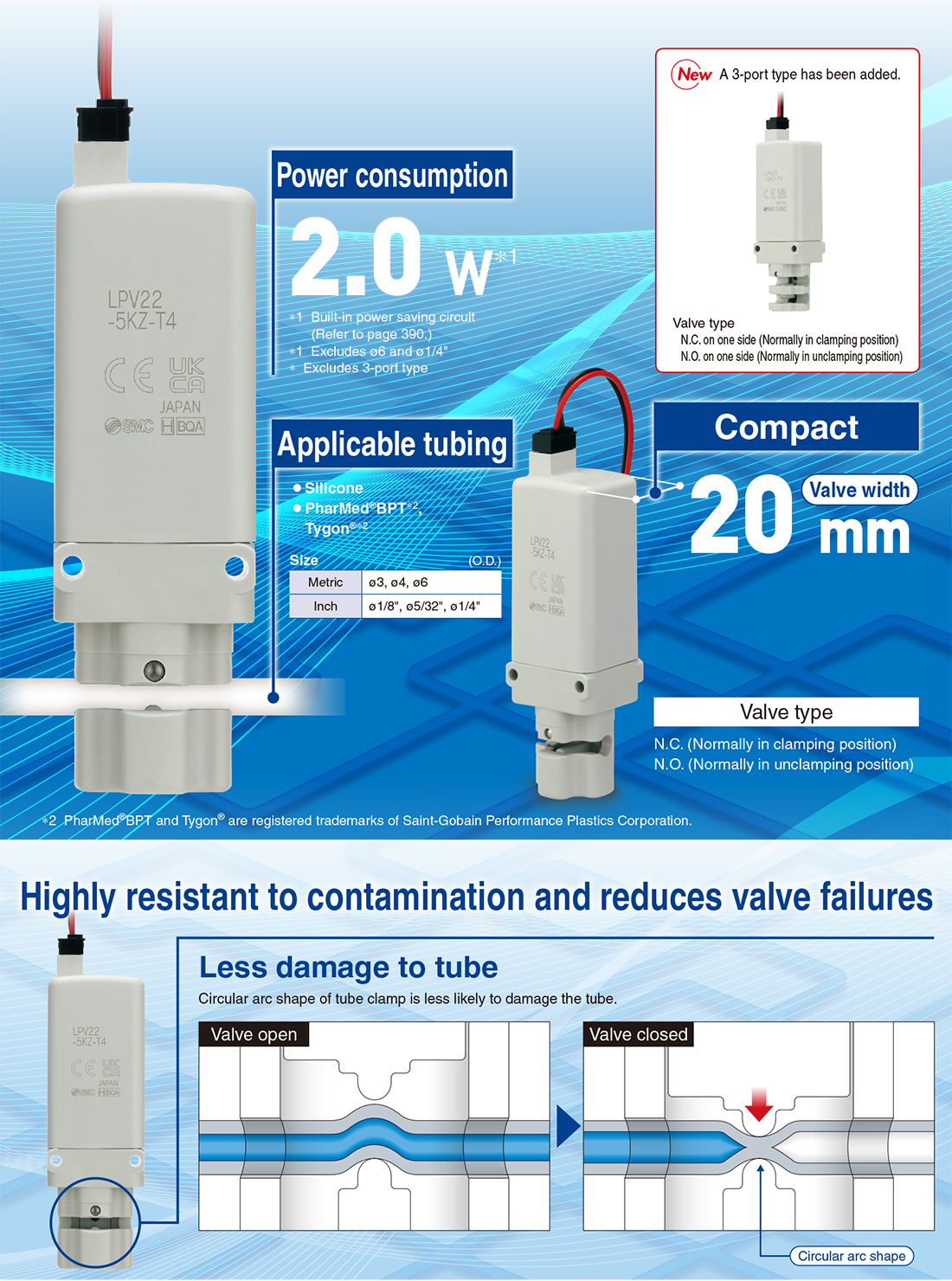

?Highly resistant to contamination and reduces valve failures
?Applicable tubing:
Silicone, PharMed?BPT, Tygon?
?Power consumption: 2.0 W
?Compact: Valve width 20 mm
?Easy tubing replacement
-
2D CAD
Click here for 2D CAD
Safety Instructions 2 Port Solenoid Valves for Fluid Control Precautions Series Variations Green Procurement (RoHS)
| Series | Type of actuation | Valve type | Applicable tubing |
|---|---|---|---|
| LPV | Direct operated solenoid | N.C. N.O. | Silicone, PharMed?BPT“Hardness of 64 (shore A) or lower (reference)” |
Features
Pinch Valve LPV Series

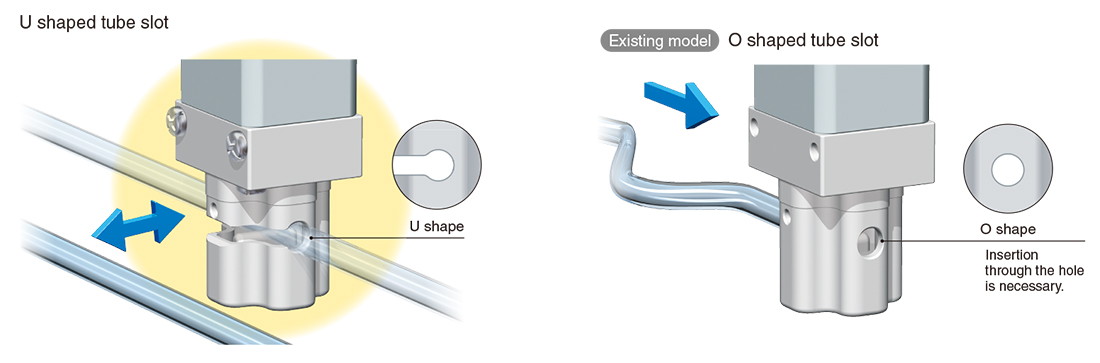

Easy tubing replacement

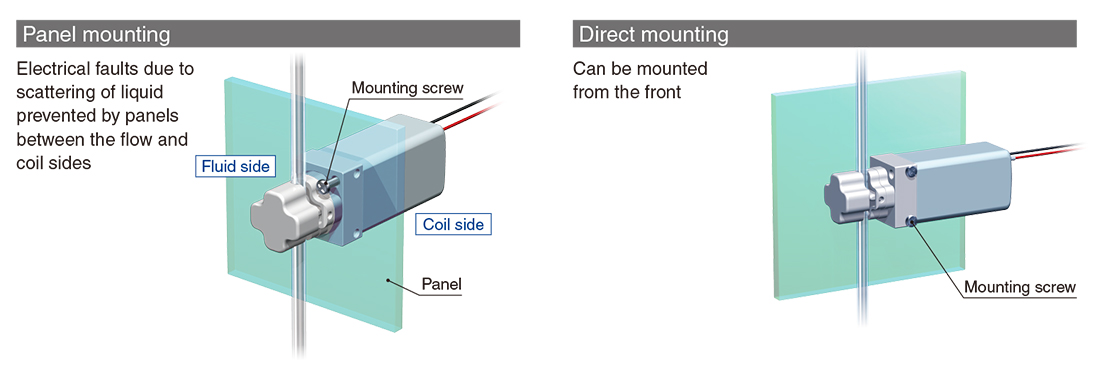

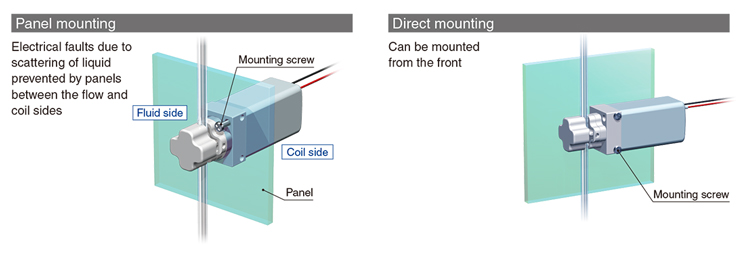

2 patterns of mounting

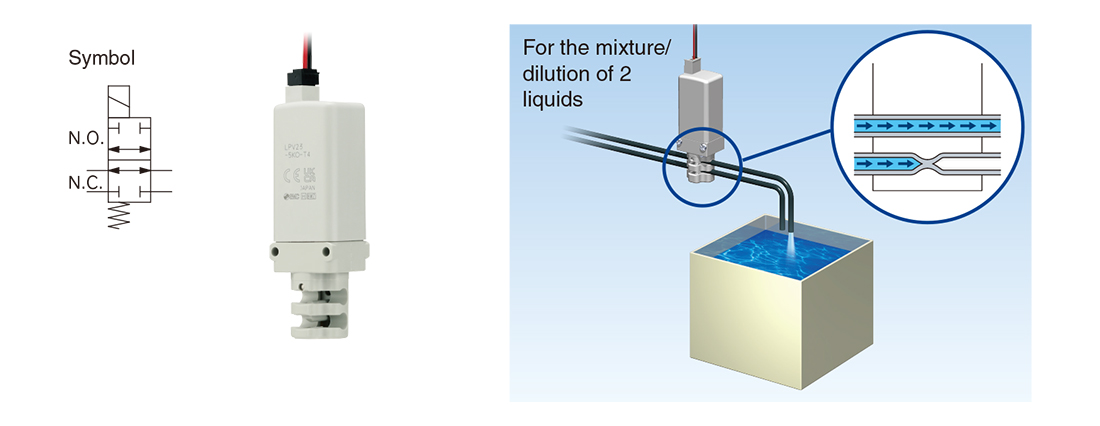

3-port type has been added. New
Application Examples
