WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? ISO Cylinders: ISO Standards (6432)

ISO Cylinders: ISO Standards (6432)

ISO Cylinder C85
Air Cylinder C75

    ?Compliant with ISO Standards (6432) (C85)
    ?Part numbers for actuators with mounting brackets, rod end brackets, and auto switches are now available.
    　As it is no longer necessary to order the bracket and the applicable cylinder separately, ordering time can be reduced.
    ?Easy fine adjustment of auto switch position
    ?Transparent switch bracket improves visibility of indicator LED.
    ?With auto switch
    　C85 Series: CD85, CD85W, CD85K, CD85R
    　C75 Series: CD75, CD75W, CD75K, CD75R
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
TypeSeriesActionBore size (mm)
StandardC85Double acting, Single rod8，10，12，16，20，25
StandardC85Double acting, Double rod8，10，12，16，20，25
StandardC85Single acting, Single rod8，10，12，16，20，25
Non-rotating rodC85Double acting, Single rod8，10，12，16，20，25
Non-rotating rodC85Single acting8，10，12，16，20，25
Direct mountC85Double acting, Single rod8，10，12，16，20，25
StandardC75Double acting, Single rod32，40
StandardC75Double acting, Double rod32，40
StandardC75Single acting32，40
Non-rotating rodC75Double acting, Single rod32，40
Non-rotating rodC75Single acting32，40
Direct mountC75Double acting, Single rod32，40

Features

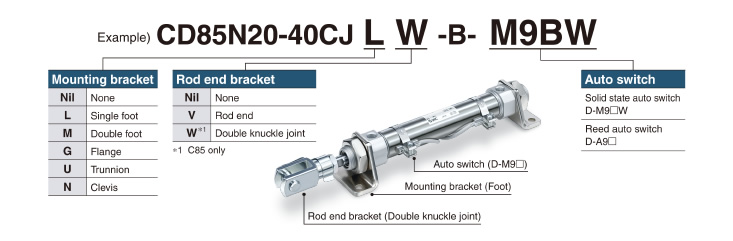

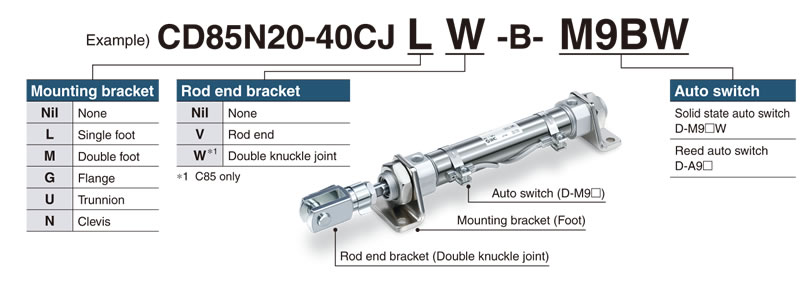

■Part numbers set for actuators with mounting brackets, rod end brackets and auto switches available.

Now it is not necessary to order a bracket and the applicable cylinder separately, which can save time.

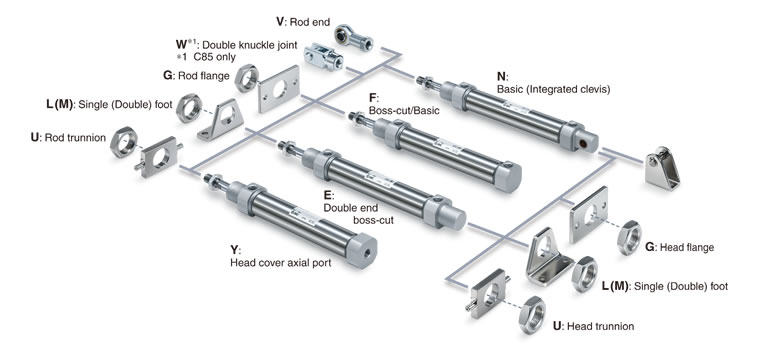

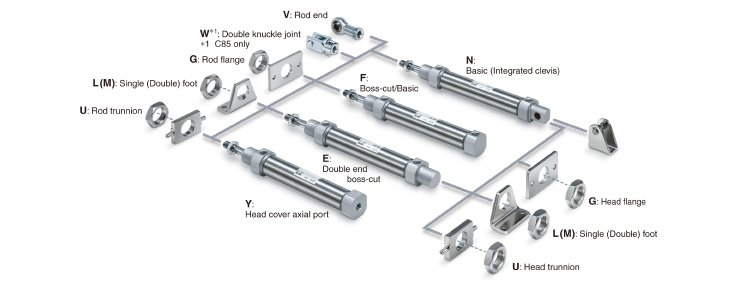

■Various mounting bracket options

?Suitable mounting brackets can be selected for the installation condition.
?Improved amount of mounting freedom

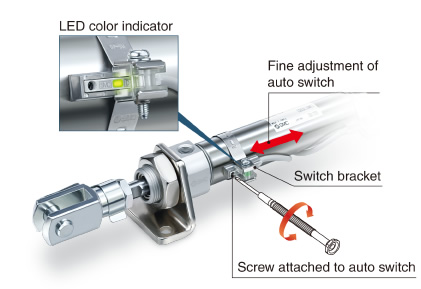

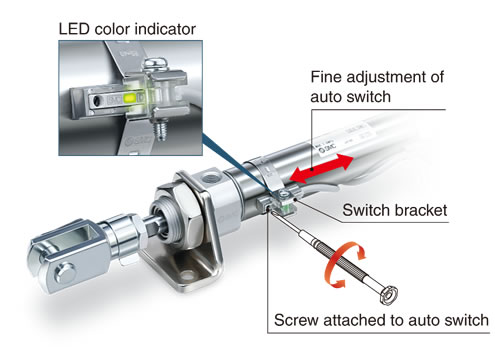

■Easy fine adjustment of auto switch position

Fine adjustment of the auto switch position is possible by simply loosening the screw attached to the auto switch.

■Transparent switch bracket improves visibility of indicator LED.
■Made to Order

?Change of rod end shape: -XA0 to 30
?Heat resistant cylinder (?10 to 150° C): -XB6
?Made of stainless steel: -XC6 □ etc. are added.　

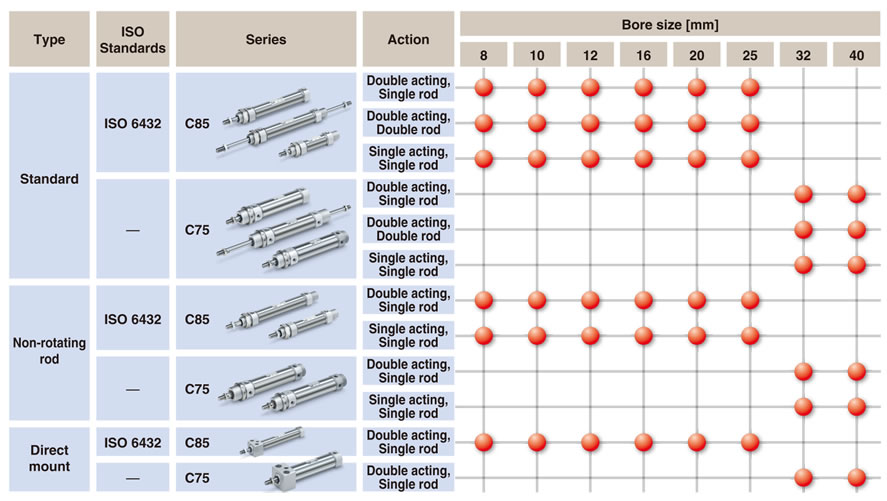

■Series Variations
