Air Dryers
Modular Connection Type Membrane Air Dryer IDG-D
-

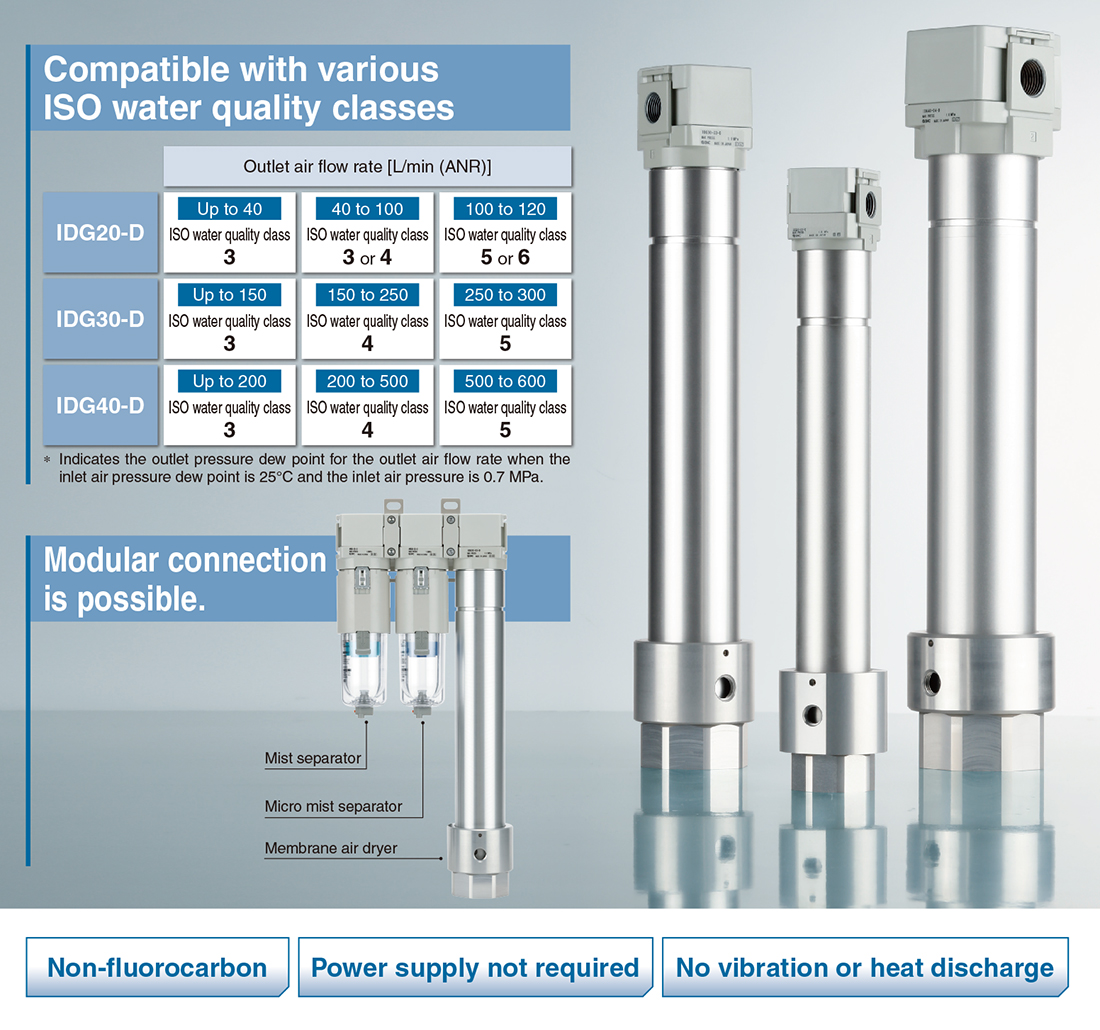

?Compatible with various ISO water quality classes
?Modular connection is possible.
?Non-fluorocarbon
?Power supply not required
?No vibration or heat discharge
?Contributes to energy saving

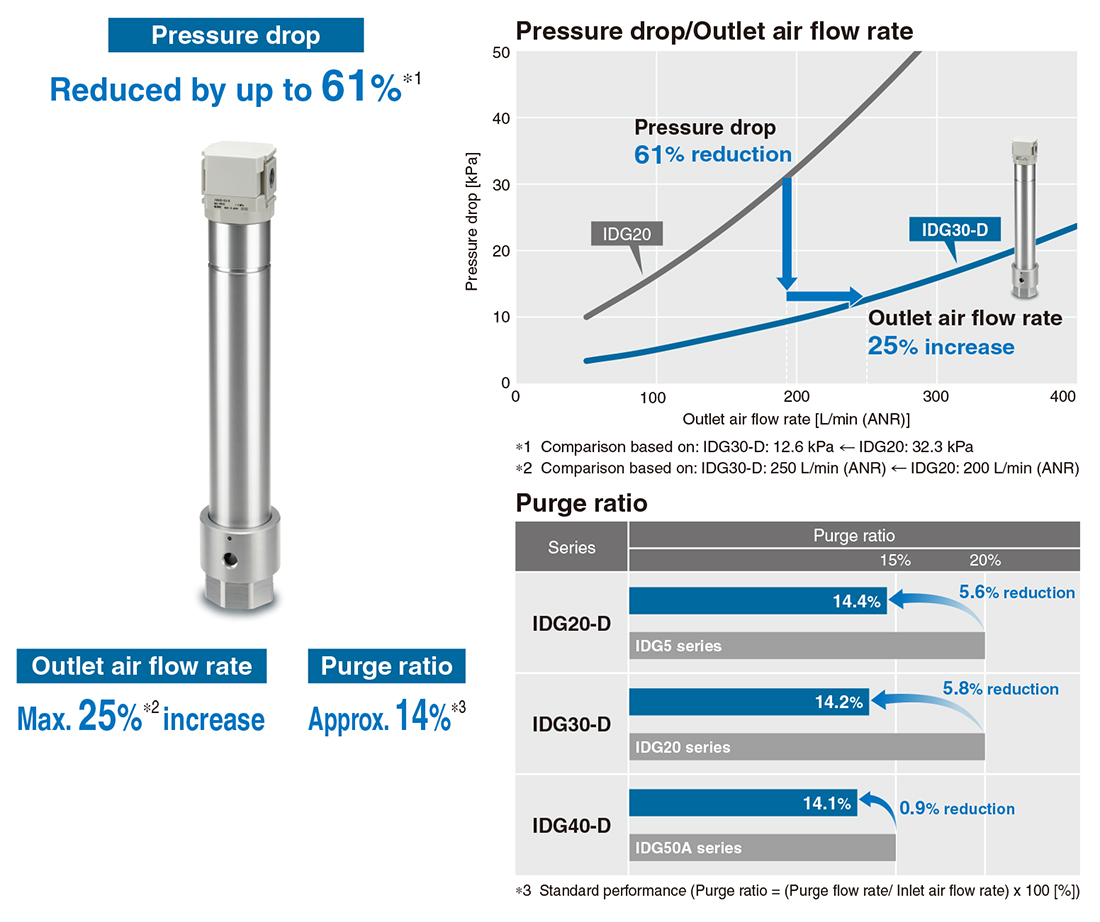

Pressure drop: Reduced by up to 61%
Outlet air flow rate: Max. 25% increase
Purge ratio: Approx. 14%
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Modular Connection Type Membrane Air Dryer IDG-D
Manual
Series View search result IDG20-D View search result IDG30-D View search result IDG40-D View search result
Safety Instructions Air Preparation Equipment/Precautions
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS)
Model Selection Guide/Quick Reference Guide Green Procurement (RoHS)

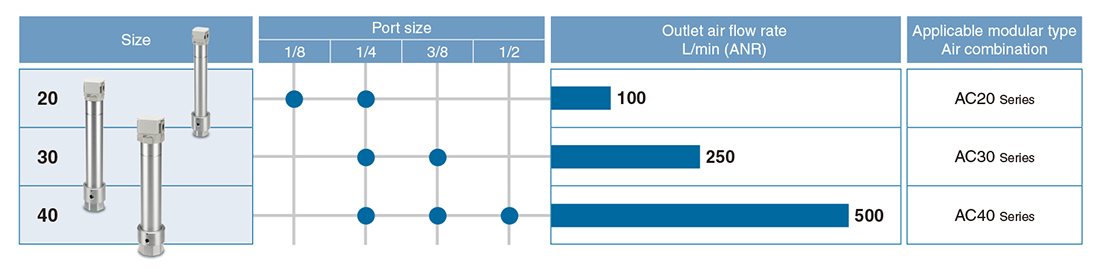

| Series | Standard inlet conditions | Outlet air flow rate L/min (ANR) | Pressure dew point (℃) | Water quality class | Applicable AC size | Port size |
|---|---|---|---|---|---|---|
| IDG20-D | 25℃, 0.7 MPa | 100 | 3 | 4 | AC20 | Rc, NPT, G 1/8, 1/4 |
| IDG30-D | 25℃,0.7 MPa | 250 | 3 | 4 | AC30 | Rc, NPT, G 1/4, 3/8 |
| IDG40-D | 25℃,0.7 MPa | 500 | 3 | 4 | AC40 | Rc, NPT, G 3/8, 1/2 |
Features
Modular Connection Type Membrane Air Dryer IDG-D Series
Variations
Contributes to energy saving

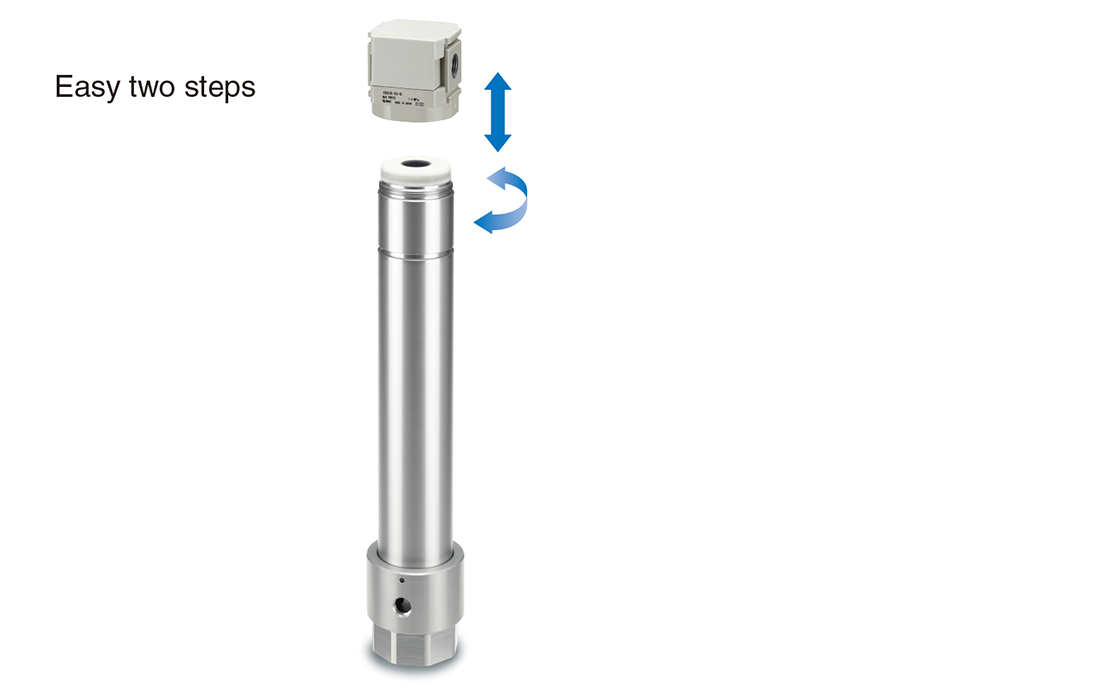

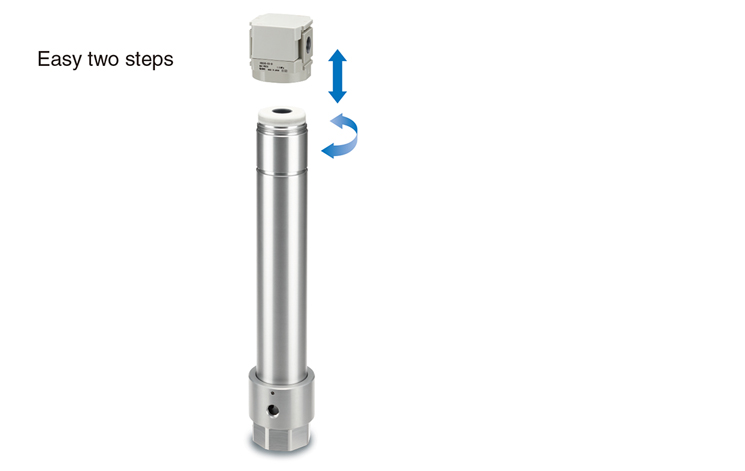

Simplified membrane module replacement

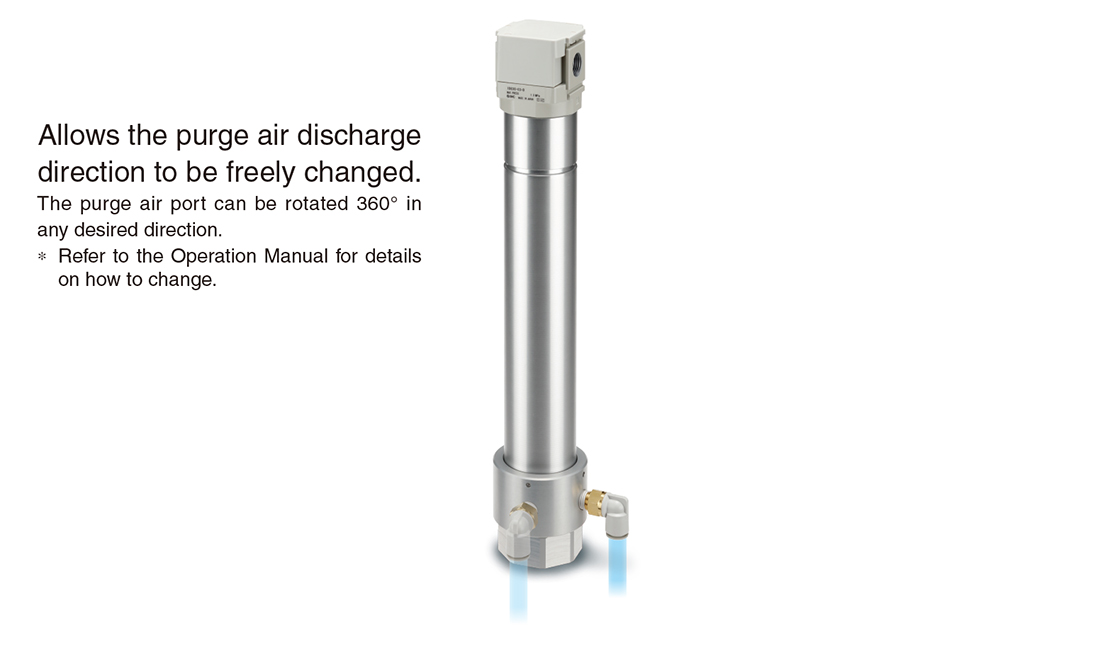

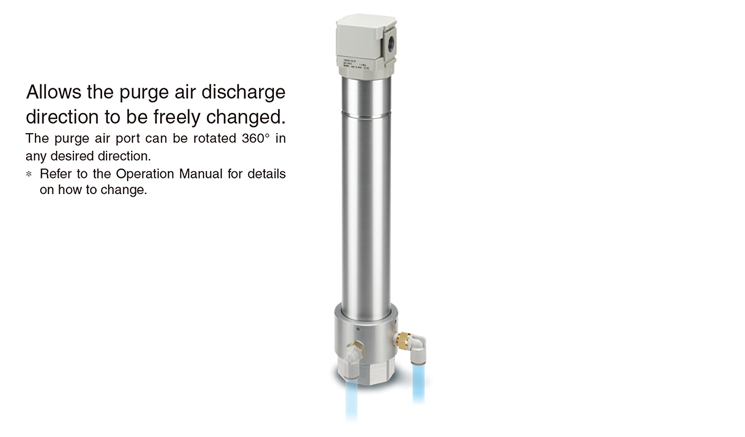

Changeable purge air discharge direction
Simple Specials System
A system designed to respond quickly and easily to your special ordering needs
For modular connection units (shipped assembled), the simple specials system can be used.
