WEB Catalog

Product Information ?  WEB Catalog  ? Directional Control Valves  ? Pilot Operated 4/5 Port Solenoid Valves

Pilot Operated 4/5 Port Solenoid Valves

Compact 5-Port Solenoid Valve/Plug-in Type JSY1000/3000/5000

    ?Spacer type ejector for JSY1000 with additional high-noise reduction
    　silencer [New]
    ?Size reduction has been made possible thanks to a flow increase
    　This allows for space saving, weight reduction, and a large flow rate.
    ?Power consumption: 0.1 W (With power-saving circuit), 0.4 W (Standard)
    ?Connector type manifold
    ?A 4-position dual 3-port valve is available
    ?Manifold Type no.: JJ5SY1, JJ5SY3, JJ5SY5
    ?Can be connected with the ZK2 series vacuum unit
SeriesFlow rate characteristics
4/2→3/5（A/B→E）
C［dm3/（s?bar）］		Flow rate characteristics
4/2→3/5（A/B→E）
b		Applicable
cylinder size		Power
consumption
(W)
JSY10000.910.48φ400.2 (With power-saving circuit)
JSY30002.770.27φ500.4 (Standard)
0.1 (With power-saving circuit)
JSY50006.590.22φ800.4 (Standard)
0.1 (With power-saving circuit)

Features

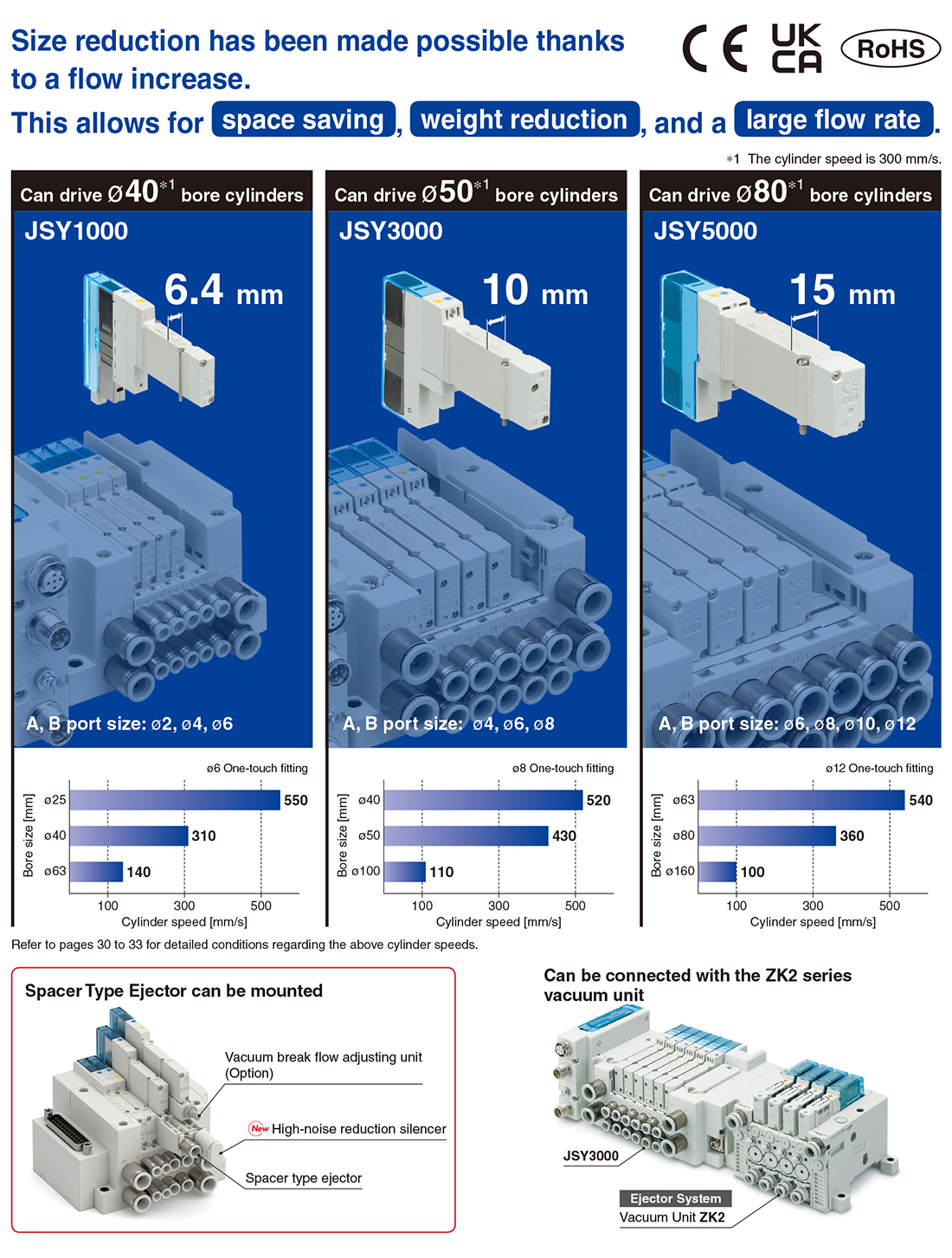

Size reduction has been made possible thanks to a flow increase.

This allows for space saving, weight reduction, and a large flow rate.

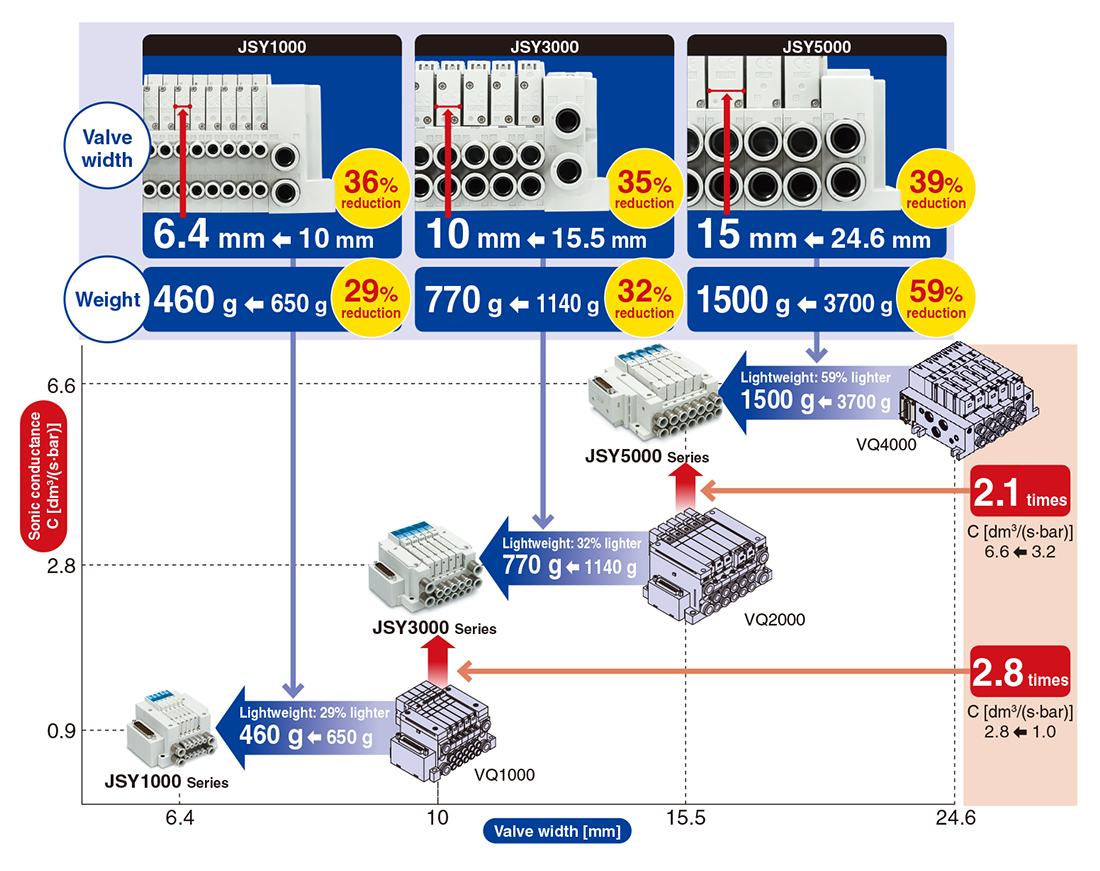

Series Map

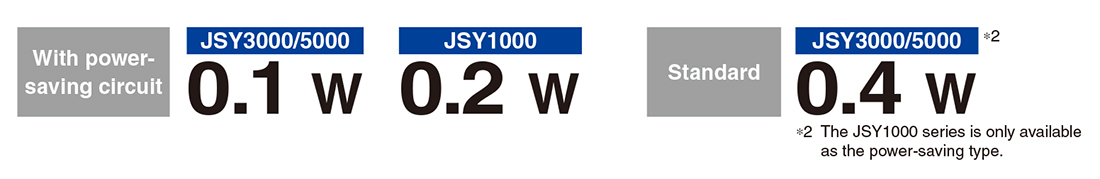

Power consumption

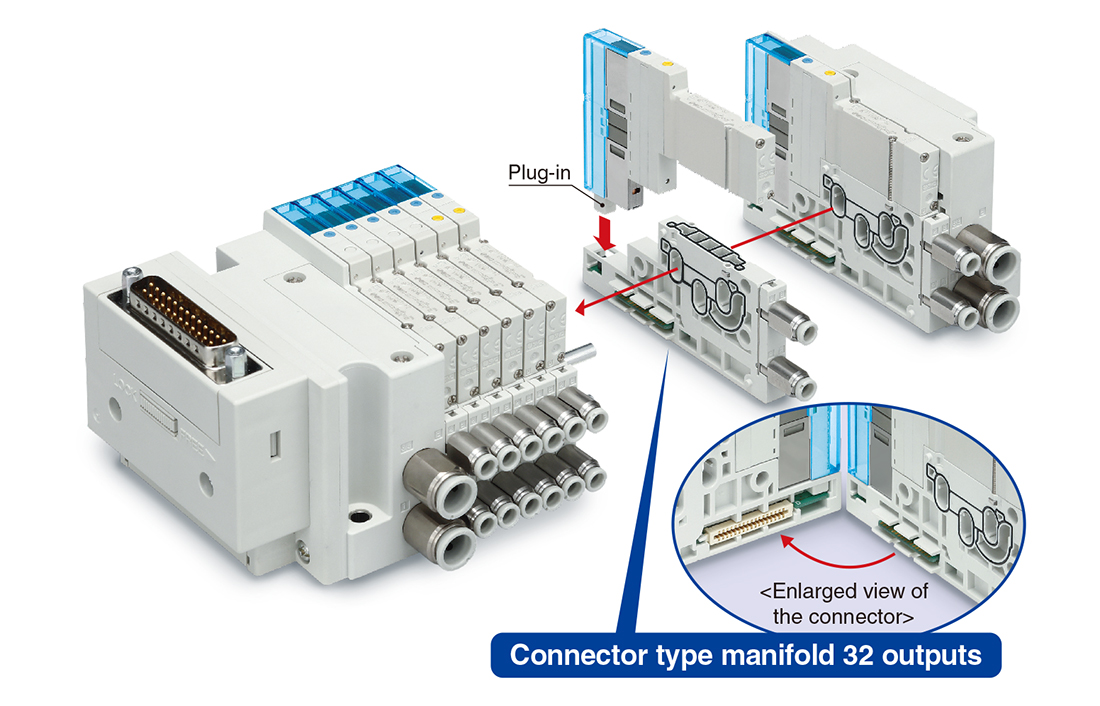

Connector type manifold

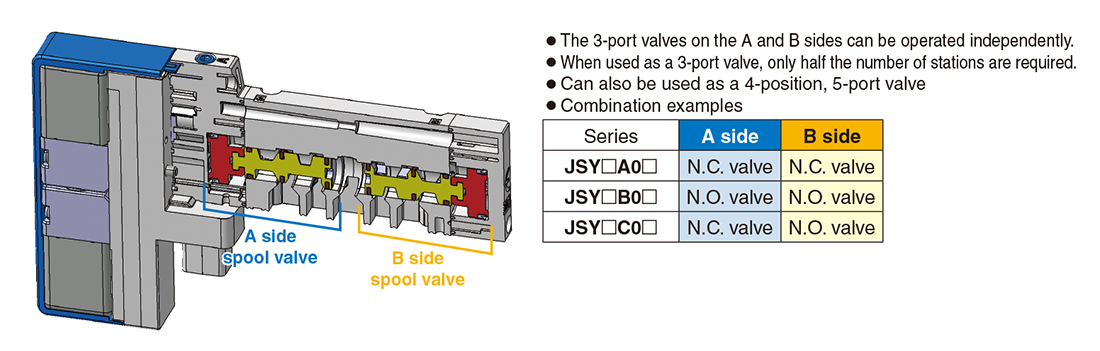

A 4-position dual 3-port valve is available.

?Features two 3-port valves built into one body

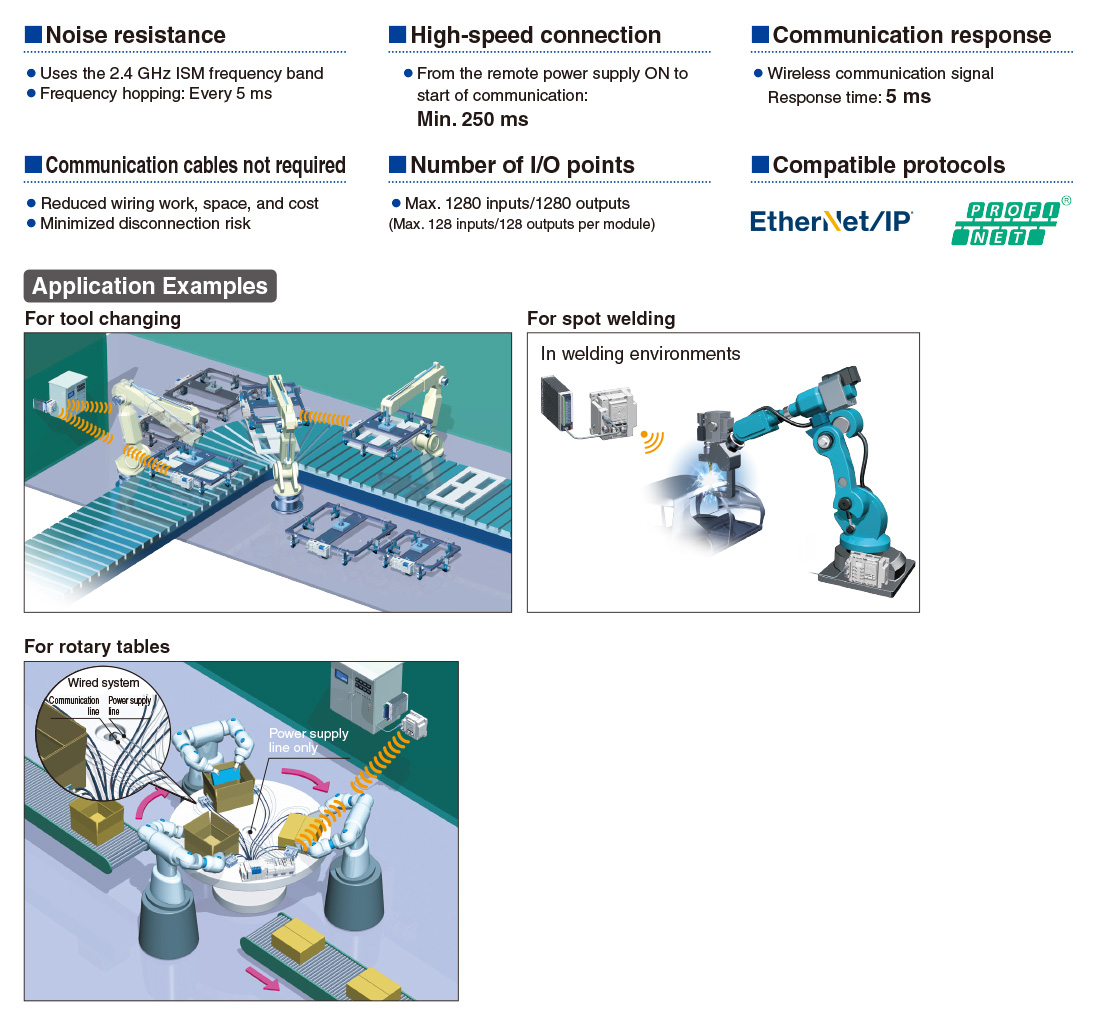

The EX600-W series is compatible with wireless systems.

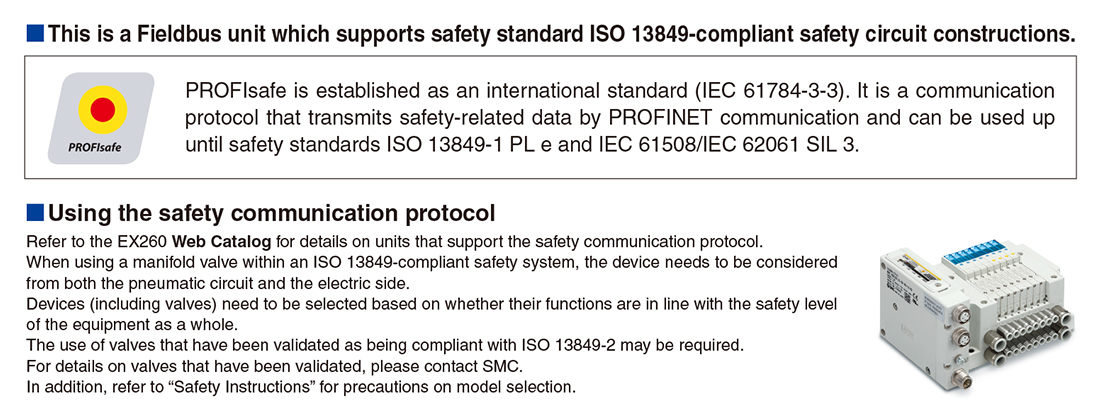

The EX260 series supports safety communication (PROFIsafe).

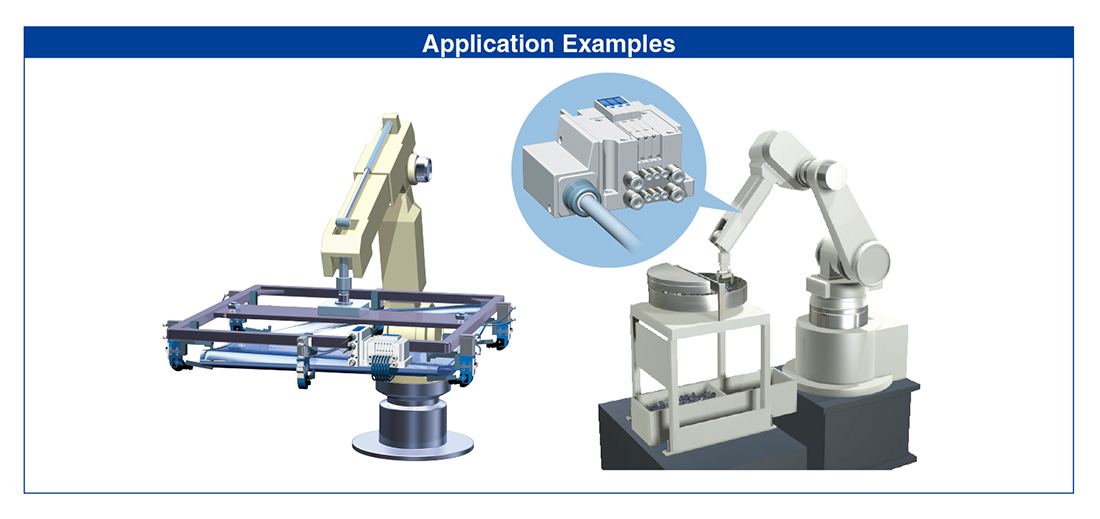

Application Examples

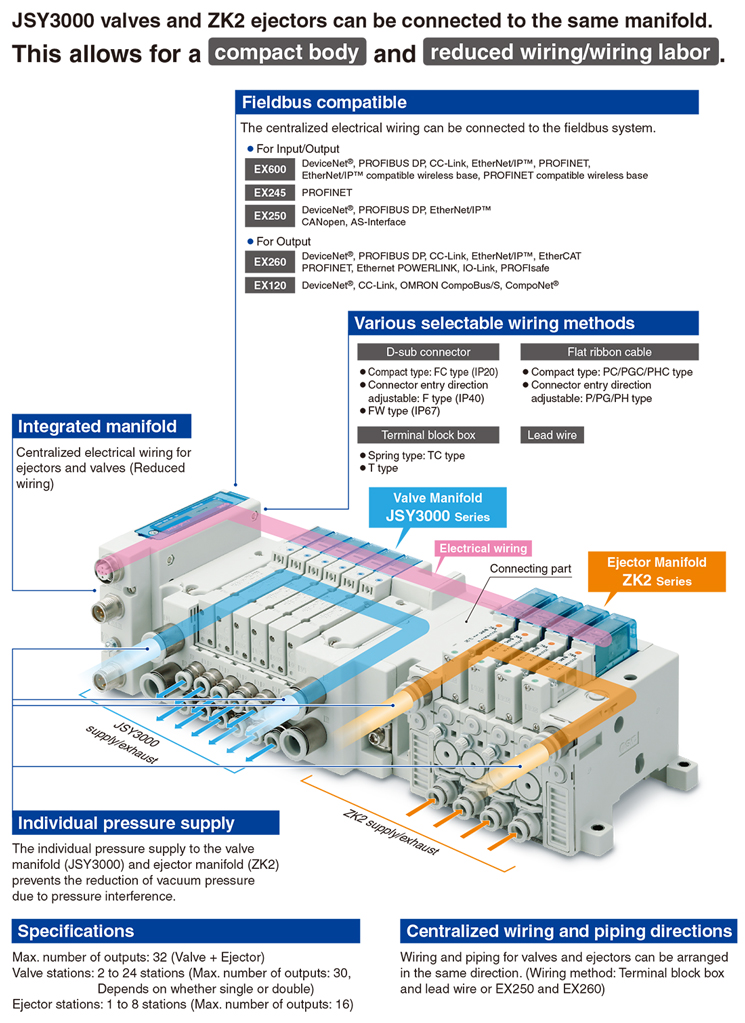

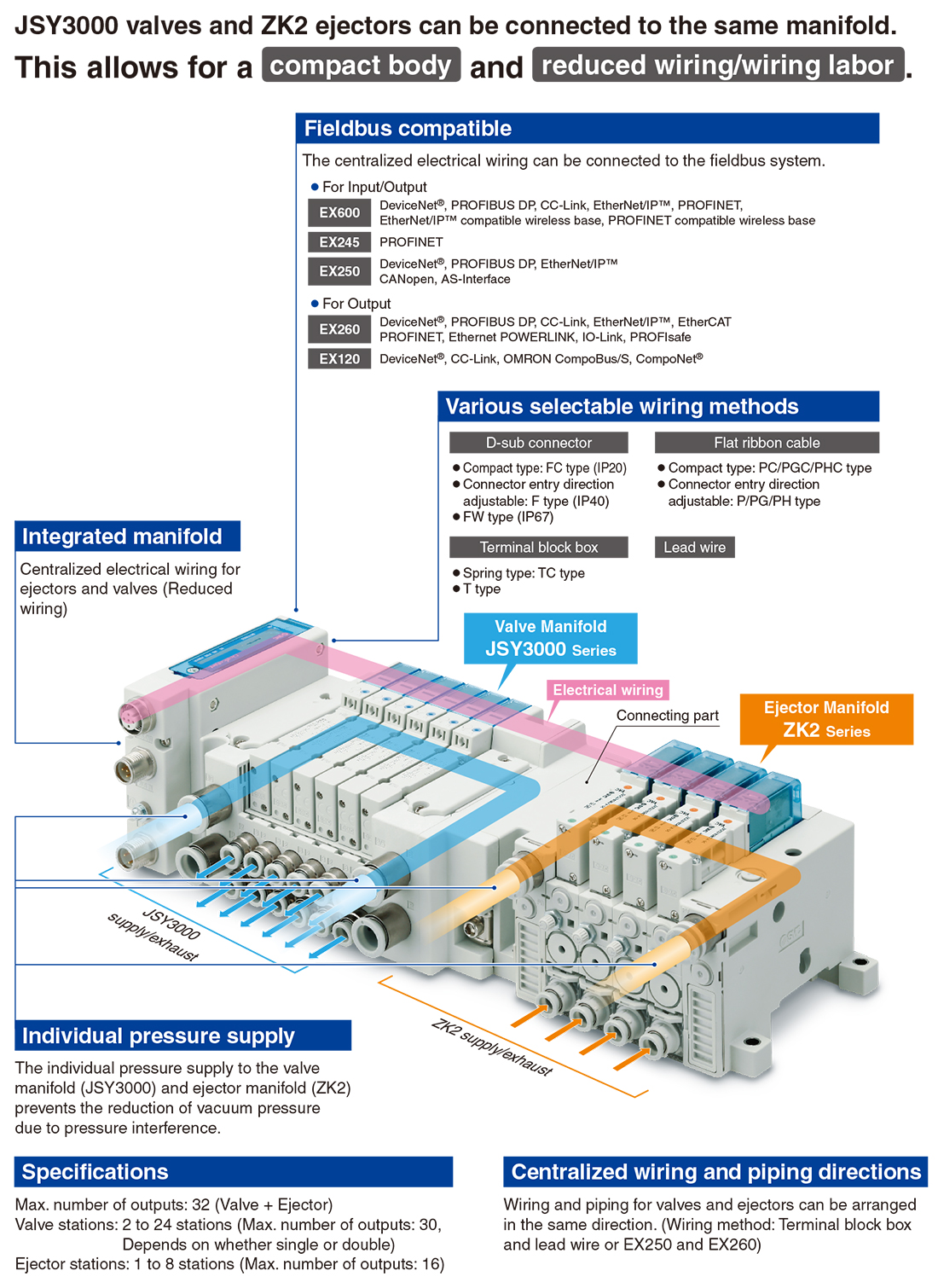

Vacuum Unit ZK2 Combination Manifold
