WEB Catalog

Product Information ?  WEB Catalog  ? Directional Control Valves  ? Finger Valve/Hand Valves/Residual Relief 3 Port Valve

Finger Valve/Hand Valves/Residual Relief 3 Port Valve

Lever Hand Valve VHL

    ?Space saving, Easy to operate (Vertical type) 5-port lever valve

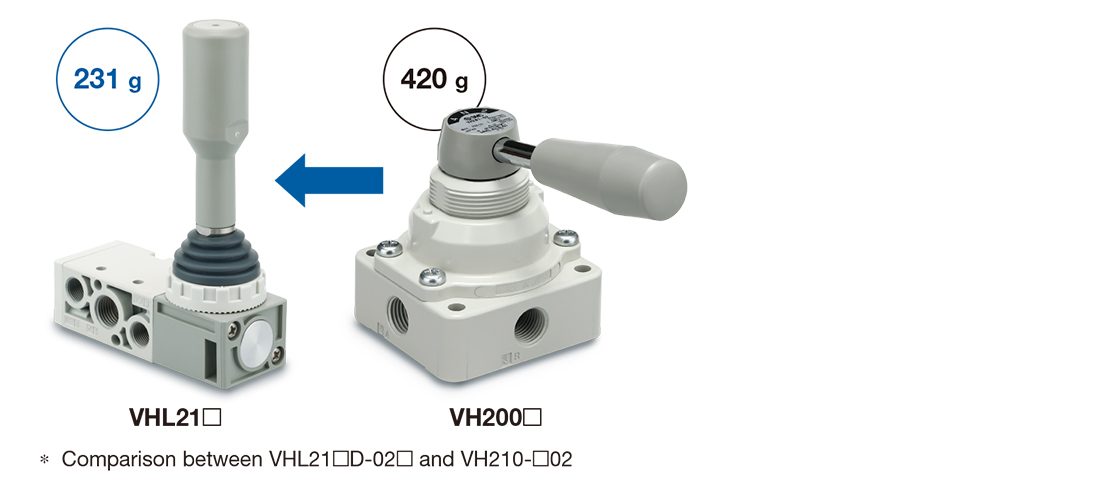

    ?Weight reduction of up to 45%
    　? Comparison between VHL21□D-02□ and VH210-□02

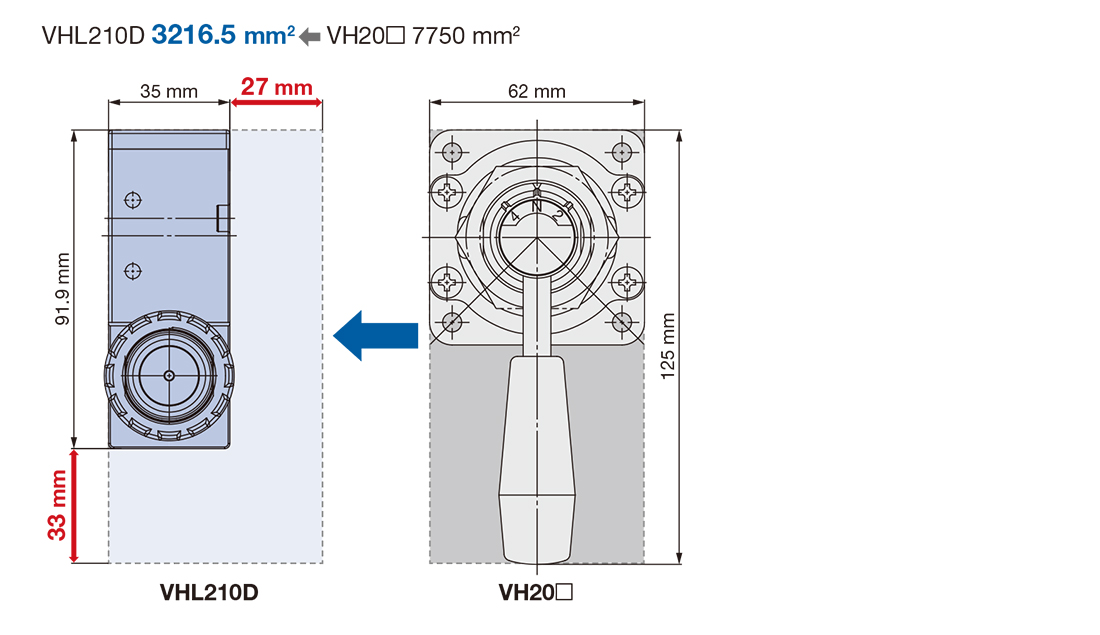

    ?Footprint reduced by 58%
    　VHL210D 3216.5 mm2 ? VH20□ 7750 mm2

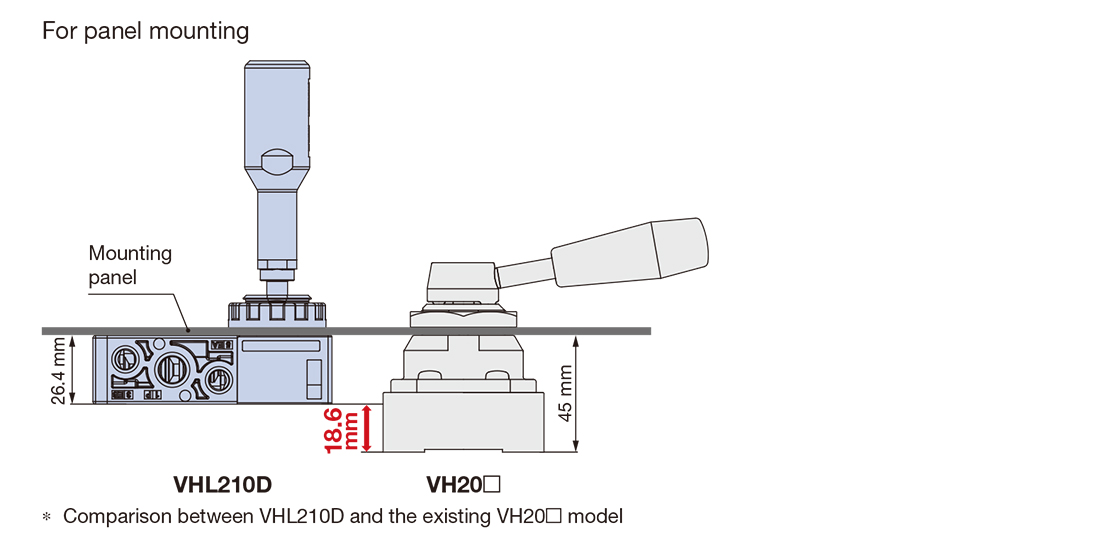

    ?Panel mounting internal height reduced by 18.6 mm
    　For panel mounting
    　? Comparison between VHL210D and the existing VH20□ model
    ?Flow rate increased by 73%
    　? Comparison between VH211□-02□ and VH210-□02
    　(Flow rate characteristics 1 → 4/2 (P → A/B))

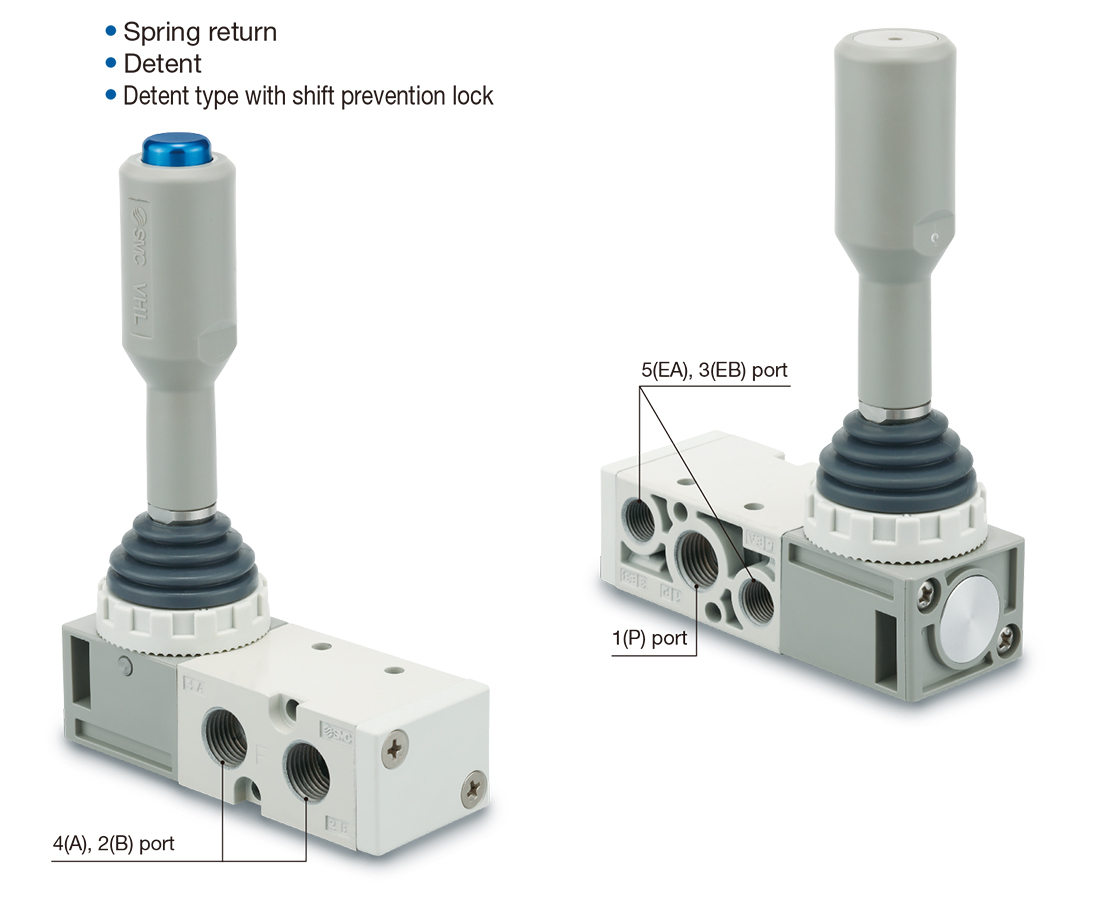

    ?3 operation types
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Lever Hand Valve VHL
    Manual
    Series View search result
    VHLView search result
DescriptionSeriesOperation typePort size
Lever hand valveVHLSpring return
Detent
Detent type with shift prevention lock		1/4

Features

Space saving, Easy to operate

(Vertical type) 5-Port Lever Valve



Weight reduction of up to 45%

3 operation types

Footprint reduced by 58%

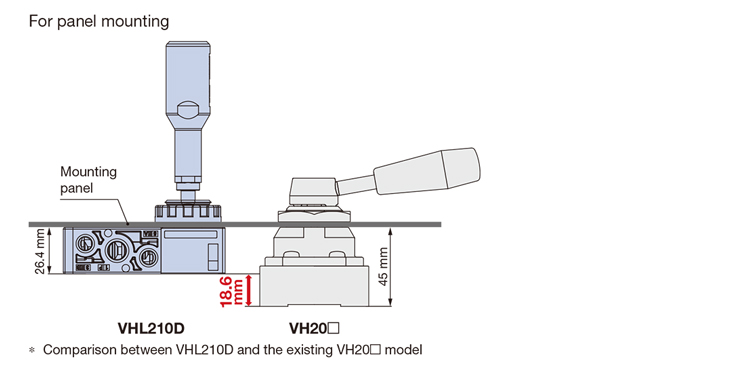

Panel mounting internal height reduced by 18.6 mm



Flow rate increased by 73%

? Comparison between VH211□-02□ and VH210-□02 (Flow rate characterictics 1 → 4/2 (P → A/B))

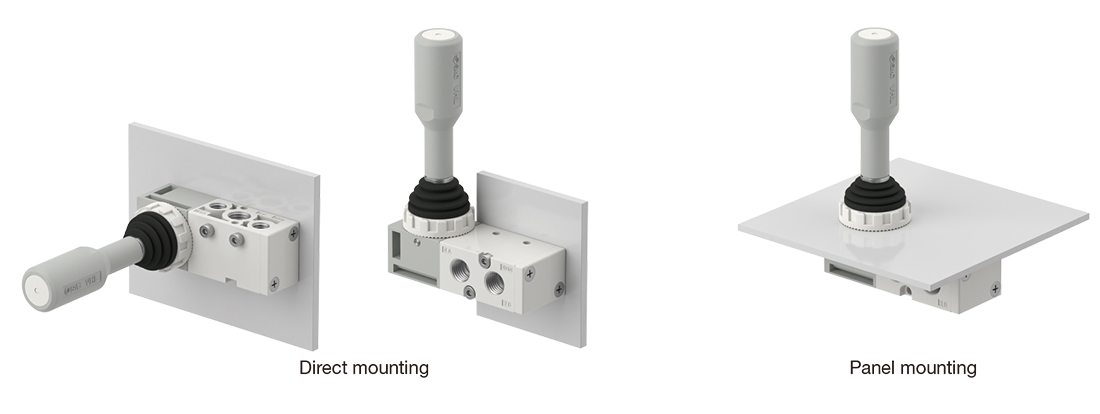

2 mounting options available

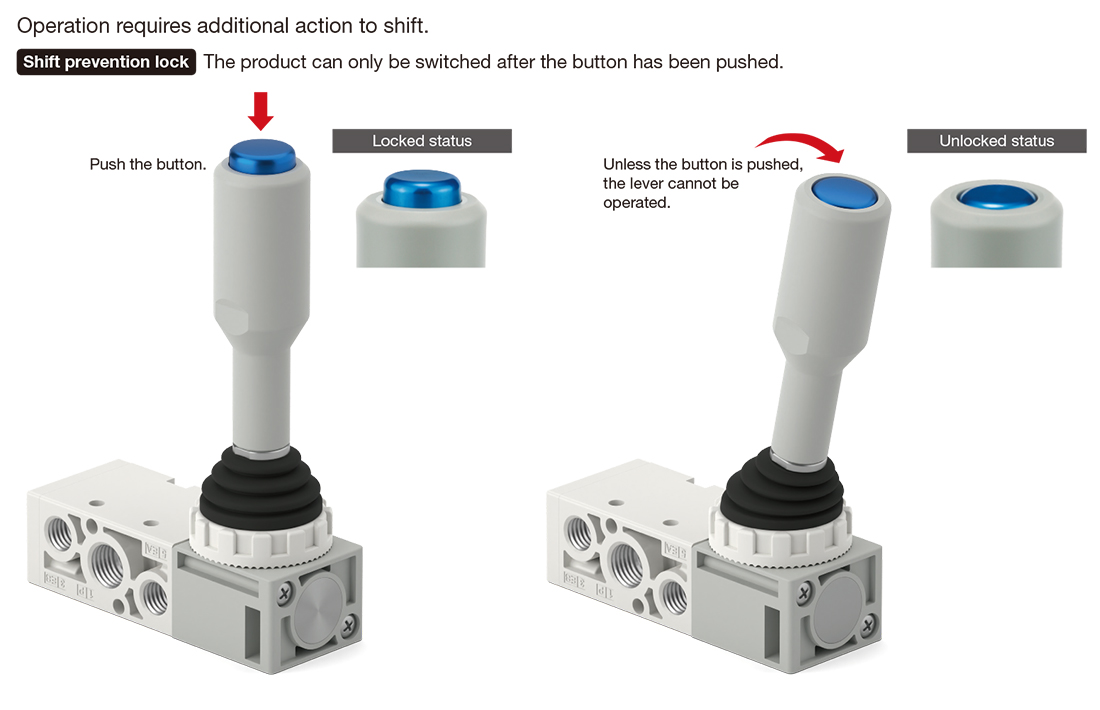

Features unintentional operation prevention
